Square D XB5AA61 Data Sheet

Product datasheet

Characteristics

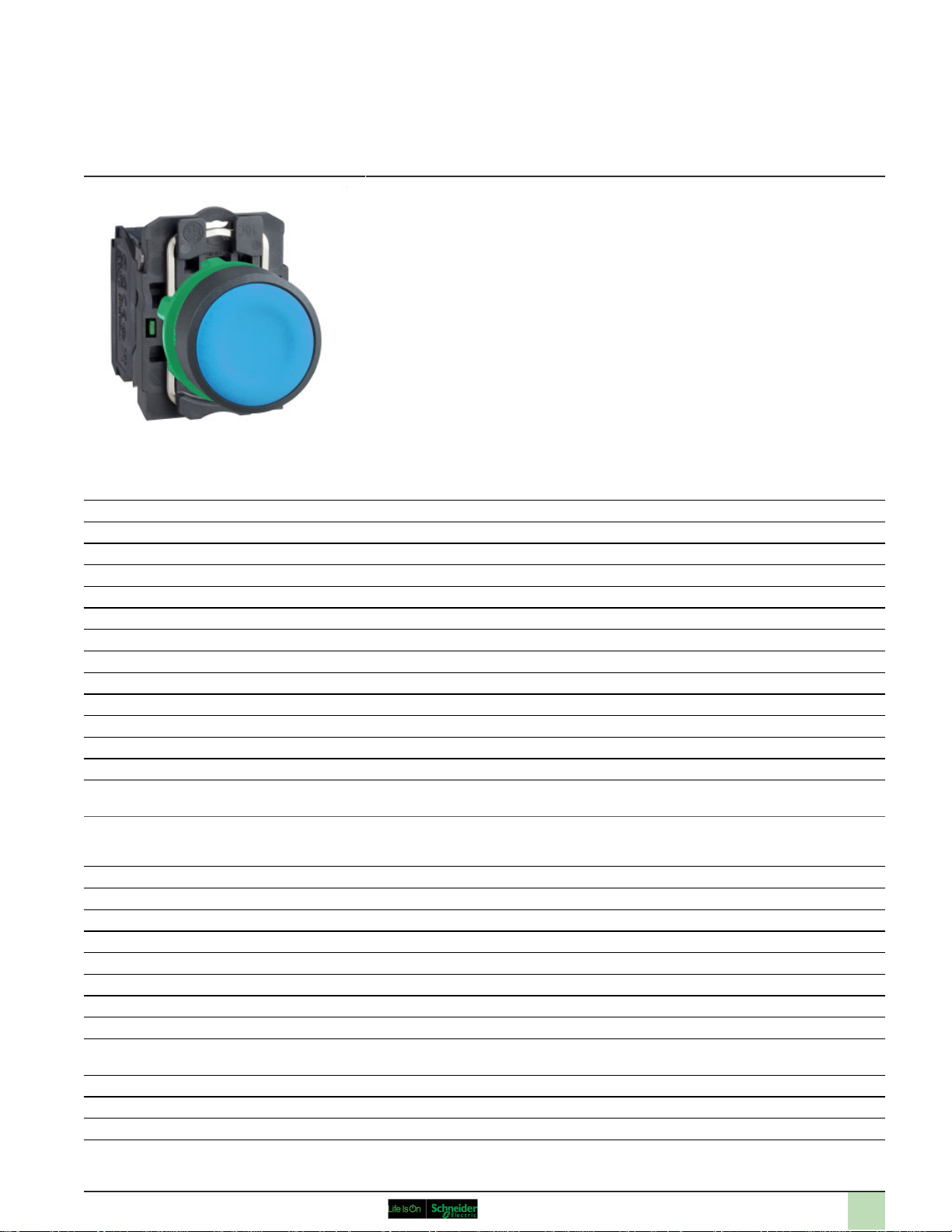

XB5AA61

blue flush complete pushbutton Ø22 spring return
1NO unmarked

Main

Range of product Harmony XB5

Product or component type Complete push-button

Device short name XB5

Bezel material Plastic

Head type Standard

Fixing collar material Plastic

Mounting diameter 22 mm

Sale per indivisible quantity 1

Shape of signaling unit head Round

Type of operator Spring return

Operator profile Blue flush unmarked

Contacts type and composition 1 NO

Contact operation Slow-break

Connections - terminals Screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1

Screw clamp terminals : 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Complementary

Height 42 mm

Width 30 mm

Depth 52 mm

Terminals description ISO n°1 (13-14)NO

Product weight 0.037 kg

Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m

Contacts usage Standard contacts

Positive opening Without positive opening

Operating travel 2.6 mm (NO changing electrical state)

4.3 mm (total travel)

Operating force 3.8 N (NO changing electrical state)

Mechanical durability 10000000 cycles

Tightening torque 0.8...1.2 N.m conforming to EN 60947-1

Shape of screw head Cross head compatible with Philips no 1 screwdriver

Cross head compatible with pozidriv No 1 screwdriver

18 Jan, 2019

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver

Contacts material Silver alloy (Ag/Ni)

Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ith] conventional free air thermal
current

[Ui] rated insulation voltage 600 V (degree of pollution: 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1

[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to

Electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4

10 A conforming to EN/IEC 60947-5-1

6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1

0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to
EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to EN/
IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to
EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: <= 3600 cyc/h, load factor: 0.5 conforming to
EN/IEC 60947-5-1 appendix C

Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Environment

Protective treatment TH

Ambient air temperature for storage -40...70 °C

Ambient air temperature for operation -40...70 °C

IP degree of protection IP69

NEMA degree of protection NEMA 13

IK degree of protection IK03 conforming to IEC 50102

Standards CSA C22.2 No 14

Product certifications DNV

Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27

IP67
IP66 conforming to IEC 60529
IP69K

NEMA 4X

EN/IEC 60947-1
EN/IEC 60947-5-4
UL 508
JIS C 4520
EN/IEC 60947-5-1

CSA
RINA
BV
LROS (Lloyds register of shipping)
GL
UL listed

50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Contractual warranty

Warranty period 18 months

2

Product datasheet

Dimensions Drawings

Dimensions

e: clamping thickness: 1 to 6mm / 0.04 to 0.24in.
(1) Additional row of contacts or double contact

XB5AA61

3

Product datasheet

XB5AA61

Mounting and Clearance

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit Board

(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)

Ø22.5mm recommended (Ø22.3 0

+0.4

) / Ø0.89in. recommended (Ø0.88in. 0

+0 016

)

Connections a in mm a in in. b in mm b in in.

By screw clamp terminals or plug-in connector 40 1.57 30 1.18

By Faston connectors 45 1.77 32 1.26

On printed circuit board 30 1.18 30 1.18

Detail of Lug Recess

(1) Diameter on finished panel or support
(2) For selector switches and Emergency stop buttons, use of an anti-rotation plate type ZB5AZ902 is recommended.
(3)

Ø22.5mm recommended (Ø22.3 0

+0.4

) / Ø0.89in. recommended (Ø0.88in. 0

+0 016

)
