Square D XB4RFA02 Data Sheet

Product data sheet

Characteristics

XB4RFA02

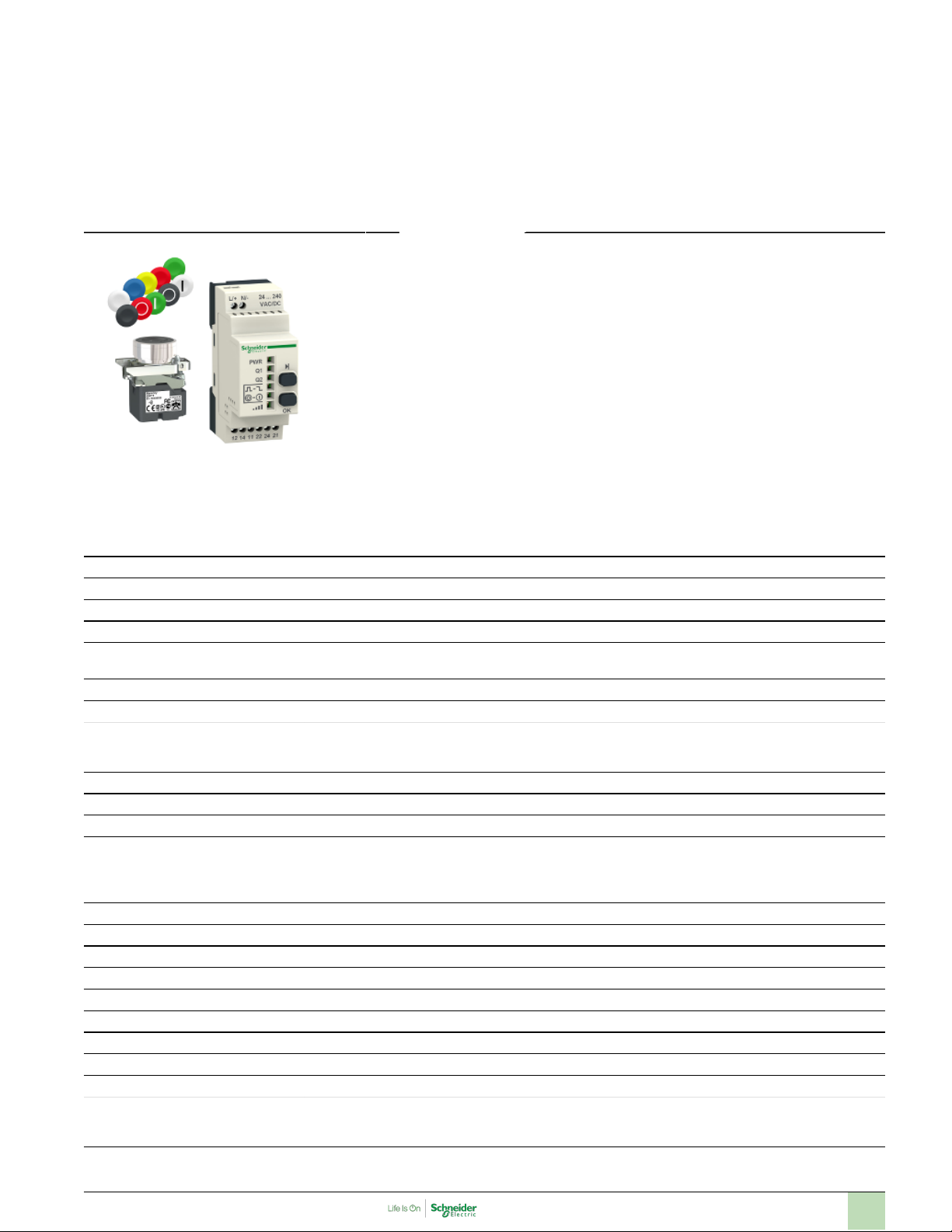

Wireless push button and configurable receiver
with 10 colored caps, metal, Ø22, 24...240 V AC/
DC

Product availability : Stock - Normally stocked in distribution facility

Main

Range of product Harmony XB4R

Product or component type Wireless and batteryless package

Device short name XB4R

Head material Metal

Frequency 2405MHz for transmitter

Emission class 5M00G7W

Antenna type Omnidirectional

2405MHz for receiver

Complementary

Control type Wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Type of receiver Programmable receiver 2 relays)

[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz

Status LED 1 LED Green power ON

Communication port protocol Zigbee IEEE 802.15.4

Max power consumption in W 1mW

Number of channels 1

Modulation technique O-QPSK

Bandwidth 5MHz

Antenna gain 0dBi

Customizable No

Compatibility code XB4R

[Us] rated supply voltage 24...240 V

2 LEDs Green relay ON
2 LEDs Green function mode
1 LED green and yellow reception signal

Environment

Product certifications GOST

*Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.

Dec 14, 2020

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

CCC
CSA
UL
C-tick

Marking CE

Standards EN/IEC 60947-1

Radio agreement ANATEL

EN/IEC 60947-5-1
CSA C22.2 No 14
UL 508

FCC
RSS
ARIB T66
ICASA
SRRC

Ordering and shipping details

Category 22470 - XB5R WIRELESS PUSH BUTTON

Discount Schedule I

GTIN 00785901910879

Nbr. of units in pkg. 1

Package weight(Lbs) 0.59lb(US) (0.27kg)

Returnability Yes

Country of origin FR

Packing Units

Package 1 Height 0.920dm

Package 1 width 1.050dm

Package 1 Length 1.100dm

Offer Sustainability

California proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known

REACh Regulation REACh Declaration

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

WEEE The product must be disposed on European Union markets following specific waste collection and

to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov

EU RoHS Declaration

never end up in rubbish bins.

Contractual warranty

Warranty 18 months

2

Product data sheet

Dimensions Drawings

Programmable Receiver

XB4RFA02

3

Product data sheet

XB4RFA02

Dimensions Drawings

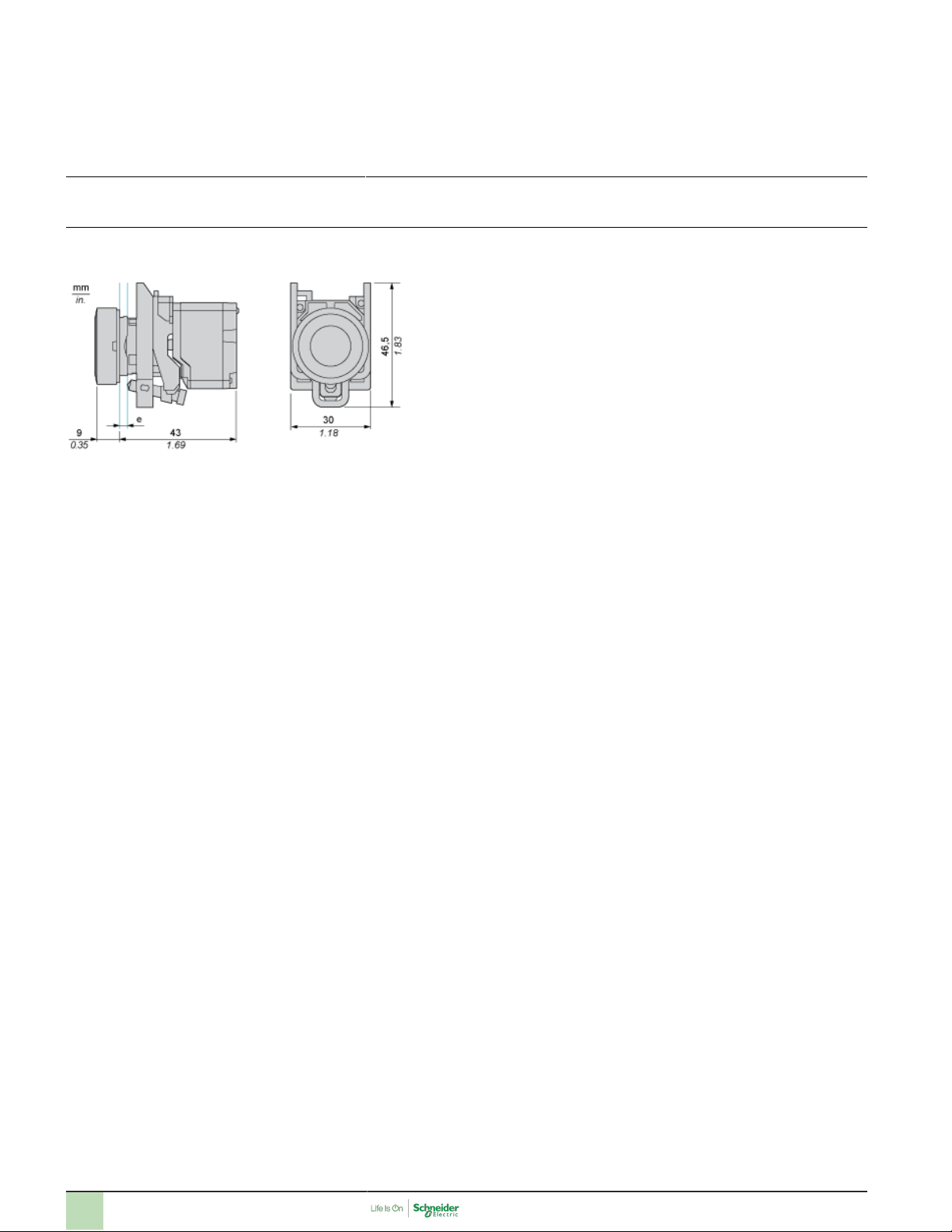

Wireless and Batteryless Pushbutton - Transmitter

With Metal Pushbutton without Cap

e: panel thickness 1 to 6mm / 0.039 to 0.24in.

4

Product data sheet

Mounting and Clearance

Receiver Clearance

(1) Drive
(2) Power Supply or PLC

XB4RFA02

5

Product data sheet

Mounting and Clearance

Receiver Mounting

XB4RFA02

6

Product data sheet

Connections and Schema

Programmable Receiver

XB4RFA02

(1) 500 mA
(2) Output contacts
(3) Imax = 3 A

7
