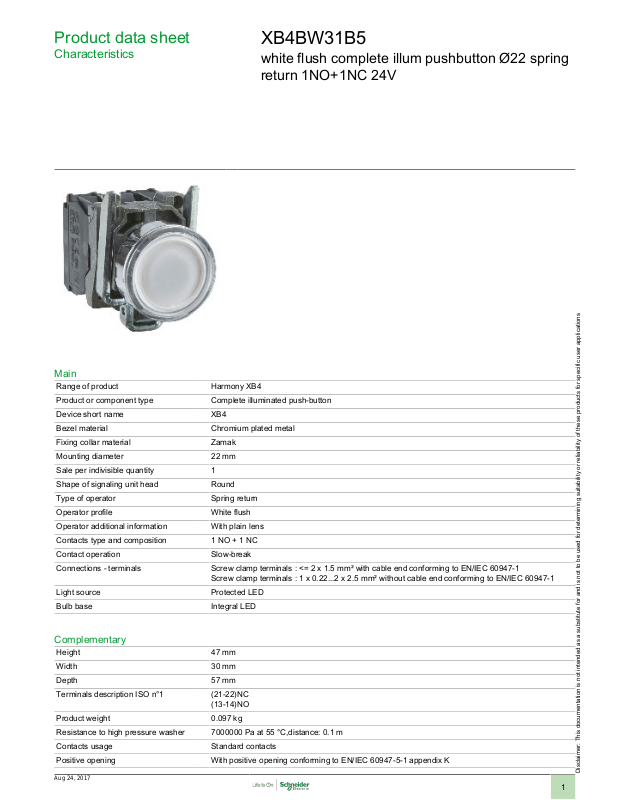

Square D XB4BW31B5 Data Sheet

Product data sheet

Characteristics

XB4BW31B5

white flush complete illum pushbutton Ø22 spring
return 1NO+1NC 24V

Main

Range of product Harmony XB4

Product or component type Complete illuminated push-button

Device short name XB4

Bezel material Chromium plated metal

Fixing collar material Zamak

Mounting diameter 22 mm

Sale per indivisible quantity 1

Shape of signaling unit head Round

Type of operator Spring return

Operator profile White flush

Operator additional information With plain lens

Contacts type and composition 1 NO + 1 NC

Contact operation Slow-break

Connections - terminals Screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1

Screw clamp terminals : 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Light source Protected LED

Bulb base Integral LED

Complementary

Height 47 mm

Width 30 mm

Depth 57 mm

Terminals description ISO n°1 (21-22)NC

(13-14)NO

Product weight 0.097 kg

Resistance to high pressure washer 7000000 Pa at 55 °C,distance: 0.1 m

Contacts usage Standard contacts

Positive opening With positive opening conforming to EN/IEC 60947-5-1 appendix K

Aug 24, 2017

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

Operating travel 1.5 mm (NC changing electrical state)

Operating force 3.5 N (NC changing electrical state)

Mechanical durability 10000000 cycles

Tightening torque 0.8...1.2 N.m conforming to EN 60947-1

Shape of screw head Cross head compatible with Philips no 1 screwdriver

Contacts material Silver alloy (Ag/Ni)

Short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

[Ith] conventional free air thermal
current

[Ui] rated insulation voltage 600 V (degree of pollution: 3) conforming to EN/IEC 60947-1

[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-1

[Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/

Electrical reliability Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4

Signalling type Steady

Supply voltage limits 19.2...30 V DC

Current consumption 18 mA

Service life 100000 h at rated voltage and 25 °C

Surge withstand 1 kV conforming to IEC 61000-4-5

2.6 mm (NO changing electrical state)

4.3 mm (total travel)

3.8 N

Cross head compatible with pozidriv No 1 screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Slotted head compatible with flat Ø 5.5 mm screwdriver

10 A conforming to EN/IEC 60947-5-1

6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1

0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1

1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/
IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/
IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to
EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/
IEC 60947-5-1 appendix C

Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

21.6...26.4 V AC

Environment

Protective treatment TH

Ambient air temperature for storage -40...70 °C

Ambient air temperature for operation -40...70 °C

Electrical shock protection class Class I conforming to IEC 60536

IP degree of protection IP69

NEMA degree of protection NEMA 13

IK degree of protection IK06 conforming to IEC 50102

Standards EN/IEC 60947-1

Product certifications RINA

2

IP67
IP66 conforming to IEC 60529
IP69K

NEMA 4X

UL 508
EN/IEC 60947-5-5
EN/IEC 60947-5-4
JIS C 4520
EN/IEC 60947-5-1
CSA C22.2 No 14

LROS (Lloyds register of shipping)

UL listed
CSA
BV
DNV
GL

Vibration resistance 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

Shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients 2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2

Electromagnetic emission Class B conforming to IEC 55011

50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Contractual warranty

Warranty period 18 months

3

Product data sheet

Dimensions Drawings

Dimensions

e : clamping thickness: 1 to 6mm / 0.04 to 0.24in.
(1) Additional row of contacts or double contact

XB4BW31B5

4

Product data sheet

XB4BW31B5

Mounting and Clearance

Panel Cut-out for Pushbuttons, Switches and Pilot Lights (Finished Holes, Ready for Installation)

Connection by Screw Clamp Terminals or Plug-in Connectors or on Printed Circuit BoardConnection by Faston Connectors

(1) Diameter on finished panel or support
(2) 40mm min. / 1.57in. min.
(3) 30mm min. / 1.18in. min.
(4)

Ø 22.5mm / 0.89in. recommended (Ø 22.3mm 0
(5) 45mm min. / 1.78in. min.
(6) 32mm min. / 1.26in. min.

+0.4

/ 0.88in. 0

+0 016

)
