Product data sheet
Characteristics

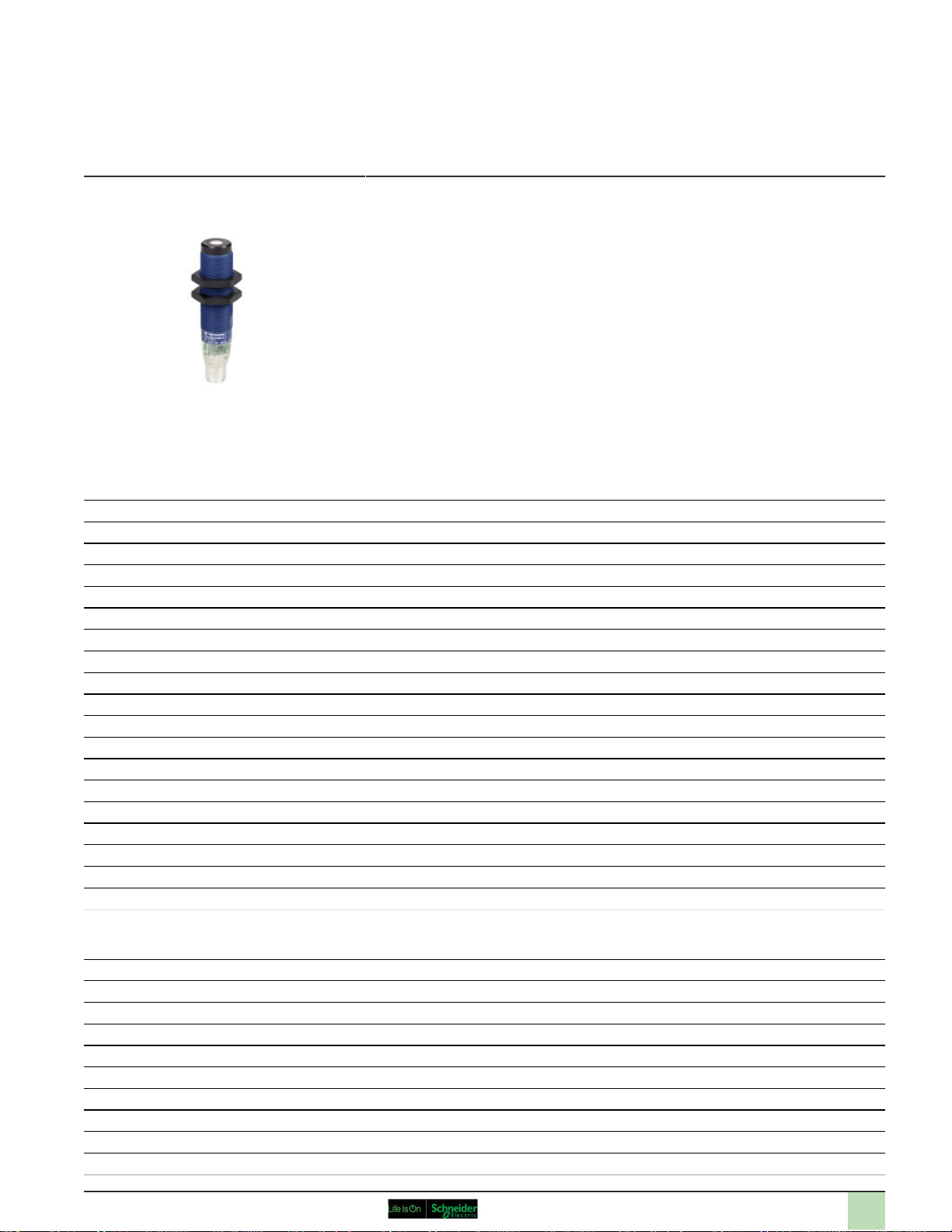

VM18NNOQ
ultrasonic sensor cylindrical M18 - Sn508mm NO - 12..24VDC - M12
Main
Range of product Hyde Park
Sensor type Ultrasonic sensor
Series name Virtu VM18
Device short name VM18
Sensor design Cylindrical M18
[Sn] nominal sensing distance 508 mm
Type of sensing window Adjustable
Material Plastic
Enclosure material PBT
Front material Glass epoxy
Type of output signal Discrete
Discrete output function 1 NO
ISO thread M18 x 1
Wiring technique 4-wire
[Us] rated supply voltage 12...24 V DC (overload and short-circuit protection)
Supply voltage limits 10...28 V DC
Discrete output type NPN
Electrical connection 1 male connector M12 4 pins
Product specific application -
Complementary
[Sd] sensing range 50.8...508 mm
[Sa] assured operating distance 50.8...508 mm with remote teach push-button
Blind zone 0...51 mm
Transmission frequency 300 kHz
Repeat accuracy 1.27 %
Beam angle 5 °
Minimum size of detected object Cylinder diameter 2.5 mm - up to 200 mm sensing distance
Status LED 1 LED - green - output not active
Current consumption 40 mA
Maximum switching current 100 mA (reverse polarity protection)
Jan 18, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Resistance to electrostatic discharge 8 kV (level 4) conforming to IEC 61000-4-2
Height 18 mm
Width 18 mm
Depth 18 mm
Length 77.62 mm
Product weight 0.033 kg
Environment
Standards EN 60947
Product certifications UL
Marking CE
NEMA degree of protection NEMA 4X (indoor use only)
IP degree of protection IP67
Ambient air temperature for operation -30...70 °C
Ambient air temperature for storage -40...85 °C
Relative humidity 100 % without condensation
Vibration resistance +/-1 mm conforming to IEC 60068-2-6 10...55 Hz
Shock resistance 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Resistance to electromagnetic fields 10 V/m (level 3) conforming to IEC 61000-4-3
Resistance to fast transients 1 kV (level 3) conforming to IEC 61000-4-4
Offer Sustainability
RoHS (date code: YYWW) Compliant - since 1150 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Product end of life instructions Available
End of Life Information
Contractual warranty
Warranty period 18 months
