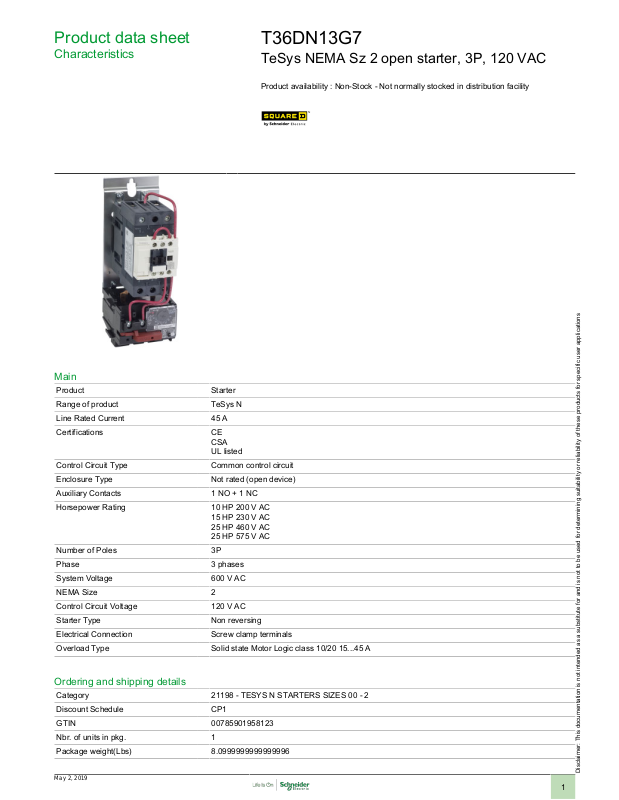

Product data sheet
Characteristics
T36DN13G7
TeSys NEMA Sz 2 open starter, 3P, 120 VAC
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product Starter
Range of product TeSys N
Line Rated Current 45 A
Certifications CE
Control Circuit Type Common control circuit
Enclosure Type Not rated (open device)
Auxiliary Contacts 1 NO + 1 NC
Horsepower Rating 10 HP 200 V AC
Number of Poles 3P
Phase 3 phases
System Voltage 600 V AC
NEMA Size 2
Control Circuit Voltage 120 V AC
Starter Type Non reversing
Electrical Connection Screw clamp terminals
Overload Type Solid state Motor Logic class 10/20 15...45 A
CSA
UL listed
15 HP 230 V AC
25 HP 460 V AC
25 HP 575 V AC
Ordering and shipping details
Category 21198 - TESYS N STARTERS SIZES 00 - 2
Discount Schedule CP1
GTIN 00785901958123
Nbr. of units in pkg. 1
Package weight(Lbs) 8.0999999999999996
May 2, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Returnability Y
Offer Sustainability
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
