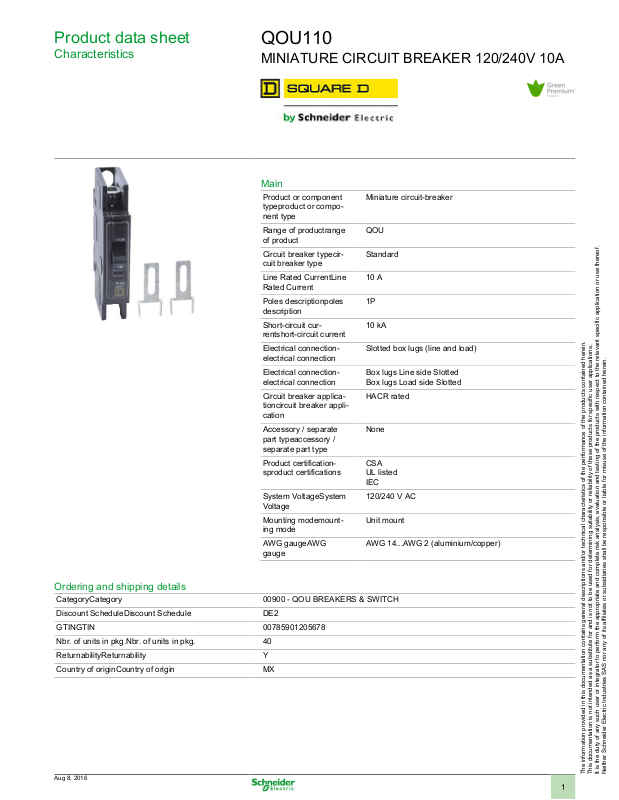

Square D QOU110 Data Sheet

Product data sheet
Characteristics
MINIATURE CIRCUIT BREAKER 120/240V 10A
Main
Product or component typeproduct or compo­nent type
Range of productrange of product
Circuit breaker typecir­cuit breaker type
Line Rated CurrentLine Rated Current
Poles descriptionpoles description
Short-circuit cur­rentshort-circuit current
Electrical connection­electrical connection
Electrical connection­electrical connection
Circuit breaker applica­tioncircuit breaker appli­cation
Accessory / separate part typeaccessory / separate part type
Product certification­sproduct certifications
System VoltageSystem Voltage
Mounting modemount­ing mode
AWG gaugeAWG gauge
Miniature circuit-breaker
QOU
Standard
10 A
1P
10 kA
Slotted box lugs (line and load)
Box lugs Line side Slotted Box lugs Load side Slotted
HACR rated
None
CSA UL listed IEC
120/240 V AC
Unit mount
AWG 14...AWG 2 (aluminium/copper)
Ordering and shipping details
CategoryCategory 00900 - QOU BREAKERS & SWITCH
Discount ScheduleDiscount Schedule DE2
GTINGTIN 00785901205678
Nbr. of units in pkg.Nbr. of units in pkg. 40
ReturnabilityReturnability Y
Country of originCountry of origin MX
Aug 8, 2016
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
1
Offer Sustainability
Sustainable offer statusSustainable offer status Green Premium product
RoHS (date code: YYWW)RoHS (date code: YY­WW)
REAChREACh Reference not containing SVHC above the threshold
Product environmental profileProduct environmental profile
Product end of life instructionsProduct end of life in­structions
Compliant - since 1323 - Schneider Electric declaration of conformity Schneider
Electric declaration of conformity
Available
Need no specific recycling operations
Contractual warranty
Warranty periodWarranty period 18 months
2
