Square D QOB350 Data Sheet

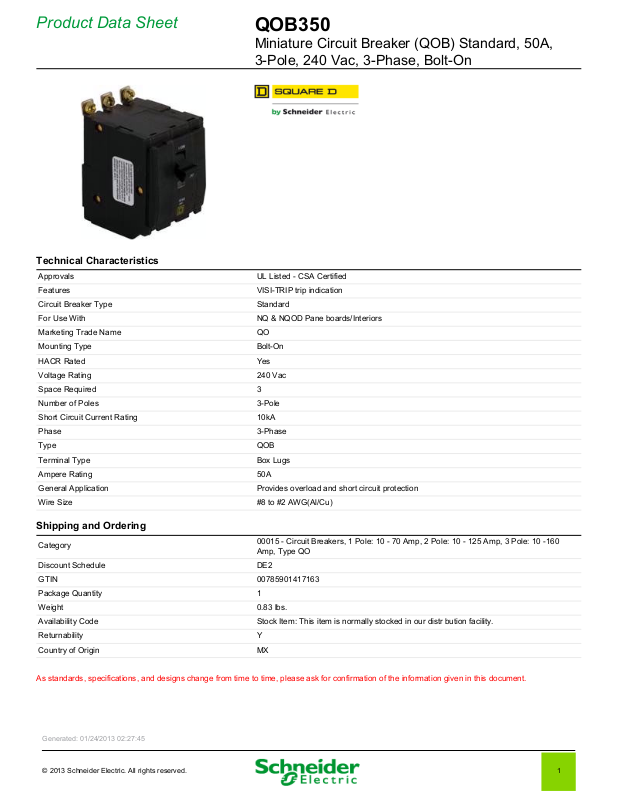

Product Data Sheet

QOB350

Miniature Circuit Breaker (QOB) Standard, 50A, 3-Pole, 240 Vac, 3-Phase, Bolt-On

Approvals UL Listed - CSA Certified

Features VISI-TRIP trip indication

Circuit Breaker Type Standard

For Use With NQ & NQOD Pane boards/Interiors

Marketing Trade Name QO

Mounting Type Bolt-On

HACR Rated Yes

Voltage Rating 240 Vac

Space Required 3

Number of Poles 3-Pole

Short Circuit Current Rating 10kA

Phase 3-Phase

Type QOB

Terminal Type Box Lugs

Ampere Rating 50A

General Application Provides overload and short circuit protection

Wire Size #8 to #2 AWG(Al/Cu)

Technical Characteristics

Category

00015 - Circuit Breakers, 1 Pole: 10 - 70 Amp, 2 Pole: 10 - 125 Amp, 3 Pole: 10 -160 Amp, Type QO

Discount Schedule DE2

GTIN 00785901417163

Package Quantity 1

Weight 0.83 lbs.

Availability Code Stock Item: This item is normally stocked in our distr bution facility.

Returnability Y

Country of Origin MX

Shipping and Ordering

As standards, specifications, and designs change from time to time, please ask for confirmation of the information given in this document.

Generated: 01/24/2013 02:27:45

Specifications and Main Features
