Product Data Sheet

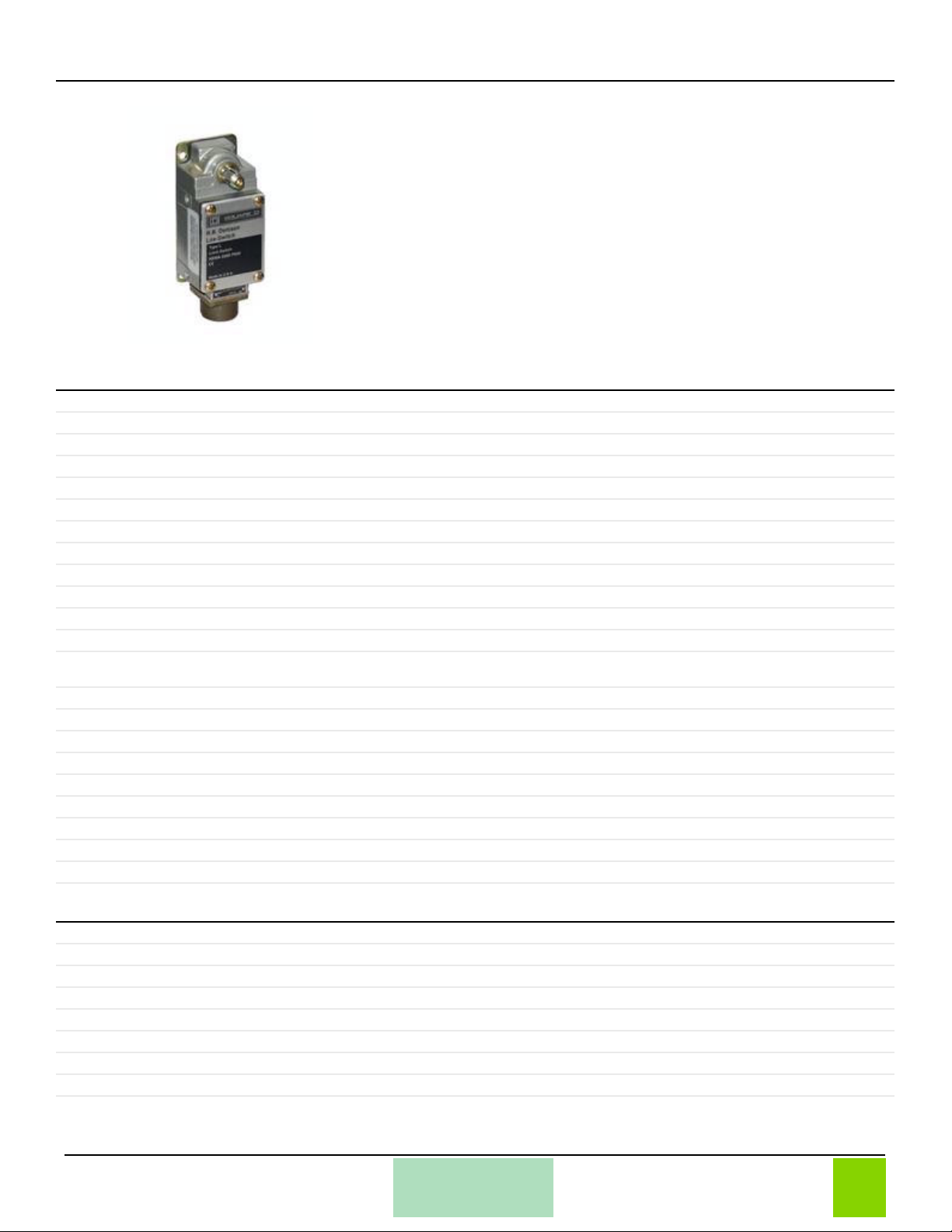

PL100WS2M1
LIMIT SWITCH
Enclosure Rating NEMA 1/4/13
Features Metal Front Cover
Head Type Rotary
Mounting Type Panel
Function Two Circuit - Single Operation
Operating Temperature Range 0 to 200 Degrees F
Type L100
Type of Duty Severe Duty (Mill)
Vibration Resistance 30G (10-55Hz)
Wire Size (1) #12AWG or (2) #14AWG
Actuator Action Momentary
Operating Torque/Force 190 Inch-Ounces
Approvals
UL Listed File Number 42259 CCN NKCR - CSA Certified File Number LR25490 - Class
3211-03 - CE Marked
Body Material Cast Aluminum
Connection Type 4 Pin (Male) APL/PL-SWTS (Cannon# MS3102E20-4P-F79 or equal)
Contact Operation Snap Action
Contact Material Silver Alloy
Contact Rating NEMA A600/P600
Contact Form 2-Pole Double Break (Isolated Contacts)
Terminal Type Screw Clamp
Ampere Rating 20A
Maximum Voltage Rating 600V
Technical Characteristics
Category 22426 - Limit Switches, Heavy Duty, Mill & Foundry, Type L
Discount Schedule T
GTIN 00785901171805
Package Quantity 1
Weight 1.65 lbs.
Availability Code Non-Stock Item: This item is not normally stocked in our distribution facility.
Returnability N
Country of Origin MX
Shipping and Ordering
Generated: 08/24/2011 10:00:44
