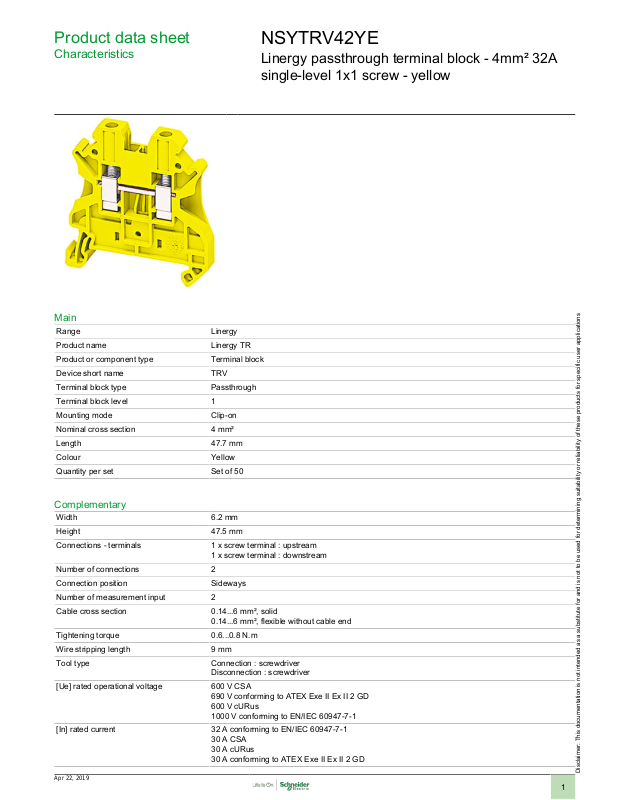

Product data sheet
Characteristics
Main
Range Linergy
Product name Linergy TR
Product or component type Terminal block
Device short name TRV
Terminal block type Passthrough
Terminal block level 1
Mounting mode Clip-on
Nominal cross section 4 mm²
Length 47.7 mm
Colour Yellow
Quantity per set Set of 50
NSYTRV42YE
Linergy passthrough terminal block - 4mm² 32A
single-level 1x1 screw - yellow
Complementary
Width 6.2 mm
Height 47.5 mm
Connections - terminals 1 x screw terminal : upstream
1 x screw terminal : downstream
Number of connections 2
Connection position Sideways
Number of measurement input 2
Cable cross section 0.14...6 mm², solid
0.14...6 mm², flexible without cable end
Tightening torque 0.6...0.8 N.m
Wire stripping length 9 mm
Tool type Connection : screwdriver
Disconnection : screwdriver
[Ue] rated operational voltage 600 V CSA
690 V conforming to ATEX Exe II Ex II 2 GD
600 V cURus
1000 V conforming to EN/IEC 60947-7-1
[In] rated current 32 A conforming to EN/IEC 60947-7-1
30 A CSA
30 A cURus
30 A conforming to ATEX Exe II Ex II 2 GD
Apr 22, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Material Polyamide 6/6 (insulating case)
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093
Surface resistance 1000 GΩ conforming to IEC 60093
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Product weight 9.4 g
Range compatibility Prisma - G
Product compatibility Spacial enclosures
0.01 at 1 MHz conforming to VDE 0303-T4
10000 MΩ.m conforming to VDE 0303-T30
1000 GΩ conforming to VDE 0303-T30
500 CTI (> 400 kB) conforming to VDE 0303-T30
Prisma - P
Pragma
Prisma - PH
Prisma - Pack
Spacial
Kaedra
TeSys
Environment
Product certifications ATEX
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40...130 °C conforming to IEC 60216-1
CSA
cURus
DNV
GL
LR
VDE
IEC-Ex
EAC
-40...130 °C conforming to VDE 0304-T21
2
