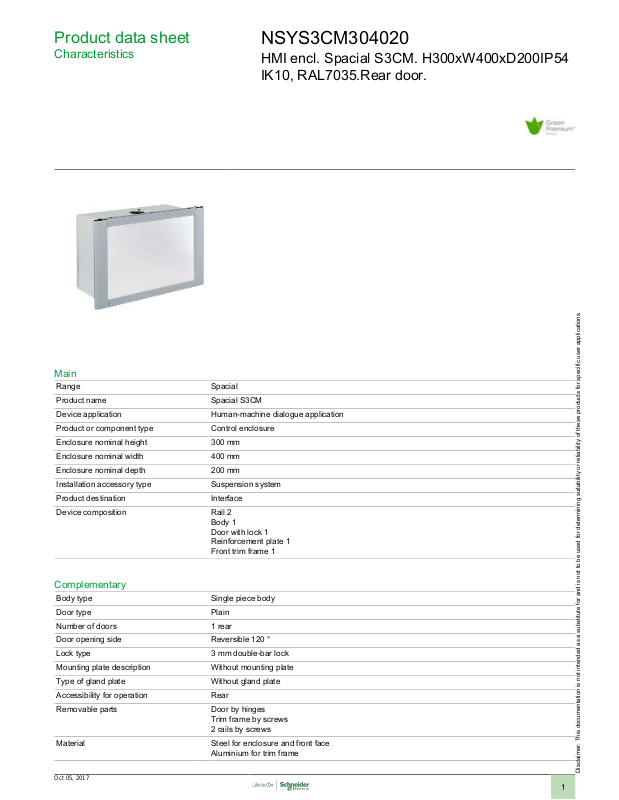

Product data sheet
Characteristics
NSYS3CM304020
HMI encl. Spacial S3CM. H300xW400xD200IP54
IK10, RAL7035.Rear door.
Main
Range Spacial
Product name Spacial S3CM
Device application Human-machine dialogue application
Product or component type Control enclosure
Enclosure nominal height 300 mm
Enclosure nominal width 400 mm
Enclosure nominal depth 200 mm
Installation accessory type Suspension system
Product destination Interface
Device composition Rail 2
Body 1
Door with lock 1
Reinforcement plate 1
Front trim frame 1
Complementary
Body type Single piece body
Door type Plain
Number of doors 1 rear
Door opening side Reversible 120 °
Lock type 3 mm double-bar lock
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Accessibility for operation Rear
Removable parts Door by hinges
Material Steel for enclosure and front face
Trim frame by screws
2 rails by screws
Aluminium for trim frame
Oct 05, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Surface finish Epoxy-polyester powder
Colour Grey RAL 7035 enclosure:
Grey RAL 7040 front face:
Environment
IP degree of protection IP54 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0940 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Contractual warranty
Warranty period 18 months
