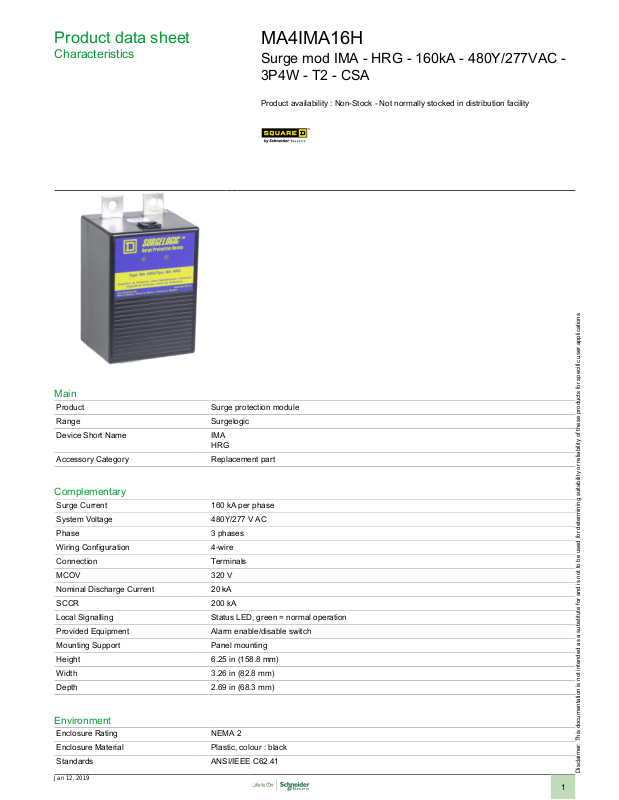

Product data sheet
Characteristics
MA4IMA16H
Surge mod IMA - HRG - 160kA - 480Y/277VAC 3P4W - T2 - CSA
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product Surge protection module
Range Surgelogic
Device Short Name IMA
Accessory Category Replacement part
HRG
Complementary
Surge Current 160 kA per phase
System Voltage 480Y/277 V AC
Phase 3 phases
Wiring Configuration 4-wire
Connection Terminals
MCOV 320 V
Nominal Discharge Current 20 kA
SCCR 200 kA
Local Signalling Status LED, green = normal operation
Provided Equipment Alarm enable/disable switch
Mounting Support Panel mounting
Height 6.25 in (158.8 mm)
Width 3.26 in (82.8 mm)
Depth 2.69 in (68.3 mm)
Environment
Enclosure Rating NEMA 2
Enclosure Material Plastic, colour : black
Standards ANSI/IEEE C62.41
Jan 12, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
ANSI/IEEE C62.45
NEC 285
CSA C22.2 No 8 1986
UL 1283 ed. 5
UL 1449 ed. 4
Ambient Operating 149 °F (65 °C)
Ordering and shipping details
Category 08467 - SURGE PROTECTION REPLACEMENT
Discount Schedule DE1B
GTIN 00785901831761
Nbr. of units in pkg. 1
Package weight(Lbs) 2.4399999999999999
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will be compliant on 4Q2016
Will be compliant on 4Q2016
Contractual warranty
Warranty period 18 months
