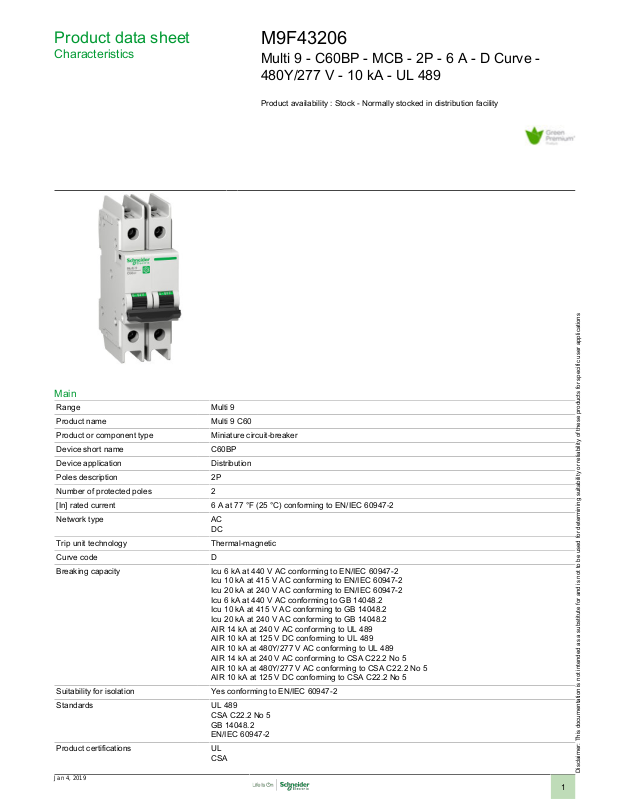

Product data sheet
Characteristics
M9F43206
Multi 9 - C60BP - MCB - 2P - 6 A - D Curve 480Y/277 V - 10 kA - UL 489
Product availability : Stock - Normally stocked in distribution facility
Main
Range Multi 9
Product name Multi 9 C60
Product or component type Miniature circuit-breaker
Device short name C60BP
Device application Distribution
Poles description 2P
Number of protected poles 2
[In] rated current 6 A at 77 °F (25 °C) conforming to EN/IEC 60947-2
Network type AC
DC
Trip unit technology Thermal-magnetic
Curve code D
Breaking capacity Icu 6 kA at 440 V AC conforming to EN/IEC 60947-2
Icu 10 kA at 415 V AC conforming to EN/IEC 60947-2
Icu 20 kA at 240 V AC conforming to EN/IEC 60947-2
Icu 6 kA at 440 V AC conforming to GB 14048.2
Icu 10 kA at 415 V AC conforming to GB 14048.2
Icu 20 kA at 240 V AC conforming to GB 14048.2
AIR 14 kA at 240 V AC conforming to UL 489
AIR 10 kA at 125 V DC conforming to UL 489
AIR 10 kA at 480Y/277 V AC conforming to UL 489
AIR 14 kA at 240 V AC conforming to CSA C22.2 No 5
AIR 10 kA at 480Y/277 V AC conforming to CSA C22.2 No 5
AIR 10 kA at 125 V DC conforming to CSA C22.2 No 5
Suitability for isolation Yes conforming to EN/IEC 60947-2
Standards UL 489
CSA C22.2 No 5
GB 14048.2
EN/IEC 60947-2
Product certifications UL
CSA
Jan 4, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
CCC
IEC
Complementary
System Voltage 240 V AC 50/60 Hz
Magnetic tripping limit 12 x In +/- 20% AC
[Ics] rated service breaking capacity 4.5 kA 75 % x Icu at 440 V AC conforming to EN/IEC 60947-2
[Ui] rated insulation voltage 500 V ACconforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 4
Height 4.06 in (103 mm)
Width 1.42 in (36 mm)
Depth 2.83 in (72 mm)
Colour Grey
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Provision for padlocking Padlockable
Connections - terminals Tunnel type terminal, top or bottom flexible with ferrule wire(s) 0...0.02 in² (1...16 mm²) max (AWG
Wire stripping length 0.55 in (14 mm) (top or bottom)
Tightening torque 22.12 lbf.in (2.5 N.m) (top or bottom)
Earth-leakage protection Without
415 V AC 50/60 Hz
440 V AC 50/60 Hz
17 x In +/- 20% DC
7.5 kA 75 % x Icu at 415 V AC conforming to EN/IEC 60947-2
15 kA 75 % x Icu at 240 V AC conforming to EN/IEC 60947-2
4.5 kA 75 % x Icu at 440 V AC conforming to GB 14048.2
7.5 kA 75 % x Icu at 415 V AC conforming to GB 14048.2
15 kA 75 % x Icu at 240 V AC conforming to GB 14048.2
18...AWG 8)
Tunnel type terminal, top or bottom rigid wire(s) 0...0.04 in² (1...25 mm²) max (AWG 18...AWG 8)
Tunnel type terminal, top or bottom flexible wire(s) 0...0.02 in² (1...16 mm²) max (AWG 18...AWG 8)
Environment
IP degree of protection IP40 modular enclosure conforming to IEC 60529
Pollution degree 3 conforming to EN/IEC 60947-2
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % ( 131 °F (55 °C) )
Operating altitude 0...6561.68 ft (0...2000 m)
Ambient air temperature for operation -22...158 °F (-30...70 °C)
Ambient air temperature for storage -40...176 °F (-40...80 °C)
IP20 conforming to IEC 60529
Ordering and shipping details
Category 00949 - M9 GEN 2 CB UL489
Discount Schedule DE2
GTIN 00785901705857
Nbr. of units in pkg. 1
Package weight(Lbs) 0.53000000000000003
Returnability Y
Country of origin FR
