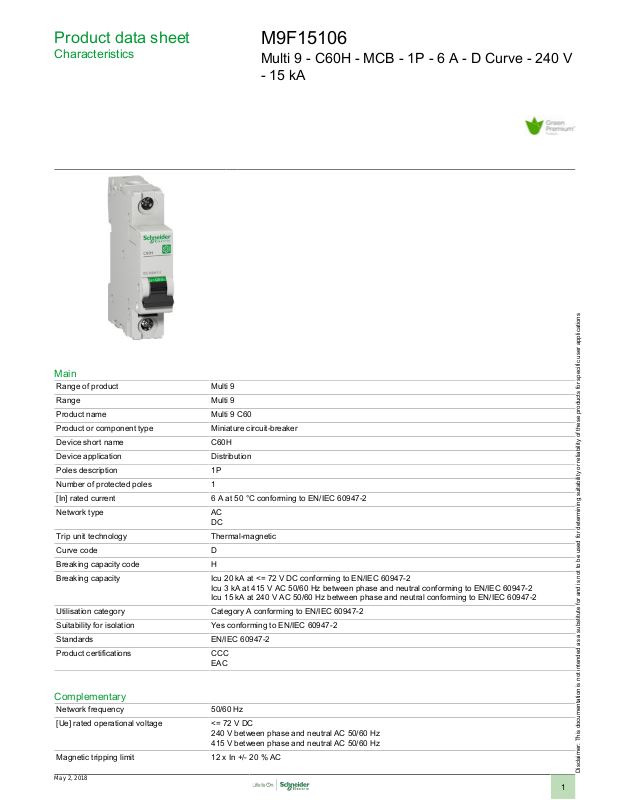

Product data sheet
Characteristics
M9F15106
Multi 9 - C60H - MCB - 1P - 6 A - D Curve - 240 V
- 15 kA
Main
Range of product Multi 9
Range Multi 9
Product name Multi 9 C60
Product or component type Miniature circuit-breaker
Device short name C60H
Device application Distribution
Poles description 1P
Number of protected poles 1
[In] rated current 6 A at 50 °C conforming to EN/IEC 60947-2
Network type AC
Trip unit technology Thermal-magnetic
Curve code D
Breaking capacity code H
Breaking capacity Icu 20 kA at <= 72 V DC conforming to EN/IEC 60947-2
Utilisation category Category A conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to EN/IEC 60947-2
Standards EN/IEC 60947-2
Product certifications CCC
DC
Icu 3 kA at 415 V AC 50/60 Hz between phase and neutral conforming to EN/IEC 60947-2
Icu 15 kA at 240 V AC 50/60 Hz between phase and neutral conforming to EN/IEC 60947-2
EAC
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage <= 72 V DC
240 V between phase and neutral AC 50/60 Hz
415 V between phase and neutral AC 50/60 Hz
Magnetic tripping limit 12 x In +/- 20 % AC
May 2, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
17 x In +/- 20 % DC
[Ics] rated service breaking capacity 7.5 kA 50 % x Icu at 240 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Mounting mode Clip-on
Mounting support DIN rail
Connection pitch 18 mm Between devices
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 72 mm
Product weight 0.12 kg
Colour Grey
Mechanical durability 20000 cycles
Electrical durability 10000 cycles
Provision for padlocking Padlockable
Connections - terminals Tunnel type terminal, top or bottom rigid wire(s) 1...25 mm² max
Wire stripping length 14 mm (top or bottom)
Tightening torque 2 N.m (top or bottom)
Earth-leakage protection Separate block
1.5 kA 50 % x Icu at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA 100 % x Icu at <= 72 V DC conforming to EN/IEC 60947-2
Tunnel type terminal, top or bottom flexible wire(s) 1...25 mm² max
Tunnel type terminal, top or bottom flexible with ferrule wire(s) 1...25 mm² max
Environment
Heat dissipation 2.7 W 240 V 6 A
IP degree of protection IP40 for modular enclosure conforming to IEC 60529
Pollution degree 3 conforming to EN/IEC 60947-2
Overvoltage category IV
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % ( 55 °C )
Ambient air temperature for operation -30...70 °C
Ambient air temperature for storage -40...80 °C
IP20 conforming to IEC 60529
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1340 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Need no specific recycling operations
2
