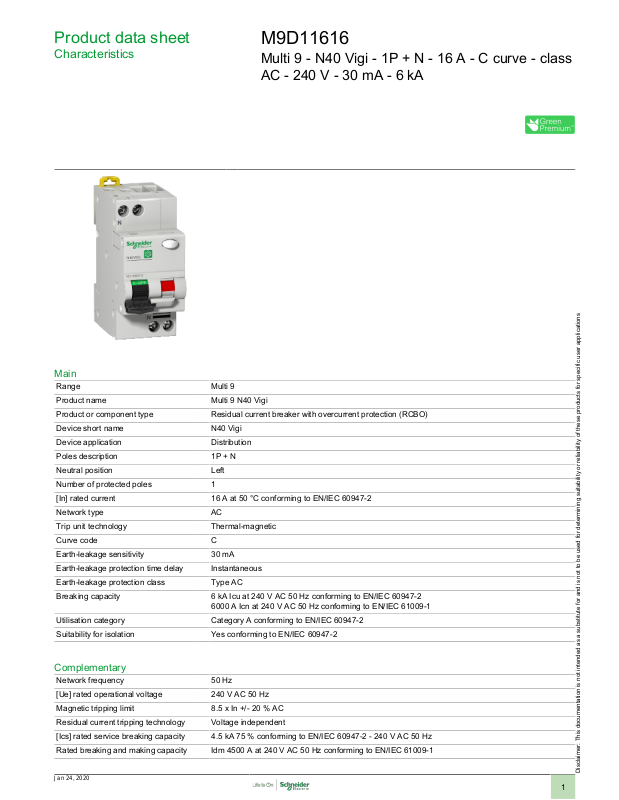

Product data sheet
Characteristics
M9D11616
Multi 9 - N40 Vigi - 1P + N - 16 A - C curve - class
AC - 240 V - 30 mA - 6 kA
Main
Range Multi 9
Product name Multi 9 N40 Vigi
Product or component type Residual current breaker with overcurrent protection (RCBO)
Device short name N40 Vigi
Device application Distribution
Poles description 1P + N
Neutral position Left
Number of protected poles 1
[In] rated current 16A at 50°C conforming to EN/IEC 60947-2
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Earth-leakage sensitivity 30mA
Earth-leakage protection time delay Instantaneous
Earth-leakage protection class Type AC
Breaking capacity 6kA Icu at 240 V AC 50 Hz conforming to EN/IEC 60947-2
Utilisation category Category A conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to EN/IEC 60947-2
6000A Icn at 240 V AC 50 Hz conforming to EN/IEC 61009-1
Complementary
Network frequency 50 Hz
[Ue] rated operational voltage 240 V AC 50 Hz
Magnetic tripping limit 8.5 x In +/- 20 % AC
Residual current tripping technology Voltage independent
[Ics] rated service breaking capacity 4.5kA 75% conforming to EN/IEC 60947-2 - 240 V AC 50 Hz
Rated breaking and making capacity Idm 4500A at 240 V AC 50 Hz conforming to EN/IEC 61009-1
Jan 24, 2020
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Limitation class 3 conforming to EN/IEC 61009-1
[Ui] rated insulation voltage 400V AC 50 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage 4kV conforming to EN/IEC 60947-2
Surge current 250A
Contact position indicator Yes
Control type Toggle
Local signalling Fault indication
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 4
Height 81mm
Width 36mm
Depth 70mm
Product weight 0.125kg
Colour Grey
Mechanical durability 20000cycles
Electrical durability 20000cycles
Provision for padlocking Padlockable
Connections - terminals Tunnel type terminal (top or bottom)0.75…16mm² - rigid
Wire stripping length 13mm for top or bottom connection
Tightening torque 2N.m top or bottom
Earth-leakage protection Integrated
ON/OFF indication
Tunnel type terminal (top or bottom)0.33…10mm² - flexible
Tunnel type terminal (top or bottom)0.33…10mm² - flexible with ferrule
Environment
Standards EN/IEC 61009-1
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 3 conforming to EN/IEC 60947-2
Overvoltage category IV
Electromagnetic compatibility 8/20 µs impulse withstand, 250 A
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95% at 55°C
Ambient air temperature for operation -5…60°C
Ambient air temperature for storage -30…70°C
EN/IEC 60947-2
IP40 (modular enclosure) conforming to IEC 60529
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive Compliant
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Environmental Disclosure Product Environmental Profile
Circularity Profile No need of specific recycling operations
WEEE The product must be disposed on European Union markets following specific waste collection and
EU RoHS Declaration
Product out of China RoHS scope. Substance declaration for your information
never end up in rubbish bins
