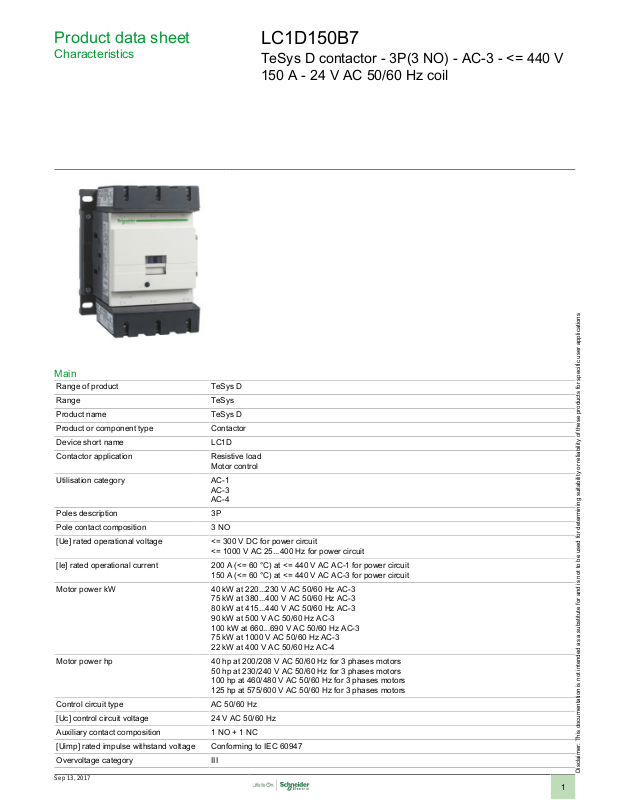

Product data sheet
Characteristics
LC1D150B7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V
150 A - 24 V AC 50/60 Hz coil
Main
Range of product TeSys D
Range TeSys
Product name TeSys D
Product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Motor control
Utilisation category AC-1
AC-3
AC-4
Poles description 3P
Pole contact composition 3 NO
[Ue] rated operational voltage <= 300 V DC for power circuit
<= 1000 V AC 25...400 Hz for power circuit
[Ie] rated operational current 200 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
150 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 40 kW at 220...230 V AC 50/60 Hz AC-3
75 kW at 380...400 V AC 50/60 Hz AC-3
80 kW at 415...440 V AC 50/60 Hz AC-3
90 kW at 500 V AC 50/60 Hz AC-3
100 kW at 660...690 V AC 50/60 Hz AC-3
75 kW at 1000 V AC 50/60 Hz AC-3
22 kW at 400 V AC 50/60 Hz AC-4
Motor power hp 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors
50 hp at 230/240 V AC 50/60 Hz for 3 phases motors
100 hp at 460/480 V AC 50/60 Hz for 3 phases motors
125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Control circuit type AC 50/60 Hz
[Uc] control circuit voltage 24 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC
[Uimp] rated impulse withstand voltage Conforming to IEC 60947
Overvoltage category III
Sep 13, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
[Ith] conventional free air thermal
current
Irms rated making capacity 1660 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 1400 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 100 A 1 s signalling circuit
Associated fuse rating 250 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 0.6 mOhm at 50 Hz - Ith 200 A for power circuit
[Ui] rated insulation voltage 1000 V for power circuit conforming to IEC 60947-4-1
Electrical durability 0.85 Mcycles 150 A AC-3 at Ue <= 440 V
Power dissipation per pole 24 W AC-1
Protective cover With
Mounting support Rail
Standards CSA C22.2 No 14
Product certifications UL
Connections - terminals Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - without cable
Tightening torque Control circuit : 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 20...35 ms closing
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
200 A at <= 60 °C for power circuit
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
120 A 500 ms signalling circuit
140 A 100 ms signalling circuit
250 A <= 40 °C 10 min power circuit
580 A <= 40 °C 1 min power circuit
1200 A <= 40 °C 10 s power circuit
1400 A <= 40 °C 1 s power circuit
315 A gG at <= 690 V coordination type 1 for power circuit
10 A gG for signalling circuit conforming to IEC 60947-5-1
600 V for power circuit certifications CSA
600 V for power circuit certifications UL
690 V for signalling circuit conforming to IEC 60947-1
600 V for signalling circuit certifications CSA
600 V for signalling circuit certifications UL
1 Mcycles 200 A AC-1 at Ue <= 440 V
13.5 W AC-3
Plate
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
GOST
BV
RINA
CSA
DNV
GL
CCC
LROS (Lloyds register of shipping)
end
Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable
end
Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: solid - without cable
end
Control circuit : screw clamp terminals 1 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable
end
Control circuit : screw clamp terminals 1 cable(s) 1...2.5 mm² - cable stiffness: flexible - without cable
end
Control circuit : screw clamp terminals 1 cable(s) 1...2.5 mm² - cable stiffness: solid - without cable
end
Power circuit : connector 1 cable(s) 10...120 mm² - cable stiffness: flexible - without cable end
Power circuit : connector 2 cable(s) 10...50 mm² - cable stiffness: flexible - without cable end
Power circuit : connector 1 cable(s) 10...120 mm² - cable stiffness: flexible - with cable end
Power circuit : connector 2 cable(s) 10...50 mm² - cable stiffness: flexible - with cable end
Power circuit : connector 1 cable(s) 10...120 mm² - cable stiffness: solid - without cable end
Power circuit : connector 2 cable(s) 10...50 mm² - cable stiffness: solid - without cable end
Control circuit : 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit : 12 N.m - on connector hexagonal 4 mm
40...75 ms opening
2
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 8 Mcycles
Operating rate 1200 cyc/h at <= 60 °C
Complementary
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.3...0.5 Uc drop-out at 55 °C, AC 50/60 Hz
Inrush power in VA 280...350 VA at 20 °C (cos ϕ 0.9) 60 Hz
Hold-in power consumption in VA 2...18 VA at 20 °C (cos ϕ 0.9) 60 Hz
Heat dissipation 3...4.5 W at 50/60 Hz
Auxiliary contacts type Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on de-energisation (between NC and NO contact)
Insulation resistance > 10 MOhm for signalling circuit
Power range 30...50 kW 200...240 V 3 phases
Motor starter type Direct on-line contactor
Contactor coil voltage 24 V AC standard
0.8...1.15 Uc operational at 55 °C, AC 50/60 Hz
280...350 VA at 20 °C (cos ϕ 0.9) 50 Hz
2...18 VA at 20 °C (cos ϕ 0.9) 50 Hz
Type mirror contact (1 NC) conforming to IEC 60947-4-1
1.5 ms on energisation (between NC and NO contact)
55...100 kW 380...440 V 3 phases
55...100 kW 480...500 V 3 phases
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for operation -5...60 °C
Ambient air temperature for storage -60...80 °C
Permissible ambient air temperature
around the device
Operating altitude 3000 m without derating in temperature
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz
Height 158 mm
Width 120 mm
Depth 136 mm
Product weight 2.5 kg
-40...70 °C at Uc
Vibrations contactor closed 4 Gn, 5...300 Hz
Shocks contactor closed 15 Gn for 11 ms
Shocks contactor open 6 Gn for 11 ms
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0927 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
3
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
4
Product data sheet
LC1D150B7
Dimensions Drawings
Dimensions
(1) Minimum electrical clearance
LC1 D115 and D150 (3-pole)
a 120
b1 with LA4 DA2 174
with LA4 DF, DT 185
with LA4 DM, DL 188
with LA4 DW 188
c without cover or add-on blocks 132
with cover, without add-on blocks136
c1 with LAD N or C (2 or 4 contacts) 150
c2 with LA6 DK20 155
c3 with LAD T, R, S 168
with LAD T, R, S and sealing cover172
5
Product data sheet
Connections and Schema
Wiring
LC1D150B7
6
Product data sheet
LC1D150B7
Motor Starter BOM
Our Proposal - Type 1 : Circuit Breaker + Contactor for Motor Power 75 kW and 415 VAC
Motor power
(kW)
75 35
Non contractual pictures.
Type 1 coordination requires that in a short-circuit condition, the contactor or starter must not present any danger to personnel or installations and
must not be able to resume operation without repair or the replacement of parts.
ICU
(kA)
Breaker Contactor (*)
GV7RE150 LC1D150B7
7
