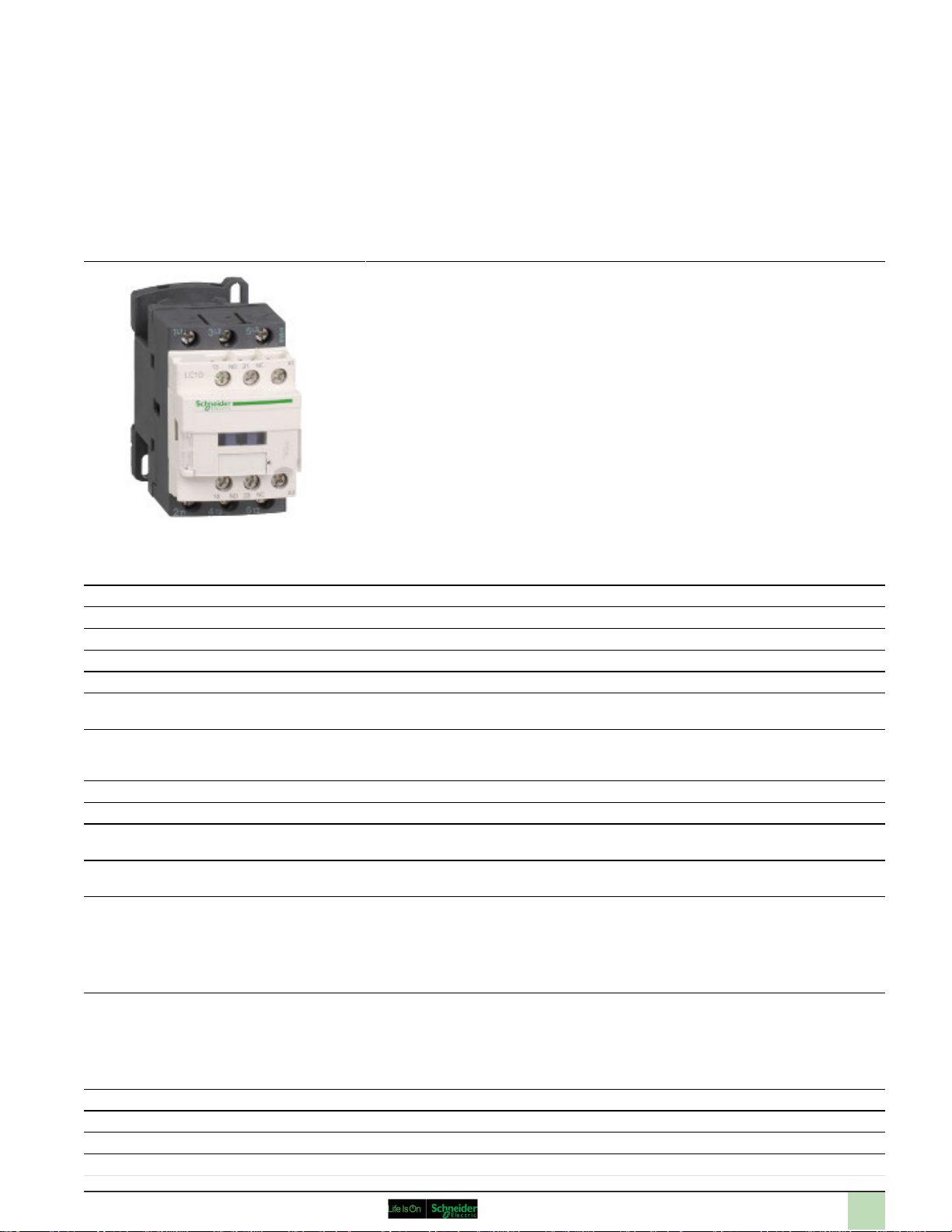

LC1D09BD
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V
9 A - 24 V DC coil
Main
Range of product TeSys D
Range TeSys
Product name TeSys D
Product or component type Contactor
Device short name LC1D
Contactor application Resistive load
Motor control
Utilisation category AC-1
AC-4
AC-3
Poles description 3P
Pole contact composition 3 NO
[Ue] rated operational voltage <= 300 V DC for power circuit
<= 690 V AC 25...400 Hz for power circuit
[Ie] rated operational current 25 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit
9 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit
Motor power kW 2.2 kW at 400 V AC 50/60 Hz AC-4
2.2 kW at 220...230 V AC 50/60 Hz AC-3
4 kW at 380...400 V AC 50/60 Hz AC-3
5.5 kW at 500 V AC 50/60 Hz AC-3
5.5 kW at 660...690 V AC 50/60 Hz AC-3
4 kW at 415...440 V AC 50/60 Hz AC-3
Motor power hp 0.33 hp at 115 V AC 50/60 Hz for 1 phase motors
1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
2 hp at 200/208 V AC 50/60 Hz for 3 phases motors
2 hp at 230/240 V AC 50/60 Hz for 3 phases motors
5 hp at 460/480 V AC 50/60 Hz for 3 phases motors
7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Control circuit type DC standard
[Uc] control circuit voltage 24 V DC
Auxiliary contact composition 1 NO + 1 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Sep 08, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Overvoltage category III
[Ith] conventional free air thermal
current
Irms rated making capacity 250 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 105 A <= 40 °C 10 s power circuit
Associated fuse rating 20 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2.5 mOhm at 50 Hz - Ith 25 A for power circuit
[Ui] rated insulation voltage 600 V for power circuit certifications CSA
Electrical durability 0.6 Mcycles 25 A AC-1 at Ue <= 440 V
Power dissipation per pole 0.2 W AC-3
Protective cover With
Mounting support Rail
Standards CSA C22.2 No 14
Product certifications GOST
Connections - terminals Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable
Tightening torque Power circuit : 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 53.55...72.45 ms closing
25 A at <= 60 °C for power circuit
10 A at <= 60 °C for signalling circuit
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
210 A <= 40 °C 1 s power circuit
30 A <= 40 °C 10 min power circuit
61 A <= 40 °C 1 min power circuit
100 A 1 s signalling circuit
120 A 500 ms signalling circuit
140 A 100 ms signalling circuit
25 A gG at <= 690 V coordination type 1 for power circuit
10 A gG for signalling circuit conforming to IEC 60947-5-1
600 V for power circuit certifications UL
690 V for power circuit conforming to IEC 60947-4-1
690 V for signalling circuit conforming to IEC 60947-1
600 V for signalling circuit certifications CSA
600 V for signalling circuit certifications UL
2 Mcycles 9 A AC-3 at Ue <= 440 V
1.56 W AC-1
Plate
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
CSA
DNV
UL
RINA
BV
GL
LROS (Lloyds register of shipping)
CCC
end
Power circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - with cable end
Control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable
end
Control circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: flexible - without cable
end
Control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - with cable end
Control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Control circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Power circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable
end
Power circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: flexible - without cable
end
Power circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable end
Power circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Power circuit : screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
Power circuit : 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit : 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit : 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
16...24 ms opening
2
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Mechanical durability 30 Mcycles
Operating rate 3600 cyc/h at <= 60 °C
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Complementary
Coil technology Built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits 0.1...0.25 Uc drop-out at 60 °C, DC
Time constant 28 ms
Inrush power in W 5.4 W at 20 °C
Hold-in power consumption in W 5.4 W at 20 °C
Auxiliary contacts type Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1
Signalling circuit frequency 25...400 Hz
Minimum switching current 5 mA for signalling circuit
Minimum switching voltage 17 V for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact
Insulation resistance > 10 MOhm for signalling circuit
Power range 1.1...2 kW 200...240 V 3 phases
Motor starter type Direct on-line contactor
Contactor coil voltage 24 V DC standard
0.7...1.25 Uc operational at 60 °C, DC
Type mirror contact (1 NC) conforming to IEC 60947-4-1
1.5 ms on de-energisation between NC and NO contact
2.2...3 kW 380...440 V 3 phases
4...6 kW 380...440 V 3 phases
4...6 kW 480...500 V 3 phases
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Ambient air temperature for operation -5...60 °C
Ambient air temperature for storage -60...80 °C
Permissible ambient air temperature
around the device
Operating altitude 3000 m without derating in temperature
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open 2 Gn, 5...300 Hz
Height 77 mm
Width 45 mm
Depth 95 mm
Product weight 0.48 kg
-40...70 °C at Uc
Vibrations contactor closed 4 Gn, 5...300 Hz
Shocks contactor open 10 Gn for 11 ms
Shocks contactor closed 15 Gn for 11 ms
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0627 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
3
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
4
Product data sheet
LC1D09BD
Dimensions Drawings
Dimensions
(1) Minimum electrical clearance
LC1 D09…D18 D093…D123 D099…D129
b 77 99 80
c without cover or add-on blocks 93 93 93
with cover, w thout add-on blocks95 95 95
c1 with LAD N or C (2 or 4 contacts) 126 126 126
c2 with LA6 DK10 138 138 138
c3 with LAD T, R, S 146 146 146
with LAD T, R, S and sealing cover150 150 150
5
Product data sheet
Connections and Schema
Wiring
LC1D09BD
6
Product data sheet
LC1D09BD
Motor Starter BOM
Our Proposal - Type 1 : Circuit Breaker + Contactor for Motor Power from 0,06 to 4 kW and 415 VAC
Motor power
(kW)
0.06 > 100
0.09 > 100
0,12 to 0,18 > 100
0,25 to 0,37 > 100
0.55 > 100
ICU
(kA)
Breaker Contactor (*)
GV2ME02 LC1D09BD
GV2ME03 LC1D09BD
GV2ME04 LC1D09BD
GV2ME05 LC1D09BD
0.75 > 100
1,1 to 1,5 > 100
2.2 > 100
3 to 4 > 100
Non contractual pictures.
GV2ME06 LC1D09BD
GV2ME07 LC1D09BD
GV2ME08 LC1D09BD
GV2ME10 LC1D09BD
GV2ME14 LC1D09BD
7
Type 1 coordination requires that in a short-circuit condition, the contactor or starter must not present any danger to personnel or installations and
must not be able to resume operation without repair or the replacement of parts.
