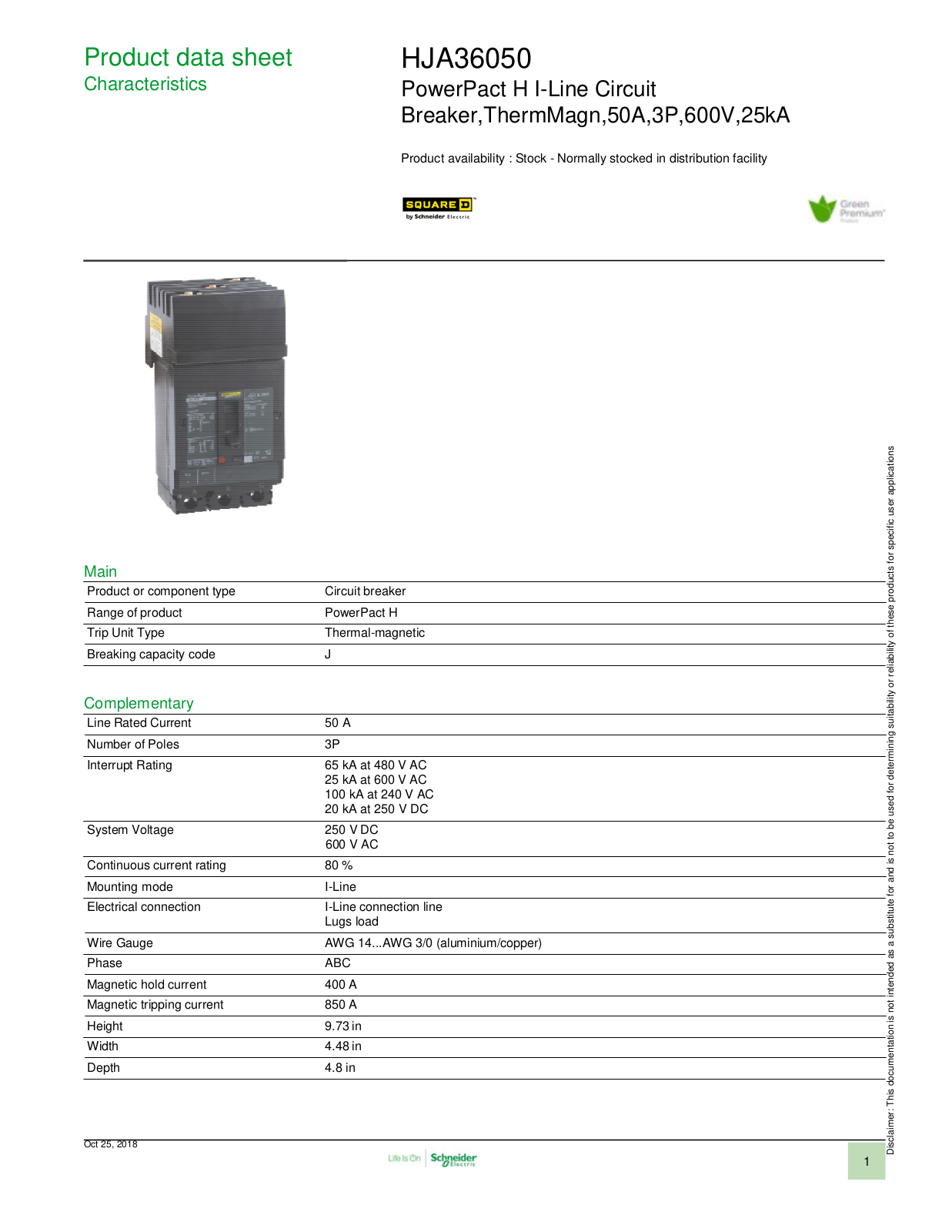

Product data sheet
Characteristics
HJA36050
PowerPact H I-Line Circuit
Breaker,ThermMagn,50A,3P,600V,25kA
Product availability : Stock - Normally stocked in distribution facility
Main
Product or component type C
Range of product PowerPact H
Trip Unit Type Thermal-magnetic
Breaking capacity code J
Complementary
Line Rated Current 50 A
Number of Poles 3P
Interrupt Rating 65 kA at 480 V AC
System Voltage 250 V DC
Continuous current rating 80 %
Mounting mode I-Line
Electrical connection I-Line connection line
Wire Gauge AWG 14...AWG 3/0 (aluminium/copper)
Phase ABC
Magnetic hold current 400 A
Magnetic tripping current 850 A
Height 9.73 in
Width 4.48 in
Depth 4.8 in
Oct 25, 2018
ircuit breaker
25 kA at 600 V AC
100 kA at 240 V AC
20 kA at 250 V DC
600 V AC
Lugs load
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
