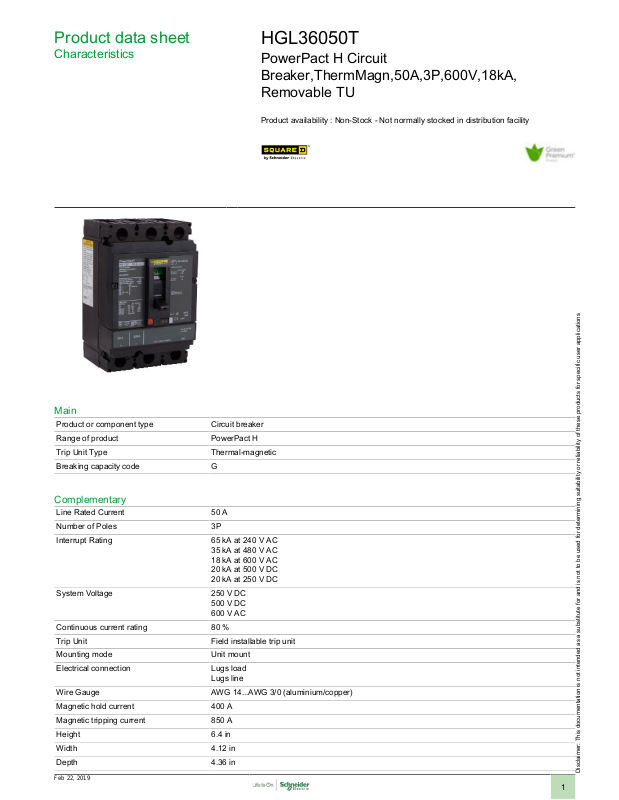

Product data sheet
Characteristics
HGL36050T
PowerPact H Circuit
Breaker,ThermMagn,50A,3P,600V,18kA,
Removable TU
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Circuit breaker
Range of product PowerPact H
Trip Unit Type Thermal-magnetic
Breaking capacity code G
Complementary
Line Rated Current 50 A
Number of Poles 3P
Interrupt Rating 65 kA at 240 V AC
35 kA at 480 V AC
18 kA at 600 V AC
20 kA at 500 V DC
20 kA at 250 V DC
System Voltage 250 V DC
500 V DC
600 V AC
Continuous current rating 80 %
Trip Unit Field installable trip unit
Mounting mode Unit mount
Electrical connection Lugs load
Lugs line
Wire Gauge AWG 14...AWG 3/0 (aluminium/copper)
Magnetic hold current 400 A
Magnetic tripping current 850 A
Height 6.4 in
Width 4.12 in
Depth 4.36 in
Feb 22, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Environment
Product certifications CCC
Ambient air temperature for operation 104 °F (40 °C)
CE
CSA
IEC
UL listed
Ordering and shipping details
Category 01115 - HG,HJ,JG,JJ UNIT MT BREAKER/SWITCH
Discount Schedule DE2
GTIN 00785901474104
Nbr. of units in pkg. 1
Package weight(Lbs) 4
Returnability Y
Country of origin US
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0832 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 DINP, which is known to the State of California to cause cancer, and
- - - - - - - Substance 2 DIDP, which is known to the State of California to cause Birth Defects or other reproductive harm.
- - - - - - - More information For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period 18 months
