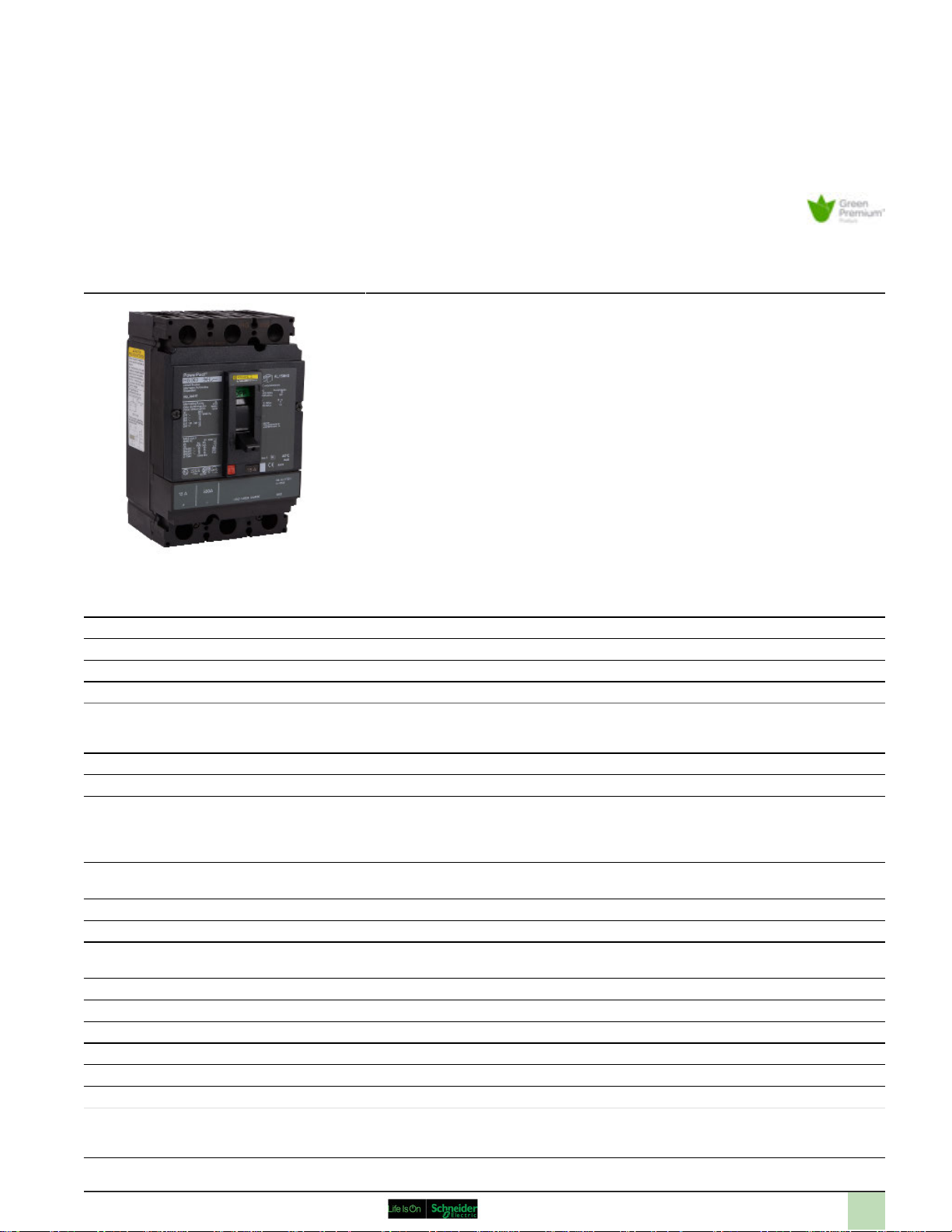

Square D HDL36100 Data Sheet

Product data sheet

Characteristics

HDL36100

PowerPact H Circuit
Breaker,ThermMagn,100A,3P,600V,14kA

Product availability : Stock - Normally stocked in distribution facility

Main

Product or component type Circuit breaker

Range of product PowerPact H

Trip Unit Type Thermal-magnetic

Breaking capacity code D

Complementary

Line Rated Current 100 A

Number of Poles 3P

Interrupt Rating 18 kA at 480 V AC

System Voltage 250 V DC

Continuous current rating 80 %

Mounting mode Unit mount

Electrical connection Lugs load

Wire Gauge AWG 14...AWG 3/0 (aluminium/copper)

Magnetic hold current 900 A

Magnetic tripping current 1700 A

Height 6.4 in

Width 4.12 in

Depth 4.36 in

25 kA at 240 V AC
14 kA at 600 V AC
20 kA at 250 V DC

600 V AC

Lugs line

Environment

Product certifications CE

Feb 21, 2019

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

1

CSA
IEC
UL listed

Ambient air temperature for operation 104 °F (40 °C)

Ordering and shipping details

Category 01110 - HD,JD UNIT MT BREAKER/SWITCH

Discount Schedule DE2

GTIN 00785901839934

Nbr. of units in pkg. 1

Package weight(Lbs) 4.1200000000000001

Returnability Y

Country of origin MX

Offer Sustainability

Sustainable offer status Green Premium product

RoHS (date code: YYWW) Compliant - since 0832 - Schneider Electric declaration of conformity

Schneider Electric declaration of conformity

REACh Reference not containing SVHC above the threshold

Reference not containing SVHC above the threshold

Product environmental profile Available

Product end of life instructions Need no specific recycling operations

California proposition 65 WARNING: This product can expose you to chemicals including:

- - - - - - - Substance 1 DINP, which is known to the State of California to cause cancer, and

- - - - - - - Substance 2 DIDP, which is known to the State of California to cause Birth Defects or other reproductive harm.

- - - - - - - More information For more information go to www.p65warnings.ca.gov

Contractual warranty

Warranty period 18 months
