Product data sheet
Characteristics

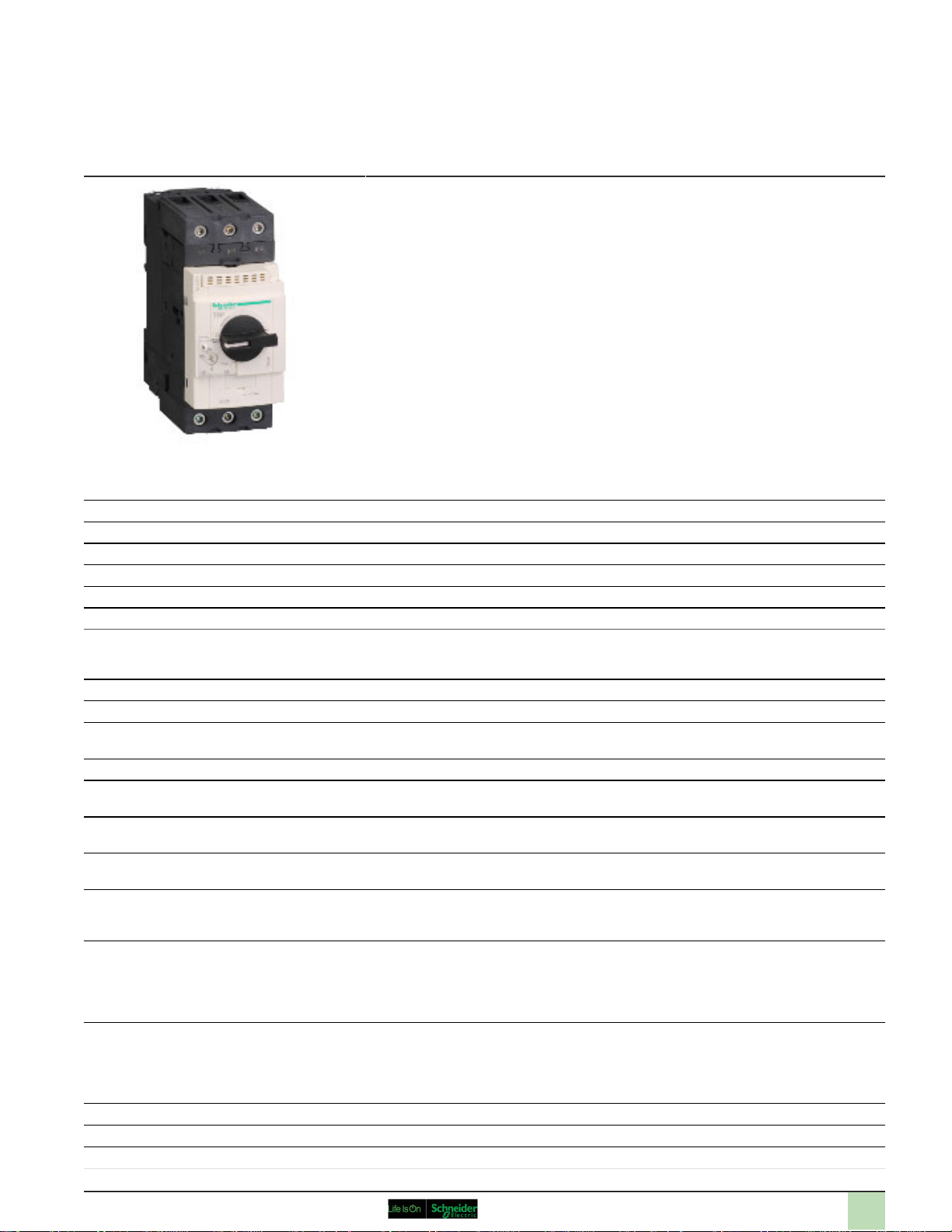

GV3P50
TeSys GV3-Circuit breaker-thermal-magnetic 37…50A - EverLink BTR connectors
Main
Range TeSys
Product name TeSys GV3
Device short name GV3P
Product or component type Circuit breaker
Device application Motor
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category AC-3 conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Mounting mode By clips
Mounting support Plate
Mounting position Horizontal
Motor power kW 22 kW at 400/415 V AC 50/60 Hz
Breaking capacity 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit
breaking capacity
Control type Rotary knob
[In] rated current 37...50 A
Trip unit rating 37...50 A
Category A conforming to IEC 60947-2
By screws
Rail
Vertical
30 kW at 500 V AC 50/60 Hz
45 kW at 690 V AC 50/60 Hz
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Dec 06, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Magnetic tripping current 700 A
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal
current
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Power dissipation per pole 8 W
Mechanical durability 50000 cycles
Electrical durability 50000 cycles for AC-3 at 440 V In
Operating rate 25 cyc/h
Rated duty Continuous conforming to IEC 60947-4-1
Connections - terminals EverLink BTR screw connectors 2 cable(s) 1...25 mm² - cable stiffness : solid
Tightening torque 8 N.m - on EverLink BTR screw connectors- cable 35 mm²
Suitability for isolation Yes conforming to IEC 60947-1
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Height 132 mm
Width 55 mm
Depth 136 mm
Product weight 0.96 kg
50 A conforming to IEC 60947-4-1
EverLink BTR screw connectors 2 cable(s) 1...25 mm² - cable stiffness : flexible - without cable end
EverLink BTR screw connectors 2 cable(s) 1...25 mm² - cable stiffness : flexible - with cable end
5 N.m - on EverLink BTR screw connectors- cable 25 mm²
Environment
Standards EN/IEC 60947-1
Product certifications ATEX
Protective treatment TH
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK09
Ambient air temperature for operation -20...60 °C
Ambient air temperature for storage -40...80 °C
Fire resistance 960 °C conforming to IEC 60695-2-1
Operating altitude 3000 m
EN/IEC 60947-2
EN/IEC 60947-4-1
UL 508 type E
CSA C22.2 No 14-05 type E
BV
CCC
CSA
DNV
GL
LROS (pending)
RINA
UL
EAC
Contractual warranty
Warranty period 18 months
