Product data sheet
Characteristics

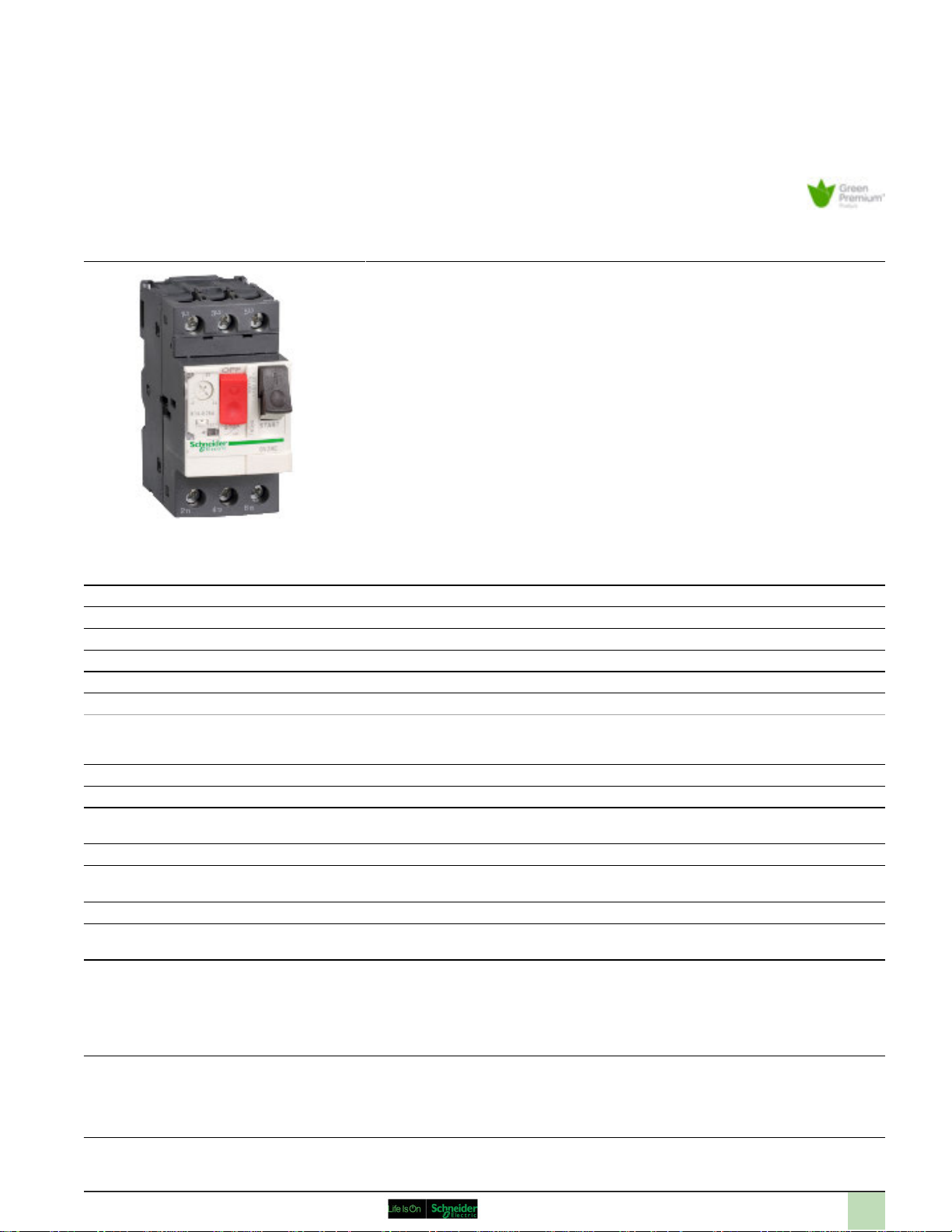

GV2ME14
TeSys GV2-Circuit breaker-thermal-magnetic -
6...10 A - screw clamp terminals
Main
Range TeSys
Product name TeSys GV2
Device short name GV2ME
Product or component type Circuit breaker
Device application Motor
Trip unit technology Thermal-magnetic
Complementary
Poles description 3P
Network type AC
Utilisation category AC-3 conforming to IEC 60947-4-1
Network frequency 50/60 Hz conforming to IEC 60947-4-1
Mounting mode By clips
Mounting support Rail
Mounting position Horizontal
Motor power kW 3 kW at 400/415 V AC 50/60 Hz
Breaking capacity 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit
breaking capacity
Dec 04, 2017
Category A conforming to IEC 60947-2
By screws
Vertical
4 kW at 400/415 V AC 50/60 Hz
4 kW at 500 V AC 50/60 Hz
7.5 kW at 690 V AC 50/60 Hz
5.5 kW at 500 V AC 50/60 Hz
5.5 kW at 690 V AC 50/60 Hz
15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control type Push-button
[In] rated current 6...10 A
Trip unit rating 6...10 A
Magnetic tripping current 138 A
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal
current
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Power dissipation per pole 2.5 W
Mechanical durability 100000 cycles
Electrical durability 100000 cycles for AC-3 at 440 V
Operating rate 25 cyc/h
Rated duty Continuous conforming to IEC 60947-4-1
Connections - terminals Screw clamp terminals 2 cable(s) 1...6 mm² - cable stiffness : solid
Tightening torque 1.7 N.m - on screw clamp terminals
Suitability for isolation Yes conforming to IEC 60947-1
Phase failure sensitivity Yes conforming to IEC 60947-4-1
Height 89 mm
Width 45 mm
Depth 78.2 mm
Product weight 0.26 kg
10 A conforming to IEC 60947-4-1
Screw clamp terminals 2 cable(s) 1.5...6 mm² - cable stiffness : flexible - without cable end
Screw clamp terminals 2 cable(s) 1...4 mm² - cable stiffness : flexible - with cable end
Environment
Standards IEC 60947-1
Product certifications CCC
Protective treatment TH
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK04
Ambient air temperature for operation -20...60 °C
Ambient air temperature for storage -40...80 °C
Fire resistance 960 °C conforming to IEC 60695-2-1
Operating altitude 2000 m
CSA C22.2
NF C 63-120
IEC 60947-2
NF C 63-650
NF C 79-130
EN 60204
IEC 60947-4-1
VDE 0113
VDE 0660
UL 508
DNV
RINA
UL
ATEX
CEBEC
CSA
GL
TSE
EZU
SETI
LROS (Lloyds register of shipping)
BV
EAC
