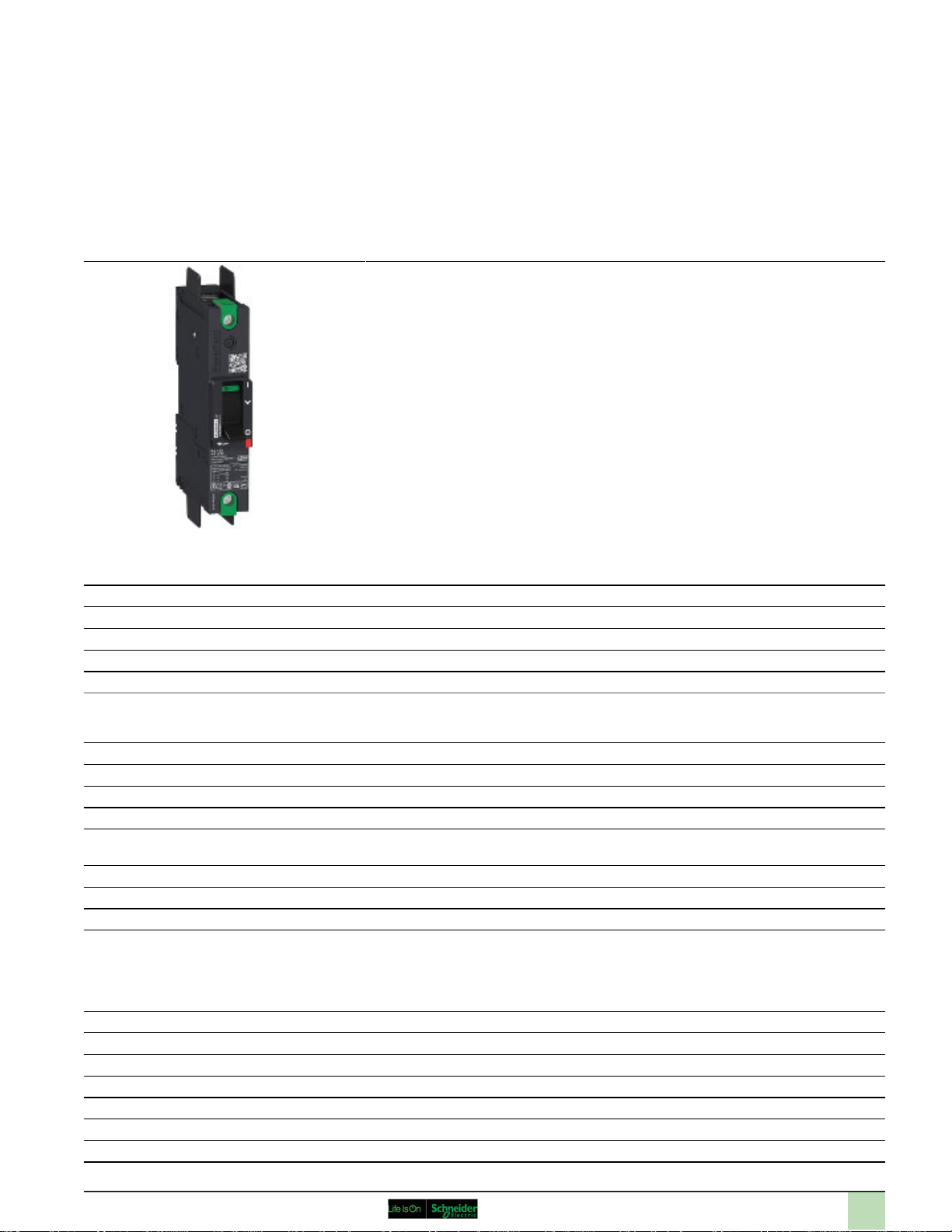

Product data sheet
Characteristics
BDF16025
PowerPact-circuit breaker-25A 1P AC 18kA at
480/440V(UL/IEC)-TMD-compression lug
Main
Range PowerPact
Product name PowerPact B
Device short name BD 025
Product or component type Circuit breaker
Device application Distribution
Complementary
[In] rated current 25 A
Poles description 1P
Protected poles description 1t
Control type Toggle
Mounting mode By screws for plate
Clip-on for 35 mm symmetrical DIN rail
Network type AC
Network frequency 50/60 Hz
Breaking capacity code D
Breaking capacity 25 kA at 240 V AC 50/60 Hz according to UL 489
Icu : 25 kA at 220...240 V AC 50/60 Hz according to IEC 60947-2
18 kA at 480Y/277 V AC 50/60 Hz according to UL 489
14 kA at 600Y/347 V AC 50/60 Hz according to UL 489
25 kA at 208Y/120 V AC 50/60 Hz according to UL 489
[Ue] rated operational voltage 240 V AC 50/60 Hz according to IEC 60947-2
[Ics] rated service breaking capacity 25 kA : at 220...240 V AC 50/60 Hz according to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV according to IEC 60947-2
[Ui] rated insulation voltage 800 V according to IEC 60947-2
Trip unit technology Thermal-magnetic
Trip unit name TM-D
Trip unit protection functions LI
Protection type Overload protection (thermal)
Nov 10, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Short-circuit protection (magnetic)
Trip unit rating 25 A at 40 °C
Magnetic hold current 400 A
Magnetic tripping current 600 A
Suitability for isolation Yes according to IEC 60947-2
Utilisation category Category A
Mechanical durability 15000 cycles according to IEC 947-1 Annex F ed 5.2
Electrical durability 10000 cycles according to IEC 947-1 Annex K ed 5.2 for In at 240 V
Connection pitch 27 mm
Rotary handle padlocking Padlock in OFF or ON position
Connections - terminals Upside compression lug/busbar
Thread type M6
Thickness Up to 6.5 mm
Tightening torque 5 N.m for 2.5...16 mm² (AWG 14...AWG 4)
Wire stripping length 20 mm
Quality labels CE
Standards NEMA AB1
Colour Grey (RAL 7016)
9 mm pitches 3
Height 137 mm
Width 27 mm
Depth 80 mm
Product weight 0.46 kg
Quantity per set Set of 1
Downside compression lug/busbar
9 N.m for 25...95 mm² (AWG 3...AWG 3/0)
NMX J-266
EN/IEC 60947-2
CSA C22.2 No 5
GB 14048.2
UL 489
EN/IEC 60947-5-1
Environment
Product certifications UL
IP degree of protection IP40 (front cover) according to IEC 60529
IK degree of protection IK07 according to IEC 62262
Pollution degree 3 according to IEC 60947-1
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -50...85 °C
Operating altitude 5000 m with derating
CSA
CCC
EAC
NOM
IEC
2000 m without derating
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW) Compliant - since 1644 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
