Square D ATV930D45N4 Data Sheet

Page 1

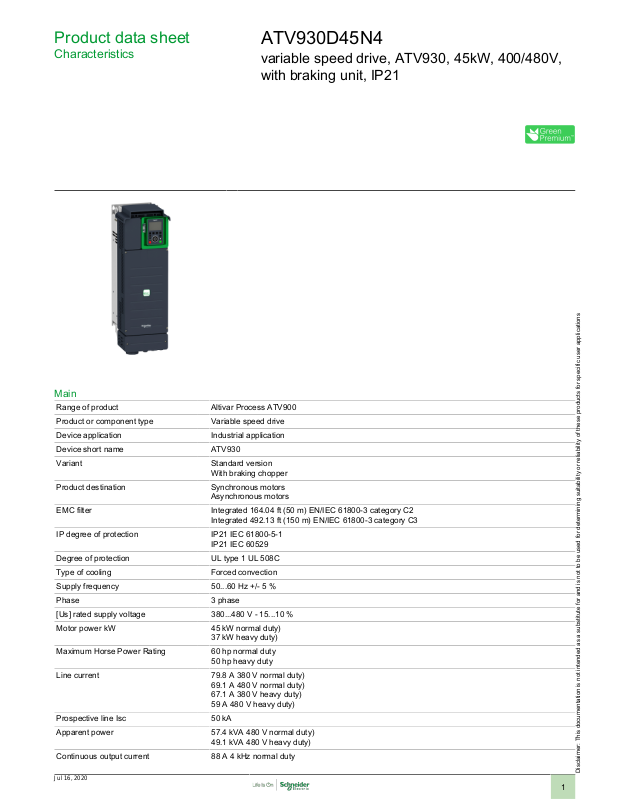

Product data sheet
Characteristics
ATV930D45N4
variable speed drive, ATV930, 45kW, 400/480V, with braking unit, IP21
Main
Range of product Altivar Process ATV900 Product or component type Variable speed drive Device application Industrial application Device short name ATV930 Variant Standard version
With braking chopper
Product destination Synchronous motors
Asynchronous motors
EMC filter Integrated 164.04ft (50m) EN/IEC 61800-3 category C2
Integrated 492.13ft (150m) EN/IEC 61800-3 category C3
IP degree of protection IP21 IEC 61800-5-1
IP21 IEC 60529 Degree of protection UL type 1 UL 508C Type of cooling Forced convection Supply frequency 50...60 Hz +/- 5 % Phase 3 phase [Us] rated supply voltage 380...480 V - 15...10 % Motor power kW 45kW normal duty)
37kW heavy duty) Maximum Horse Power Rating 60hp normal duty
50hp heavy duty Line current 79.8A 380 V normal duty)
69.1A 480 V normal duty)
67.1A 380 V heavy duty)
59A 480 V heavy duty) Prospective line Isc 50kA Apparent power 57.4kVA 480 V normal duty)
49.1kVA 480 V heavy duty)
Continuous output current 88A 4 kHz normal duty
Jul 16, 2020
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Page 2
74.5A 4 kHz heavy duty
Maximum transient current 105.6A 60 s normal duty)
Asynchronous motor control profile Constant torque standard
Synchronous motor control profile Permanent magnet motor
Speed drive output frequency 0.1…599Hz Nominal switching frequency 4 kHz Switching frequency 2...16 kHz adjustable
Safety function STO (safe torque off) SIL 3 Number of preset speeds 16 preset speeds Communication port protocol Ethernet/IP
Option module Slot A communication module Profibus DP V1
111.8A 60 s heavy duty)
Optimized torque mode Variable torque standard
Synchronous reluctance motor
4...16 kHz with derating factor
Modbus serial Modbus TCP
Slot A communication module Profinet Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication module CANopen SUB-D 9 Slot A communication module CANopen screw terminals Slot A/slot B/slot C digital and analog I/O extension module Slot A/slot B/slot C output relay extension module Slot B 5/12 V digital encoder interface module Slot B analog encoder interface module Slot B resolver encoder interface module communication module Ethernet Powerlink
Complementary
Output voltage <= power supply voltage Motor slip compensation Automatic whatever the load
Acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s Braking to standstill By DC injection Protection type Thermal protection motor
Frequency resolution Display unit 0.1 Hz
Electrical connection Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16
Connector type 2 RJ45 Ethernet IP/Modbus TCP on the control block
Physical interface 2-wire RS 485 Modbus serial Transmission frame RTU Modbus serial
Adjustable Not available in permanent magnet motor law Can be suppressed
Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive Short-circuit protection drive Motor phase break drive Overvoltages on the DC bus drive Line supply overvoltage drive Line supply undervoltage drive Line supply phase loss drive Overspeed drive Break on the control circuit drive
Analog input 0.012/50 Hz
Line side screw terminal 35...50 mm² AWG 2...AWG 1 Motor screw terminal 50 mm² AWG 1 DC bus screw terminal 35...50 mm² AWG 3...AWG 1
1 RJ45 Modbus serial on the control block
2
Page 3
Transmission rate 10/100 Mbit/s Ethernet IP/Modbus TCP
Exchange mode Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP Data format 8 bits, configurable odd, even or no parity Modbus serial Type of polarization No impedance Modbus serial Number of addresses 1…247 Modbus serial Method of access Slave Modbus TCP Supply External supply for digital inputs 24 V DC 19…30V), <1.25mA overload and short-circuit protection
Local signalling Local diagnostic 3 LED mono/dual colour)
Width 8.90in (226mm) Maximum Height 26.50in (673mm) Depth 10.79in (274mm) Net weight 63.27lb(US) (28.7kg) Analogue input number 3 Analogue input type AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits
Discrete input number 10 Discrete input type DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm
Input compatibility DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2
Discrete input logic Positive logic (source) DI1...DI8), < 5 V, > 11 V
Analogue output number 2 Analogue output type Software-configurable voltage AQ1, AQ2 0...10 V DC 470Ohm 10 bits
Discrete output number 2 Discrete output type Logic output DQ+ 0…1kHz <= 30 V DC 100mA
Sampling duration 2ms +/- 0.5 ms DI1...DI8) - discrete input
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
Linearity error AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
Maximum switching current Relay output R1 resistive, cos phi = 1 3A 250 V AC
Relay output number 3 Relay output type Configurable relay logic R1 fault relay NO/NC 100000cycles
Refresh time Relay output R1, R2, R3)5 ms +/- 0.5 ms) Minimum switching current Relay output R1, R2, R3 5mA 24 V DC
4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10mA overload and
short-circuit protection
Internal supply for digital inputs and STO 24 V DC 21…27V), <200mA overload and short-circuit
protection
Embedded communication status 5 LED dual colour)
Communication module status 2 LED dual colour)
Presence of voltage 1 LED red)
AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
DI7, DI8 programmable as pulse input 0…30kHz, 24 V DC <= 30 V)
STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
DI7, DI8 pulse input level 1 PLC IEC 65A-68
STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Negative logic (sink) DI1...DI8), > 16 V, < 10 V
Positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V
Positive logic (source) STOA, STOB), < 5 V, > 11 V
Software-configurable current AQ1, AQ2 0...20 mA 500Ohm 10 bits
Programmable as pulse output DQ+ 0…30kHz <= 30 V DC 20mA
Logic output DQ- 0…1kHz <= 30 V DC 100mA
5ms +/- 1 ms DI7, DI8) - pulse input
1ms +/- 1 ms AI1, AI2, AI3) - analog input
5ms +/- 1 ms AQ1, AQ2) - analog output
+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
AQ1, AQ2 +/- 0.2 % analog output
Relay output R1 resistive, cos phi = 1 3A 30 V DC
Relay output R1 inductive, cos phi = 0.4 7ms 2A 250 V AC
Relay output R1 inductive, cos phi = 0.4 7ms 2A 30 V DC
Relay output R2, R3 resistive, cos phi = 1 5A 250 V AC
Relay output R2, R3 resistive, cos phi = 1 5A 30 V DC
Relay output R2, R3 inductive, cos phi = 0.4 7ms 2A 250 V AC
Relay output R2, R3 inductive, cos phi = 0.4 7ms 2A 30 V DC
Configurable relay logic R2 sequence relay NO 1000000cycles
Configurable relay logic R3 sequence relay NO 1000000cycles
3
Page 4
Isolation Between power and control terminals Variable speed drive application
selection
Power range 30…50kW 380…440V 3 phase
Mounting mode Wall mount
Mixer Food and beverage processing Conveyor Food and beverage processing Shredder Food and beverage processing Process crane Hoisting Thruster Marine Winch Marine Press Material working (wood, ceramic, stone, pvc, metal) Extruder Material working (wood, ceramic, stone, pvc, metal) Other application Mining mineral and metal Drilling rig Oil and gas Progressive cavity pump Oil and gas Rod pump Oil and gas Swapping pump Oil and gas Compressor for regasification Oil and gas Separator Oil and gas Other application Oil and gas Separator Water and waste water
30…50kW 480…500V 3 phase
Environment
Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth Noise level 71.5dB 86/188/EEC Power dissipation in W Natural convection 121W 380 V 4 kHz
Vibration resistance 1.5 mm peak to peak 2…13Hz)IEC 60068-2-6
Shock resistance 15 gn 11ms IEC 60068-2-27 Volume of cooling air 63402.43Gal/hr(US) (240m3/h) Operating position Vertical +/- 10 degree Maximum THDI <48% from 80...100 % of load IEC 61000-3-12 Electromagnetic compatibility Electrostatic discharge immunity test level 3 IEC 61000-4-2
Environmental characteristic Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Pollution degree 2 EN/IEC 61800-5-1 Relative humidity 5…95% without condensation IEC 60068-2-3 Ambient air temperature for operation 5…122°F (-15…50°C) without derating)
Ambient air temperature for storage -40…158°F (-40…70°C) Operating altitude <= 3280.84 ft (1000 m) without derating
Standards UL 508C
Product certifications CSA
Marking CE
Forced convection 943W 380 V 4 kHz
1 gn 13…200Hz)IEC 60068-2-6
Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Conducted radio-frequency immunity test level 3 IEC 61000-4-6
Dust pollution resistance class 3S3 EN/IEC 60721-3-3
122…140°F (50…60°C) with derating factor)
1000...4800 m with current derating 1 % per 100 m
EN/IEC 61800-3 Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1
UL REACH TÜV
4
Page 5
Ordering and shipping details
Category 22277 - ATV930 FRAMES 3 & 4 Discount Schedule CP4E GTIN 00785901560456 Nbr. of units in pkg. 1 Package weight(Lbs) 79lb(US) (35.83kg) Returnability Yes Country of origin IN
Packing Units
Unit Type of Package 1 PCE Package 1 Height 22.24in (56.5cm) Package 1 width 13.39in (34cm) Package 1 Length 33.07in (84cm)
Offer Sustainability
Sustainable offer status Green Premium product EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free Yes RoHS exemption information Yes China RoHS Regulation China RoHS declaration Environmental Disclosure Product Environmental Profile Circularity Profile End of Life Information WEEE The product must be disposed on European Union markets following specific waste collection and
EU RoHS Declaration
never end up in rubbish bins.
5
Page 6
Product data sheet

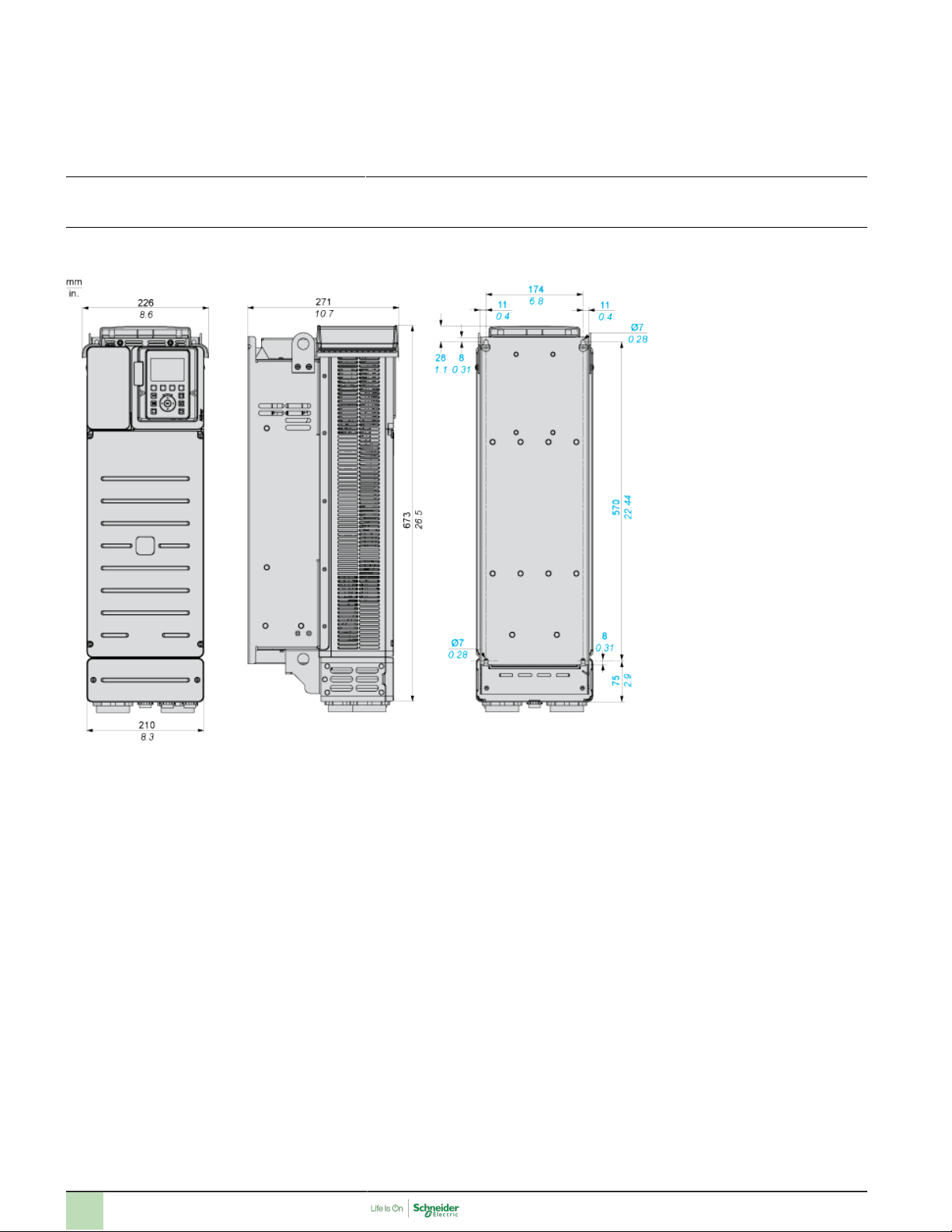

Dimensions Drawings
Dimensions
IP21 / UL Type 1 Drives - Front, Left Side and Rear View
ATV930D45N4
6
Page 7
Product data sheet
Mounting and Clearance

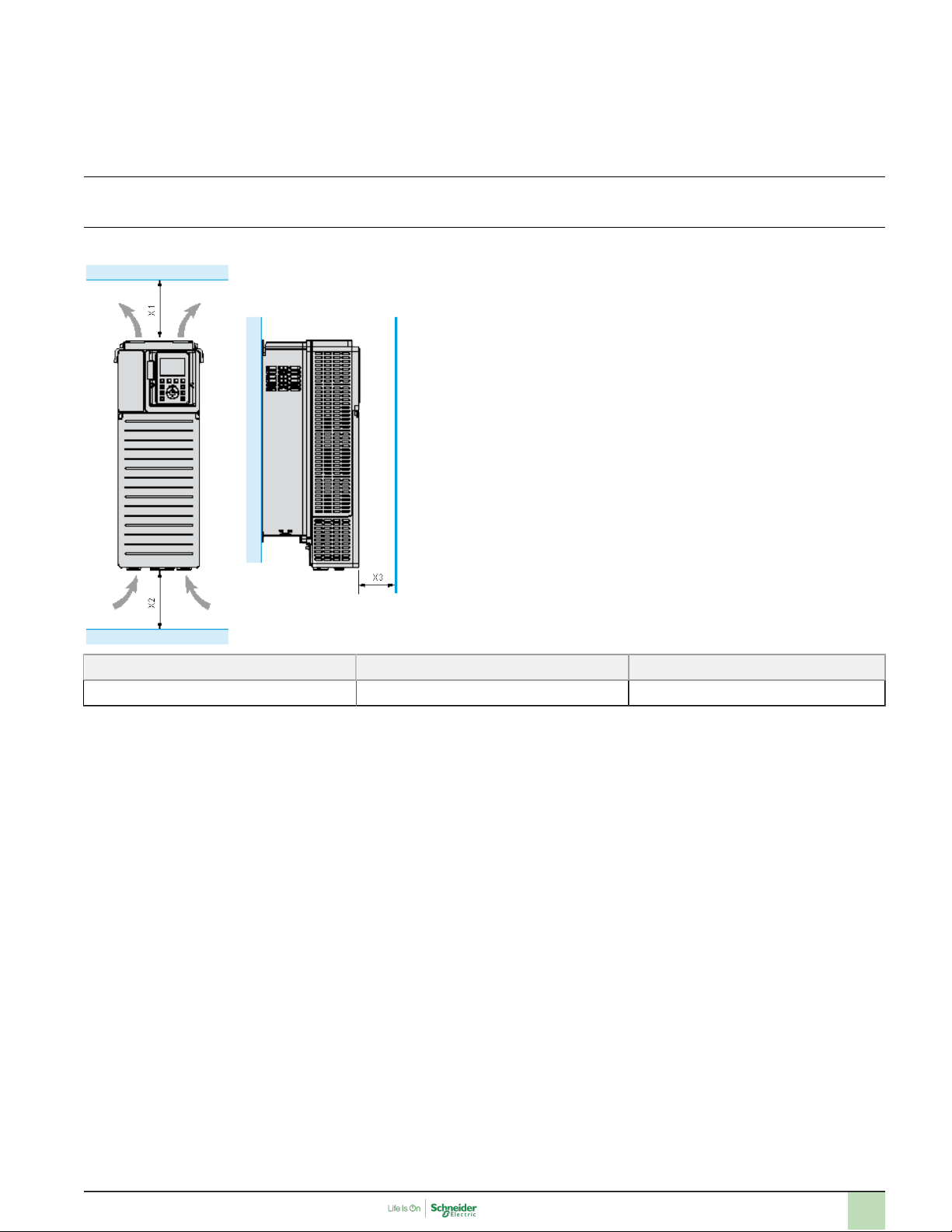

Clearances
ATV930D45N4
X1 X2 X3
≥ 100 mm (3.94 in.) ≥ 100 mm (3.94 in.) ≥ 10 mm (0.39 in.)
● Mount the device in a vertical position (±10°). This is required for cooling the device.
● Do not mount the device close to heat sources.
● Leave sufficient free space so that the air required for cooling purposes can circulate from the bottom to the top of the drive.
7
Page 8
Product data sheet
Mounting and Clearance

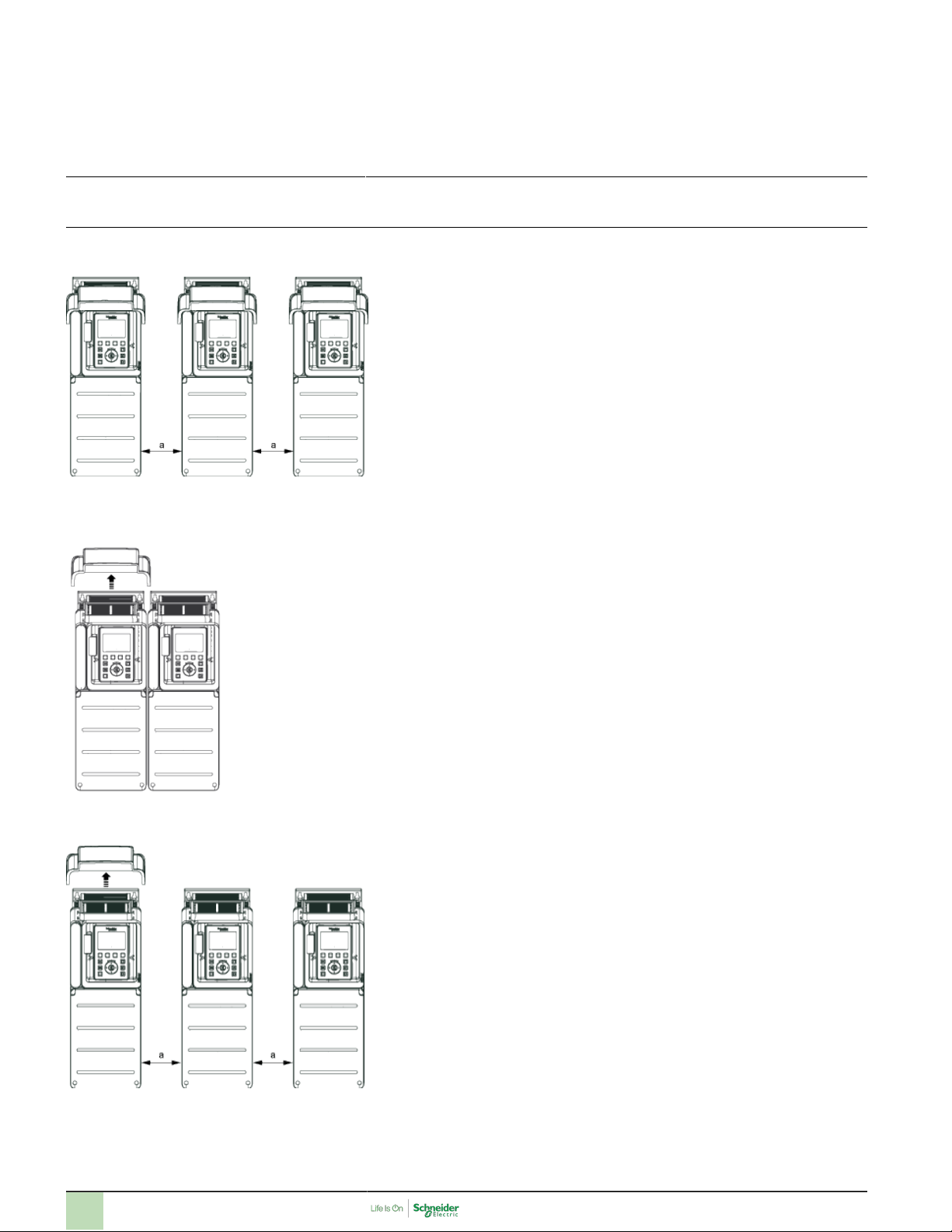

Mounting Types
Mounting Type A: Individual IP21
a ≥ = 110 mm (4.33 in.)
ATV930D45N4
Mounting Type B: Side by Side IP20 (Possible, 2 Drives Only)
Mounting Type C: Individual IP20
a ≥ = 110 mm (4.33 in.)
