Square D ATV212WD55N4 Data Sheet

Download

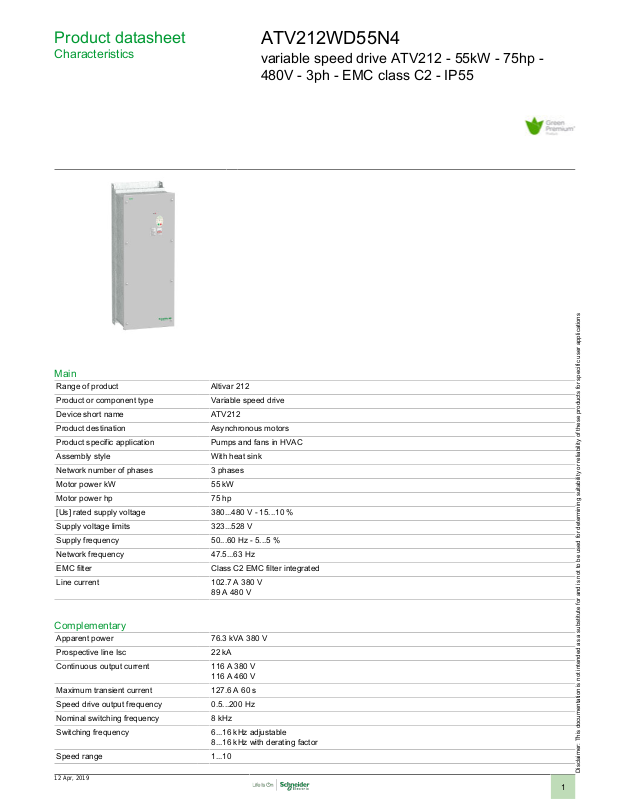

Page 1

Product datasheet

Characteristics

ATV212WD55N4

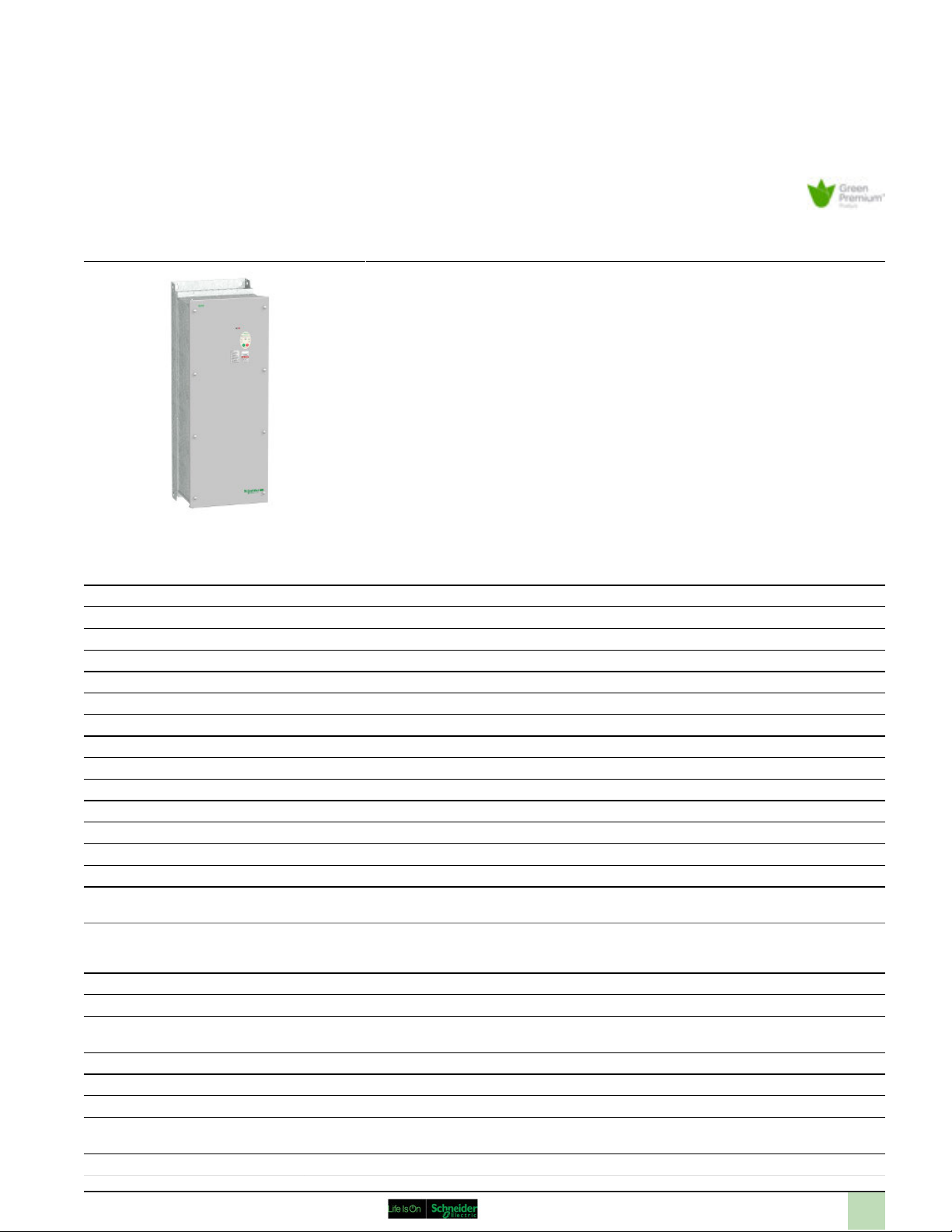

variable speed drive ATV212 - 55kW - 75hp 480V - 3ph - EMC class C2 - IP55

Main

Range of product Altivar 212

Product or component type Variable speed drive

Device short name ATV212

Product destination Asynchronous motors

Product specific application Pumps and fans in HVAC

Assembly style With heat sink

Network number of phases 3 phases

Motor power kW 55 kW

Motor power hp 75 hp

[Us] rated supply voltage 380...480 V - 15...10 %

Supply voltage limits 323...528 V

Supply frequency 50...60 Hz - 5...5 %

Network frequency 47.5...63 Hz

EMC filter Class C2 EMC filter integrated

Line current 102.7 A 380 V

89 A 480 V

Complementary

Apparent power 76.3 kVA 380 V

Prospective line Isc 22 kA

Continuous output current 116 A 380 V

116 A 460 V

Maximum transient current 127.6 A 60 s

Speed drive output frequency 0.5...200 Hz

Nominal switching frequency 8 kHz

Switching frequency 6...16 kHz adjustable

8...16 kHz with derating factor

Speed range 1...10

12 Apr, 2019

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

Page 2

Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn

Torque accuracy +/- 15 %

Transient overtorque 120 % of nominal motor torque +/- 10 % 60 s

Asynchronous motor control profile Voltage/frequency ratio, 2 points

Regulation loop Adjustable PI regulator

Motor slip compensation Adjustable

Local signalling 1 LED red DC bus energized

Output voltage <= power supply voltage

Isolation Electrical between power and control

Type of cable IEC cable without mounting kit 1 45 °C copper 90 °C XLPE/EPR

Electrical connection Terminal 2.5 mm² AWG 14 VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES

Tightening torque 41 N.m 360 lb.in L1/R, L2/S, L3/T

Supply Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 % <= 10 A overload and

Analogue input number 2

Analogue input type Switch-configurable voltage VIA 0...10 V DC 24 V max 30000 Ohm 10 bits

Sampling duration 2 ms +/- 0.5 ms F discrete

Response time 2 ms +/- 0.5 ms FM analog

Accuracy +/- 0.6 % VIA for a temperature variation 60 °C

Linearity error +/- 0.15 % of maximum value input VIA

Analogue output number 1

Analogue output type Switch-configurable voltage FM 0...10 V DC 7620 Ohm 10 bits

Discrete output number 2

Discrete output type Configurable relay logic FLA, FLC NO 100000 cycles

Minimum switching current 3 mA 24 V DC configurable relay logic

Maximum switching current 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R

Discrete input type Programmable F 24 V DC level 1 PLC 4700 Ohm

Discrete input logic Positive logic (source) F, R, RES <= 5 V >= 11 V

Acceleration and deceleration ramps Automatic based on the load

Voltage/frequency ratio, 5 points Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)

Automatic whatever the load Not available in voltage/frequency ratio motor control

IEC cable without mounting kit 1 45 °C copper 70 °C PVC UL 508 cable with UL Type 1 kit 3 40 °C copper 75 °C PVC

Terminal 150 mm² 300 L1/R, L2/S, L3/T

0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES

short-circuit protection Internal supply 24 V DC 21...27 V <= 200 A overload and short-circuit protection

Configurable voltage VIB 0...10 V DC 24 V max 30000 Ohm 10 bits Configurable PTC probe VIB 0...6 probes 1500 Ohm Switch-configurable current VIA 0...20 mA 250 Ohm 10 bits

2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete

3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog

7 ms +/- 0.5 ms FLA, FLC discrete 7 ms +/- 0.5 ms FLB, FLC discrete 7 ms +/- 0.5 ms RY, RC discrete

+/- 0.6 % VIB for a temperature variation 60 °C +/- 1 % FM for a temperature variation 60 °C

+/- 0.15 % of maximum value input VIB +/- 0.2 % output FM

Switch-configurable current FM 0...20 mA 970 Ohm 10 bits

Configurable relay logic FLB, FLC NC 100000 cycles Configurable relay logic RY, RC NO 100000 cycles

5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R

Programmable R 24 V DC level 1 PLC 4700 Ohm Programmable RES 24 V DC level 1 PLC 4700 Ohm

Negative logic (sink) F, R, RES >= 16 V <= 10 V

Linear adjustable separately from 0.01 to 3200 s

Page 3

Braking to standstill By DC injection

Protection type Motor phase break motor

Dielectric strength 3535 V DC between earth and power terminals

Insulation resistance >= 1 MOhm 500 V DC for 1 minute

Frequency resolution 0.024/50 Hz analog input

Communication port protocol APOGEE FLN

Connector type 1 RJ45

Physical interface 2-wire RS 485

Transmission frame RTU

Transmission rate 9600 bps or 19200 bps

Data format 8 bits, 1 stop, odd even or no configurable parity

Type of polarization No impedance

Number of addresses 1...247

Communication service Monitoring inhibitable

Option card Communication card LonWorks

Operating position Vertical +/- 10 degree

Width 362 mm

Height 1000 mm

Depth 364 mm

Functionality Mid

Specific application HVAC

IP degree of protection IP55

Break on the control circuit drive Thermal power stage drive Overvoltages on the DC bus drive Against exceeding limit speed drive Against input phase loss drive With PTC probes motor Input phase breaks drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor

5092 V DC between control and power terminals

0.1 Hz display unit

BACnet LonWorks METASYS N2 Modbus

1 open style

Read device identification (43) Read holding registers (03) 2 words maximum Time out setting from 0.1 to 100 s Write multiple registers (16) 2 words maximum Write single register (06)

Environment

Electromagnetic compatibility Conducted radio-frequency immunity test level 3 IEC 61000-4-6

Voltage dips and interruptions immunity test IEC 61000-4-11

1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 Electrical fast transient/burst immunity test level 4 IEC 61000-4-4 Electrostatic discharge immunity test level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3

Pollution degree 3 IEC 61800-5-1

IP degree of protection IP55 EN/IEC 61800-5-1

IP55 EN/IEC 60529

Vibration resistance 1 gn 13...200 Hz EN/IEC 60068-2-8

1.5 mm 3...13 Hz EN/IEC 60068-2-6

Shock resistance 15 gn 11 ms IEC 60068-2-27

Environmental characteristic Classes 3C1 IEC 60721-3-3

Page 4

Classes 3S2 IEC 60721-3-3

Noise level 63.7 dB 86/188/EEC

Operating altitude 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1

Relative humidity 5...95 % without condensation IEC 60068-2-3

Ambient air temperature for operation -10...40 °C without derating

Ambient air temperature for storage -25...70 °C

Standards EN 55011 class A group 1

Product certifications CSA

Marking CE

% per 100 m <= 1000 m without derating

5...95 % without dripping water IEC 60068-2-3

> 40...50 °C with derating factor

EN 61800-3 EN 61800-3 category C2 EN 61800-3 category C3 EN 61800-3 environments 1 category C1 EN 61800-3 environments 1 category C2 EN 61800-3 environments 1 category C3 EN 61800-3 environments 2 category C1 EN 61800-3 environments 2 category C2 EN 61800-3 environments 2 category C3 EN 61800-5-1 IEC 61800-3 IEC 61800-3 category C2 IEC 61800-3 category C3 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C1 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-5-1

C-Tick NOM 117 UL

Offer Sustainability

Sustainable offer status Green Premium product

RoHS (date code: YYWW) Compliant - since 1112 - Schneider Electric declaration of conformity

Schneider Electric declaration of conformity

REACh Reference not containing SVHC above the threshold

Reference not containing SVHC above the threshold

Product environmental profile Available

Product end of life instructions Available

Contractual warranty

Warranty period 18 months
