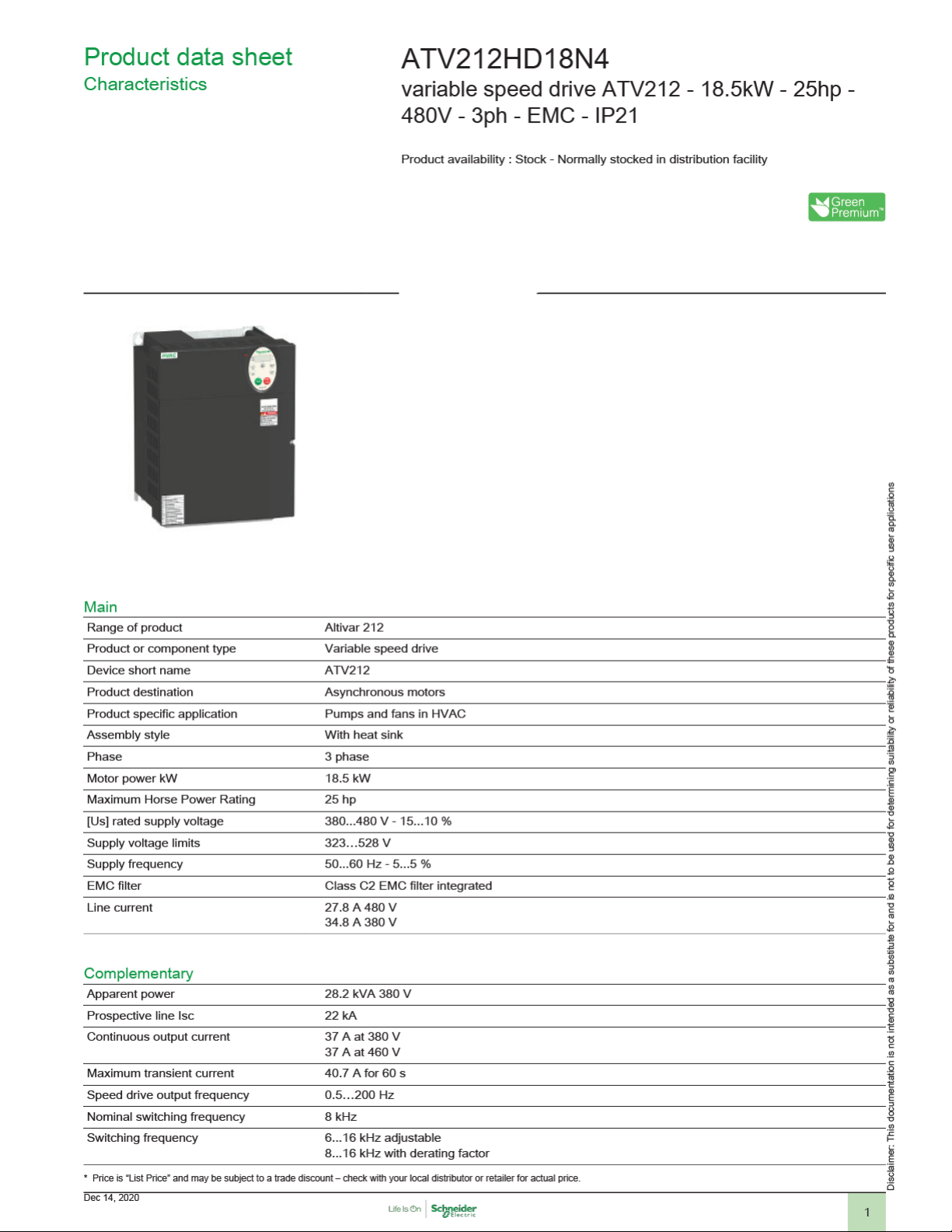

Square D ATV212HD18N4 Data Sheet

Speed range 1…10

Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn

Torque accuracy +/- 15 %

Transient overtorque 120% of nominal motor torque +/- 10 % 60 s

Asynchronous motor control profile Voltage/frequency ratio, 5 points

Regulation loop Adjustable PI regulator

Motor slip compensation Not available in voltage/frequency ratio motor control

Local signalling DC bus energized 1 LED red)

Output voltage <= power supply voltage

Isolation Electrical between power and control

Type of cable Without mounting kit 1 IEC cable 113°F (45°C), copper 90 °C / XLPE/EPR

Electrical connection VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00in² (2.5mm²) / AWG 14

Tightening torque 5.31lbf.in (0.6N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)

Supply Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10A overload and

Analogue input number 2

Analogue input type VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits

Sampling duration 2ms +/- 0.5 ms F discrete

Response time FM 2 ms +/- 0.5 ms analog

Accuracy +/- 0.6 % VIA) for a temperature variation 60 °C

Linearity error VIA +/- 0.15 % of maximum value input

Analogue output number 1

Analogue output type FM switch-configurable voltage 0...10 V DC 7620Ohm 10 bits

Discrete output number 2

Discrete output type Configurable relay logic FLA, FLC) NO - 100000cycles

Minimum switching current 3mA 24 V DC configurable relay logic

Maximum switching current 5A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R)

Discrete input type F programmable 24 V DC level 1 PLC 4700 Ohm

Discrete input logic Positive logic (source) F, R, RES), <= 5 V, >= 11 V

Voltage/frequency ratio - Energy Saving, quadratic U/f
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)
Flux vector control without sensor, standard

Automatic whatever the load
Adjustable

Without mounting kit 1 IEC cable 113°F (45°C), copper 70 °C / PVC
With UL Type 1 kit: 3 wire(s)UL 508 cable at 40°C, copper 75 °C / PVC

L1/R, L2/S, L3/T terminal 0.04in² (25mm²) / AWG 3

39.83lbf.in (4.5N.m), 40 lb.in L1/R, L2/S, L3/T)

short-circuit protection
Internal supply 24 V DC 21…27V), <200A overload and short-circuit protection

VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits
VIB configurable PTC probe 0...6 probes 1500 Ohm
VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

2ms +/- 0.5 ms R discrete
2ms +/- 0.5 ms RES discrete

3.5ms +/- 0.5 ms VIA analog
22ms +/- 0.5 ms VIB analog

FLA, FLC 7 ms +/- 0.5 ms discrete
FLB, FLC 7 ms +/- 0.5 ms discrete
RY, RC 7 ms +/- 0.5 ms discrete

+/- 0.6 % VIB) for a temperature variation 60 °C
+/- 1 % FM) for a temperature variation 60 °C

VIB +/- 0.15 % of maximum value input
FM +/- 0.2 % output

FM switch-configurable current 0...20 mA 970Ohm 10 bits

Configurable relay logic FLB, FLC) NC - 100000cycles
Configurable relay logic RY, RC) NO - 100000cycles

5A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R)
2A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R)
2A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)

R programmable 24 V DC level 1 PLC 4700 Ohm
RES programmable 24 V DC level 1 PLC 4700 Ohm

Negative logic (sink) F, R, RES), >= 16 V, <= 10 V

2

Acceleration and deceleration ramps Linear adjustable separately from 0.01 to 3200 s

Braking to standstill By DC injection

Protection type Overheating protection drive

Dielectric strength 3535V DC between earth and power terminals

Insulation resistance >= 1 mOhm 500 V DC for 1 minute

Frequency resolution Display unit 0.1 Hz

Communication port protocol APOGEE FLN

Connector type 1 open style

Physical interface 2-wire RS 485

Transmission frame RTU

Transmission rate 9600 bps or 19200 bps

Data format 8 bits, 1 stop, odd even or no configurable parity

Type of polarization No impedance

Number of addresses 1…247

Communication service Time out setting from 0.1 to 100 s

Option card Communication card for LonWorks

Operating position Vertical +/- 10 degree

Width 9.65in (245mm)

Height 12.99in (330mm)

Depth 7.48in (190mm)

Net Weight 25.68lb(US) (11.65kg)

Power dissipation in W 603W

Air flow 56533.83Gal/hr(US) (214m3/h)

Functionality Mid

Specific application HVAC

IP degree of protection IP21

Variable speed drive application
selection

Motor power range AC-3 15…25kW 380…440V 3 phase

Motor starter type Variable speed drive

Automatic based on the load

Thermal power stage drive
Short-circuit between motor phases drive
Input phase breaks drive
Overcurrent between output phases and earth drive
Overvoltages on the DC bus drive
Break on the control circuit drive
Against exceeding limit speed drive
Line supply overvoltage and undervoltage drive
Line supply undervoltage drive
Against input phase loss drive
Thermal protection motor
Motor phase break motor
With PTC probes motor

5092V DC between control and power terminals

Analog input 0.024/50 Hz

BACnet
LonWorks
Modbus
METASYS N2

1 RJ45

Read device identification (43)
Monitoring inhibitable
Read holding registers (03) 2 words maximum
Write multiple registers (16) 2 words maximum
Write single register (06)

Building - HVAC Compressor for scroll
Building - HVAC Fan
Building - HVAC Pump

15…25kW 480…500V 3 phase

Environment

Electromagnetic compatibility Electrostatic discharge immunity test level 3 IEC 61000-4-2

Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3

3

Electrical fast transient/burst immunity test level 4 IEC 61000-4-4

1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
Conducted radio-frequency immunity test level 3 IEC 61000-4-6
Voltage dips and interruptions immunity test IEC 61000-4-11

Pollution degree 2 IEC 61800-5-1

IP degree of protection IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1

Vibration resistance 1.5 mm 3…13Hz)EN/IEC 60068-2-6

Shock resistance 15 gn 11ms IEC 60068-2-27

Environmental characteristic Classes 3C1 IEC 60721-3-3

Noise level 54dB 86/188/EEC

Operating altitude 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network

Relative humidity 5…95% without condensation IEC 60068-2-3

Ambient air temperature for operation -10…40°C (without derating)

Ambient air temperature for storage -13…158°F (-25…70°C)

Standards EN 61800-3 environments 1 category C2

Product certifications CSA

Marking CE

IP20 on upper part without blanking plate on cover EN/IEC 60529
IP21 EN/IEC 61800-5-1
IP21 EN/IEC 60529
IP41 on upper part EN/IEC 61800-5-1
IP41 on upper part EN/IEC 60529

1 gn 13…200Hz)EN/IEC 60068-2-8

Classes 3S2 IEC 60721-3-3

with current derating 1 % per 100 m
<= 3280.84 ft (1000 m) without derating

5…95% without dripping water IEC 60068-2-3

40…50°C (with derating factor)

EN 61800-3 category C2
IEC 61800-3
IEC 61800-3 environments 1 category C1
IEC 61800-5-1
IEC 61800-3 environments 2 category C1
IEC 61800-3 environments 2 category C2
IEC 61800-3 environments 1 category C2
EN 55011 class A group 1
EN 61800-3 environments 1 category C3
IEC 61800-3 environments 1 category C3
EN 61800-3
IEC 61800-3 category C3
EN 61800-3 category C3
IEC 61800-3 category C2
EN 61800-5-1
UL Type 1
IEC 61800-3 environments 2 category C3
EN 61800-3 environments 1 category C1
EN 61800-3 environments 2 category C2
EN 61800-3 environments 2 category C3
EN 61800-3 environments 2 category C1

UL
C-tick
NOM 117

Ordering and shipping details

Category 22157 - ATV212 1 - 25 HP 460 VOLT

Discount Schedule CP4D

GTIN 00785901921325

Nbr. of units in pkg. 1

Package weight(Lbs) 25.52lb(US) (11.58kg)

Returnability Yes

Country of origin ID

Packing Units

Unit Type of Package 1 PCE

4

Package 1 Height 11.02in (28cm)

Package 1 width 15.75in (40cm)

Package 1 Length 11.81in (30cm)

Package 2 Weight 130.82lb(US) (59.34kg)

Offer Sustainability

Sustainable offer status Green Premium product

California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which

REACh Regulation REACh Declaration

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

Environmental Disclosure Product Environmental Profile

Circularity Profile End of Life Information

WEEE The product must be disposed on European Union markets following specific waste collection and

is known to the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov

EU RoHS Declaration

never end up in rubbish bins.

Contractual warranty

Warranty 18 months
