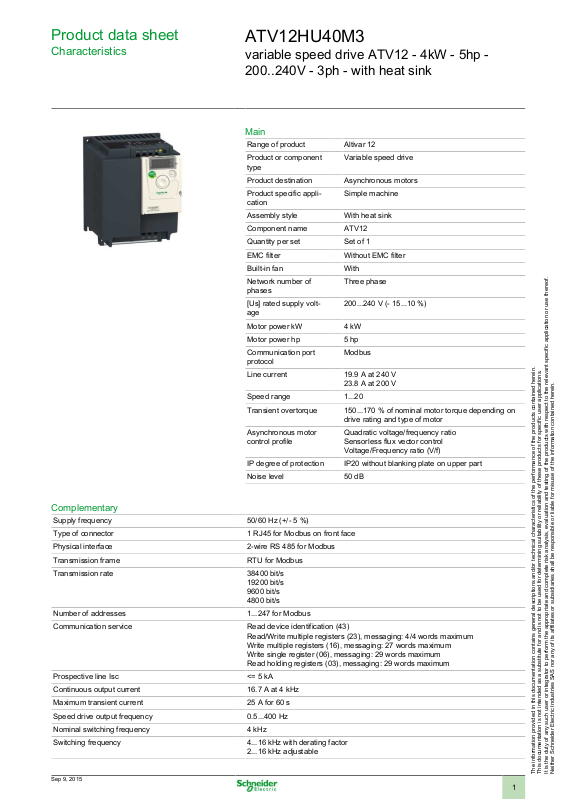

Product data sheet
Characteristics
ATV12HU40M3
variable speed drive ATV12 - 4kW - 5hp -
200..240V - 3ph - with heat sink
Main
Range of product Altivar 12
Product or component
type
Product destination Asynchronous motors
Product specific application
Assembly style With heat sink
Component name ATV12
Quantity per set Set of 1
EMC filter Without EMC filter
Built-in fan With
Network number of
phases
[Us] rated supply voltage
Motor power kW 4 kW
Motor power hp 5 hp
Communication port
protocol
Line current 19.9 A at 240 V
Speed range 1...20
Transient overtorque 150...170 % of nominal motor torque depending on
Asynchronous motor
control profile
IP degree of protection IP20 without blanking plate on upper part
Noise level 50 dB
Variable speed drive
Simple machine
Three phase
200...240 V (- 15...10 %)
Modbus
23.8 A at 200 V
drive rating and type of motor
Quadratic voltage/frequency ratio
Sensorless flux vector control
Voltage/Frequency ratio (V/f)
Complementary
Supply frequency 50/60 Hz (+/- 5 %)
Type of connector 1 RJ45 for Modbus on front face
Physical interface 2-wire RS 485 for Modbus
Transmission frame RTU for Modbus
Transmission rate 38400 bit/s
Number of addresses 1...247 for Modbus
Communication service Read device identification (43)
Prospective line Isc <= 5 kA
Continuous output current 16.7 A at 4 kHz
Maximum transient current 25 A for 60 s
Speed drive output frequency 0.5...400 Hz
Nominal switching frequency 4 kHz
Switching frequency 4...16 kHz with derating factor
Sep 9, 2015
19200 bit/s
9600 bit/s
4800 bit/s
Read/Write multiple registers (23), messaging: 4/4 words maximum
Write multiple registers (16), messaging: 27 words maximum
Write single register (06), messaging: 29 words maximum
Read holding registers (03), messaging: 29 words maximum
2...16 kHz adjustable
1
Page 2
Braking torque Up to 70 % of nominal motor torque without braking resistor
Motor slip compensation Adjustable
Output voltage 200...240 V three phase
Electrical connection L1, L2, L3, U, V, W, PA, PC terminal 5.5 mm² (AWG 10)
Tightening torque 1.2 N.m
Insulation Electrical between power and control
Supply Internal supply for logic inputs 24 V DC, voltage limits 20.4...28.8 V, 100 mA for
Analogue input number 1
Analogue input type AI1 configurable voltage 0...5 V, impedance 30 kOhm
Discrete input number 4
Discrete input type (LI1...LI4) programmable, 24 V, voltage limits 18...30 V
Discrete input logic Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)
Sampling duration < 10 ms for analogue input
Linearity error +/- 0.3 % of maximum value for analogue input
Analogue output number 1
Analogue output type (AO1) software-configurable current, analogue output range 0...20 mA, output
Discrete output number 2
Discrete output type (R1A, R1B, R1C) protected relay output 1 C/O
Minimum switching current 5 mA at 24 V DC for logic relay
Maximum switching current 4 A at 30 V DC resistive load cos phi = 1 L/R = 0 ms for logic relay
Acceleration and deceleration ramps Linear from 0 to 999.9 s
Braking to standstill By DC injection, 0.1...30 s
Protection type Thermal motor protection via the drive by continuous calculation of I²t
Frequency resolution Display unit 0.1 Hz
Time constant 20 ms, tolerance +/- 1 ms for reference change
Marking CE
Operating position Vertical +/- 10 degree
Height 184 mm
Width 140 mm
Depth 141.2 mm
Product weight 2 kg
Up to 150 % of nominal motor torque with braking resistor at high inertia
Preset in factory
overload and short-circuit protection
Internal supply for reference potentiometer 5 V DC, voltage limits 4.75...5.25 V,
10 mA for overload and short-circuit protection
AI1 configurable voltage 0...10 V, impedance 30 kOhm
AI1 configurable current 0...20 mA, impedance 250 Ohm
Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5
kOhm
< 20 ms, tolerance +/- 1 ms for logic input
impedance 800 Ohm, analogue output resolution 8 bits
(AO1) software-configurable voltage, analogue output range 0...10 V, output
impedance 470 Ohm, analogue output resolution 8 bits
(LO+, LO-) logic output
3 A at 250 V AC resistive load cos phi = 1 L/R = 0 ms for logic relay
2 A at 30 V DC inductive load cos phi = 0.4 L/R = 7 ms for logic relay
2 A at 250 V AC inductive load cos phi = 0.4 L/R = 7 ms for logic relay
S
U
Against input phase loss in three-phase
Short-circuit between motor phases
Overheating protection
Overcurrent between output phases and earth
Line supply undervoltage
Line supply overvoltage
Analog input converter A/D, 10 bits
2
Page 3
Environment
Electromagnetic compatibility Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
Electromagnetic emission Conducted emissions conforming to EN/IEC 61800-3
Product certifications CSA
Vibration resistance 1.5 mm peak to peak (f = 3...13 Hz) drive unmounted on symmetrical DIN rail
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity 5...95 % without dripping water conforming to IEC 60068-2-3
Ambient air temperature for storage -25...70 °C
Ambient air temperature for operation 50...60 °C with current derating 2.2 % per °C
Operating altitude > 1000...3000 m with current derating 1 % per 100 m
Surge immunity test (level 3) conforming to EN/IEC 61000-4-5
Radiated radio-frequency electromagnetic field immunity test (level 3) conforming
to EN/IEC 61000-4-3
Immunity to conducted disturbances (level 3) conforming to EN/IEC 61000-4-6
Electrostatic discharge immunity test (level 3) conforming to EN/IEC 61000-4-2
Electrical fast transient/burst immunity test (level 4) conforming to EN/IEC
61000-4-4
Radiated emissions, class: environment 1 category C2 conforming to EN/IEC
61800-3 - test level: 2...16 kHz shielded motor cable
C-Tick
GOST
NOM
UL
conforming to EN/IEC 60068-2-6
1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
5...95 % without condensation conforming to IEC 60068-2-3
-10...50 °C with protective cover from the top of the drive removed
<= 1000 m without derating
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW)
Compliant - since 0901 - Schneider Electric declaration of conformity
Contractual warranty
Period 18 months
3
Page 4
Product data sheet
Dimensions Drawings
Dimensions
Drive without EMC Conformity Kit
Drive with EMC Conformity Kit
ATV12HU40M3
4
Page 5
Product data sheet
Mounting and Clearance
Mounting Recommendations
Clearance for Vertical Mounting
ATV12HU40M3
Mounting Type A
Mounting Type B
Remove the protective cover from the top of the drive.
Mounting Type C
Remove the protective cover from the top of the drive.
5
Page 6
Product data sheet
Connections and Schema
Three-Phase Power Supply Wiring Diagram
ATV12HU40M3
A1 Drive
KM1 Contactor (only if a control circuit is needed)
Q1 Circuit breaker
Recommended Schemes
2-Wire Control for Logic I/O with Internal Power Supply
LI1 : Forward
LI• : Reverse
A1 : Drive
3-Wire Control for Logic I/O with Internal Power Supply
LI1 : Stop
LI2 : Forward
LI• : Reverse
A1 : Drive
Analog Input Configured for Voltage with Internal Power Supply
(1) 2.2 kΩ…10 kΩ reference potentiometer
A1 : Drive
6
Page 7
Analog Input Configured for Current with Internal Power Supply
(2) 0-20 mA 4-20 mA supply
A1 : Drive
Connected as Positive Logic (Source) with External 24 vdc Supply
(1) 24 vdc supply
A1 : Drive
Connected as Negative Logic (Sink) with External 24 vdc supply
(1) 24 vdc supply
A1 : Drive
7
Page 8
Product data sheet
ATV12HU40M3
Performance Curves
Torque Curves
1 : Self-cooled motor: continuous useful torque (1)
2 : Force-cooled motor: continuous useful torque
3 : Transient overtorque for 60 s
4 : Transient overtorque for 2 s
5 : Torque in overspeed at constant power (2)
(1) For power ratings ≤ 250 W, derating is 20% instead of 50% at very low frequencies.
(2) The nominal motor frequency and the maximum output frequency can be adjusted from 0.5 to 400 Hz. The mechanical overspeed
capability of the selected motor must be checked with the manufacturer.
