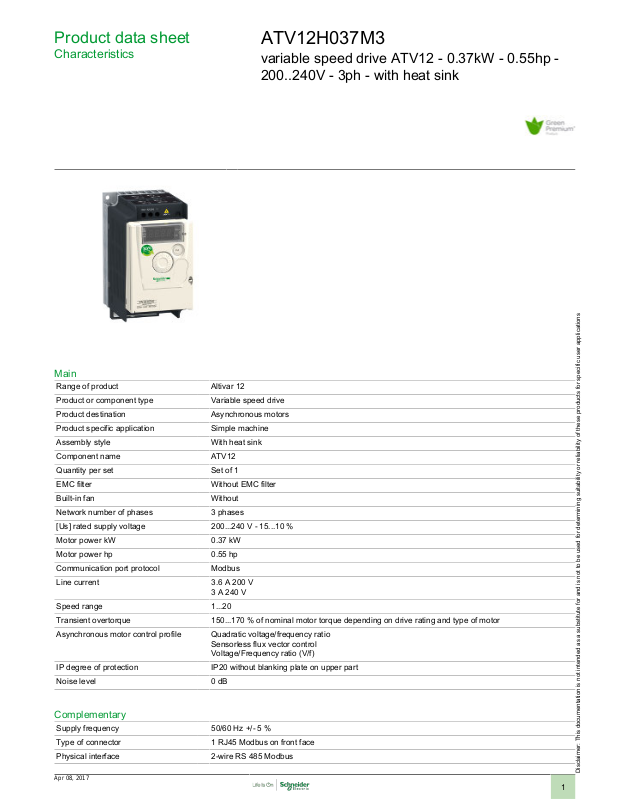

Product data sheet
Characteristics
ATV12H037M3
variable speed drive ATV12 - 0.37kW - 0.55hp -
200..240V - 3ph - with heat sink
Main
Range of product Altivar 12
Product or component type Variable speed drive
Product destination Asynchronous motors
Product specific application Simple machine
Assembly style With heat sink
Component name ATV12
Quantity per set Set of 1
EMC filter Without EMC filter
Built-in fan Without
Network number of phases 3 phases
[Us] rated supply voltage 200...240 V - 15...10 %
Motor power kW 0.37 kW
Motor power hp 0.55 hp
Communication port protocol Modbus
Line current 3.6 A 200 V
Speed range 1...20
Transient overtorque 150...170 % of nominal motor torque depending on drive rating and type of motor
Asynchronous motor control profile Quadratic voltage/frequency ratio
IP degree of protection IP20 without blanking plate on upper part
Noise level 0 dB
3 A 240 V
Sensorless flux vector control
Voltage/Frequency ratio (V/f)
Complementary
Supply frequency 50/60 Hz +/- 5 %
Type of connector 1 RJ45 Modbus on front face
Physical interface 2-wire RS 485 Modbus
Apr 08, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Transmission frame RTU Modbus
Transmission rate 4800 bit/s
Number of addresses 1...247 Modbus
Communication service Read holding registers (03) 29 words
Prospective line Isc <= 5 kA
Continuous output current 2.4 A 4 kHz
Maximum transient current 3.6 A 60 s
Speed drive output frequency 0.5...400 Hz
Nominal switching frequency 4 kHz
Switching frequency 2...16 kHz adjustable
Braking torque Up to 70 % of nominal motor torque without braking resistor
Motor slip compensation Adjustable
Output voltage 200...240 V 3 phases
Electrical connection Terminal 3.5 mm² AWG 12 L1, L2, L3, U, V, W, PA, PC
Tightening torque 0.8 N.m
Insulation Electrical between power and control
Supply Internal supply for reference potentiometer 5 V DC 4.75...5.25 V 10 mA overload and short-circuit
Analogue input number 1
Analogue input type Configurable voltage AI1 0...10 V 30 kOhm
Discrete input number 4
Discrete input type Programmable LI1...LI4 24 V 18...30 V
Discrete input logic Negative logic (sink) > 16 V < 10 V 3.5 kOhm
Sampling duration < 20 ms +/- 1 ms logic input
Linearity error +/- 0.3 % of maximum value analogue input
Analogue output number 1
Analogue output type Software-configurable voltage AO1 0...10 V 470 Ohm 8 bits
Discrete output number 2
Discrete output type Logic output LO+, LO-
Minimum switching current 5 mA 24 V DC logic relay
Maximum switching current 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay
Acceleration and deceleration ramps Linear from 0 to 999.9 s
Braking to standstill By DC injection 0.1...30 s
Protection type Against input phase loss in three-phase
9600 bit/s
19200 bit/s
38400 bit/s
Write single register (06) 29 words
Write multiple registers (16) 27 words
Read/Write multiple registers (23) 4/4 words
Read device identification (43)
4...16 kHz with derating factor
Preset in factory
protection
Internal supply for logic inputs 24 V DC 20.4...28.8 V 100 mA overload and short-circuit protection
Configurable voltage AI1 0...5 V 30 kOhm
Configurable current AI1 0...20 mA 250 Ohm
Positive logic (source) 0...< 5 V > 11 V
< 10 ms analogue input
Software-configurable current AO1 0...20 mA 800 Ohm 8 bits
Protected relay output R1A, R1B, R1C 1 C/O
2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay
3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay
4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
S
U
Thermal motor protection via the drive by continuous calculation of I²t
Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
2
Frequency resolution 0.1 Hz display unit
Time constant 20 ms +/- 1 ms for reference change
Marking CE
Operating position Vertical +/- 10 degree
Height 143 mm
Width 72 mm
Depth 121.2 mm
Product weight 0.8 kg
Specific application Commercial equipment
Variable speed drive application
selection
Motor power range AC-3 0...0.5 kW at 200...240 V 3 phases
Motor starter type Variable speed drive
Converter A/D, 10 bits analog input
Commercial equipment : mixer
Commercial equipment : other application
Textile : ironing
Environment
Electromagnetic compatibility Immunity to conducted disturbances level 3 EN/IEC 61000-4-6
Electromagnetic emission Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable
Product certifications CSA
Vibration resistance 1 gn EN/IEC 60068-2-6 13...200 Hz
Shock resistance 15 gn EN/IEC 60068-2-27 11 ms
Relative humidity 5...95 % without condensation IEC 60068-2-3
Ambient air temperature for storage -25...70 °C
Ambient air temperature for operation -10...40 °C protective cover from the top of the drive removed
Operating altitude > 1000...3000 m with current derating 1 % per 100 m
Surge immunity test level 3 EN/IEC 61000-4-5
Voltage dips and interruptions immunity test EN/IEC 61000-4-11
Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4
Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3
Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12
kHz shielded motor cable <= 20 m
Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12
kHz shielded motor cable <= 20 m
C-Tick
GOST
NOM
UL
1.5 mm peak to peak EN/IEC 60068-2-6 3...13 Hz drive unmounted on symmetrical DIN rail
5...95 % without dripping water IEC 60068-2-3
40...60 °C with current derating 2.2 % per °C
<= 1000 m without derating
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0901 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
Product environmental
Contractual warranty
Warranty period 18 months
3
Product data sheet
ATV12H037M3
Dimensions Drawings
Dimensions
Drive without EMC Conformity Kit
Dimensions in mm
b c H
130 121.2 120
Dimensions in in.
b c H
5.12 4.77 4.72
Drive with EMC Conformity Kit
Dimensions in mm
c1
53
Dimensions in in.
c1
2.09
4
Product data sheet
Mounting and Clearance
Mounting Recommendations
Clearance for Vertical Mounting
ATV12H037M3
Mounting Type A
Mounting Type B
Remove the protective cover from the top of the drive.
Mounting Type C
Remove the protective cover from the top of the drive.
5
Product data sheet
Connections and Schema
Three-Phase Power Supply Wiring Diagram
ATV12H037M3
A1 Drive
KM1 Contactor (only if a control circuit is needed)
Q1 Circuit breaker
6
Product data sheet
ATV12H037M3
Connections and Schema
Recommended Schemes
2-Wire Control for Logic I/O with Internal Power Supply
LI1 : Forward
LI• : Reverse
A1 : Drive
3-Wire Control for Logic I/O with Internal Power Supply
LI1 : Stop
LI2 : Forward
LI• : Reverse
A1 : Drive
Analog Input Configured for Voltage with Internal Power Supply
(1) 2.2 kΩ…10 kΩ reference potentiometer
A1 : Drive
Analog Input Configured for Current with Internal Power Supply
(2) 0-20 mA 4-20 mA supply
A1 : Drive
7
Connected as Positive Logic (Source) with External 24 vdc Supply
(1) 24 vdc supply
A1 : Drive
Connected as Negative Logic (Sink) with External 24 vdc supply
(1) 24 vdc supply
A1 : Drive
8
Product data sheet
ATV12H037M3
Performance Curves
Torque Curves
1 : Self-cooled motor: continuous useful torque (1)
2 : Force-cooled motor: continuous useful torque
3 : Transient overtorque for 60 s
4 : Transient overtorque for 2 s
5 : Torque in overspeed at constant power (2)
(1) For power ratings ≤ 250 W, derating is 20% instead of 50% at very low frequencies.
(2) The nominal motor frequency and the maximum output frequency can be adjusted from 0.5 to 400 Hz. The mechanical overspeed capability of the select
9
Product data sheet
ATV12H037M3
Motor Starter BOM
<!-- File : MPC-ATV12H037M3-BOM.xml , Range ID : 2253, Reference ID : ATV12H037M3 -->
Our Proposal: Circuit Breaker + Contactor + Drive for Motor Power 0,37 kW and 200 VAC
<!-- DataBOM 1 Template BEGIN -->
Motor Power
(kW)
0,37 > 100
Non contractual pictures.
Icu
(kA)
Breaker Contactor (*) Motor Starter
GV2ME08
LC1K0910P7 ATV12H037M3
<!-- DataBOM 1 Template END --> <!-- Templates For Variants BEGIN -->
(*) You can select the contactor proposed or variants. Please consider examples hereafter or follow the link to the complete offer.
<!-- VARIANT 1 -->
Motor Power
kW
0,37 LC1K0910 .. B7 E7 F7 FE7 M7 P7 V7 Complete Offer
Coil voltage
VAC - 50/60 Hz
24 48 110 115 220 230 400 Other
<!-- VARIANT 1 END --> <!-- VARIANT 2 -->
Motor Power
kW
0,37 LP1K0910 .. BD ED Complete Offer
Coil voltage
VDC - U 0.75…1.25 Uc
24 48 Other
<!-- VARIANT 2 END --> <!-- VARIANT 3 -->
Motor Power
kW
0,37 LP4K0910 .. BW3 FW3 Complete Offer
Coil voltage
Low Consumption
VDC - U 0.8…1.25 Uc
24 110 Other
<!-- VARIANT 3 END --> <!-- Templates For Variants END -->
10
