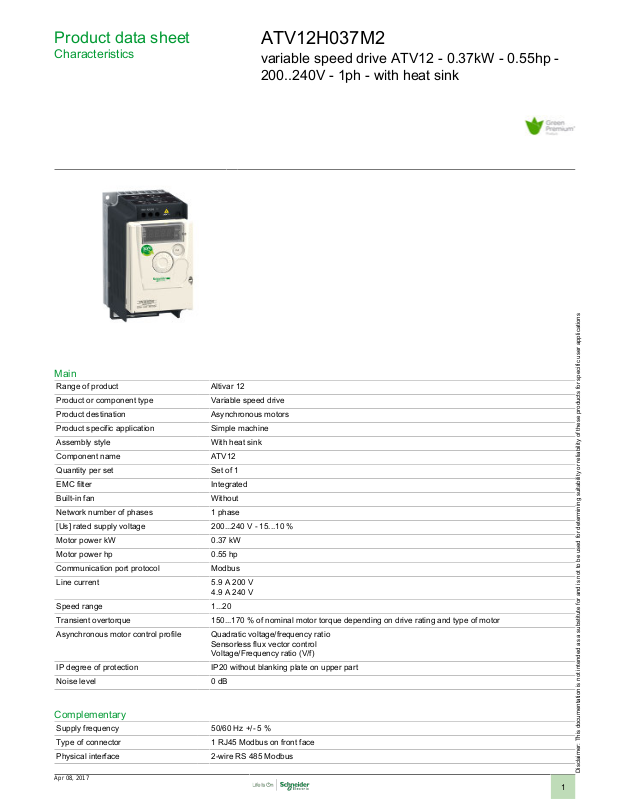

Product data sheet
Characteristics
ATV12H037M2
variable speed drive ATV12 - 0.37kW - 0.55hp -
200..240V - 1ph - with heat sink
Main
Range of product Altivar 12
Product or component type Variable speed drive
Product destination Asynchronous motors
Product specific application Simple machine
Assembly style With heat sink
Component name ATV12
Quantity per set Set of 1
EMC filter Integrated
Built-in fan Without
Network number of phases 1 phase
[Us] rated supply voltage 200...240 V - 15...10 %
Motor power kW 0.37 kW
Motor power hp 0.55 hp
Communication port protocol Modbus
Line current 5.9 A 200 V
Speed range 1...20
Transient overtorque 150...170 % of nominal motor torque depending on drive rating and type of motor
Asynchronous motor control profile Quadratic voltage/frequency ratio
IP degree of protection IP20 without blanking plate on upper part
Noise level 0 dB
4.9 A 240 V
Sensorless flux vector control
Voltage/Frequency ratio (V/f)
Complementary
Supply frequency 50/60 Hz +/- 5 %
Type of connector 1 RJ45 Modbus on front face
Physical interface 2-wire RS 485 Modbus
Apr 08, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Transmission frame RTU Modbus
Transmission rate 4800 bit/s
Number of addresses 1...247 Modbus
Communication service Read holding registers (03) 29 words
Prospective line Isc <= 1 kA
Continuous output current 2.4 A 4 kHz
Maximum transient current 3.6 A 60 s
Speed drive output frequency 0.5...400 Hz
Nominal switching frequency 4 kHz
Switching frequency 2...16 kHz adjustable
Braking torque Up to 70 % of nominal motor torque without braking resistor
Motor slip compensation Adjustable
Output voltage 200...240 V 1 phase
Electrical connection Terminal 3.5 mm² AWG 12 L1, L2, L3, U, V, W, PA, PC
Tightening torque 0.8 N.m
Insulation Electrical between power and control
Supply Internal supply for reference potentiometer 5 V DC 4.75...5.25 V 10 mA overload and short-circuit
Analogue input number 1
Analogue input type Configurable voltage AI1 0...10 V 30 kOhm
Discrete input number 4
Discrete input type Programmable LI1...LI4 24 V 18...30 V
Discrete input logic Negative logic (sink) > 16 V < 10 V 3.5 kOhm
Sampling duration < 20 ms +/- 1 ms logic input
Linearity error +/- 0.3 % of maximum value analogue input
Analogue output number 1
Analogue output type Software-configurable voltage AO1 0...10 V 470 Ohm 8 bits
Discrete output number 2
Discrete output type Logic output LO+, LO-
Minimum switching current 5 mA 24 V DC logic relay
Maximum switching current 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay
Acceleration and deceleration ramps Linear from 0 to 999.9 s
Braking to standstill By DC injection 0.1...30 s
Protection type Against input phase loss in three-phase
9600 bit/s
19200 bit/s
38400 bit/s
Write single register (06) 29 words
Write multiple registers (16) 27 words
Read/Write multiple registers (23) 4/4 words
Read device identification (43)
4...16 kHz with derating factor
Preset in factory
protection
Internal supply for logic inputs 24 V DC 20.4...28.8 V 100 mA overload and short-circuit protection
Configurable voltage AI1 0...5 V 30 kOhm
Configurable current AI1 0...20 mA 250 Ohm
Positive logic (source) 0...< 5 V > 11 V
< 10 ms analogue input
Software-configurable current AO1 0...20 mA 800 Ohm 8 bits
Protected relay output R1A, R1B, R1C 1 C/O
2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay
3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay
4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
S
U
Thermal motor protection via the drive by continuous calculation of I²t
Line supply overvoltage
Line supply undervoltage
Overcurrent between output phases and earth
Overheating protection
Short-circuit between motor phases
2
Frequency resolution 0.1 Hz display unit
Time constant 20 ms +/- 1 ms for reference change
Marking CE
Operating position Vertical +/- 10 degree
Height 143 mm
Width 72 mm
Depth 121.2 mm
Product weight 0.7 kg
Functionality Basic
Specific application Commercial equipment
Variable speed drive application
selection
Motor power range AC-3 0...0.5 kW at 200...240 V 1 phase
Motor starter type Variable speed drive
Converter A/D, 10 bits analog input
Commercial equipment : mixer
Commercial equipment : other application
Textile : ironing
Environment
Electromagnetic compatibility Immunity to conducted disturbances level 3 EN/IEC 61000-4-6
Electromagnetic emission Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable
Product certifications CSA
Vibration resistance 1 gn EN/IEC 60068-2-6 13...200 Hz
Shock resistance 15 gn EN/IEC 60068-2-27 11 ms
Relative humidity 5...95 % without condensation IEC 60068-2-3
Ambient air temperature for storage -25...70 °C
Ambient air temperature for operation -10...40 °C protective cover from the top of the drive removed
Operating altitude > 1000...2000 m with current derating 1 % per 100 m
Surge immunity test level 3 EN/IEC 61000-4-5
Voltage dips and interruptions immunity test EN/IEC 61000-4-11
Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4
Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3
Conducted emissions with integrated EMC filter environment 1 category C1 EN/IEC 61800-3 2, 4, 8,
12 and 16 kHz shielded motor cable <= 5 m
Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2...12
kHz shielded motor cable <= 5 m
Conducted emissions with integrated EMC filter environment 1 category C2 EN/IEC 61800-3 2, 4 and
16 kHz shielded motor cable <= 10 m
Conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12
kHz shielded motor cable <= 20 m
Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12
kHz shielded motor cable <= 50 m
Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12
kHz shielded motor cable <= 50 m
C-Tick
GOST
NOM
UL
1.5 mm peak to peak EN/IEC 60068-2-6 3...13 Hz drive unmounted on symmetrical DIN rail
5...95 % without dripping water IEC 60068-2-3
40...60 °C with current derating 2.2 % per °C
<= 1000 m without derating
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0901 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
3
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
