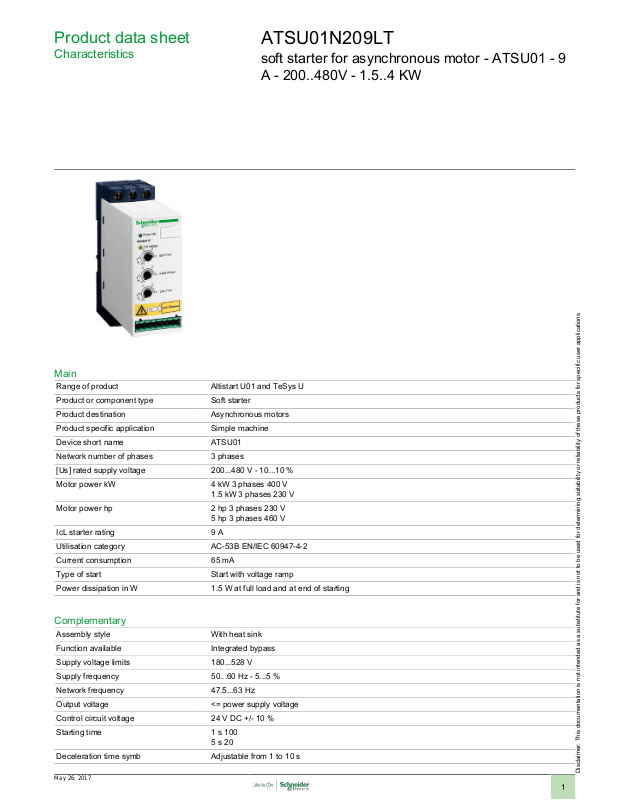

Product data sheet
Characteristics
ATSU01N209LT
soft starter for asynchronous motor - ATSU01 - 9
A - 200..480V - 1.5..4 KW
Main
Range of product Altistart U01 and TeSys U
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Simple machine
Device short name ATSU01
Network number of phases 3 phases
[Us] rated supply voltage 200...480 V - 10...10 %
Motor power kW 4 kW 3 phases 400 V
1.5 kW 3 phases 230 V
Motor power hp 2 hp 3 phases 230 V
5 hp 3 phases 460 V
IcL starter rating 9 A
Utilisation category AC-53B EN/IEC 60947-4-2
Current consumption 65 mA
Type of start Start with voltage ramp
Power dissipation in W 1.5 W at full load and at end of starting
Complementary
Assembly style With heat sink
Function available Integrated bypass
Supply voltage limits 180...528 V
Supply frequency 50...60 Hz - 5...5 %
Network frequency 47.5...63 Hz
Output voltage <= power supply voltage
Control circuit voltage 24 V DC +/- 10 %
Starting time 1 s 100
5 s 20
Deceleration time symb Adjustable from 1 to 10 s
May 26, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Starting torque 30...80 % of starting torque of motor connected directly on the line supply
Discrete input type Logic LI1, LI2, BOOST stop, run and boost on start-up functions <= 8 mA 27 kOhm
Discrete input voltage 24...40 V
Input output isolation Galvanic between power and control
Discrete output current 2 A DC-13
Discrete output type Open collector logic LO1 end of starting signal
Discrete output voltage 24 V 6...30 V open collector logic
Minimum switching current 10 mA 6 V DC relay outputs
Maximum switching current 2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs
Maximum switching voltage 440 V relay outputs
Display type 1 LED green starter powered up
Tightening torque 0.5 N.m
Electrical connection 4 mm screw clamp terminal rigid 1 1...10 mm² AWG 8 power circuit
Marking CE
Operating position Vertical +/- 10 degree
Height 234 mm
Width 45 mm
Depth 150 mm
Product weight 0.34 kg
Motor power range AC-3 4...6 kW
Motor starter type Soft starter
3 A AC-15
Relay outputs R1A, R1C NO
1 LED yellow nominal voltage reached
1.9...2.5 N.m
Screw connector rigid 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal rigid 2 1...6 mm² AWG 10 power circuit
Screw connector rigid 2 0.5...1 mm² AWG 17 control circuit
Screw connector flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit
4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm² AWG 8 power circuit
Screw connector flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit
4 mm screw clamp terminal flexible with cable end 2 1...6 mm² AWG 10 power circuit
4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
Screw connector flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
2.2...3 kW at 380...440 V 3 phases
1.1...2 kW at 200...240 V 3 phases
Environment
Electromagnetic compatibility Damped oscillating waves level 3 IEC 61000-4-12
Standards EN/IEC 60947-4-2
Product certifications CCC
IP degree of protection IP20
Pollution degree 2 EN/IEC 60947-4-2
Vibration resistance 1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Relative humidity 5...95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation -10...40 °C without derating
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/Current impulse level 3 IEC 61000-4-5
Conducted and radiated emissions level B CISPR 11
Conducted and radiated emissions level B IEC 60947-4-2
EMC immunity EN 50082-2
Harmonics IEC 1000-3-2
Harmonics IEC 1000-3-4
EMC immunity EN 50082-1
CSA
C-Tick
UL
1 gn 13...150 Hz EN/IEC 60068-2-6
2
40...50 °C with current derating of 2 % per °C
Ambient air temperature for storage -25...70 °C EN/IEC 60947-4-2
Operating altitude <= 1000 m without derating
> 1000 m with current derating of 2.2 % per additional 100 m
Contractual warranty
Warranty period 18 months
3
Product data sheet
ATSU01N209LT
Dimensions Drawings
Dimensions
With TeSys U Combination (Non Reversing Power Base)
Mounting on symetrical (35 mm) rail with power connector between ATS and TeSys U.
With TeSys U Combination (Non Reversing or Reversing Power Base)
Side by side mounting
4
Product data sheet
Connections and Schema
Power Wiring
ATSU01N209LT
(1) TeSys U
A1 : Soft start/soft stop unit
QF1 :TeSys U controller-starter
CU : TeSys U control unit
With Reversing Unit
(1) TeSys U with reversing unit
A1 : Soft start/soft stop unit
QF1 :TeSys U controller-starter
CU : TeSys U control unit
5
Product data sheet
Connections and Schema
Control Wiring
A1 : Soft start/soft stop unit
R1A, R1C :Relay output NO
COM :Commun
LI1, L 2 Logic inputs (stop and run functions)
BOOST :Logic input (boost on start-up function)
LO1 :Logic output
ATSU01N209LT
6
Product data sheet
ATSU01N209LT
Technical Description
Functional Diagram Automatic 2-wire Control
Without Deceleration
Us : Power supply voltage
LED 1 :Green LED
LI2 : Logic input
S1 : Pushbutton
LED 2 :Yellow LED
Um : Motor voltage
t1 : Acceleration time can be controlled by a potentiometer
U1 : Starting time can be controlled by a potentiometer
With and without Deceleration
Us : Power supply voltage
LED 1 :Green LED
LI2 : Logic input
S1, S2 Pushbuttons
LO1 :Logic output
LED 2 :Yellow LED
Um : Motor voltage
t1 : Acceleration time can be controlled by a potentiometer
t2 : Deceleration time can be controlled by a potentiometer
U1 : Starting time can be controlled by a potentiometer
7
Product data sheet
ATSU01N209LT
Technical Description
Functional Diagram Automatic 3-wire Control
Without Deceleration
Us : Power supply voltage
LED 1 :Green LED
S1, S2 Pushbuttons
LI2 : Logic input
LO1 :Logic output
LED 2 :Yellow LED
Um : Motor voltage
t1 : Acceleration time can be controlled by a potentiometer
U1 : Starting time can be controlled by a potentiometer
With Deceleration
Us : Power supply voltage
LED 1 :Green LED
S1, S2 Pushbuttons
LI1, L 2 Logic inputs
LO1 :Logic output
LED 2 :Yellow LED
Um : Motor voltage
t1 : Acceleration time can be controlled by a potentiometer
8
