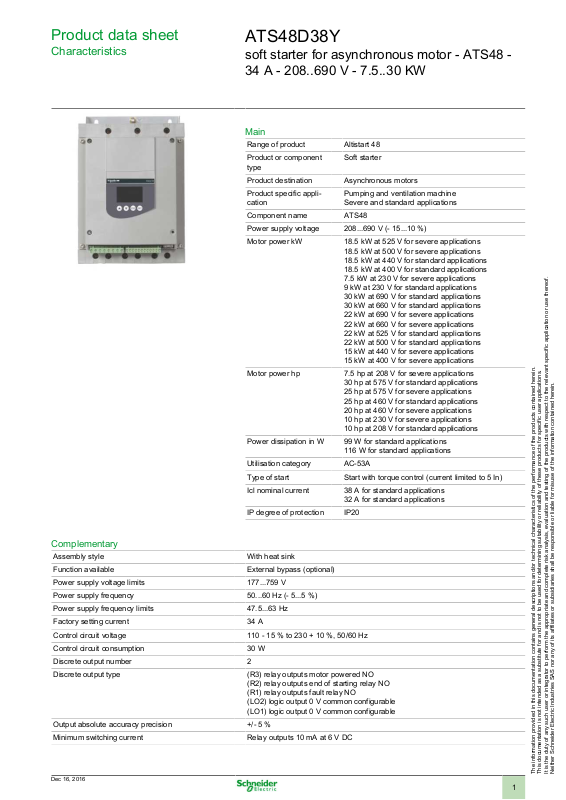

Product data sheet
Characteristics

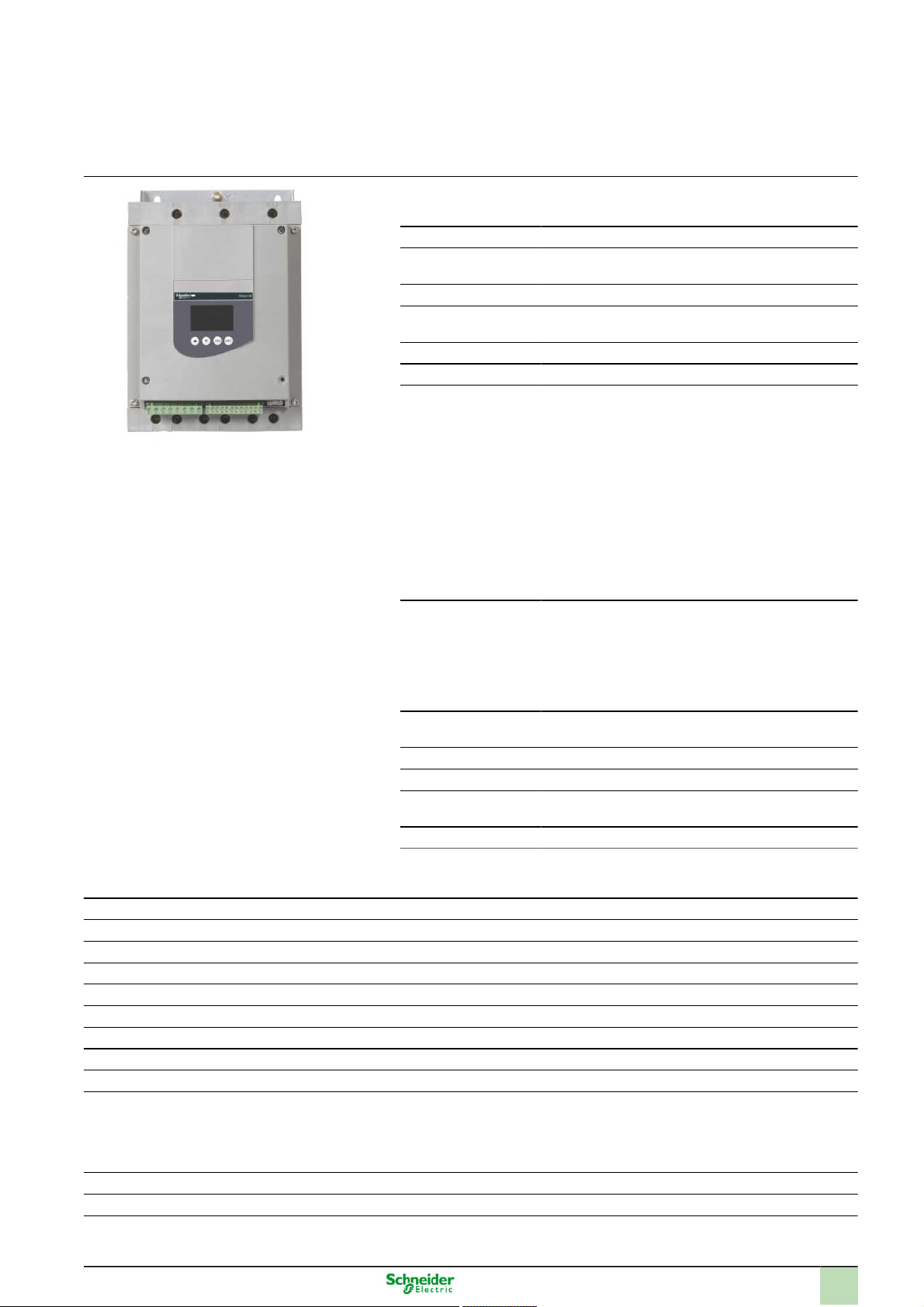

ATS48D38Y
soft starter for asynchronous motor - ATS48 34 A - 208..690 V - 7.5..30 KW
Main
Range of product Altistart 48
Product or component
type
Product destination Asynchronous motors
Product specific application
Component name ATS48
Power supply voltage 208...690 V (- 15...10 %)
Motor power kW 18.5 kW at 525 V for severe applications
Motor power hp 7.5 hp at 208 V for severe applications
Power dissipation in W 99 W for standard applications
Utilisation category AC-53A
Type of start Start with torque control (current limited to 5 In)
Icl nominal current 38 A for standard applications
IP degree of protection IP20
Soft starter
Pumping and ventilation machine
Severe and standard applications
18.5 kW at 500 V for severe applications
18.5 kW at 440 V for standard applications
18.5 kW at 400 V for standard applications
7.5 kW at 230 V for severe applications
9 kW at 230 V for standard applications
30 kW at 690 V for standard applications
30 kW at 660 V for standard applications
22 kW at 690 V for severe applications
22 kW at 660 V for severe applications
22 kW at 525 V for standard applications
22 kW at 500 V for standard applications
15 kW at 440 V for severe applications
15 kW at 400 V for severe applications
30 hp at 575 V for standard applications
25 hp at 575 V for severe applications
25 hp at 460 V for standard applications
20 hp at 460 V for severe applications
10 hp at 230 V for severe applications
10 hp at 208 V for standard applications
116 W for standard applications
32 A for standard applications
Complementary
Assembly style With heat sink
Function available External bypass (optional)
Power supply voltage limits 177...759 V
Power supply frequency 50...60 Hz (- 5...5 %)
Power supply frequency limits 47.5...63 Hz
Factory setting current 34 A
Control circuit voltage 110 - 15 % to 230 + 10 %, 50/60 Hz
Control circuit consumption 30 W
Discrete output number 2
Discrete output type (R3) relay outputs motor powered NO
Output absolute accuracy precision +/- 5 %
Minimum switching current Relay outputs 10 mA at 6 V DC
Dec 16, 2016
(R2) relay outputs end of starting relay NO
(R1) relay outputs fault relay NO
(LO2) logic output 0 V common configurable
(LO1) logic output 0 V common configurable
1
Page 2
Maximum switching current Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms
Discrete input number 5
Discrete input type (Stop, Run, LI3, LI4) logic <= 8 mA 4300 Ohm
Discrete input voltage 24 V (<= 30 V)
Discrete input logic (Stop, Run, LI3, LI4) positive logic state 0 < 5 V and < 2 mA state 1 > 11 V and >
Starting current Adjustable 0.4...1.3 Icl
Analogue output type (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Max nodes number 31
Protection type Thermal protection (starter)
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 275 mm
Width 160 mm
Depth 190 mm
Product weight 4.9 kg
Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms
Logic output 0.2 A at 30 V DC
PTC 750 Ohm at 25 °C
5 mA
Thermal protection (motor)
Phase failure (line)
Environment
Electromagnetic compatibility Voltage/Current impulse conforming to IEC 61000-4-5 level 3
Standards EN/IEC 60947-4-2
Product certifications CCC
Vibration resistance 1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Noise level 52 dB
Pollution degree Level 3 conforming to IEC 60664-1
Relative humidity <= 95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation -10...40 °C without derating
Ambient air temperature for storage -25...70 °C
Operating altitude > 1000...2000 m with current derating of 2.2 % per additional 100 m
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3
level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Conducted and radiated emissions conforming to IEC 60947-4-2 level B
Conducted and radiated emissions conforming to IEC 60947-4-2 level A
CSA
C-Tick
DNV
GOST
NOM 117
SEPRO
TCF
UL
1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
> 40...60 °C with current derating of 2 % per °C
<= 1000 m without derating
2
