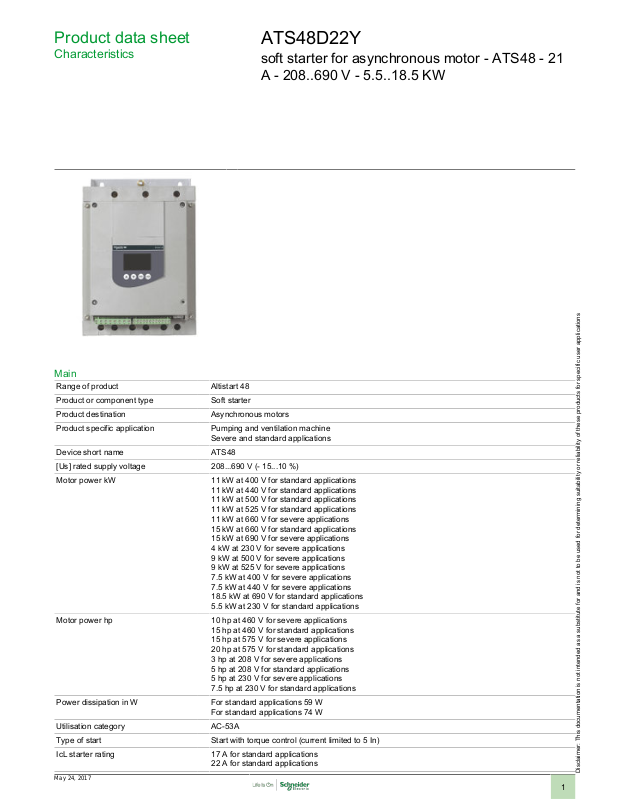

Product data sheet
Characteristics
ATS48D22Y
soft starter for asynchronous motor - ATS48 - 21
A - 208..690 V - 5.5..18.5 KW
Main
Range of product Altistart 48
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Pumping and ventilation machine
Severe and standard applications
Device short name ATS48
[Us] rated supply voltage 208...690 V (- 15...10 %)
Motor power kW 11 kW at 400 V for standard applications
11 kW at 440 V for standard applications
11 kW at 500 V for standard applications
11 kW at 525 V for standard applications
11 kW at 660 V for severe applications
15 kW at 660 V for standard applications
15 kW at 690 V for severe applications
4 kW at 230 V for severe applications
9 kW at 500 V for severe applications
9 kW at 525 V for severe applications
7.5 kW at 400 V for severe applications
7.5 kW at 440 V for severe applications
18.5 kW at 690 V for standard applications
5.5 kW at 230 V for standard applications
Motor power hp 10 hp at 460 V for severe applications
15 hp at 460 V for standard applications
15 hp at 575 V for severe applications
20 hp at 575 V for standard applications
3 hp at 208 V for severe applications
5 hp at 208 V for standard applications
5 hp at 230 V for severe applications
7.5 hp at 230 V for standard applications
Power dissipation in W For standard applications 59 W
For standard applications 74 W
Utilisation category AC-53A
Type of start Start with torque control (current limited to 5 In)
IcL starter rating 17 A for standard applications
22 A for standard applications
May 24, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
IP degree of protection IP20
Complementary
Assembly style With heat sink
Function available External bypass (optional)
Supply voltage limits 177...759 V
Supply frequency 50...60 Hz (- 5...5 %)
Network frequency 47.5...63 Hz
Device connection In the motor supply line
Factory setting current 21 A
Control circuit voltage 110 - 15 % to 230 + 10 %, 50/60 Hz
Control circuit consumption 30 W
Discrete output number 2
Discrete output type (LO1) logic output 0 V common configurable
Output absolute accuracy precision +/- 5 %
Minimum switching current Relay outputs 10 mA at 6 V DC
Maximum switching current Logic output 0.2 A at 30 V DC
Discrete input number 5
Discrete input type PTC, 750 Ohm at 25 °C
Discrete input voltage 24 V (<= 30 V)
Discrete input logic (Stop, Run, LI3, LI4) positive logic state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA
Supply inrush current Adjustable 0.4...1.3 Icl
Analogue output type (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Installed device 31
Protection type Phase failure (line)
Marking CE
Type of cooling Natural convection
Operating position Vertical +/- 10 degree
Height 275 mm
Width 160 mm
Depth 190 mm
Product weight 4.9 kg
(LO2) logic output 0 V common configurable
(R1) relay outputs fault relay NO
(R2) relay outputs end of starting relay NO
(R3) relay outputs motor powered NO
Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms
Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms
(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Thermal protection (motor)
Thermal protection (starter)
Environment
Electromagnetic compatibility Conducted and radiated emissions conforming to IEC 60947-4-2 level A
Standards EN/IEC 60947-4-2
Product certifications SEPRO
2
Conducted and radiated emissions conforming to IEC 60947-4-2 level B
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3
Voltage/Current impulse conforming to IEC 61000-4-5 level 3
