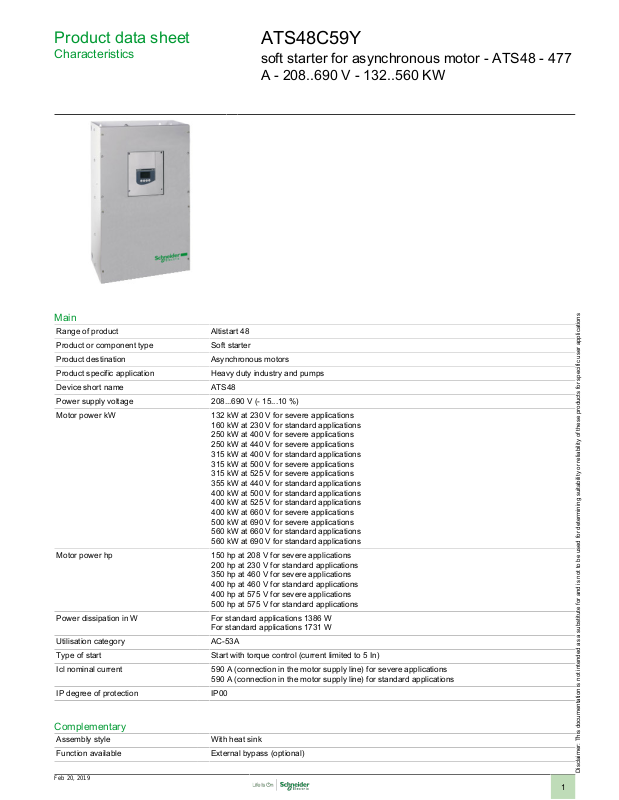

Product data sheet
Characteristics
ATS48C59Y
soft starter for asynchronous motor - ATS48 - 477
A - 208..690 V - 132..560 KW
Main
Range of product Altistart 48
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Heavy duty industry and pumps
Device short name ATS48
Power supply voltage 208...690 V (- 15...10 %)
Motor power kW 132 kW at 230 V for severe applications
Motor power hp 150 hp at 208 V for severe applications
Power dissipation in W For standard applications 1386 W
Utilisation category AC-53A
Type of start Start with torque control (current limited to 5 In)
Icl nominal current 590 A (connection in the motor supply line) for severe applications
IP degree of protection IP00
160 kW at 230 V for standard applications
250 kW at 400 V for severe applications
250 kW at 440 V for severe applications
315 kW at 400 V for standard applications
315 kW at 500 V for severe applications
315 kW at 525 V for severe applications
355 kW at 440 V for standard applications
400 kW at 500 V for standard applications
400 kW at 525 V for standard applications
400 kW at 660 V for severe applications
500 kW at 690 V for severe applications
560 kW at 660 V for standard applications
560 kW at 690 V for standard applications
200 hp at 230 V for standard applications
350 hp at 460 V for severe applications
400 hp at 460 V for standard applications
400 hp at 575 V for severe applications
500 hp at 575 V for standard applications
For standard applications 1731 W
590 A (connection in the motor supply line) for standard applications
Complementary
Assembly style With heat sink
Function available External bypass (optional)
Feb 20, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Power supply voltage limits 177...759 V
Power supply frequency 50...60 Hz (- 5...5 %)
Power supply frequency limits 47.5...63 Hz
Device connection In the motor supply line
Factory setting current 477 A
[Uc] control circuit voltage 110 - 15 % to 230 + 10 %, 50/60 Hz
Control circuit consumption 80 W
Discrete output number 2
Discrete output type (LO1) logic output 0 V common configurable
Output absolute accuracy precision +/- 5 %
Minimum switching current Relay outputs 10 mA at 6 V DC
Maximum switching current Logic output 0.2 A at 30 V DC
Discrete input number 5
Discrete input type PTC, 750 Ohm at 25 °C
Discrete input voltage 24 V (<= 30 V)
Discrete input logic Positive logic (Stop, Run, LI3, LI4) state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA
Starting current Adjustable 0.4...1.3 Icl
Analogue output type (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Max nodes number 31
Protection type Phase failure (line)
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 670 mm
Width 400 mm
Depth 300 mm
Product weight 51.4 kg
Motor power range AC-3 110...220 kW at 200...240 V 3 phases
Motor starter type Soft starter
(LO2) logic output 0 V common configurable
(R1) relay outputs fault relay NO
(R2) relay outputs end of starting relay NO
(R3) relay outputs motor powered NO
Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms
Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms
(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Thermal protection (motor)
Thermal protection (starter)
250...500 kW at 380...440 V 3 phases
250...500 kW at 480...500 V 3 phases
Environment
Electromagnetic compatibility Conducted and radiated emissions conforming to IEC 60947-4-2 level A
Standards EN/IEC 60947-4-2
Product certifications GOST
2
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3
Voltage/Current impulse conforming to IEC 61000-4-5 level 3
SEPRO
CCC
C-Tick
NOM 117
CSA
DNV
TCF
UL
Vibration resistance 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Noise level 55 dB
Pollution degree Level 3 conforming to IEC 60664-1
Relative humidity 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation 40...60 °C with current derating of 2 % per °C
Ambient air temperature for storage -25...70 °C
Operating altitude <= 1000 m without derating
1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
-10...40 °C without derating
> 1000...2000 m with current derating of 2.2 % per additional 100 m
Contractual warranty
Warranty period 18 months
3
Product data sheet
Dimensions Drawings
Dimensions
(1) Right View
(2) Front View
ATS48C59Y
4
Product data sheet
Mounting and Clearance
Clearance
ATS48C59Y
5
