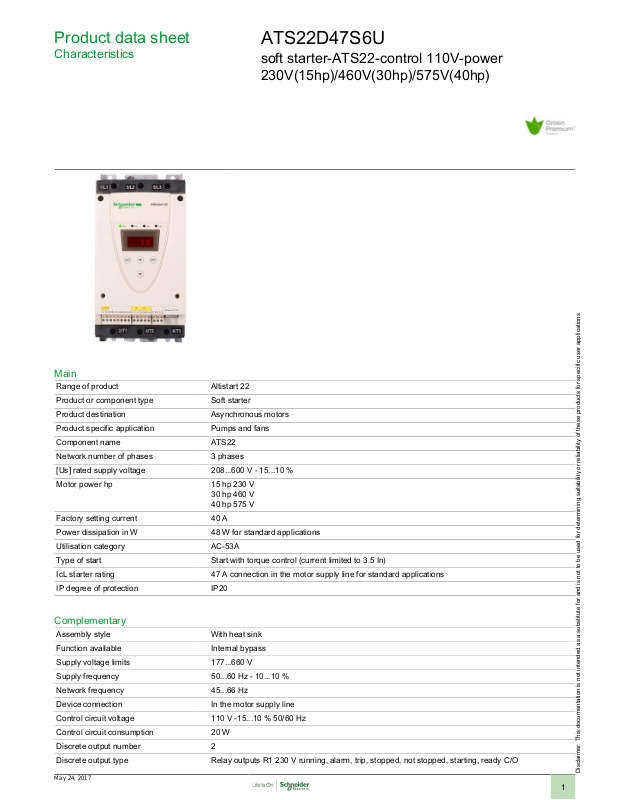

Product data sheet
Characteristics
ATS22D47S6U
soft starter-ATS22-control 110V-power
230V(15hp)/460V(30hp)/575V(40hp)
Main
Range of product Altistart 22
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Pumps and fans
Component name ATS22
Network number of phases 3 phases
[Us] rated supply voltage 208...600 V - 15...10 %
Motor power hp 15 hp 230 V
30 hp 460 V
40 hp 575 V
Factory setting current 40 A
Power dissipation in W 48 W for standard applications
Utilisation category AC-53A
Type of start Start with torque control (current limited to 3.5 In)
IcL starter rating 47 A connection in the motor supply line for standard applications
IP degree of protection IP20
Complementary
Assembly style With heat sink
Function available Internal bypass
Supply voltage limits 177...660 V
Supply frequency 50...60 Hz - 10...10 %
Network frequency 45...66 Hz
Device connection In the motor supply line
Control circuit voltage 110 V -15...10 % 50/60 Hz
Control circuit consumption 20 W
Discrete output number 2
Discrete output type Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
May 24, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current 100 mA 12 V DC relay outputs
Maximum switching current 5 A 250 V AC resistive 1 relay outputs
Discrete input number 3
Discrete input type Logic LI1, LI2, LI3 5 mA 20 kOhm
Discrete input voltage 110 V <= 121 V
Discrete input logic Positive logic LI1, LI2, LI3 < 20 V and <= 15 mA > 79 V <= 2 mA
Output current 0.4...1 Icl adjustable
PTC probe input 750 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Installed device 31
Protection type Phase failure line
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 265 mm
Width 130 mm
Depth 169 mm
Product weight 7 kg
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
Thermal protection starter
Thermal protection motor
Environment
Electromagnetic compatibility Conducted and radiated emissions level A IEC 60947-4-2
Standards EN/IEC 60947-4-2
Product certifications UL
Vibration resistance 1.5 mm 2...13 Hz EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Noise level 45 dB
Pollution degree Level 2 IEC 60664-1
Relative humidity <= 95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation -10...40 °C without derating
Ambient air temperature for storage -25...70 °C
Operating altitude <= 1000 m without derating
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/Current impulse level 3 IEC 61000-4-5
GOST
CSA
CCC
C-Tick
1 gn 13...200 Hz EN/IEC 60068-2-6
> 40...< 60 °C with current derating 2.2 % per °C
> 1000...< 2000 m with current derating of 2.2 % per additional 100 m
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0939 - Schneider Electric declaration of conformity
