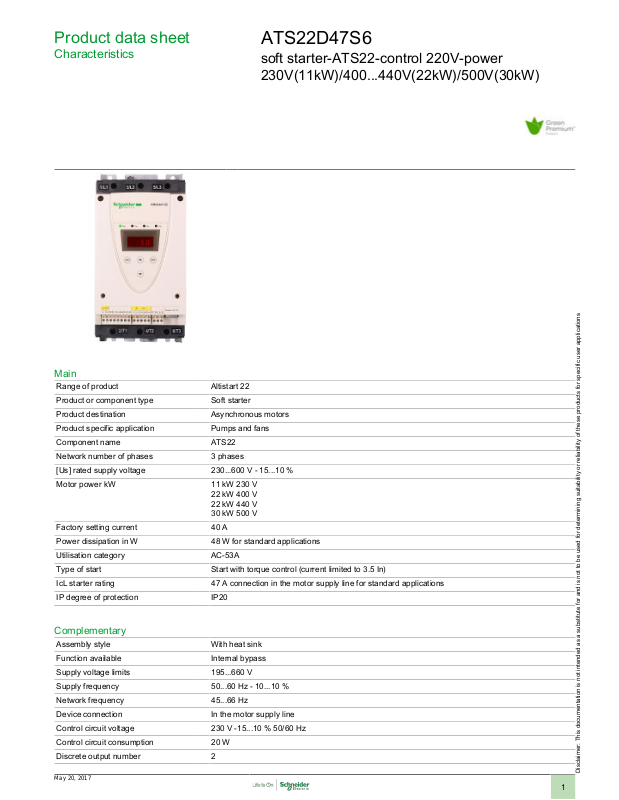

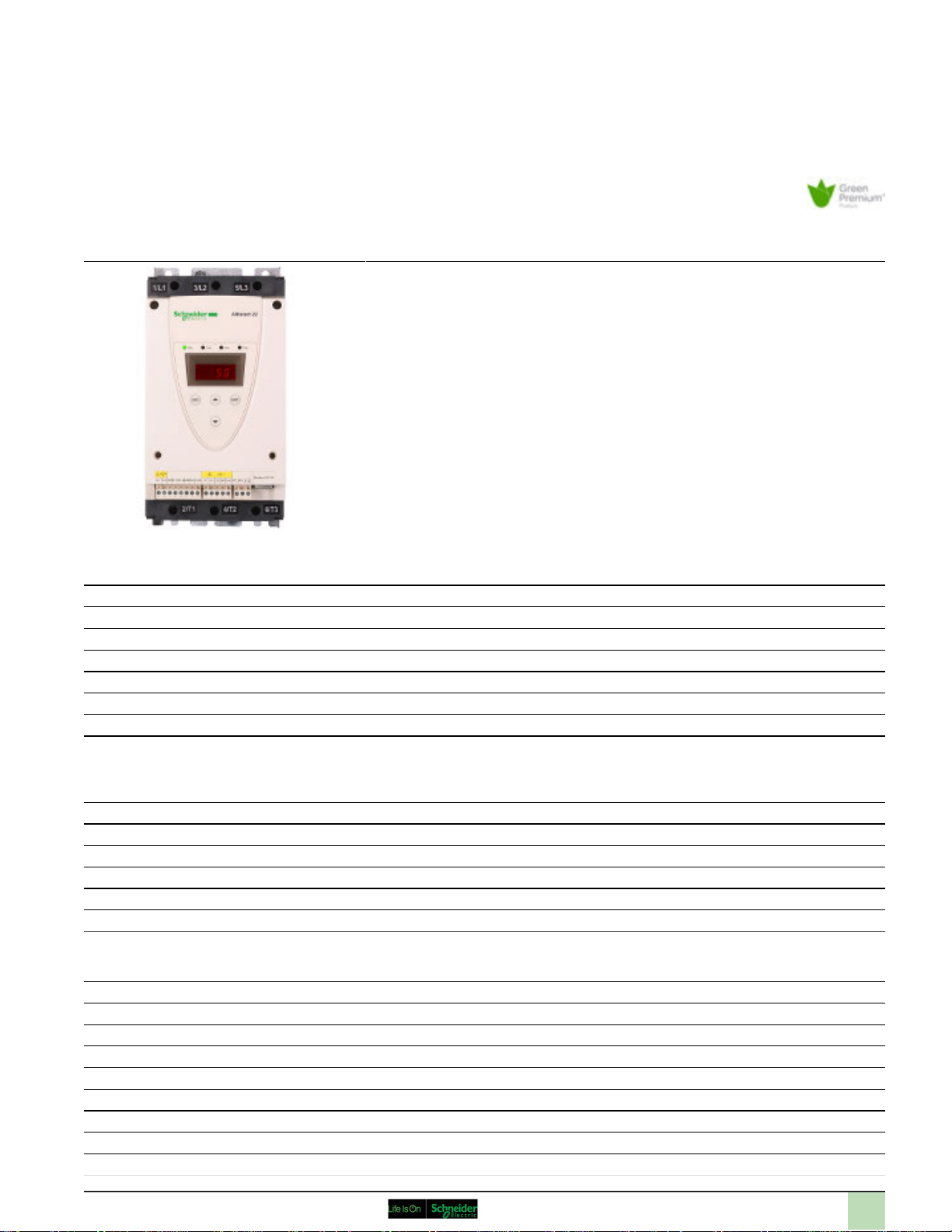

Product data sheet
Characteristics
ATS22D47S6
soft starter-ATS22-control 220V-power
230V(11kW)/400...440V(22kW)/500V(30kW)
Main
Range of product Altistart 22
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Pumps and fans
Component name ATS22
Network number of phases 3 phases
[Us] rated supply voltage 230...600 V - 15...10 %
Motor power kW 11 kW 230 V
22 kW 400 V
22 kW 440 V
30 kW 500 V
Factory setting current 40 A
Power dissipation in W 48 W for standard applications
Utilisation category AC-53A
Type of start Start with torque control (current limited to 3.5 In)
IcL starter rating 47 A connection in the motor supply line for standard applications
IP degree of protection IP20
Complementary
Assembly style With heat sink
Function available Internal bypass
Supply voltage limits 195...660 V
Supply frequency 50...60 Hz - 10...10 %
Network frequency 45...66 Hz
Device connection In the motor supply line
Control circuit voltage 230 V -15...10 % 50/60 Hz
Control circuit consumption 20 W
Discrete output number 2
May 20, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Discrete output type Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current 100 mA 12 V DC relay outputs
Maximum switching current 5 A 250 V AC resistive 1 relay outputs
Discrete input number 3
Discrete input type Logic LI1, LI2, LI3 5 mA 4.3 kOhm
Discrete input voltage 24 V <= 30 V
Discrete input logic Positive logic LI1, LI2, LI3 < 5 V and <= 2 mA > 11 V >= 5 mA
Output current 0.4...1 Icl adjustable
PTC probe input 750 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Installed device 31
Protection type Phase failure line
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 265 mm
Width 130 mm
Depth 169 mm
Product weight 7 kg
Motor power range AC-3 7...11 kW 200...240 V 3 phases
Motor starter type Soft starter
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
Thermal protection starter
Thermal protection motor
15...25 kW 380...440 V 3 phases
30...50 kW 480...500 V 3 phases
Environment
Electromagnetic compatibility Conducted and radiated emissions level A IEC 60947-4-2
Standards EN/IEC 60947-4-2
Product certifications UL
Vibration resistance 1.5 mm 2...13 Hz EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Noise level 45 dB
Pollution degree Level 2 IEC 60664-1
Relative humidity <= 95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation -10...40 °C without derating
Ambient air temperature for storage -25...70 °C
Operating altitude <= 1000 m without derating
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/Current impulse level 3 IEC 61000-4-5
CSA
GOST
C-Tick
CCC
1 gn 13...200 Hz EN/IEC 60068-2-6
> 40...< 60 °C with current derating 2.2 % per °C
> 1000...< 2000 m with current derating of 2.2 % per additional 100 m
2
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0938 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
3
Product data sheet
Dimensions Drawings
Frame Size A
Dimensions
ATS22D47S6
4
Product data sheet
ATS22D47S6
Mounting and Clearance
Precautions
Standards
The Altistart 22 soft starter is compliant with pollution Degree 2 as defined in NEMA ICS1-1 or IEC 60664-1.
For environment pollution degree 3, install the Altistart 22 soft starter inside a cabinet type 12 or IP54.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
ATS22 soft starters are open devices and must be mounted in a suitable enclosure.
Failure to follow these instructions will result in death or serious injury.
Air Circulation
Leave sufficient free space to help the air required for cooling purposes to circulate from the bottom to the top of the unit.
Overheating
To avoid the soft starter to overheat, respect the following recommendations:
● Mount the Altistart 22 Soft Starter within ± 10° of vertical.
● Do not locate the Altistart 22 Soft Starter near heat radiating elements.
● Electrical current through the Altistart 22 Soft Starter will result in heat losses that must be dissipated into the ambient air immediately surrounding the sof
● If several soft starters are installed in a control panel, arrange them in a row. Do not stack soft starters. Heat generated from the bottom soft starter can ad
5
