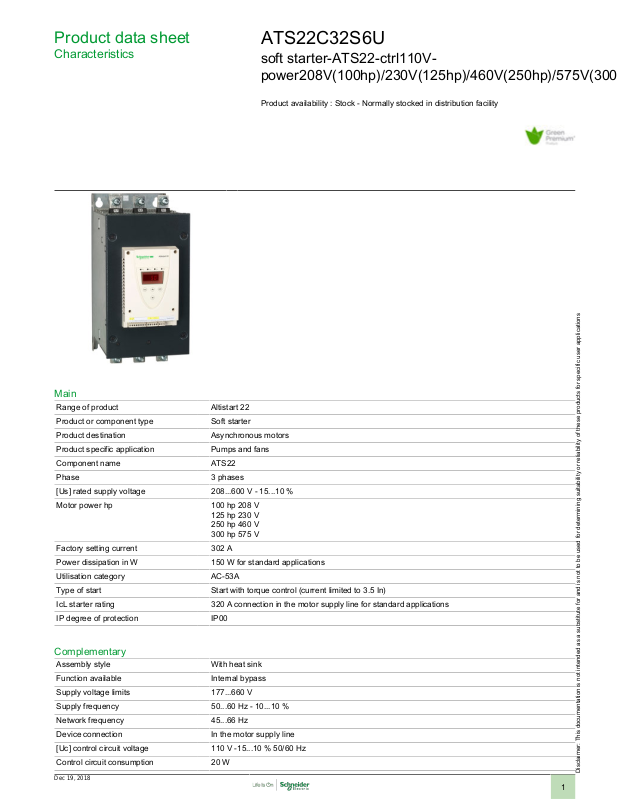

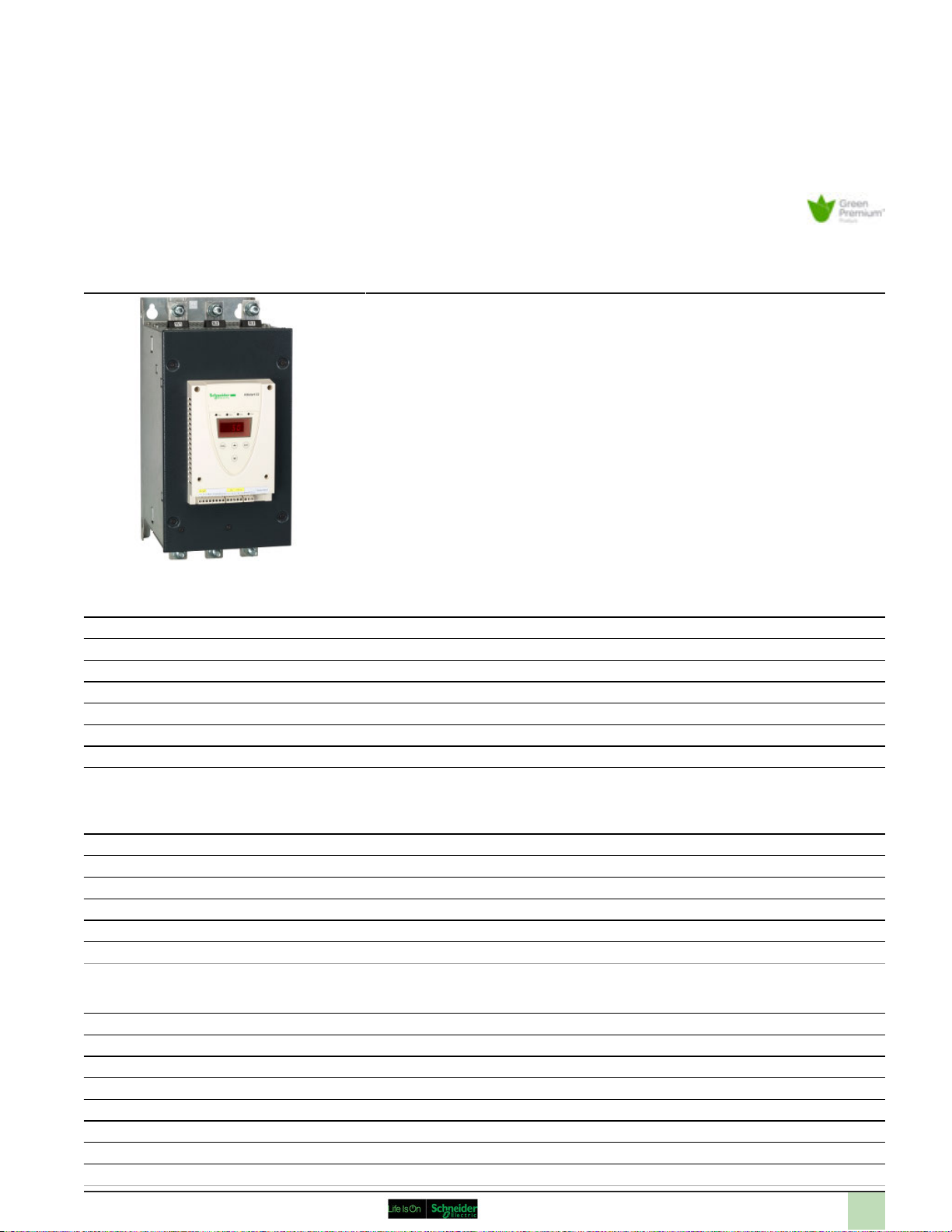

Product data sheet
Characteristics
ATS22C32S6U
soft starter-ATS22-ctrl110Vpower208V(100hp)/230V(125hp)/460V(250hp)/575V(300
Product availability : Stock - Normally stocked in distribution facility
Main
Range of product Altistart 22
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Pumps and fans
Component name ATS22
Phase 3 phases
[Us] rated supply voltage 208...600 V - 15...10 %
Motor power hp 100 hp 208 V
125 hp 230 V
250 hp 460 V
300 hp 575 V
Factory setting current 302 A
Power dissipation in W 150 W for standard applications
Utilisation category AC-53A
Type of start Start with torque control (current limited to 3.5 In)
IcL starter rating 320 A connection in the motor supply line for standard applications
IP degree of protection IP00
Complementary
Assembly style With heat sink
Function available Internal bypass
Supply voltage limits 177...660 V
Supply frequency 50...60 Hz - 10...10 %
Network frequency 45...66 Hz
Device connection In the motor supply line
[Uc] control circuit voltage 110 V -15...10 % 50/60 Hz
Control circuit consumption 20 W
Dec 19, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Page 2
Discrete output number 2
Discrete output type Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Minimum switching current 100 mA 12 V DC relay outputs
Maximum switching current 5 A 250 V AC resistive 1 relay outputs
Discrete input number 3
Discrete input type Logic LI1, LI2, LI3 5 mA 20 kOhm
Discrete input voltage 110 V <= 121 V
Discrete input logic Positive logic LI1, LI2, LI3 < 20 V and <= 15 mA > 79 V <= 2 mA
Output current 0.4...1 Icl adjustable
PTC probe input 750 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
Transmission rate 4800, 9600 or 19200 bps
Installed device 31
Protection type Phase failure line
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 16.73 in (425 mm)
Width 8.11 in (206 mm)
Depth 11.77 in (299 mm)
Product weight 72.75 lb(US) (33 kg)
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs
Thermal protection starter
Thermal protection motor
Environment
Electromagnetic compatibility Conducted and radiated emissions level A IEC 60947-4-2
Standards EN/IEC 60947-4-2
Product certifications CCC
Vibration resistance 1.5 mm 2...13 Hz EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Noise level 56 dB
Pollution degree Level 2 IEC 60664-1
Relative humidity 0...95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation 14...104 °F (-10...40 °C) without derating
Ambient air temperature for storage -13...158 °F (-25...70 °C)
Operating altitude <= 3280.84 ft (1000 m) without derating
Damped oscillating waves level 3 IEC 61000-4-12
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/Current impulse level 3 IEC 61000-4-5
CSA
C-Tick
GOST
UL
1 gn 13...200 Hz EN/IEC 60068-2-6
> 104...< 140 °F (> 40...< 60 °C) with current derating 2.2 % per °C
> 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
2
Page 3
Ordering and shipping details
Category 22576 - ATS22 ALTISTART
Discount Schedule CP1G
GTIN 00785901695370
Nbr. of units in pkg. 1
Package weight(Lbs) 57
Returnability Y
Country of origin CN
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 0939 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - Substance 2 Bisphenol A (BPA), which is known to the State of California to cause birth defects or other
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
reproductive harm.
Contractual warranty
Warranty period 18 months
3
Page 4
Product data sheet
Dimensions Drawings
Frame Size D
Dimensions
ATS22C32S6U
4
Page 5
Product data sheet
ATS22C32S6U
Mounting and Clearance
Precautions
Standards
The Altistart 22 soft starter is compliant with pollution Degree 2 as defined in NEMA ICS1-1 or IEC 60664-1.
For environment pollution degree 3, install the Altistart 22 soft starter inside a cabinet type 12 or IP54.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
ATS22 soft starters are open devices and must be mounted in a suitable enclosure.
Failure to follow these instructions will result in death or serious injury.
Air Circulation
Leave sufficient free space to help the air required for cooling purposes to circulate from the bottom to the top of the unit.
Overheating
To avoid the soft starter to overheat, respect the following recommendations:
● Mount the Altistart 22 Soft Starter within ± 10° of vertical.
● Do not locate the Altistart 22 Soft Starter near heat radiating elements.
● Electrical current through the Altistart 22 Soft Starter will result in heat losses that must be dissipated into the ambient air immediately surrounding the sof
● If several soft starters are installed in a control panel, arrange them in a row. Do not stack soft starters. Heat generated from the bottom soft starter can ad
5
Page 6
Product data sheet
ATS22C32S6U
Mounting and Clearance
Wall mounted or Floor-standing Enclosure with IP 23 Degree of protection
Introduction
To help proper air circulation in the soft starter, grilles and forced ventilation can be installed.
Ventilation Grilles
Forced Ventilation Unit
6
Page 7
Product data sheet
ATS22C32S6U
Connections and Schema
Power Terminal
Bar Style
Power supply and output to motor Bar b 30 mm (1.18 in)
a 5 mm (0.2 in)
Bolt M12 (0.47 in)
Cable and protective cover Size 2X150 mm²
Gauge 2X250 MCM
Protective cover LA9F703
Tightening torque 57 N.m
498.75 lb.in
Power connections, minimum required wiring section
IEC cable
mm² (Cu 70°C/158°F) (1)
185 2 X 3/0
UL cable
AWG (Cu 75°C/167°F) (1)
7
Page 8
Product data sheet
Connections and Schema
110 Vac control, Logic Inputs (LI) 110 Vac, 3-wire control
ATS22C32S6U
8
Page 9
Product data sheet
Connections and Schema
110 Vac control, Logic Inputs (LI) 110 Vac, 2-wire control, freewheelstop
ATS22C32S6U
9
Page 10
Product data sheet
Performance Curves
Motor Thermal Protection - Cold Curves
Curves
ATS22C32S6U
A Class 10
B Class 20
C Class 30
Trip time for a Standard Application (Class 10)
3.5 ln
32 s
Trip time for a Severe Application (Class 20)
3.5 ln
63 s
10
Page 11
Trip time for a Severe Application (Class 30)
3.5 ln
95 s
11
Page 12
Product data sheet
Performance Curves
Motor Thermal Protection - Warm Curves
Curves
ATS22C32S6U
A Class 10
B Class 20
C Class 30
Trip time for a Standard Application (Class 10)
3.5 ln
16 s
Trip time for a Severe Application (Class 20)
3.5 ln
32 s
12
Page 13
Trip time for a Severe Application (Class 30)
3.5 ln
48 s
13
