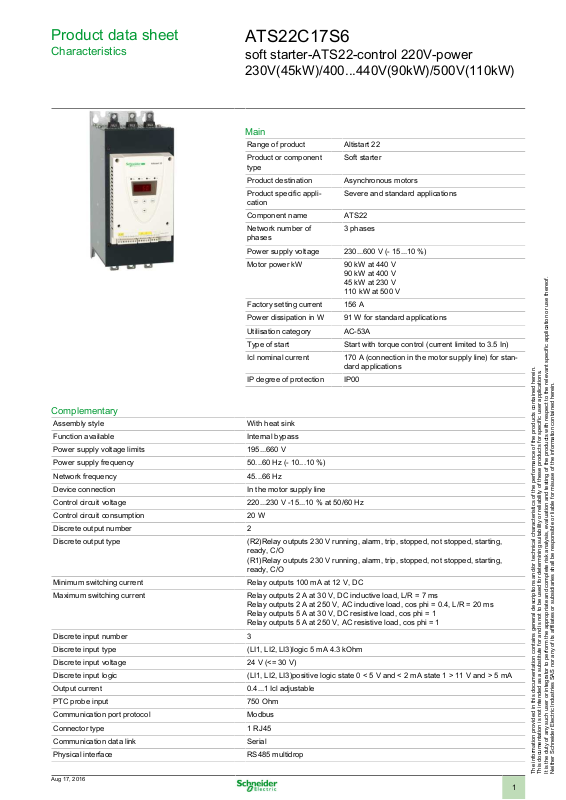

Product data sheet
Characteristics
ATS22C17S6
soft starter-ATS22-control 220V-power
230V(45kW)/400...440V(90kW)/500V(110kW)
Main
Range of product Altistart 22
Product or component
type
Product destination Asynchronous motors
Product specific application
Component name ATS22
Network number of
phases
Power supply voltage 230...600 V (- 15...10 %)
Motor power kW 90 kW at 440 V
Factory setting current 156 A
Power dissipation in W 91 W for standard applications
Utilisation category AC-53A
Type of start Start with torque control (current limited to 3.5 In)
Icl nominal current 170 A (connection in the motor supply line) for stan-
IP degree of protection IP00
Soft starter
Severe and standard applications
3 phases
90 kW at 400 V
45 kW at 230 V
110 kW at 500 V
dard applications
Complementary
Assembly style With heat sink
Function available Internal bypass
Power supply voltage limits 195...660 V
Power supply frequency 50...60 Hz (- 10...10 %)
Network frequency 45...66 Hz
Device connection In the motor supply line
Control circuit voltage 220...230 V -15...10 % at 50/60 Hz
Control circuit consumption 20 W
Discrete output number 2
Discrete output type (R2)Relay outputs 230 V running, alarm, trip, stopped, not stopped, starting,
Minimum switching current Relay outputs 100 mA at 12 V, DC
Maximum switching current Relay outputs 2 A at 30 V, DC inductive load, L/R = 7 ms
Discrete input number 3
Discrete input type (LI1, LI2, LI3)logic 5 mA 4.3 kOhm
Discrete input voltage 24 V (<= 30 V)
Discrete input logic (LI1, LI2, LI3)positive logic state 0 < 5 V and < 2 mA state 1 > 11 V and > 5 mA
Output current 0.4...1 Icl adjustable
PTC probe input 750 Ohm
Communication port protocol Modbus
Connector type 1 RJ45
Communication data link Serial
Physical interface RS485 multidrop
ready, C/O
(R1)Relay outputs 230 V running, alarm, trip, stopped, not stopped, starting,
ready, C/O
Relay outputs 2 A at 250 V, AC inductive load, cos phi = 0.4, L/R = 20 ms
Relay outputs 5 A at 30 V, DC resistive load, cos phi = 1
Relay outputs 5 A at 250 V, AC resistive load, cos phi = 1
Aug 17, 2016
1
Transmission rate 4800, 9600 or 19200 bps
Max nodes number 31
Protection type Thermal protection on starter
Marking CE
Type of cooling Forced convection
Operating position Vertical +/- 10 degree
Height 356 mm
Width 150 mm
Depth 229.5 mm
Product weight 18 kg
Thermal protection on motor
Phase failure on line
Environment
Electromagnetic compatibility Voltage/Current impulse conforming to IEC 61000-4-5 level 3
Standards EN/IEC 60947-4-2
Product certifications CCC
Vibration resistance 1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Noise level 56 dB
Pollution degree Level 2 conforming to IEC 60664-1
Relative humidity <= 95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation > 40...< 60 °C with current derating 2.2 % per °C
Ambient air temperature for storage -25...70 °C
Operating altitude > 1000...< 2000 m with current derating of 2.2 % per additional 100 m
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3
level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Conducted and radiated emissions conforming to IEC 60947-4-2 level A
CSA
C-Tick
GOST
UL
1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
-10...40 °C without derating
<= 1000 m without derating
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS
Product environmental profile
Product end of life instructions
Compliant - since 0938 - Schneider Electric declaration of conformity
Available Download Product Environmental
Available Download End Of Life Manual
2
Product data sheet
Dimensions Drawings
Frame Size C
Dimensions
ATS22C17S6
