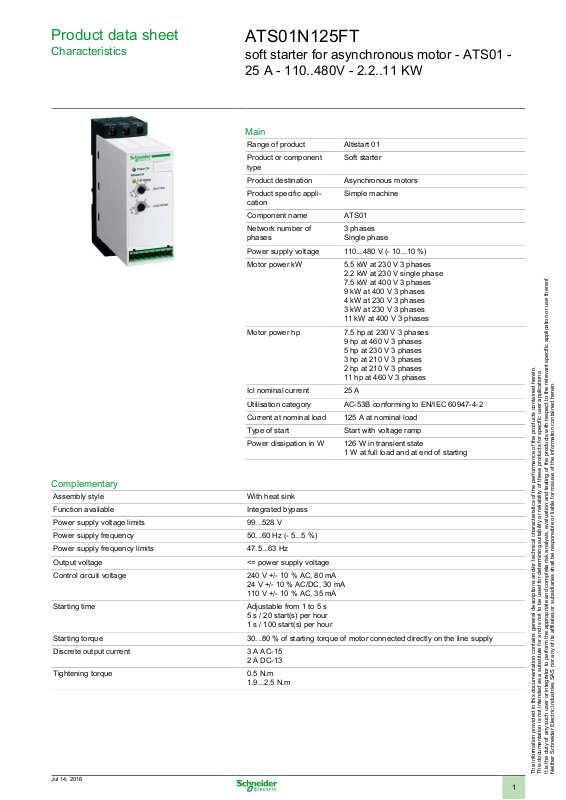

Product data sheet
Characteristics
ATS01N125FT
soft starter for asynchronous motor - ATS01 25 A - 110..480V - 2.2..11 KW
Main
Range of product Altistart 01
Product or component
type
Product destination Asynchronous motors
Product specific application
Component name ATS01
Network number of
phases
Power supply voltage 110...480 V (- 10...10 %)
Motor power kW 5.5 kW at 230 V 3 phases
Motor power hp 7.5 hp at 230 V 3 phases
Icl nominal current 25 A
Utilisation category AC-53B conforming to EN/IEC 60947-4-2
Current at nominal load 125 A at nominal load
Type of start Start with voltage ramp
Power dissipation in W 126 W in transient state
Soft starter
Simple machine
3 phases
Single phase
2.2 kW at 230 V single phase
7.5 kW at 400 V 3 phases
9 kW at 400 V 3 phases
4 kW at 230 V 3 phases
3 kW at 230 V 3 phases
11 kW at 400 V 3 phases
9 hp at 460 V 3 phases
5 hp at 230 V 3 phases
3 hp at 210 V 3 phases
2 hp at 210 V 3 phases
11 hp at 460 V 3 phases
1 W at full load and at end of starting
Complementary
Assembly style With heat sink
Function available Integrated bypass
Power supply voltage limits 99...528 V
Power supply frequency 50...60 Hz (- 5...5 %)
Power supply frequency limits 47.5...63 Hz
Output voltage <= power supply voltage
Control circuit voltage 240 V +/- 10 % AC, 80 mA
Starting time Adjustable from 1 to 5 s
Starting torque 30...80 % of starting torque of motor connected directly on the line supply
Discrete output current 3 A AC-15
Tightening torque 0.5 N.m
24 V +/- 10 % AC/DC, 30 mA
110 V +/- 10 % AC, 35 mA
5 s / 20 start(s) per hour
1 s / 100 start(s) per hour
2 A DC-13
1.9...2.5 N.m
Jul 14, 2016
1
Electrical connection 2 conductor(s) flexible cable without cable end, connection via screw connector
Marking CE
Operating position Vertical +/- 10 degree
Height 124 mm
Width 45 mm
Depth 131 mm
Product weight 0.35 kg
0.5...1.5 mm² / AWG 16 for control circuit
2 conductor(s) flexible cable without cable end, connection via 4 mm screw clamp
terminal 1.5...6 mm² / AWG 10 for power circuit
2 conductor(s) flexible cable with cable end, connection via 4 mm screw clamp
terminal 1...6 mm² / AWG 10 for power circuit
1 conductor(s) flexible cable without cable end, connection via screw connector
0.5...2.5 mm² / AWG 14 for control circuit
1 conductor(s) flexible cable without cable end, connection via 4 mm screw clamp
terminal 1.5...10 mm² / AWG 8 for power circuit
1 conductor(s) flexible cable with cable end, connection via screw connector
0.5...1.5 mm² / AWG 16 for control circuit
2 conductor(s) rigid cable, connection via screw connector 0.5...1 mm² / AWG 17
for control circuit
2 conductor(s) rigid cable, connection via 4 mm screw clamp terminal 1...6 mm² /
AWG 10 for power circuit
1 conductor(s) rigid cable, connection via screw connector 0.5...2.5 mm² / AWG
14 for control circuit
1 conductor(s) rigid cable, connection via 4 mm screw clamp terminal 1...10
mm² / AWG 8 for power circuit
Environment
Electromagnetic compatibility Voltage/Current impulse conforming to IEC 61000-4-5 level 3
Standards EN/IEC 60947-4-2
Product certifications B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
IP degree of protection IP20
Pollution degree 2 conforming to EN/IEC 60947-4-2
Vibration resistance 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60068-2-27
Relative humidity 5...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Ambient air temperature for operation 40...50 °C with current derating of 2 % per °C
Ambient air temperature for storage -25...70 °C conforming to EN/IEC 60947-4-2
Operating altitude > 1000 m with current derating of 2.2 % per additional 100 m
Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3
level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Immunity to conducted interference caused by radio-electrical fields conforming
to IEC 61000-4-6 level 3
Harmonics conforming to IEC 1000-3-4
Harmonics conforming to IEC 1000-3-2
EMC immunity conforming to EN 50082-2
EMC immunity conforming to EN 50082-1
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Conducted and radiated emissions conforming to IEC 60947-4-2 level B
Conducted and radiated emissions conforming to CISPR 11 level B
CCC
CSA
C-Tick
GOST
UL
1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
-10...40 °C without derating
<= 1000 m without derating
