Product data sheet
Characteristics

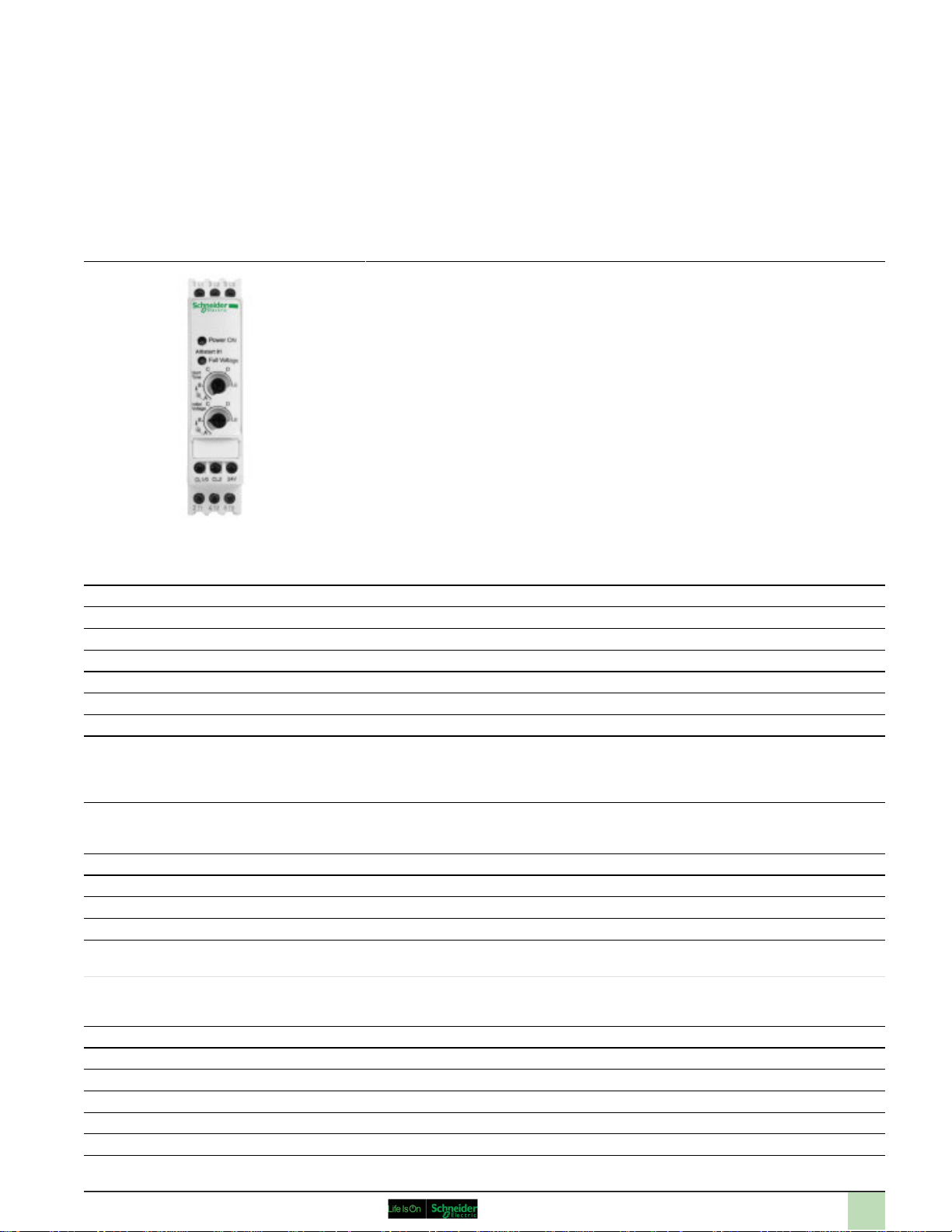

ATS01N103FT
soft starter for asynchronous motor - ATS01 - 3 A
- 110..480V - 0.55..1.1 KW
Main
Range of product Altistart 01
Product or component type Soft starter
Product destination Asynchronous motors
Product specific application Simple machine
Device short name ATS01
Network number of phases 1 phase
[Us] rated supply voltage 110...480 V - 10...10 %
Motor power kW 0.37 kW 3 phases 230 V
0.55 kW 3 phases 230 V
1.1 kW 3 phases 400 V
0.37 kW 1 phase 230 V
Motor power hp 0.5 hp 3 phases 230 V
0.5 hp 3 phases 460 V
1.5 hp 3 phases 460 V
IcL starter rating 3 A
Utilisation category AC-53B EN/IEC 60947-4-2
Current consumption 15 A at nominal load
Type of start Start with voltage ramp
Power dissipation in W 19 W in transient state
4 W at full load and at end of starting
Complementary
Assembly style With heat sink
Function available Integrated bypass
Supply voltage limits 99...528 V
Supply frequency 50...60 Hz - 5...5 %
Network frequency 47.5...63 Hz
Output voltage <= power supply voltage
Control circuit voltage 110 V AC +/- 10 % 30 mA
May 19, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
24 V AC/DC +/- 10 % 25 mA
240 V AC +/- 10 % 65 mA
Starting time 1 s 100
Starting torque 30...80 % of starting torque of motor connected directly on the line supply
Discrete output current 2 A DC-13
Tightening torque 0.8 N.m
Electrical connection Cage type connector rigid 1 2.5 mm² AWG 14 control circuit
Marking CE
Operating position Vertical +/- 10 degree
Height 100 mm
Width 23 mm
Depth 100 mm
Product weight 0.16 kg
Compatibility code ATS01N1
Motor power range AC-3 0...0.5 kW at 200...240 V 1 phase
Motor starter type Soft starter
5 s 20
Adjustable from 1 to 5 s
3 A AC-15
Cage type connector rigid 1 2.5 mm² AWG 14 power circuit
Cage type connector rigid 2 1 mm² AWG 17 control circuit
Cage type connector rigid 2 1 mm² AWG 17 power circuit
Cage type connector flexible with cable end 1 2.5 mm² AWG 14 control circuit
Cage type connector flexible with cable end 1 2.5 mm² AWG 14 power circuit
Cage type connector flexible without cable end 1 2.5 mm² AWG 14 control circuit
Cage type connector flexible without cable end 1 2.5 mm² AWG 14 power circuit
Cage type connector flexible with cable end 2 0.75 mm² AWG 18 control circuit
Cage type connector flexible with cable end 2 0.75 mm² AWG 18 power circuit
Cage type connector flexible without cable end 2 1 mm² AWG 17 control circuit
Cage type connector flexible without cable end 2 1 mm² AWG 17 power circuit
0...0.5 kW at 200...240 V 3 phases
0.55...1 kW at 200...240 V 3 phases
1.1...2 kW at 380...440 V 3 phases
Environment
Electromagnetic compatibility Damped oscillating waves level 3 IEC 61000-4-12
Standards EN/IEC 60947-4-2
Product certifications B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
IP degree of protection IP20
Pollution degree 2 EN/IEC 60947-4-2
Vibration resistance 1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6
Shock resistance 15 gn 11 ms EN/IEC 60068-2-27
Relative humidity 5...95 % without condensation or dripping water EN/IEC 60068-2-3
Ambient air temperature for operation -10...40 °C without derating
Ambient air temperature for storage -25...70 °C EN/IEC 60947-4-2
Electrostatic discharge level 3 IEC 61000-4-2
Immunity to electrical transients level 4 IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3
Voltage/Current impulse level 3 IEC 61000-4-5
Conducted and radiated emissions level B CISPR 11
Conducted and radiated emissions level B IEC 60947-4-2
EMC immunity EN 50082-2
Harmonics IEC 1000-3-2
Harmonics IEC 1000-3-4
Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6
Micro-cuts and voltage fluctuation IEC 61000-4-11
EMC immunity EN 50082-1
CCC
CSA
C-Tick
GOST
UL
1 gn 13...150 Hz EN/IEC 60068-2-6
40...50 °C with current derating of 2 % per °C
