Square D Altivar 212 Installation Guide

Important information
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.
No part of this document may be reproduced in any form or by any means, electronic or mechanical, including photocopying, without express written permission of Schneider Electric.
All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer should perform repairs to components.
When devices are used for applications with technical safety requirements, the relevant instructions must be followed.
Failure to use Schneider Electric software or approved software with our hardware products may result in injury, harm, or improper operating results.
Failure to observe this information can result in injury or equipment damage.
© 2011 Schneider Electric. All rights reserved.
2 S1A53832 01/2011
4 S1A53832 01/2011
6 S1A53832 01/2011
8 S1A53832 01/2011
Introduction
Introduction
What's in this Chapter?
This chapter contains the following topics:
Topic Page
Device overview 10
Reference description 11
1
9 S1A53832 01/2011
Device overview
The product
The ATV212 drive is mainly dedicated to HVAC applications in Building sector. The ATV212 drive family consists of five IP21 and two IP55 product sizes
The IP21 «H» range - 5 drive sizes - Three-phase 50/60 Hz supply voltage
ATV212H075M3X, U15M3X, U22M3X, 075N4, U15N4, U22N4, U30M3X, U40M3X, U30N4, U40N4, U55N4
0.75 to 5.5 kW 5.5 to 11 kW 11 to 22 kW
ATV212HU55M3X, U75M3X, U75N4, D11N4
Introduction
ATV212HD11M3X, D15M3X, HD15N4, HD18N4, D22N4S
ATV212HD22M3X, D22N4, D30N4, D37N4, D45N4 22 to 45 kW 30 to 75 kW
ATV212HD30M3X, D55N4, D75N4
The IP55 «W» range - 2 drive sizes - Three-phase 50/60 Hz supply voltage
ATV21W075N4…U22N4, U30N4...U75N4
0.75 to 7.5 kW 11 to 75 kW
ATV12WD11N4...D75N4
10 S1A53832 01/2011
Introduction
Reference description
IP21 and IP55 variable speed drives - Three-phase 50/60 Hz supply voltage: 200 ... 240 V and 380 ... 480 V
ATV 212 H D30 N4 S
Product designation ATV - Altivar
Product range
Degree of protection
H - IP21 product W - IP55 product
Drive rating
075 - 0.75 kW (1 HP) U15 - 1.5 kW (2 HP) U22 - 2.2 kW (3 HP) U30 - 3 kW U40 - 4 kW (5 HP) U55 - 5.5 kW (7 U75 - 7.5 kW (10 HP) D11 - 11 kW (15 HP) D15 - 15 kW (20 HP) D18 - 18.5 kW (25 HP) D22 - 22 kW (30 HP) D30 - 30 kW (40 HP)
D37 - 37 kW (50 HP) D45 - 45 kW (60 HP) D55 - 55 kW (75 HP) D75 - 75 kW (100 HP)
1/2
HP)
380 - 400 V range only
Power supply voltage
M3X : 200 - 240 V range three-phase N4 : 380 - 480 V range three-phase (With integrated EMC filter C2, C3, for UL Type 12/IP55 products ATV212Wppppp) N4C : 380 - 480 V range three-phase (With integrated C1 EMC filter for UL Type 12/IP55 products ATV212Wpppppp)
Slim version
Available for 22 kW (30 HP) rating, IP21 version
S1A53832 01/2011 11
Introduction
12 S1A53832 01/2011
Before you begin
Before you begin
What's in this Chapter?
This chapter contains the following topics:
Topic Page
Safety instructions 14
2
S1A53832 01/2011 13
Before you begin
Storing and shipping
Before removing the drive from its packaging, verify that the carton was not damaged in shipping. Carton damage usually indicates improper handling and the potential for device damage. If any damage is found, notify the carrier and your Schneider Electric representative.
WARNING
DAMAGED PACKAGING
If the packaging appears damaged:
- handle with care
- check if the product appears damaged
Failure to follow these instructions can result in death, serious injury, or equipment damage.
WARNING
DAMAGED DRIVE EQUIPMENT
Do not operate or install any drive or drive accessory that appears damaged.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
If the drive is not immediately installed, store it in a clean, dry area where the ambient temperature is between –25 and +70 °C (–13 to +158 °F). If the drive has to be shipped to another location, use the original shipping material and carton to help protect the drive.
S1A53832 01/2011 15
Steps for setting up
Steps for setting up
What's in this Chapter?
This chapter contains the following topics:
Topic Page
Steps for setting up 18
3
17 S1A53832 01/2011
Technical data
Technical data
What's in this Chapter?
This chapter contains the following topics:
Topic Page

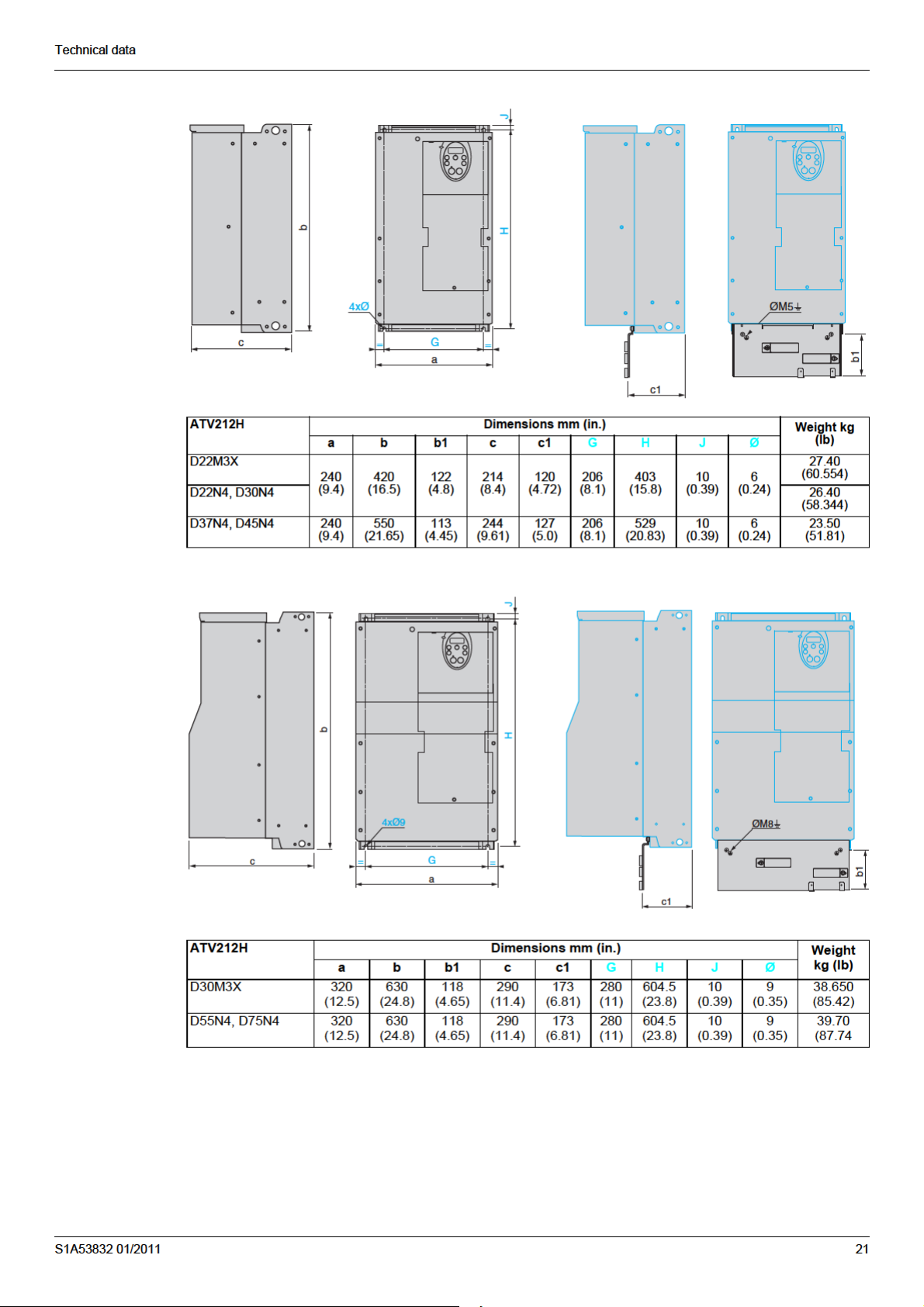

ATV212H dimensions and weights 20

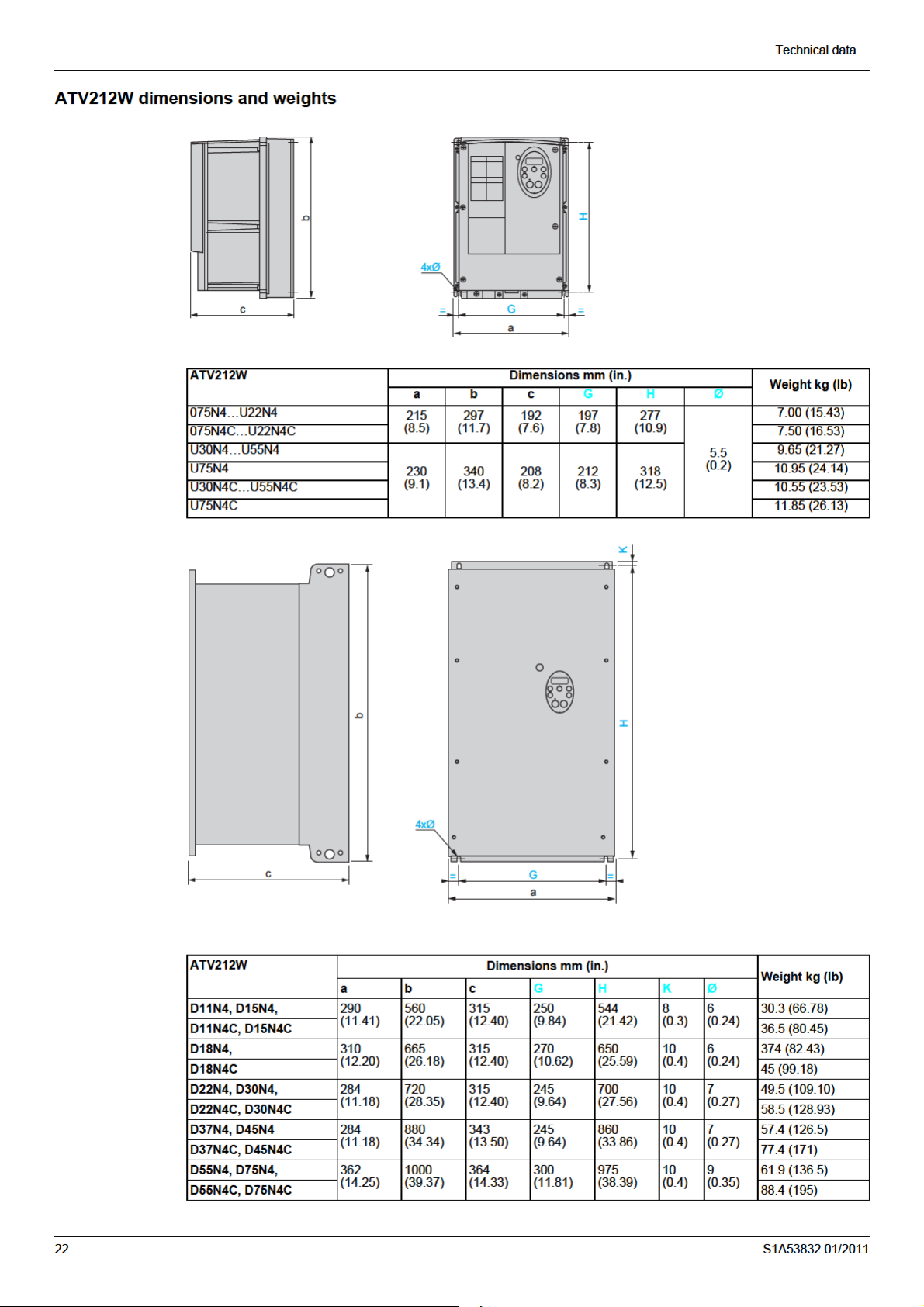

ATV212W dimensions and weights 22
Electrical data 23

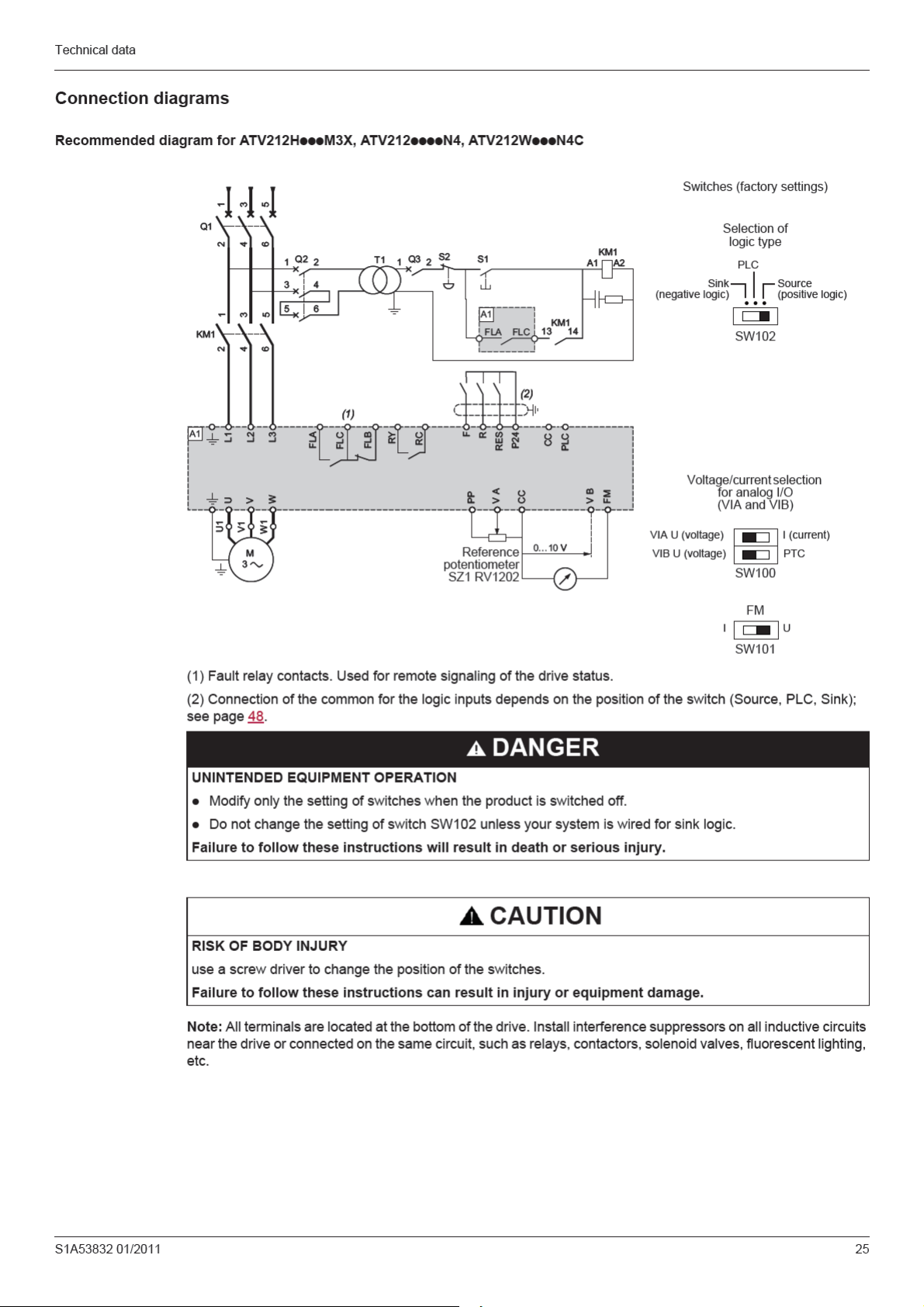

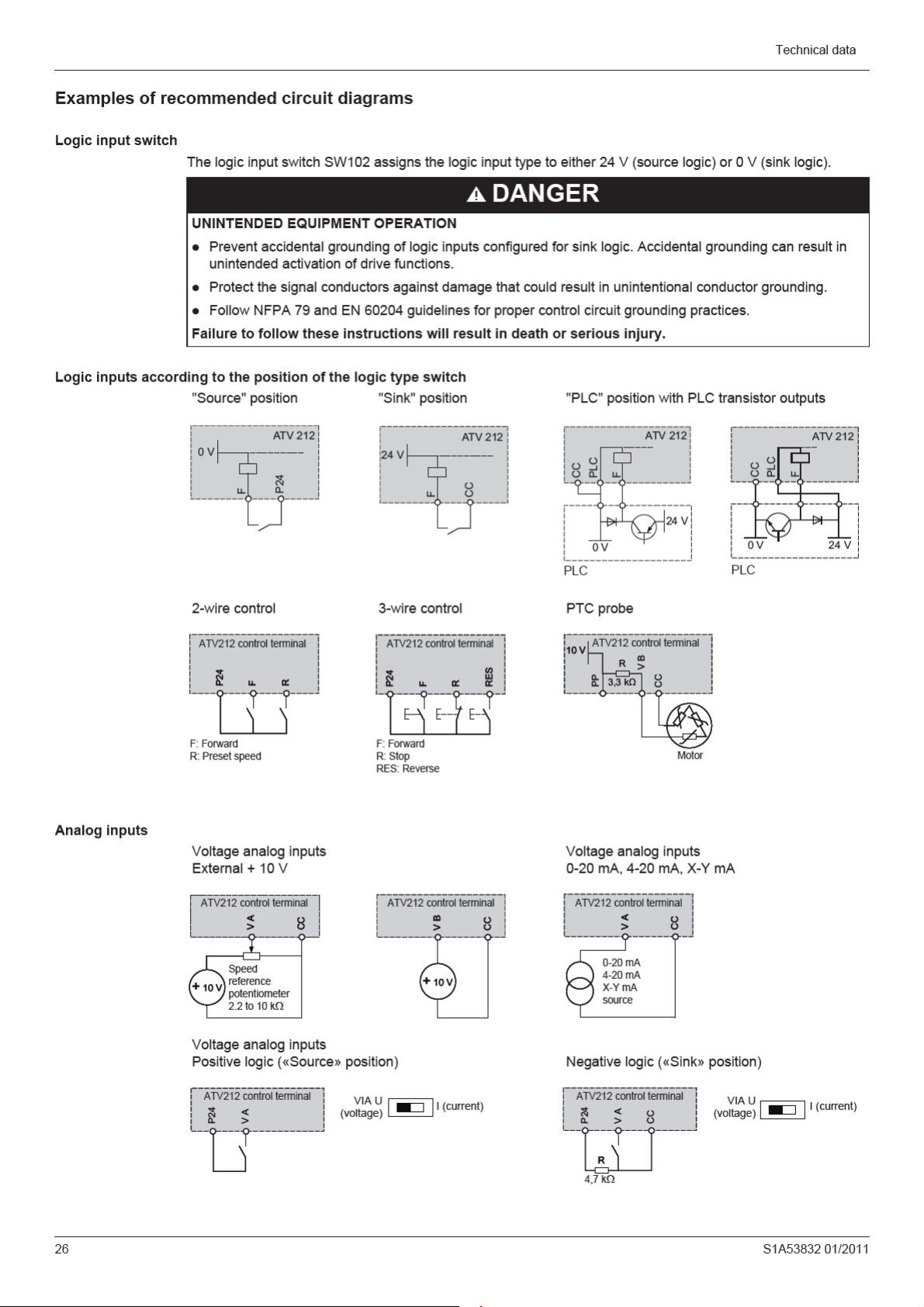

Connection diagrams 25
4
19 S1A53832 01/2011
Technical data
Electrical data
ATV212Hpppppp - Three-phase supply voltage: 200 ... 240 V 50/60 Hz
Motor Line supply (input) Drive (output) Reference (5)
Power indicated on plate (1)
kW HPAAkVAkA W A A
0.75 1 3.3 2.7 1.1 5 63 4.6 5.1 ATV212H075M3X
1.5 2 6.1 5.1 2.1 5 101 7.5 8.3 ATV212HU15M3X
2.2 3 8.7 7.3 3.0 5 120 10.6 11.7 ATV212HU22M3X
3 10.0 4.2 5 146 13.7 15.1 ATV212HU30M3X
4 5 14.6 13.0 5.4 5 193 18.7 19.3 ATV212HU40M3X
5.5 7.5 20.8 17.3 7.2 22 249 24.2 26.6 ATV212HU55M3X
7.5 10 27.9 23.3 9.7 22 346 32.0 35.2 ATV212HU75M3X
11 15 42.1 34.4 14.3 22 459 46.2 50.8 ATV212HD11M3X
15 20 56.1 45.5 18.9 22 629 61.0 67.1 ATV212HD15M3X
18.5 25 67.3 55.8 23.2 22 698 74.8 82.3 ATV212HD18M3X
22 30 80.4 66.4 27.6 22 763 88.0 96.8 ATV212HD22M3X
30 40 113.3 89.5 37.2 22 1085 117.0 128.7 ATV212HD30M3X
Max. line current (2)
at 200 V at 240 V at 240 V
Apparent power
Max. prospective line Isc (3)
Power dissipated at nominal current
Nominal current (1)
Max. transient current (1) (4)
ATV212Hpppppp - Three-phase supply voltage: 380 ... 480 V 50/60 Hz
Motor
Power indicated on plate (1)
kW HPAAkVAkA W A A
0.75 1 1.7 1.4 1.1 5 55 2.2 2.4 ATV212H075N4
1.5 2 3.2 2.5 2.1 5 78 3.7 4.0 ATV212HU15N4
2.2 3 4.6 3.6 3.0 5 103 5.1 5.6 ATV212HU22N4
3 6.2 4.9 4.1 5 137 7.2 7.9 ATV212HU30N4
4 5 8.1 6.4 5.3 5 176 9.1 10.0 ATV212HU40N4
5.5 7.5 10.9 8.6 7.2 22 215 12.0 13.2 ATV212HU55N4
7.5 10 14.7 11.7 9.7 22 291 16.0 17.6 ATV212HU75N4
11 15 21.1 16.8 13.9 22 430 22.5 24.8 ATV212HD11N4
15 20 28.5 22.8 18.7 22 625 30.5 33.6 ATV212HD15N4
18.5 25 34.8 27.8 22.9 22 603 37.0 40.7 ATV212HD18N4
22 30 41.1 32.8 27 22 723 43.5 47.9 ATV212HD22N4S
22 30 41.6 33.1 27.3 22 626 43.5 47.9 ATV212HD22N4
30 40 56.7 44.7 37.3 22 847 58.5 64.4 ATV212HD30N4
37 50 68.9 54.4 45.3 22 976 79 86.9 ATV212HD37N4
45 60 83.8 65.9 55.2 22 1253 94 103.4 ATV212HD45N4
55 75 102.7 89 67.6 22 1455 116 127.6 ATV212HD55N4
75 100 141.8 111.3 93.3 22 1945 160 176 ATV212HD75N4
Line supply (input)
Max. line current (2)
at 380 V at 480 V at 380 V
Apparent power
Max. prospective line Isc (3)
Power dissipated at nominal current
Drive (output)
Nominal current (1)
Max. transient current (1) (4)
Reference (5)
(1) These values are given for a nominal switching frequency of 12 kHz up to ATV212HD15M3X and up to ATV212HD15N4
or 8 kHz for ATV212HD18M3X…HD30M3X and ATV212HD18N4…HD75N4 drives, 6 kHz for ATV212HD22N4S, for use in continuous operation at 40°C (104 °F) ambient. The switching frequency can be set between 6 and 16 kHz for all ratings. Above 8 kHz or 12 kHz, depending on the rating, the drive will reduce the switching frequency automatically in the event of an excessive temperature rise. For continuous operation above the nominal switching frequency, derate the nominal drive current. See page 29 conditions.
(2) Current on a line supply with the "Input withstand rating", see QuickStart guide.
(3) Current on a line supply with the indicated short-circuit current rating.
(4) The drive is designed to run up to 60 seconds at this level.
(5) See reference description on page 11
S1A53832 01/2011 23

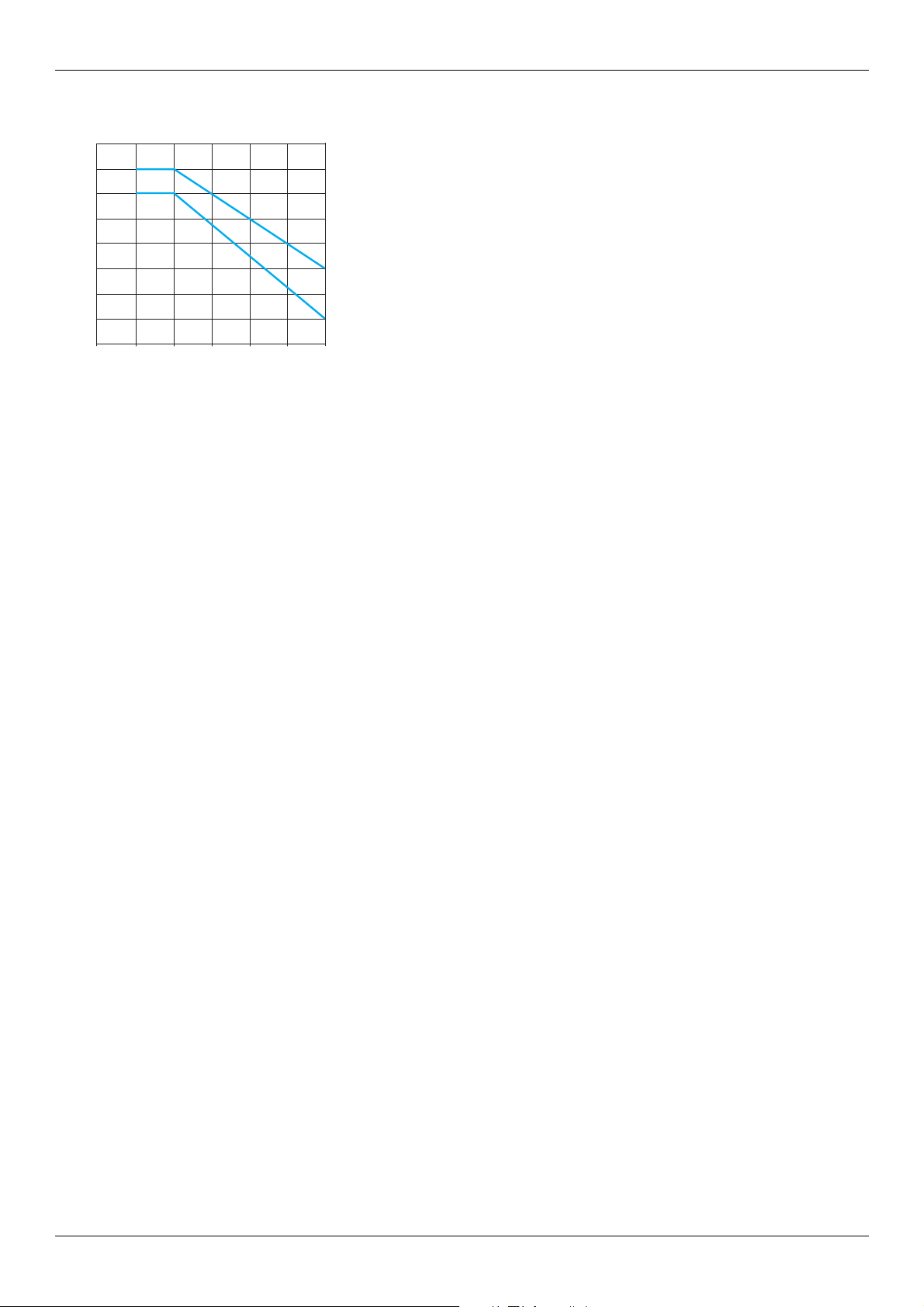

for derating curves as a function of switching frequency, ambient temperature, and mounting
.
ATV212Wppppp - Three-phase supply voltage: 380 ... 480 V 50/60 Hz Drives with an integrated EMC filter, category C2, C3
Motor Line supply (input) Drive (output) Reference (5)
Power indicated on plate (1)
kW HPAAkVAkA A A
0.75 1 1.7 1.4 1.1 5 2.2 2.4 ATV212W075N4
1.5 2 3.2 2.5 2.1 5 3.7 4 ATV212WU15N4
2.2 3 4.6 3.6 3 5 5.1 5.6 ATV212WU22N4
3 6.2 4.9 4.1 5 7.2 7.9 ATV212WU30N4
4 5 8.1 6.4 5.3 5 9.1 10 ATV212WU40N4
5.5 7.5 10.9 8.6 7.2 22 12 13.2 ATV212WU55N4
7.5 10 14.7 11.7 9.7 22 16 17.6 ATV212WU75N4
11 15 21.2 16.9 14 22 22.5 24.8 ATV212WD11N4
15 20 28.4 22.6 18.7 22 30.5 33.6 ATV212WD15N4
18.5 25 34.9 27.8 23 22 37 40.7 ATV212WD18N4
22 30 41.6 33.1 27.3 22 43.5 47.9 ATV212WD22N4
30 40 56.7 44.7 37.3 22 58.5 64.4 ATV212WD30N4
37 50 68.9 54.4 45.3 22 79 86.9 ATV212WD37N4
45 60 83.8 65.9 55.2 22 94 103.4 ATV212WD45N4
55 75 102.7 89 67.6 22 116 127.6 ATV212WD55N4
75 100 141.8 111.3 93.3 22 160 176 ATV212WD75N4
Max. line current (2)
at 380 V at 480 V at 380 V
Apparent power
Max. prospective line Isc (3)
Nominal current (1)
Technical data
Max. transient current (1) (4)
ATV212Wppppp - Three-phase supply voltage: 380 ... 480 V 50/60 Hz Drives with an integrated C1 EMC filter
Motor
Power indicated on plate (1)
kW HPAAkVAA A A
0.75 1 1.7 1.4 1.1 5 2.2 2.4 ATV212W075N4C
1.5 2 3.2 2.6 2.1 5 3.7 4 ATV212WU15N4C
2.2 3 4.6 3.7 3 5 5.1 5.6 ATV212WU22N4C
3 6.2 5 4.1 5 7.2 7.9 ATV212WU30N4C
4 5 8.2 6.5 5.4 5 9.1 10 ATV212WU40N4C
5.5 7.5 11 8.7 7.2 22 12 13.2 ATV212WU55N4C
7.5 10 14.7 11.7 9.7 22 16 17.6 ATV212WU75N4C
11 15 21.1 16.7 13.9 22 22.5 24.8 ATV212WD11N4C
15 20 28.4 22.8 18.7 22 30.5 33.6 ATV212WD15N4C
18.5 25 34.5 27.6 22.7 22 37 40.7 ATV212WD18N4C
22 30 41.1 33.1 27.1 22 43.5 47.9 ATV212WD22N4C
30 40 58.2 44.4 38.3 22 58.5 64.4 ATV212WD30N4C
37 50 68.9 54.4 45.3 22 79 86.9 ATV212WD37N4C
45 60 83.8 65.9 55.2 22 94 103.4 ATV212WD45N4C
55 75 102.7 89 67.6 22 116 127.6 ATV212WD55N4C
75 100 141.8 111.3 93.3 22 160 176 ATV212WD75N4C
Line supply (input)
Max. line current (2)
at 380 V at 480 V at 380 V
Apparent power
Max. prospective line Isc (3)
Drive (output)
Nominal current (1)
Reference (5)
Max. transient current (1) (4)
(1) These values are given for a nominal switching frequency of 12 kHz up to ATV212WD15M3X and up to ATV212HD15N4
or 8 kHz for ATV212WD18M3X…HD30M3X and ATV212WD18N4…HD75N4 drives, for use in continuous operation at 40°C (104 °F) ambient. Above 8 kHz or 12 kHz, depending on the rating, the drive will reduce the switching frequency automatically in the event of an excessive temperature rise. For continuous operation above the nominal switching frequency, derate the nominal drive current. See page 29 conditions
(2) Current on a line supply with the "Input withstand rating", see page QuickStart guide.
(3) Current on a line supply with the indicated short-circuit current rating.
(4) Note: The drive is designed to run up to 60 seconds at this level.
(5) See reference description on page 11
24 S1A53832 01/2011
for derating curves as a function of switching frequency, ambient temperature, and mounting
.

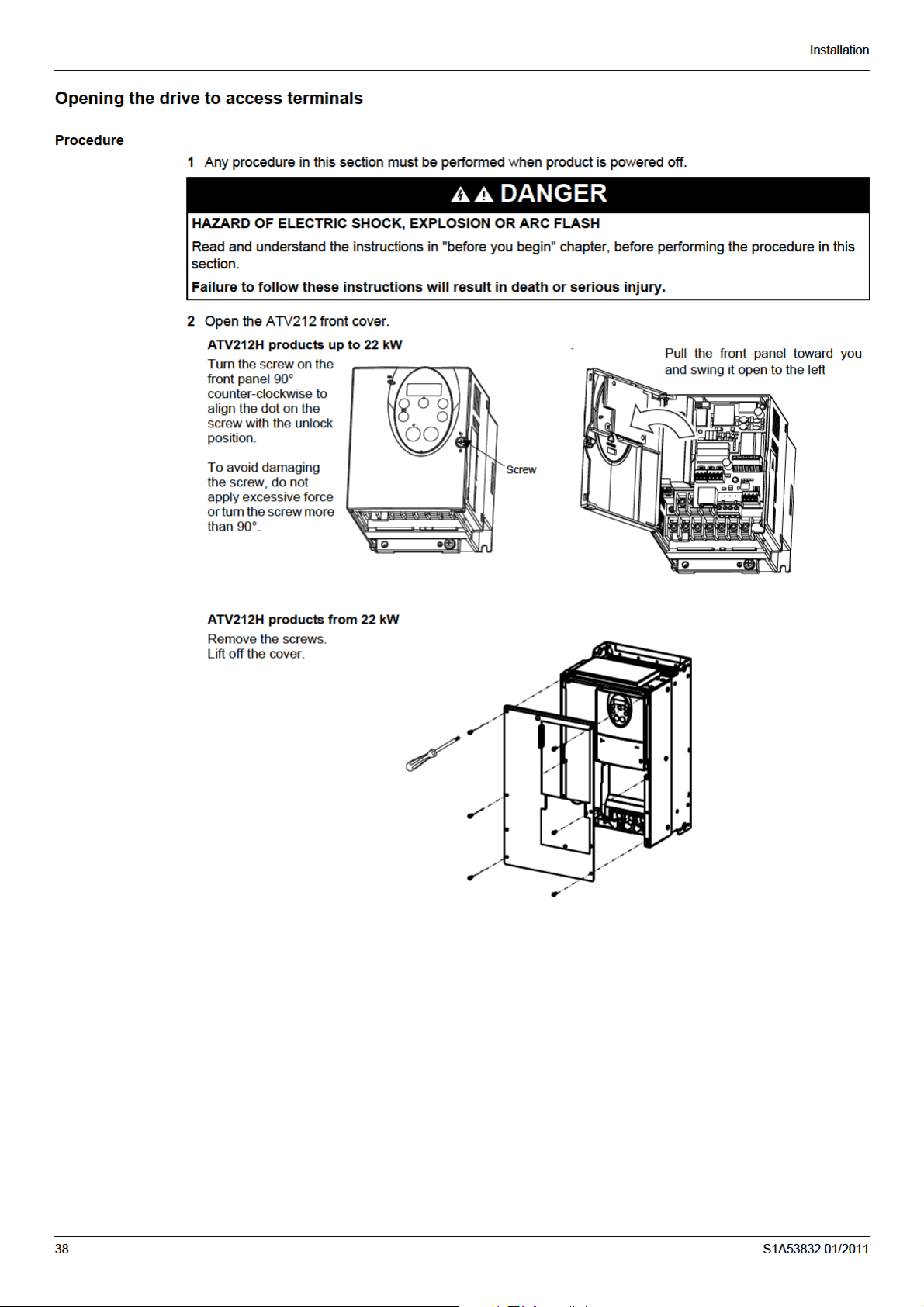

Installation
Installation
What's in this Chapter?
This chapter contains the following topics:
Topic Page

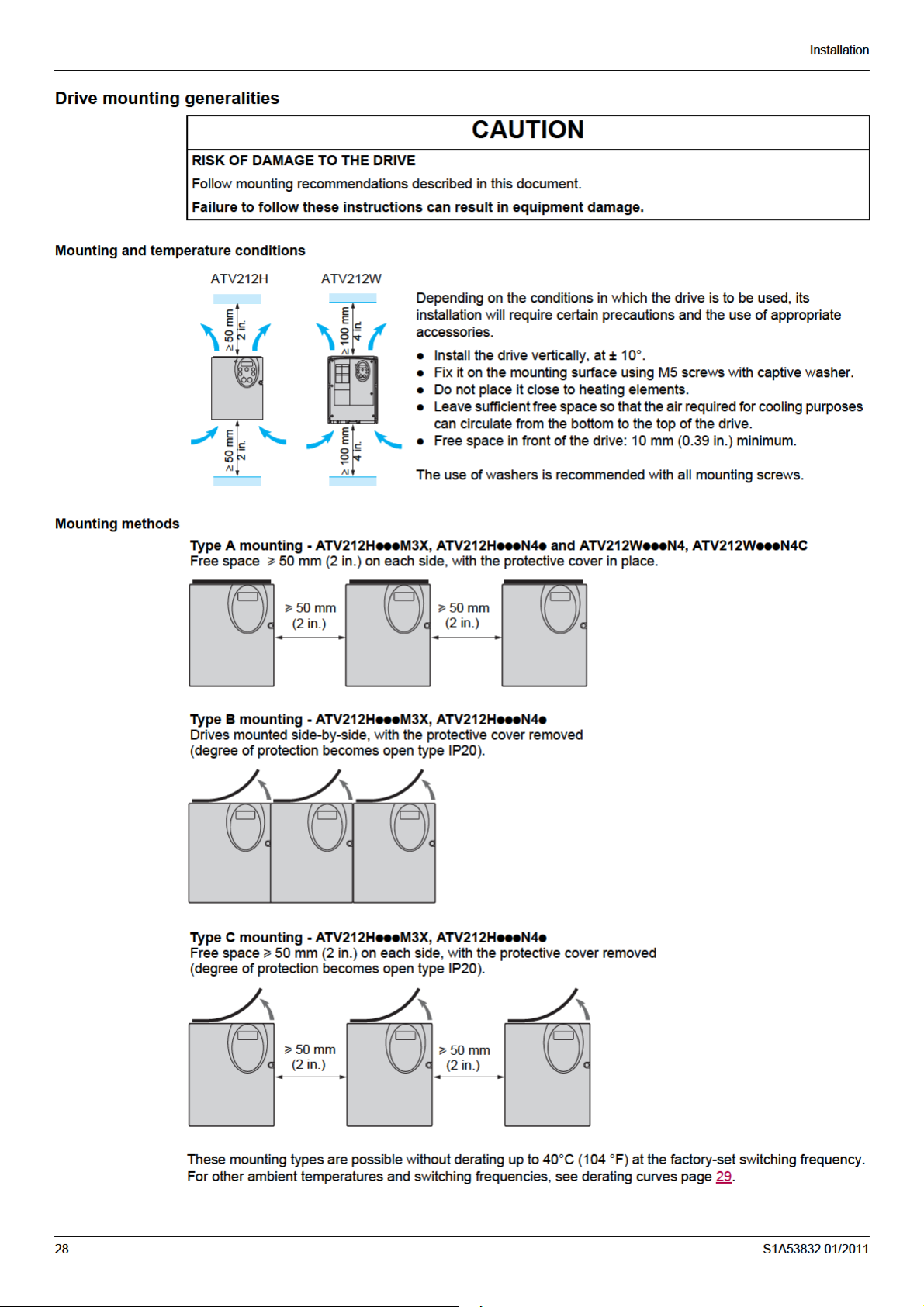

Drive mounting generalities 28

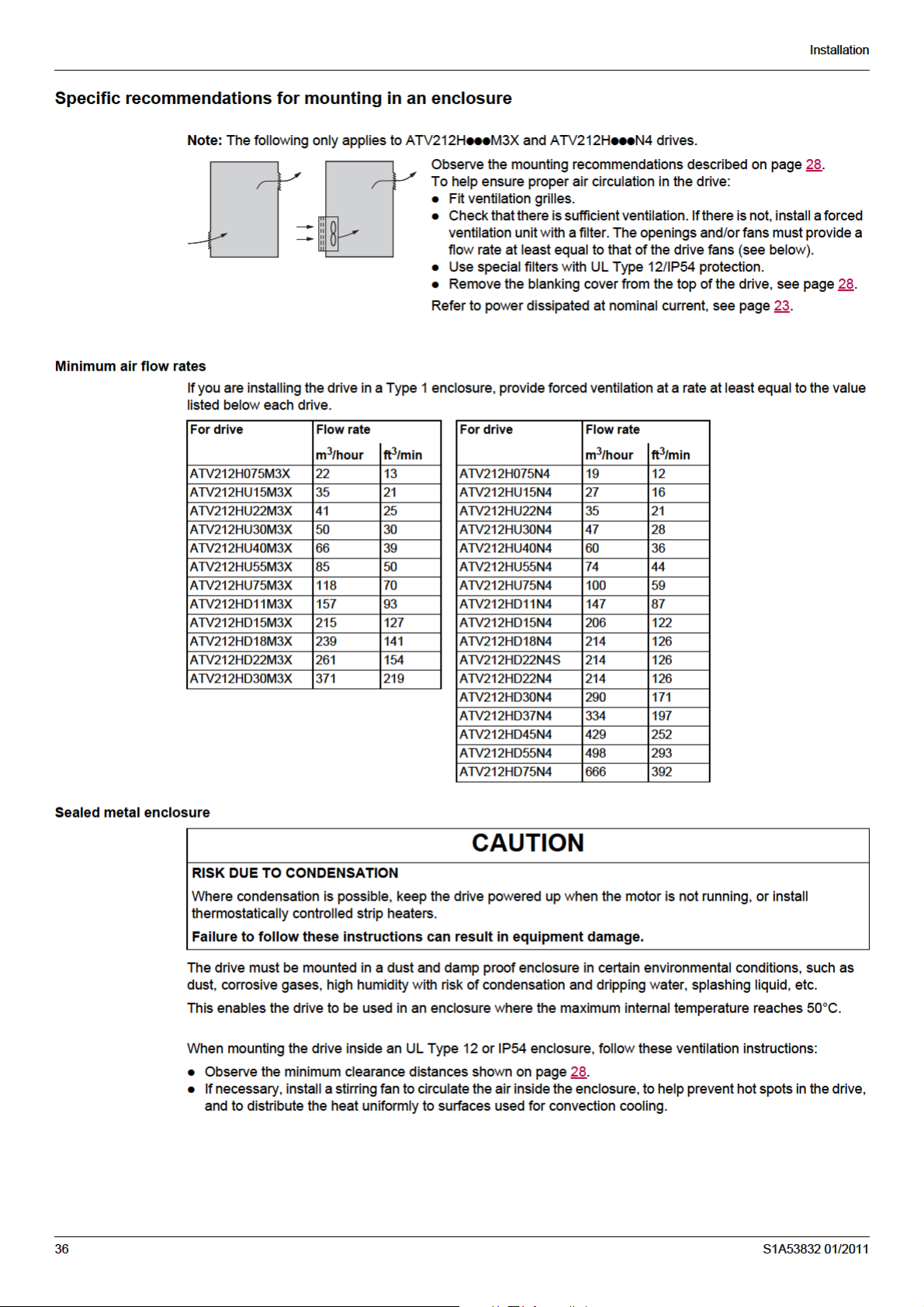

Specific recommendations for mounting in an enclosure 36

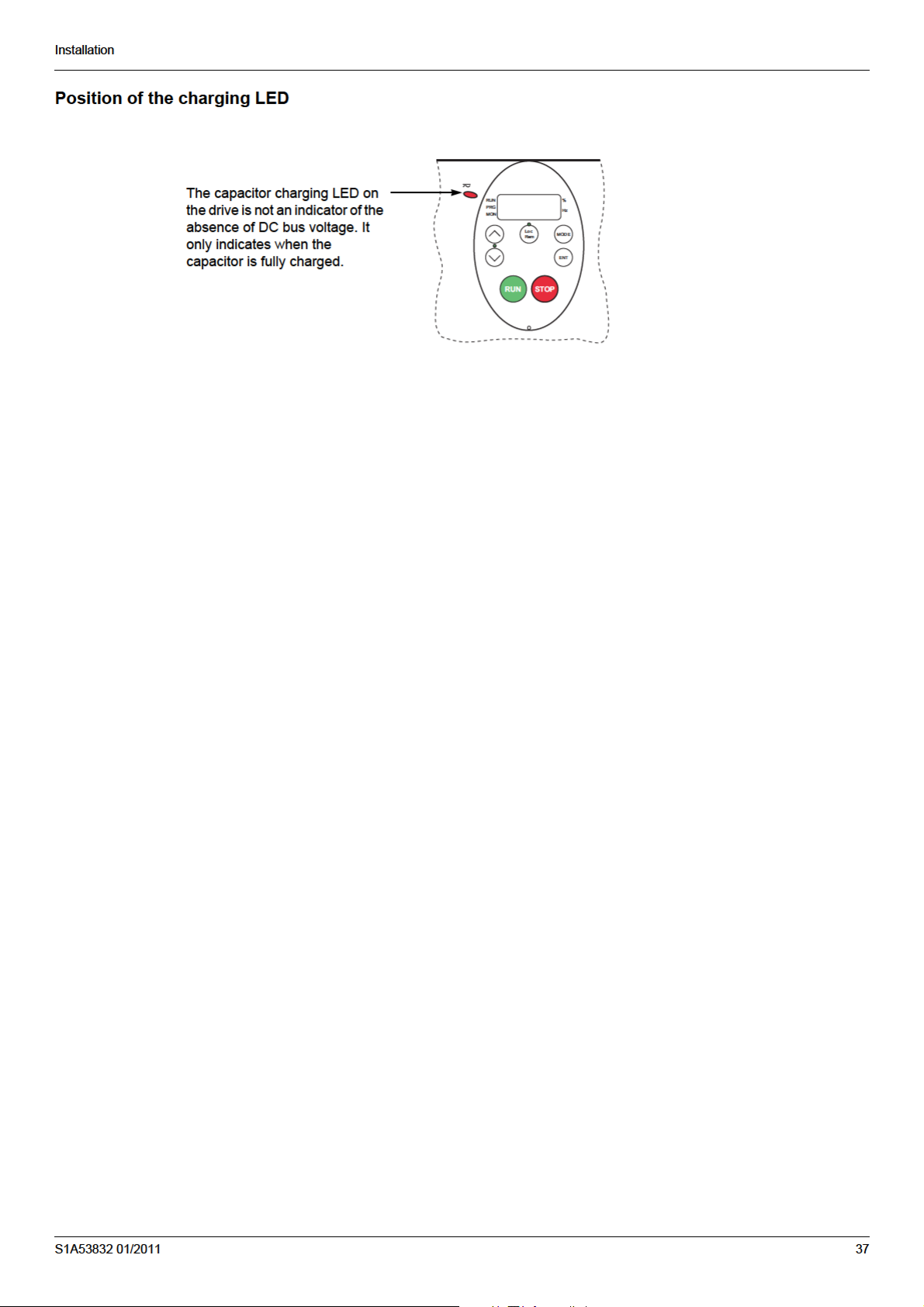

Position of the charging LED 37

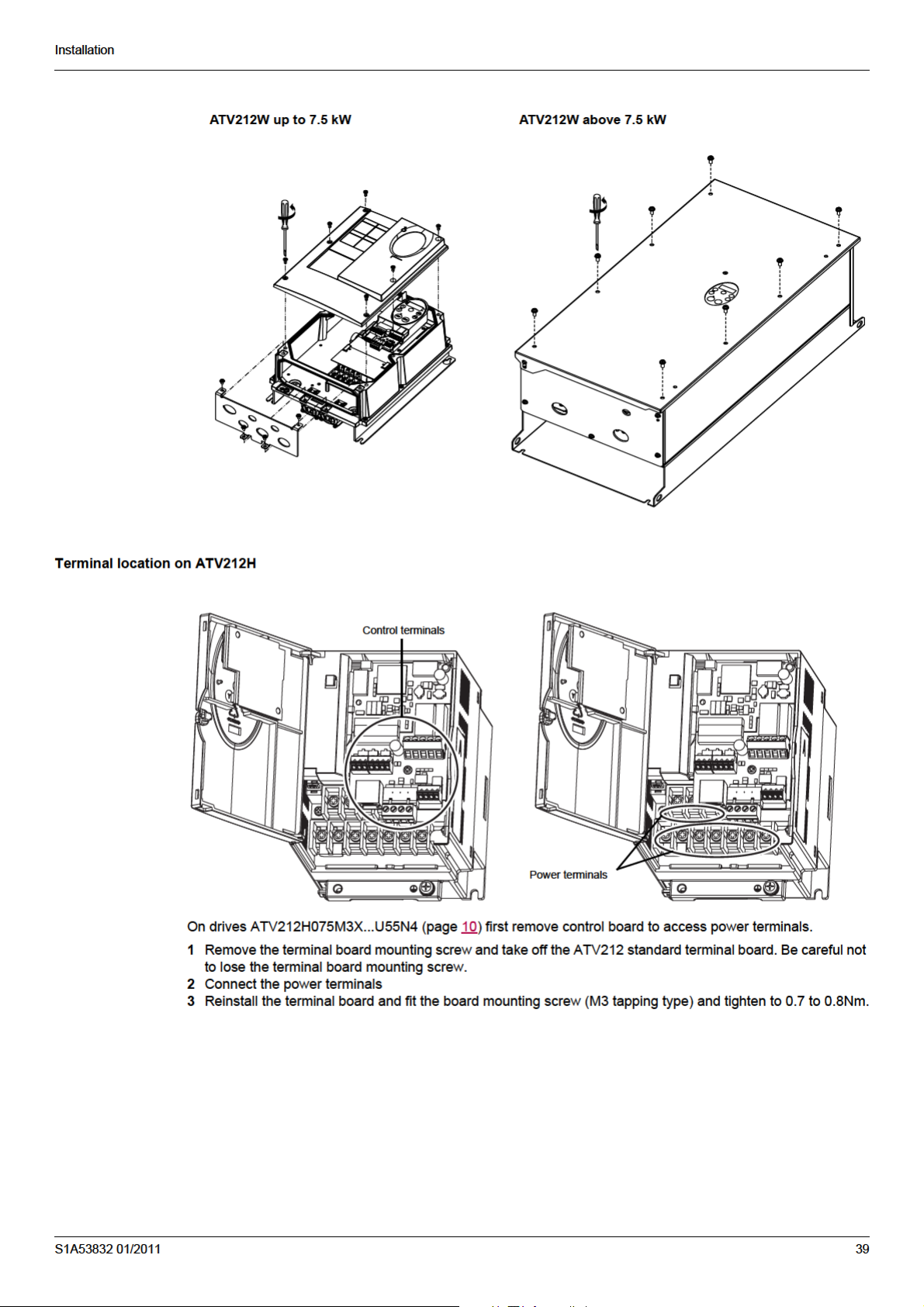

Opening the drive to access terminals 38

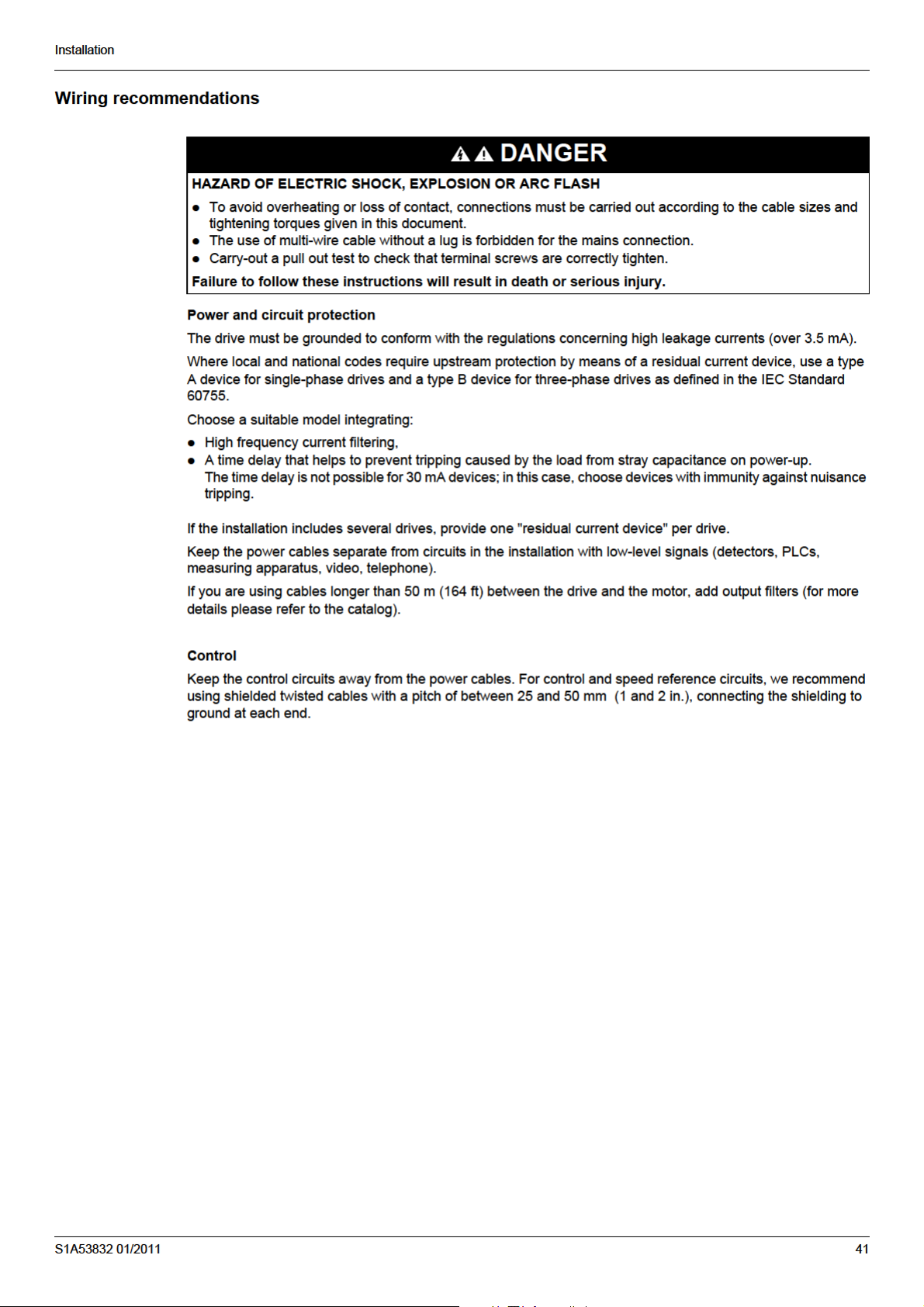

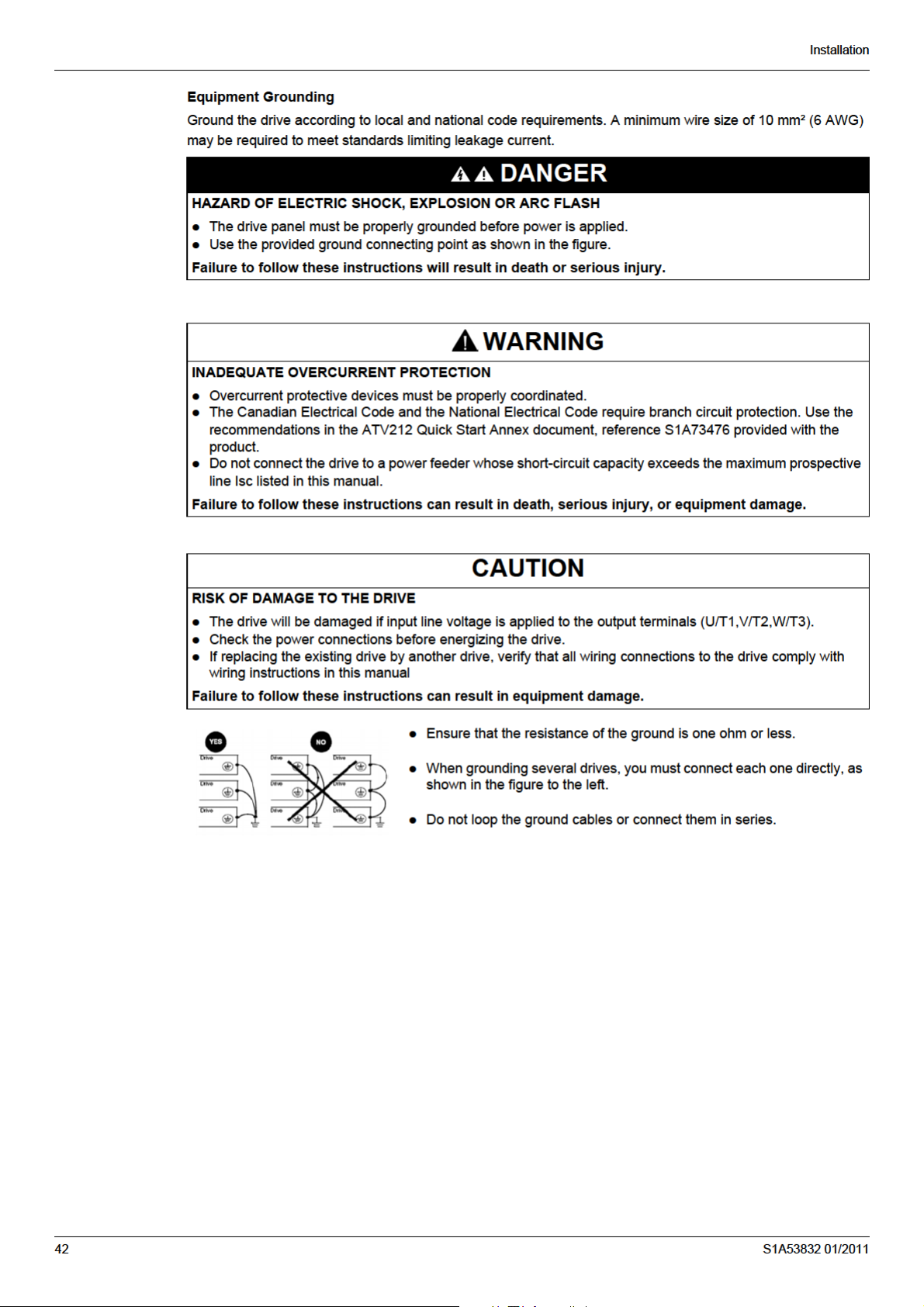

Wiring recommendations 41

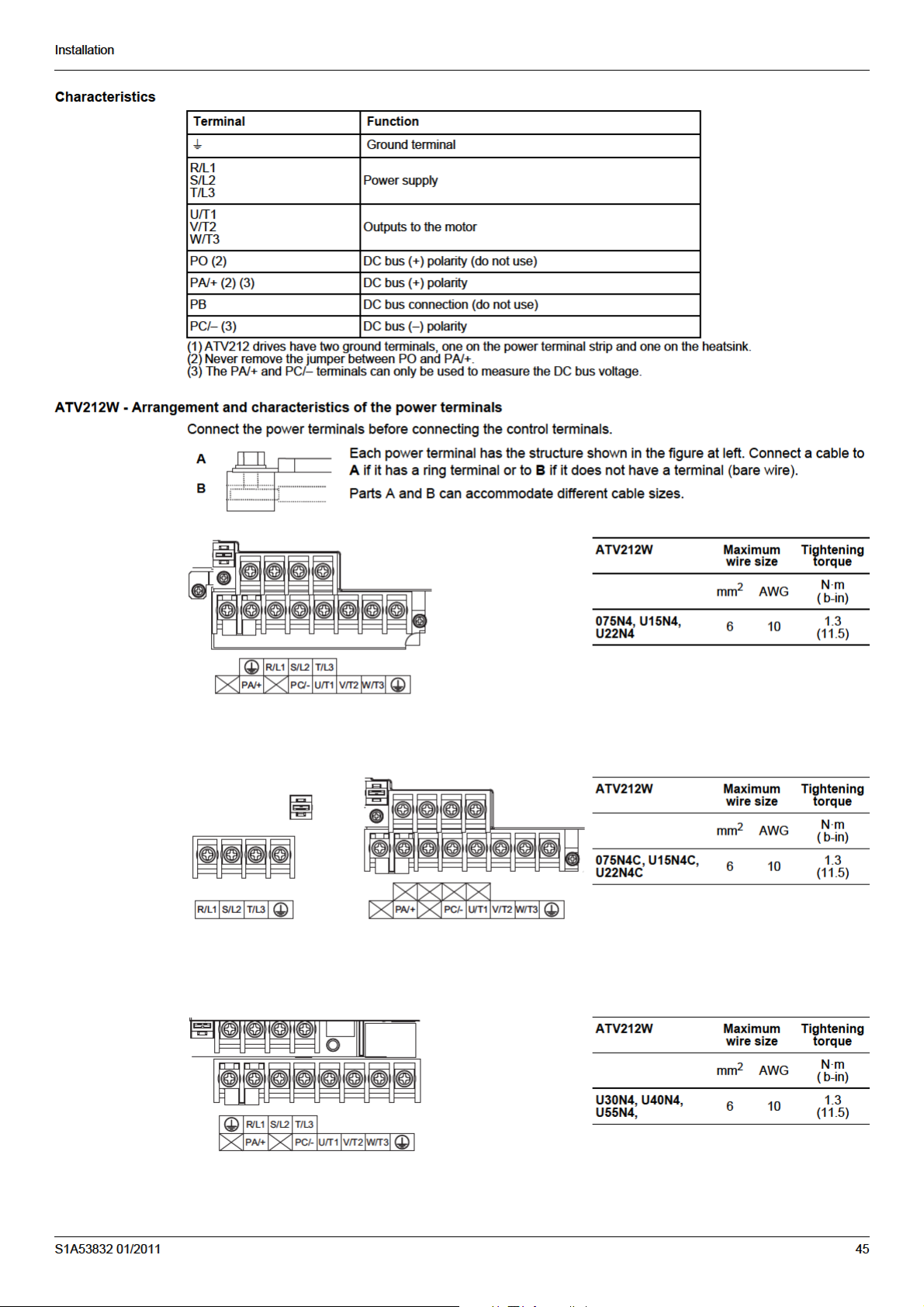

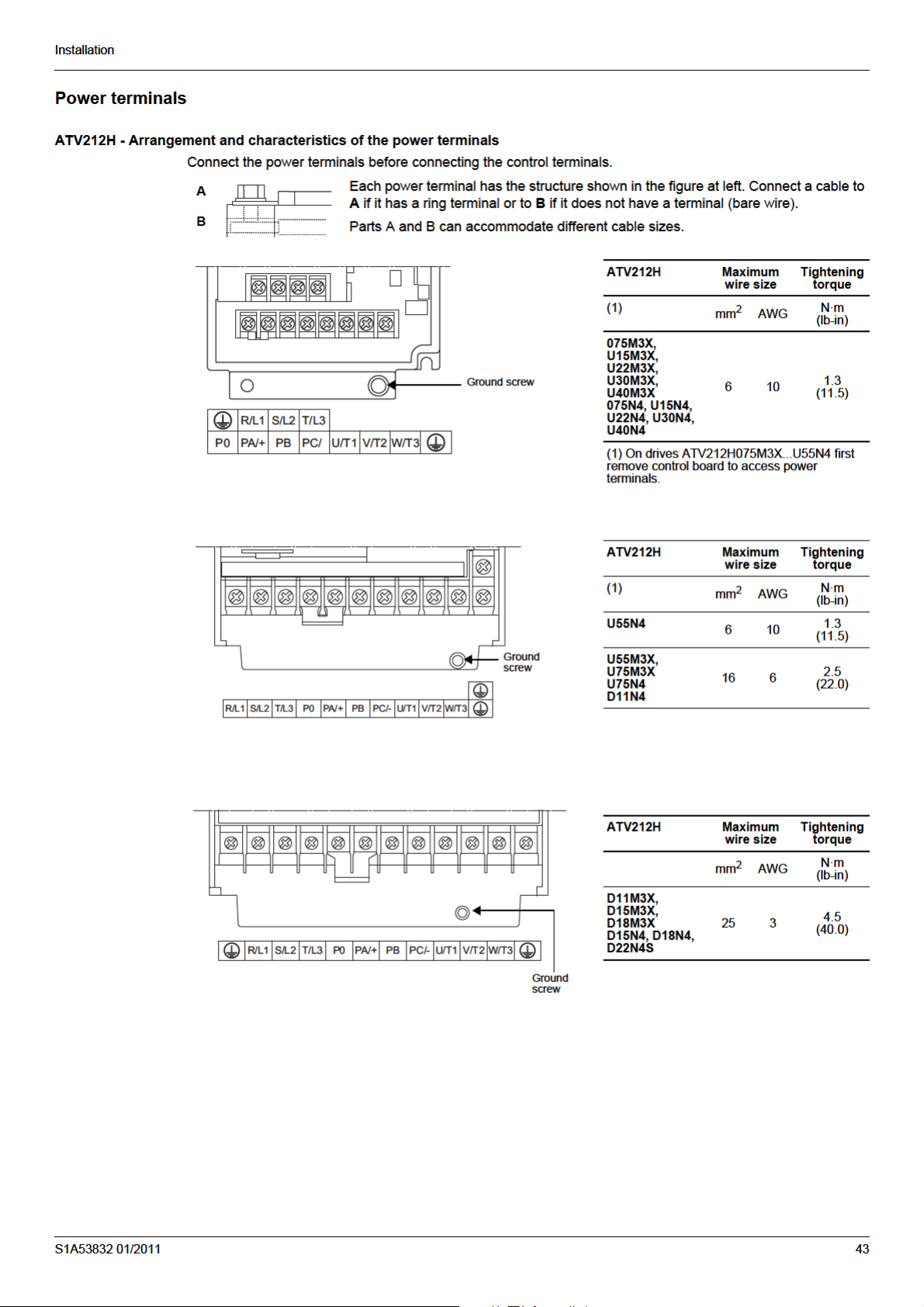

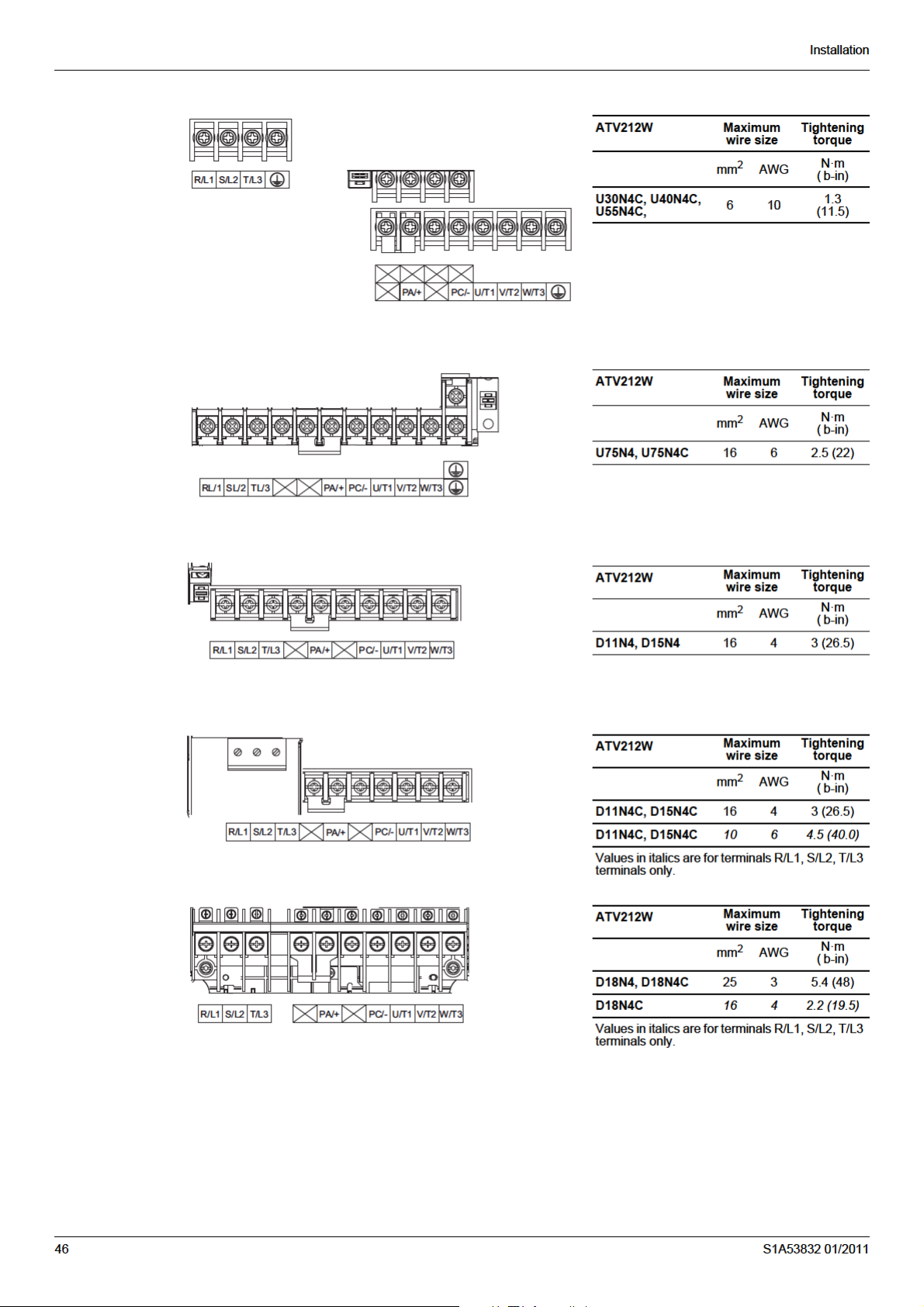

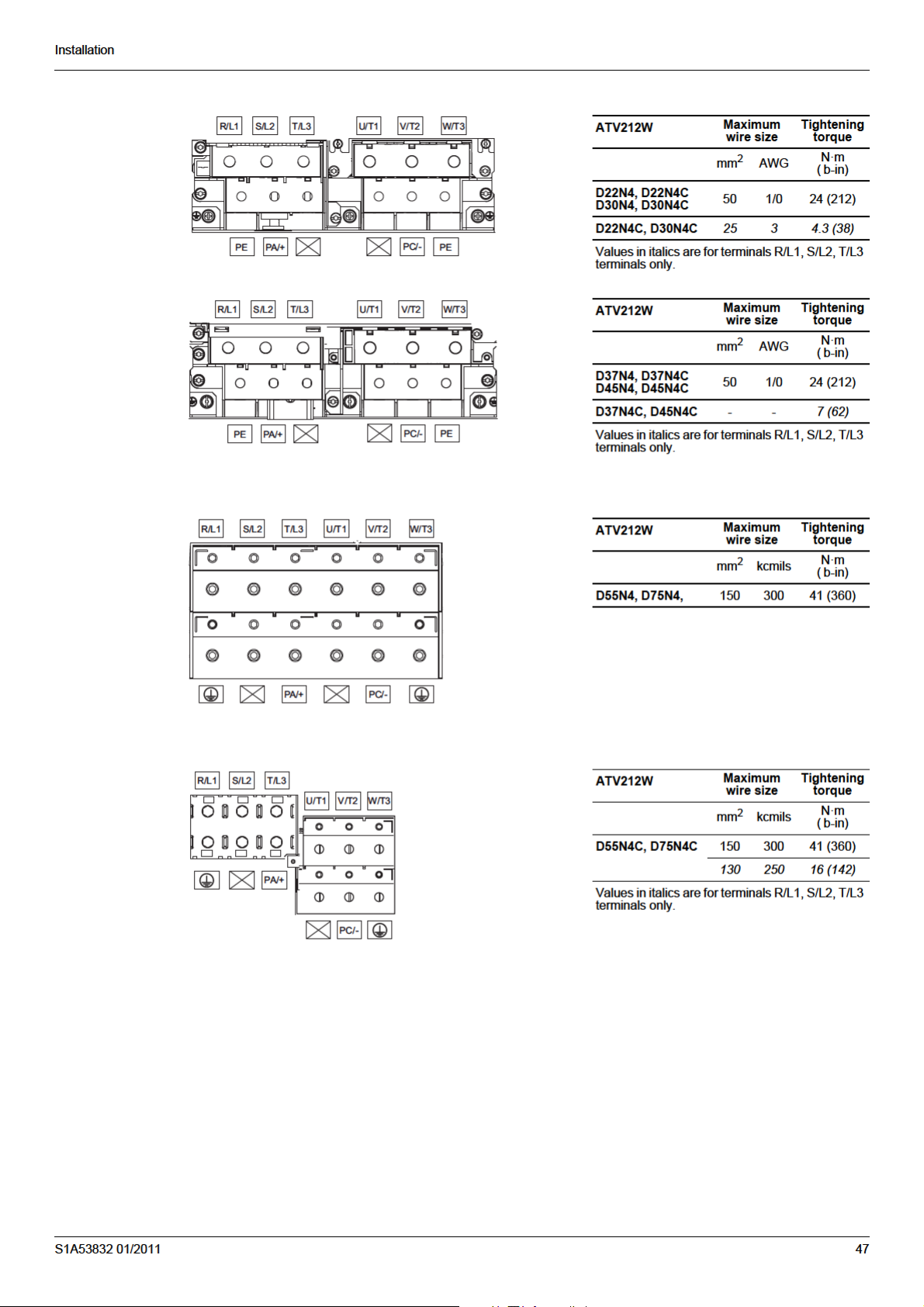

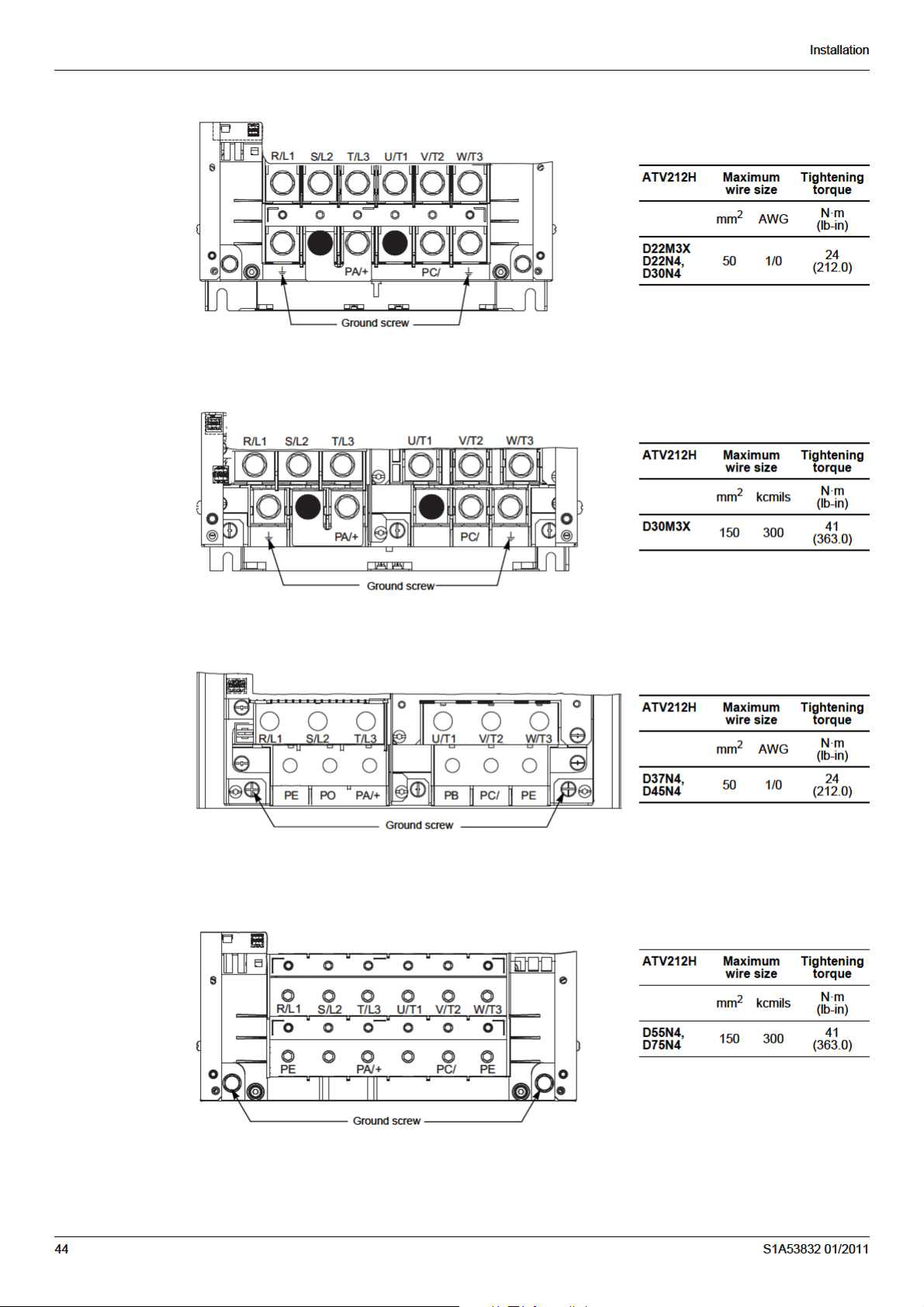

Power terminals 43

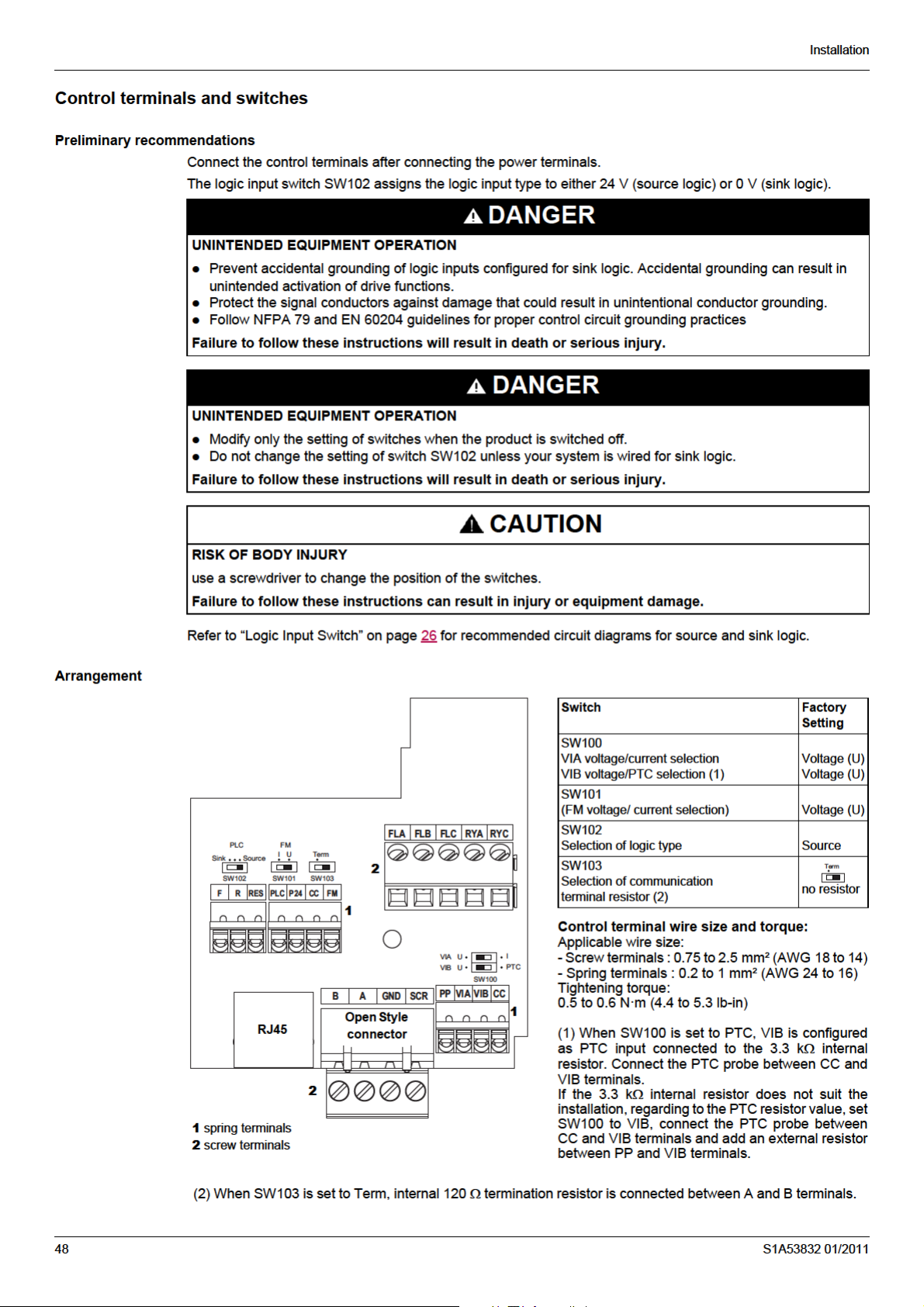

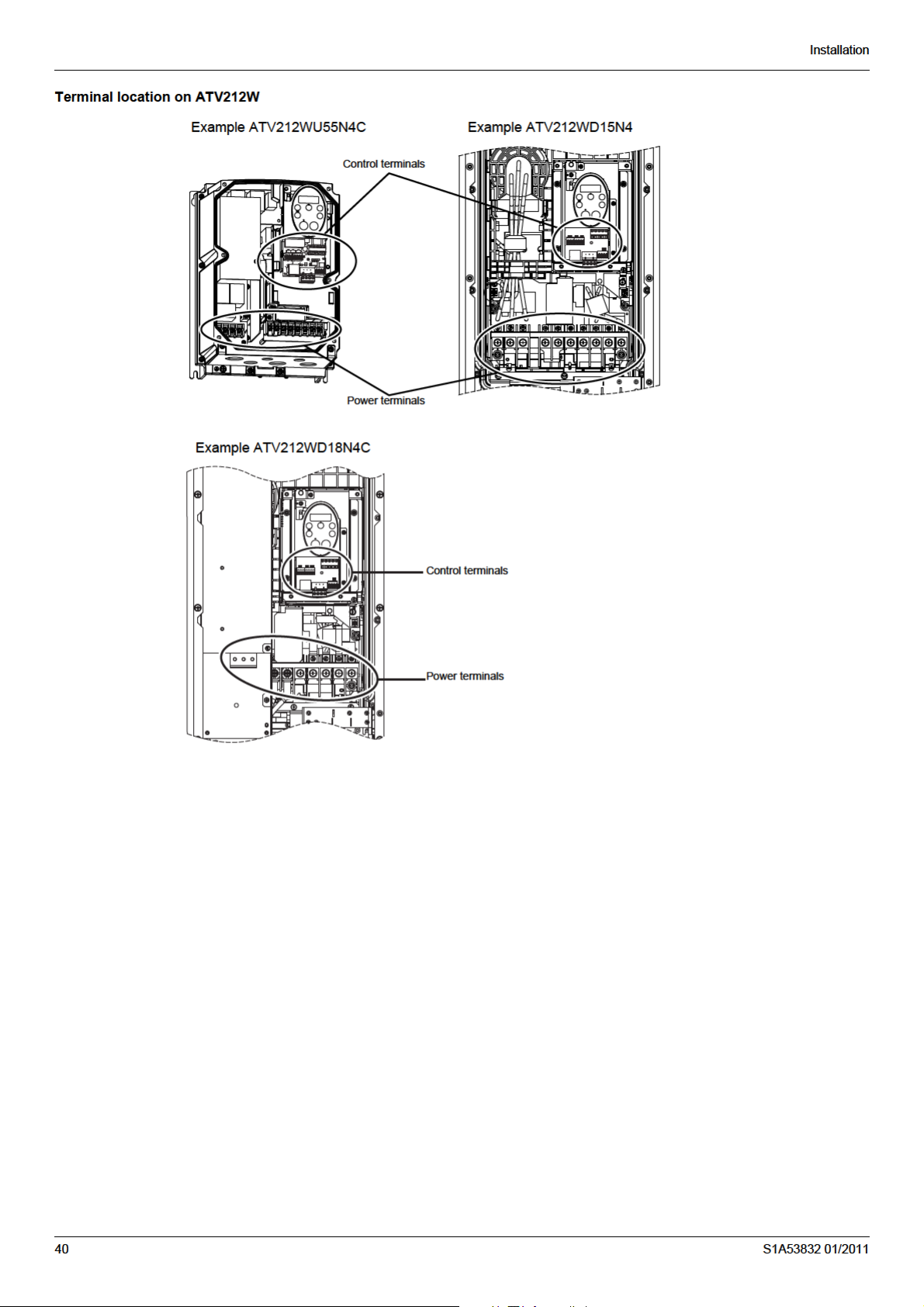

Control terminals and switches 48

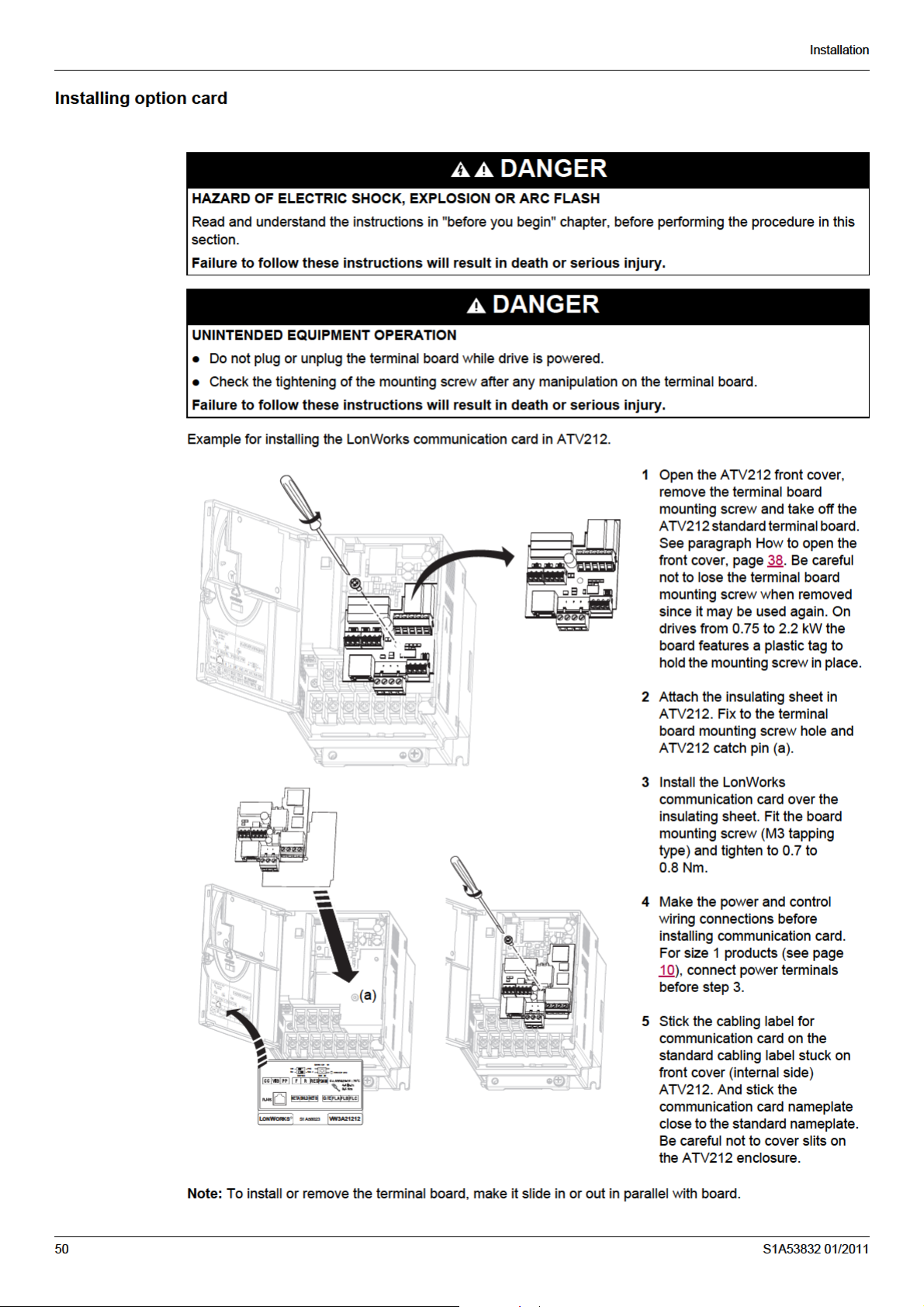

Installing option card 50

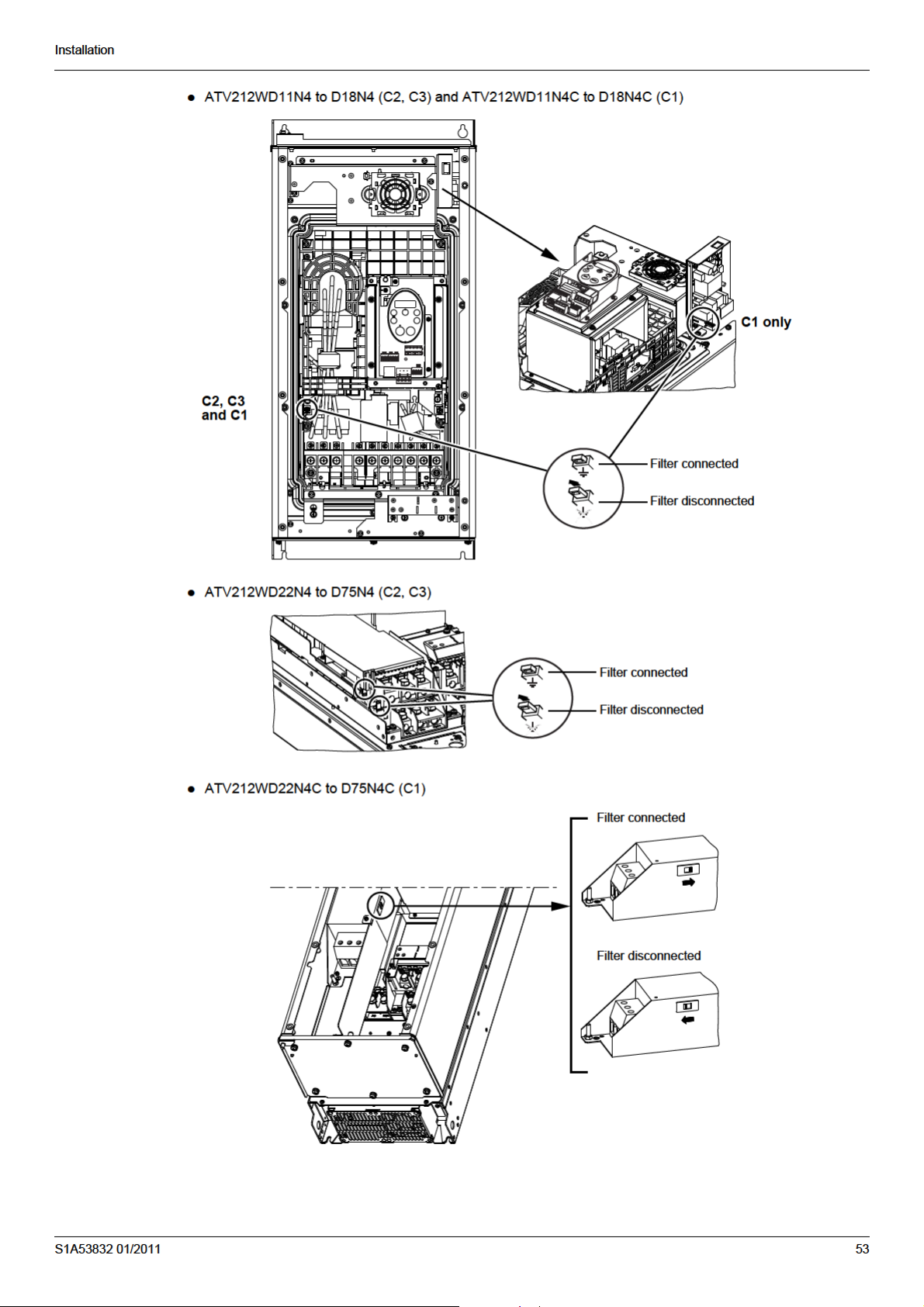

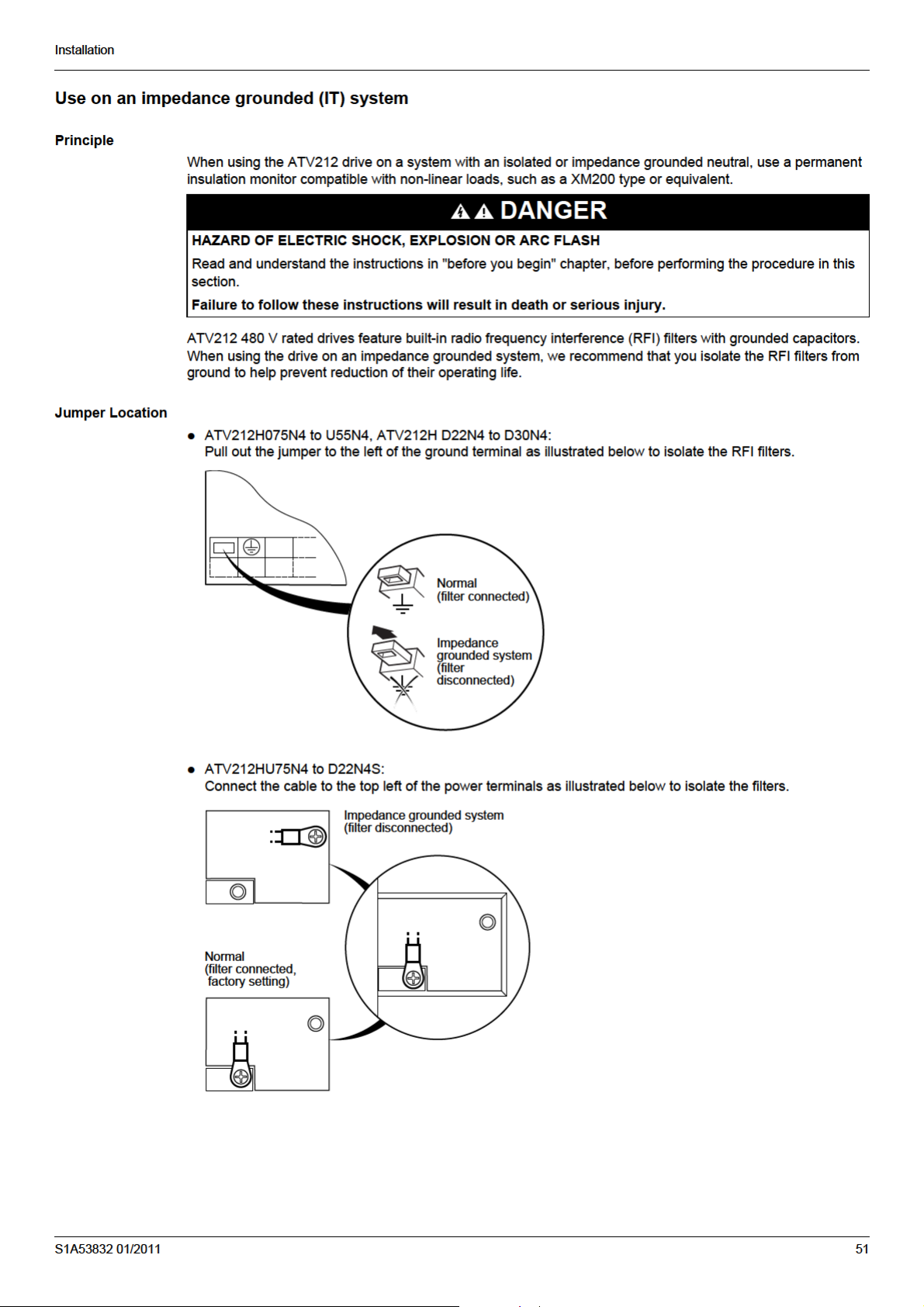

Use on an impedance grounded (IT) system 51

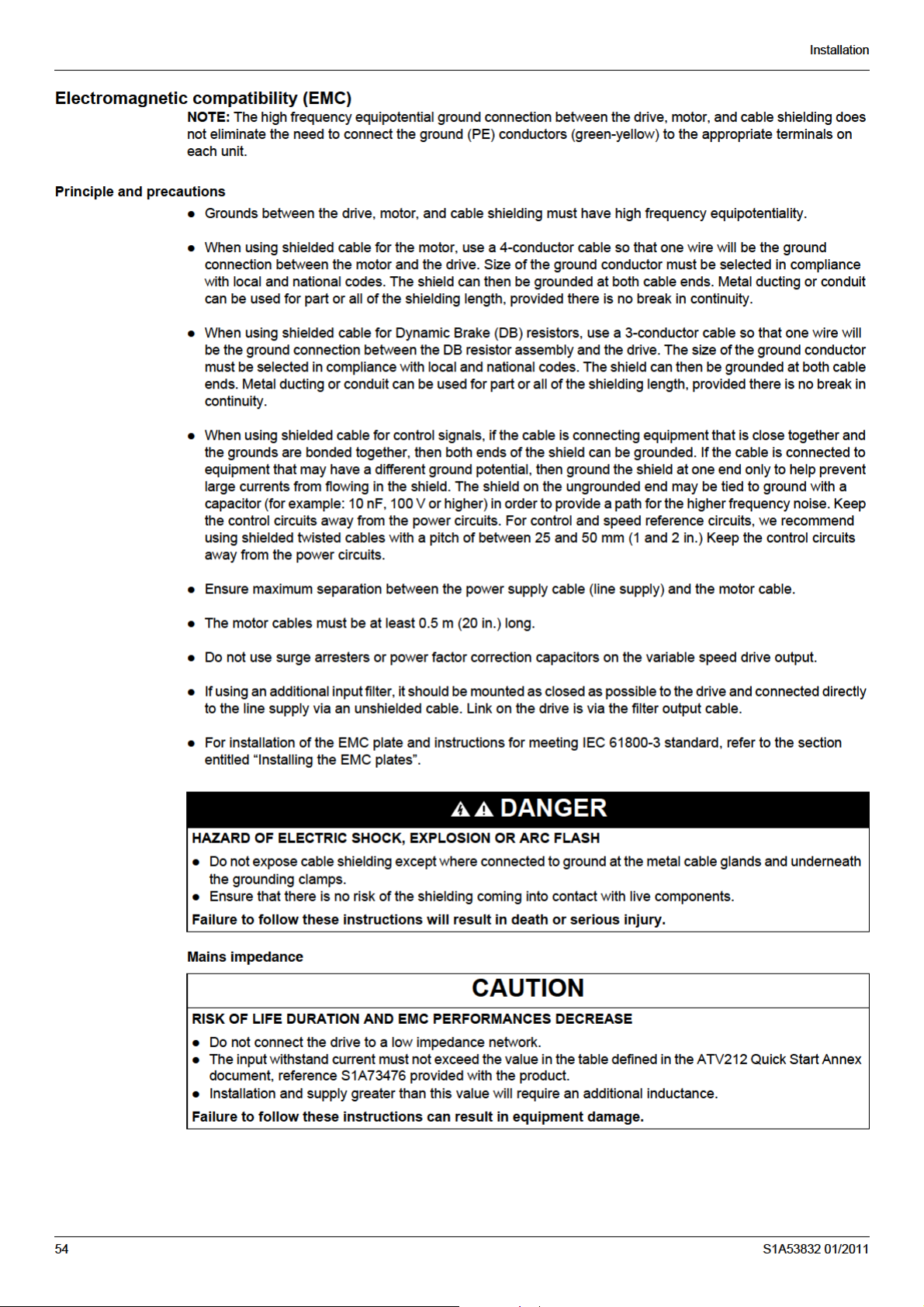

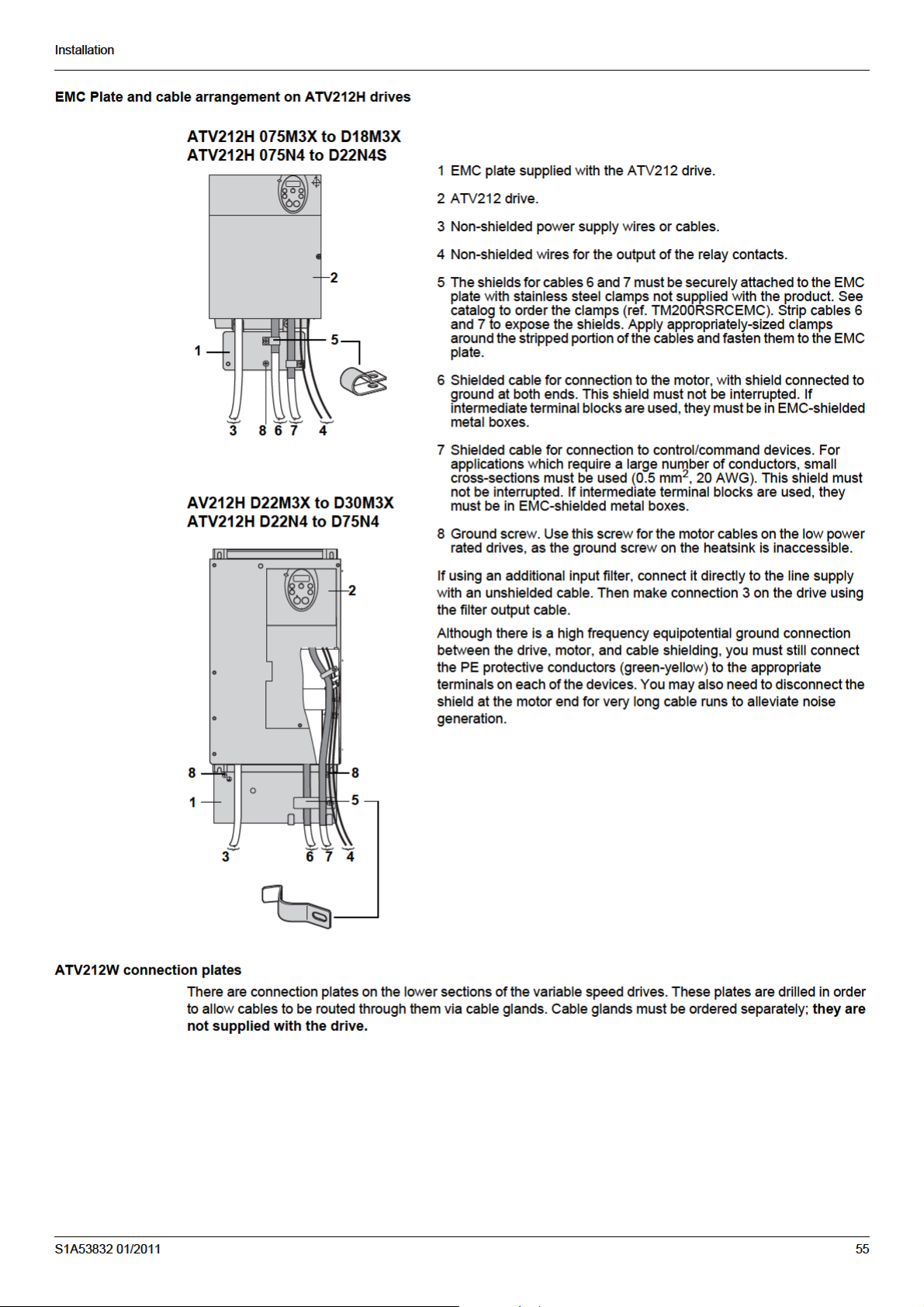

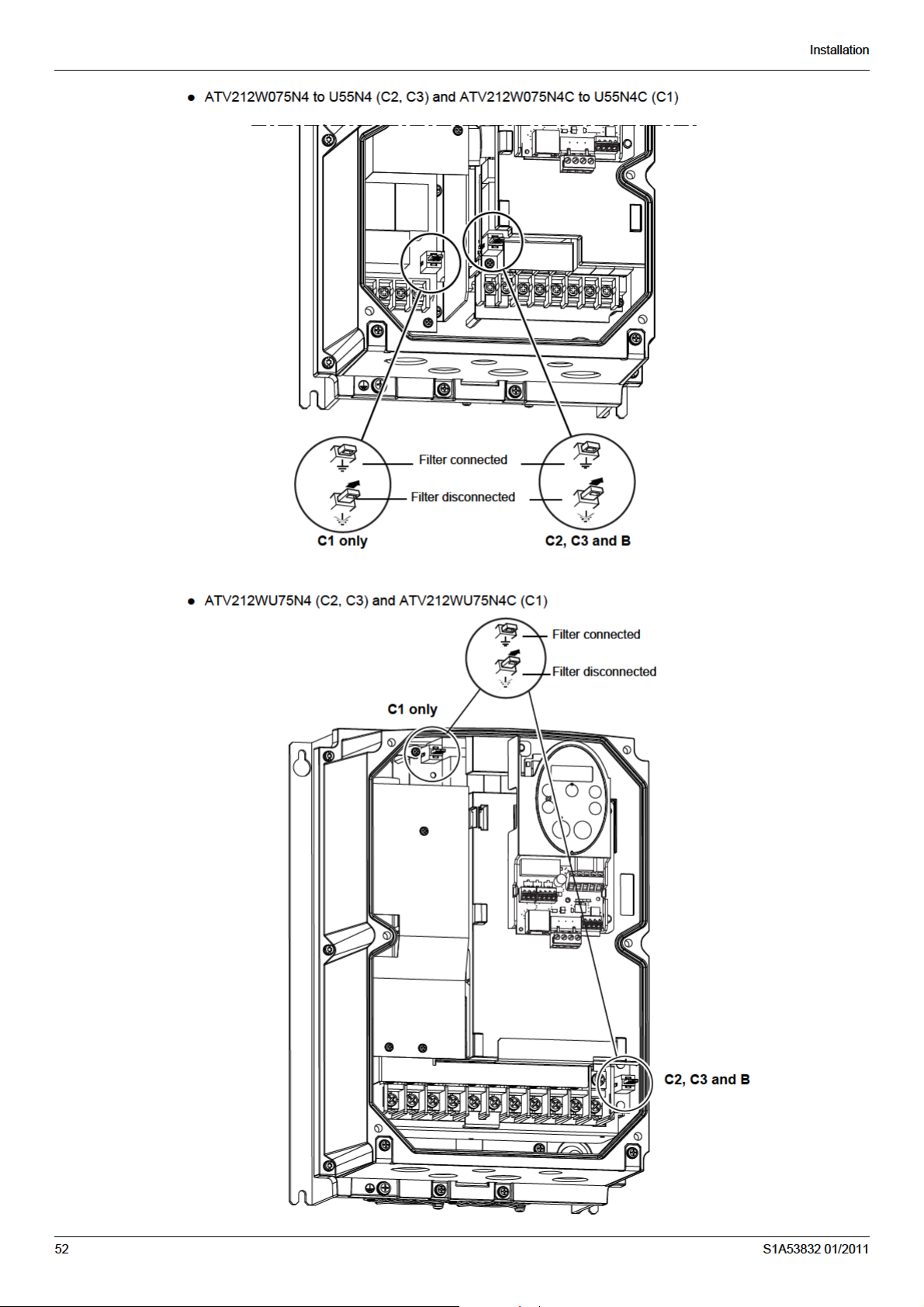

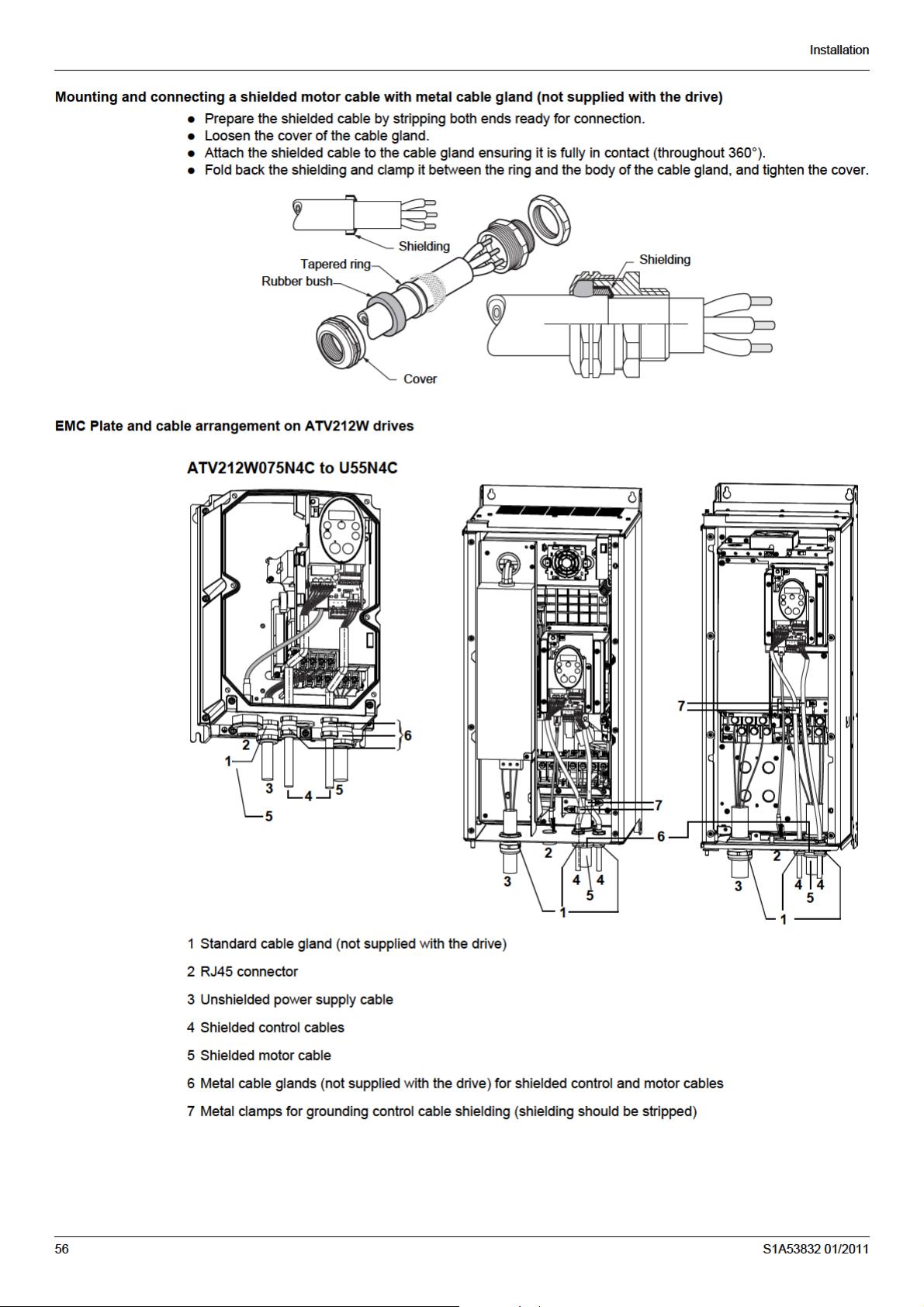

Electromagnetic compatibility (EMC) 54

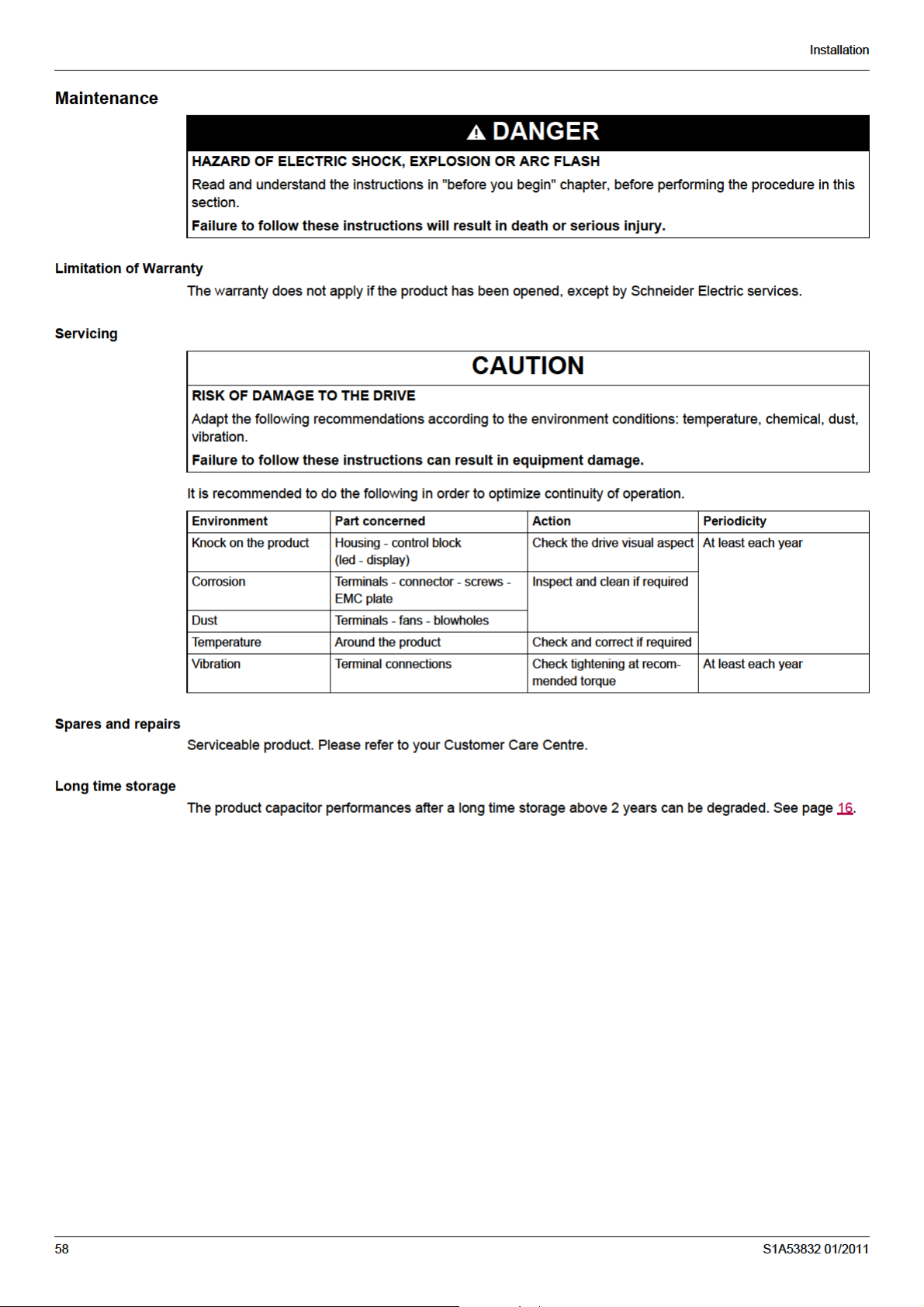

Maintenance 58
5
S1A53832 01/2011 27

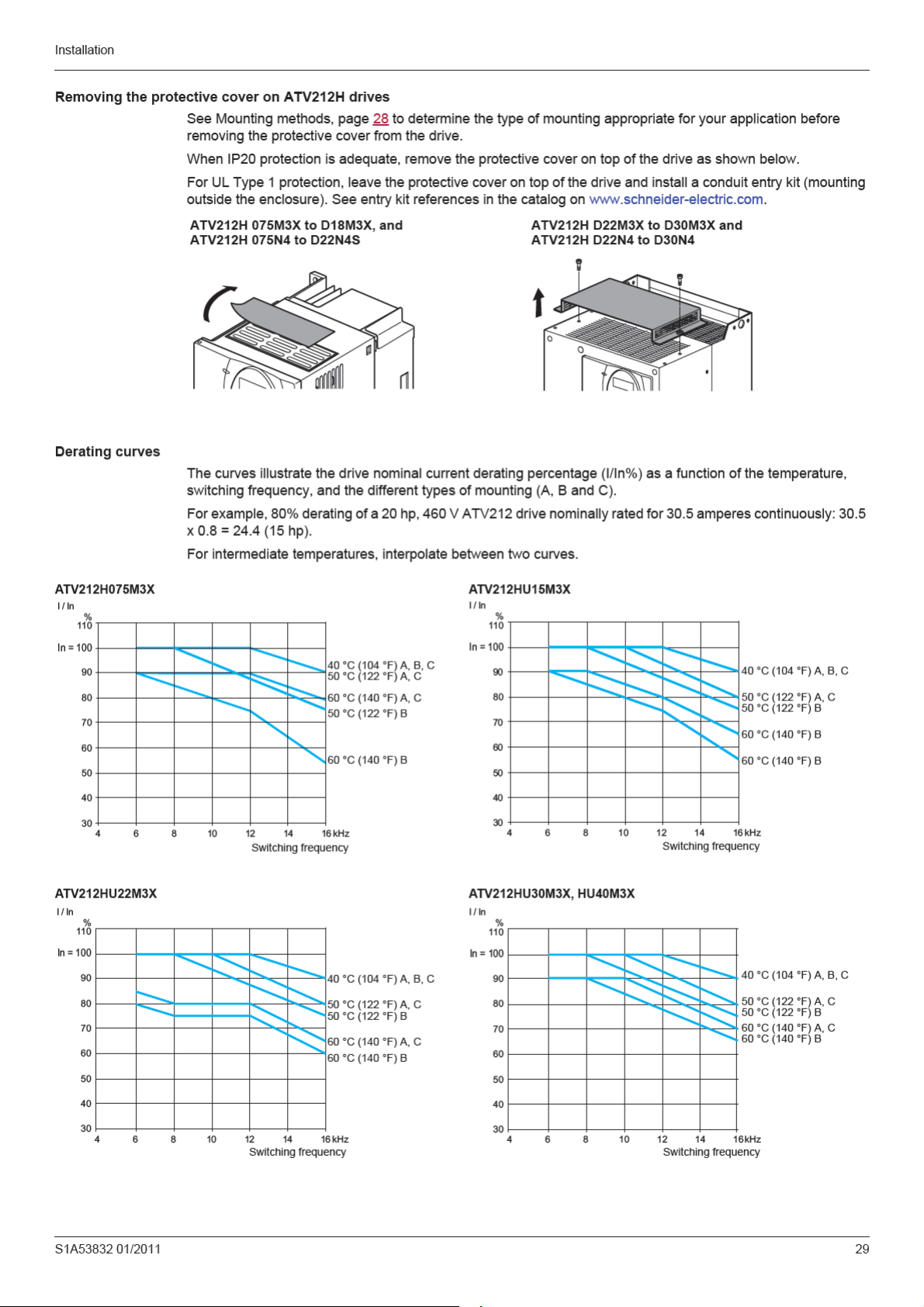

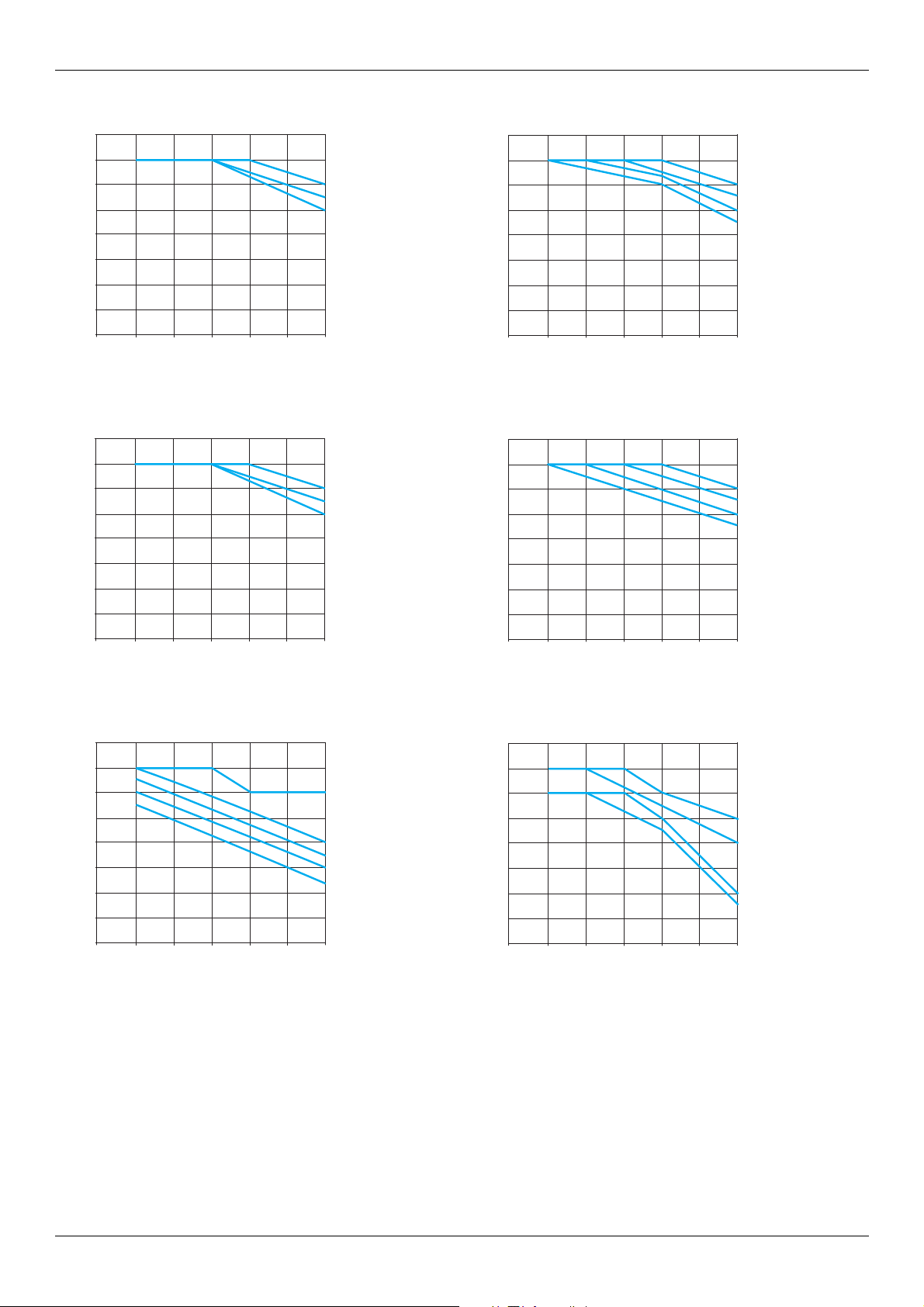

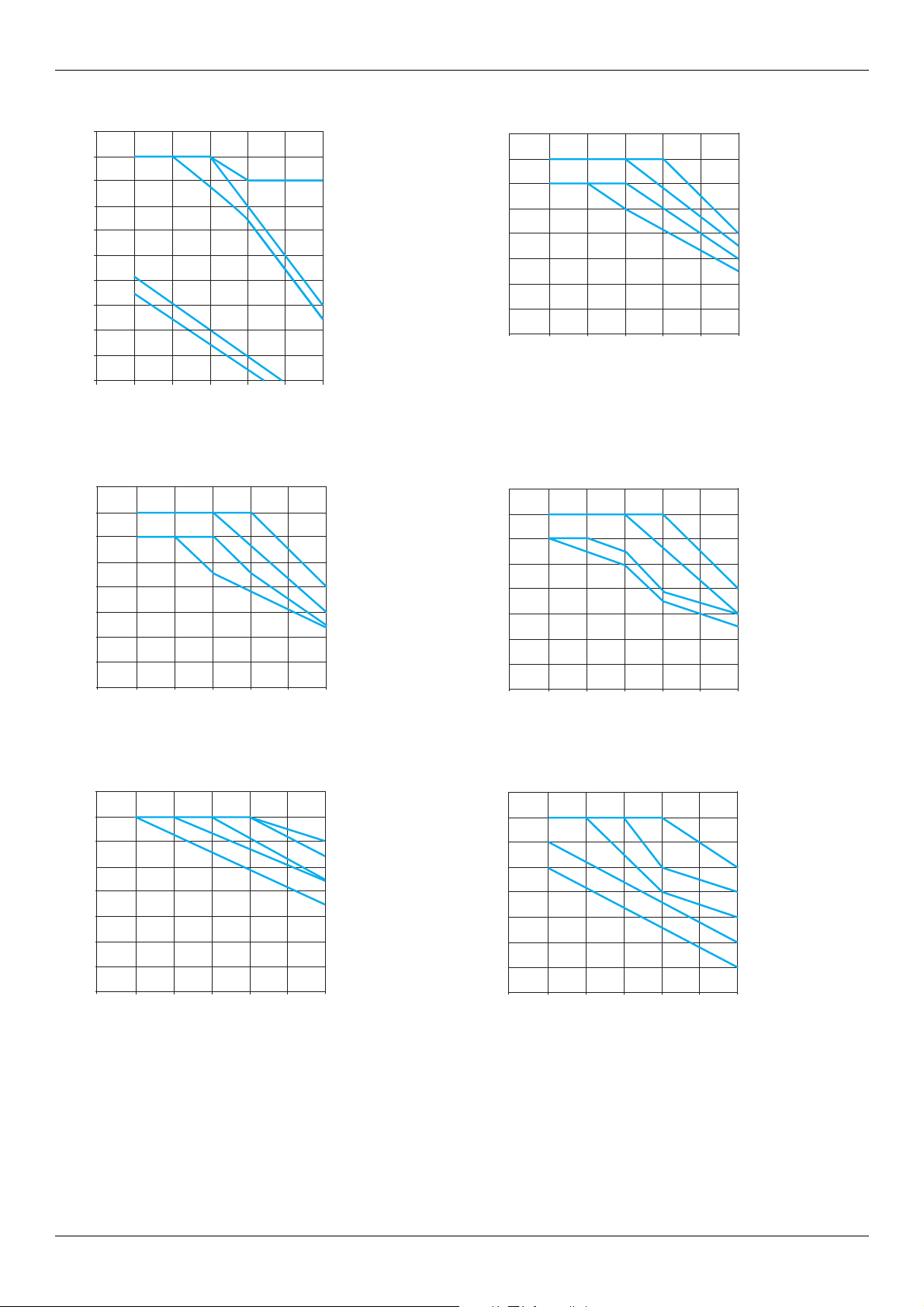

ATV212HU55M3X ATV212HU75M3X
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz

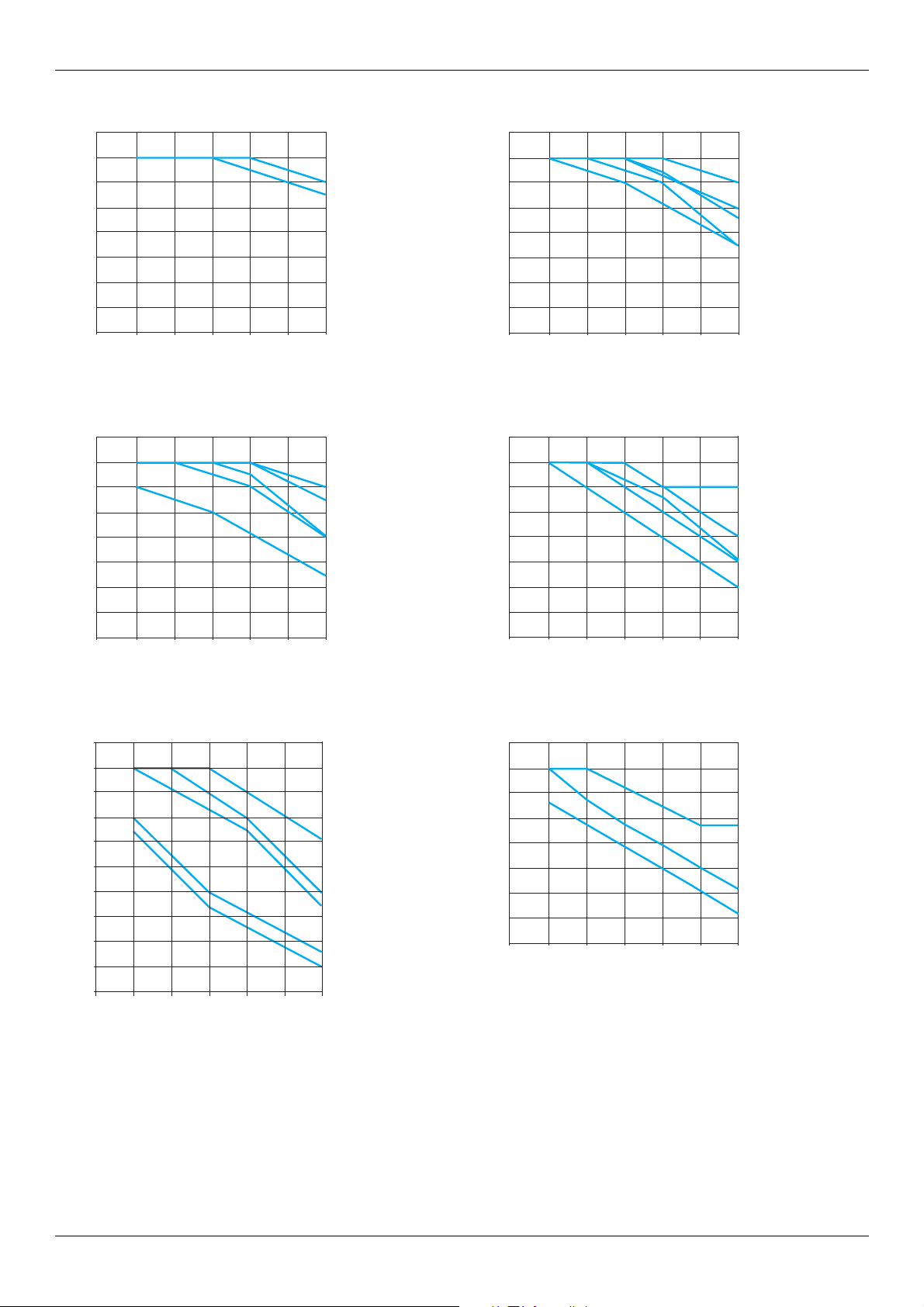

I / In

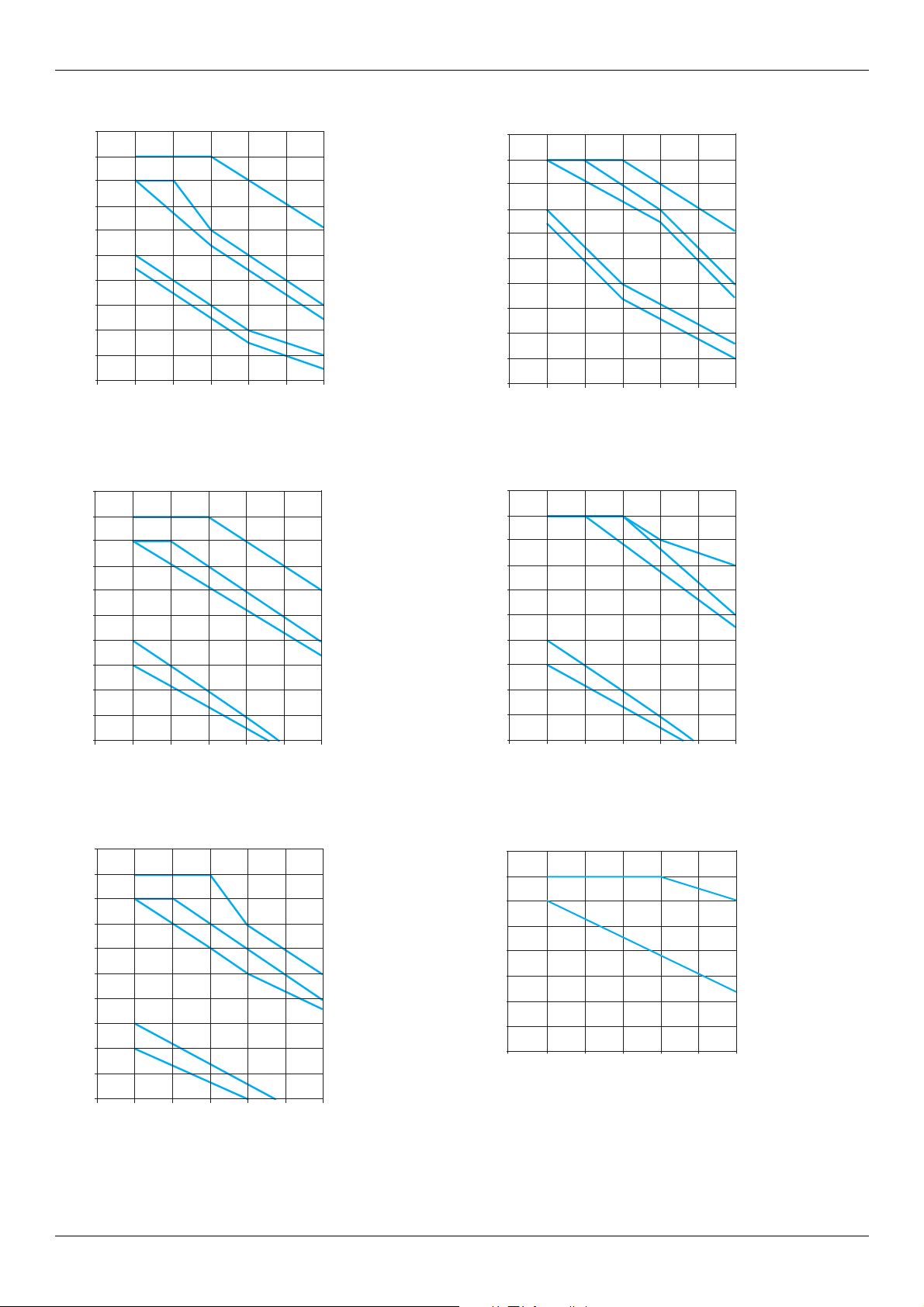

40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
60 °C (140 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) B
Switching frequency
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C 60 °C (140 °F) A, C
50 °C (140 °F) B 60 °C (140 °F) B

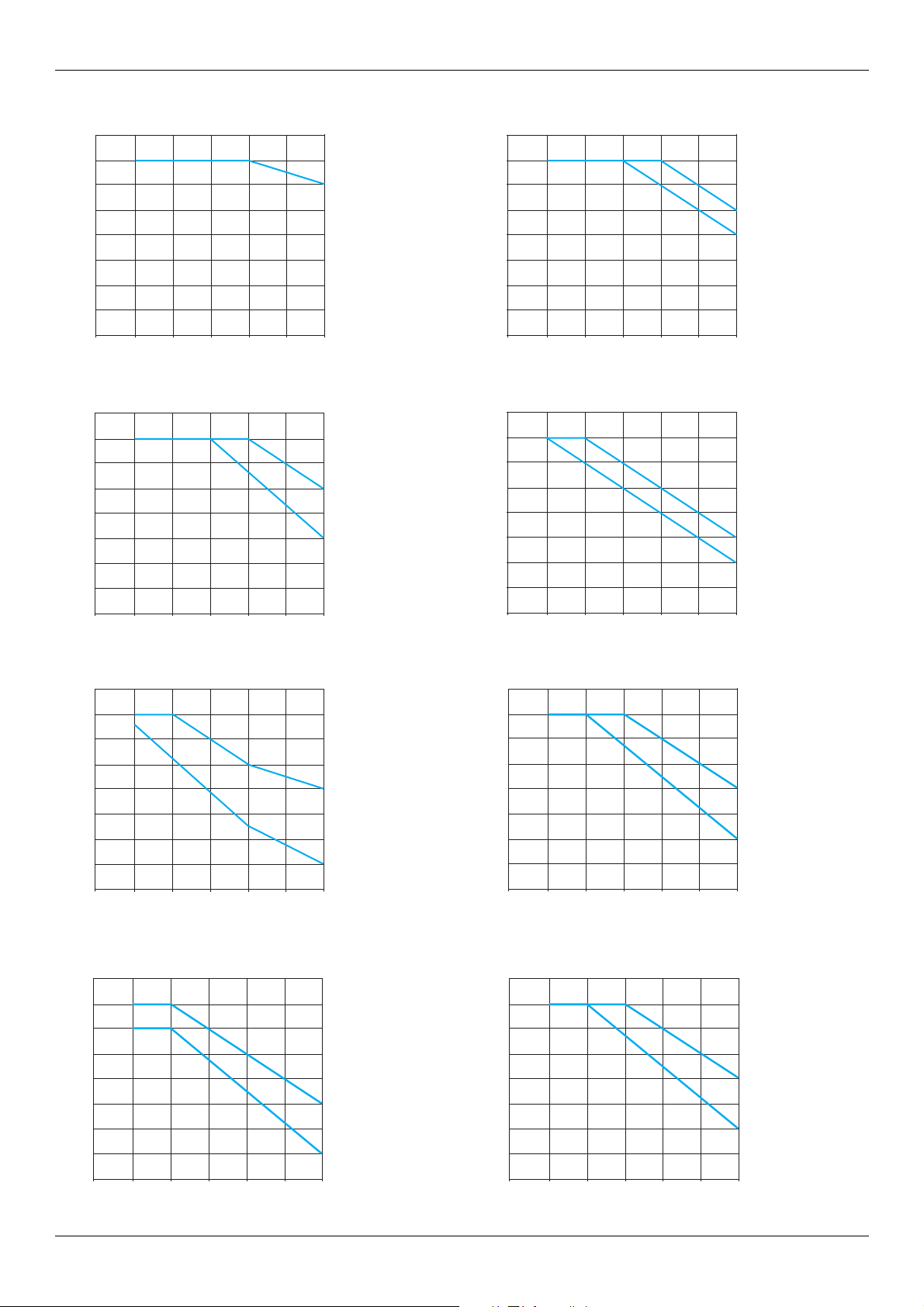

40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B 60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
ATV212HD11M3X ATV212HD15M3X
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
Switching frequency
810
810
14
12
12
16
14
16
Switching frequency
Installation
kHz
kHz
ATV212HD18M3X ATV212HD22M3X
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
810
14
12
kHz
16
30 S1A53832 01/2011
Installation
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
Switching frequency
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C
50 °C (122 °F) B
60 °C (140 °F) A, C
60 °C (140 °F) B
ATV212HD30M3X ATV212H075N4
ATV212HU15N4 ATV212HU22N4
ATV212HU30N4, HU40N4 ATV212HU55N4
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
S1A53832 01/2011 31
810
14
12
kHz
16
ATV212HU75N4 ATV212HD11N4
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C 60 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) B 50 °C (122 °F) A, C
60 °C (140 °F) B 60 °C (140 °F) A, C
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C 50 °C (122 °F) A, C
60 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) B
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C
50 °C (122 °F) B 60 °C (140 °F) A, C
60 °C (140 °F) B
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) A, B, C
60 °C (140 °F) A, B, C
ATV212HD15N4 ATV212HD18N4
Installation
ATV212HD22N4 ATV212HD22N4S
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
810
14
12
kHz
16
32 S1A53832 01/2011
Installation
Switching frequency
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
Switching frequency
30
40
20
10
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
40 °C (104 °F) A, B, C
50 °C (122 °F) A, C 50 °C (122 °F) B
60 °C (140 °F) A, C 60 °C (140 °F) B
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
ATV212HD30N4 ATV212HD37N4
ATV212HD45N4 ATV212HD55N4
ATV212HD75N4 ATV212W075N4…WU75N4, ATV212W075N4C…WU75N4C
S1A53832 01/2011 33
ATV212WD11N4, ATV212WD11N4C ATV212WD15N4, ATV212WD15N4C
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A 50 °C (122 °F) A
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C (104 °F) A
50 °C (122 °F) A
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
Switching frequency
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C
50 °C
ATV212WD18N4, ATV212WD18N4C ATV212WD22N4, ATV212WD22N4C
Installation
ATV212WD30N4, ATV212WD30N4C ATV212WD37N4, ATV212WD37N4C
I / In
%
110
In = 100
90
80
70
60
50
40
30
46
810
14
12
kHz
16
ATV212WD45N4, ATV212WD45N4C ATV212WD55N4, ATV212WD55N4C
34 S1A53832 01/2011
Installation
Switching frequency
30
40
50
60
70
80
90
In = 100
110
%
46
810
12
14
16
kHz
I / In
40 °C
50 °C
ATV212WD75N4, ATV212WD75N4C
S1A53832 01/2011 35
Installation
Characteristics
Terminals Function Characteristics
PLC
P24 Internal supply
CC Common 0 Vdc common (2 terminals)
FLA, FLB, FLC
RY, RC
F R RES
FM
PP
VIA
VIB
RJ45
Open Style connector
External power supply input
Configurable relay outputs
Configurable logic inputs
Configurable analog output
Internal supply available
Configurable analog/logic input
Configurable analog input
Graphic display terminal or Modbus
Fieldbus Refer to communication manual related to the fieldbus.
+24 Vdc input for external power supply for logic inputs Max. permissible voltage: 50 Vdc
Short-circuit and overload protection: 24 Vdc supply (min. 21 Vdc, max. 27 Vdc), maximum current: 200 mA
1 relay logic output, 1 N/C contact, and 1 N/O contact with common point Minimum switching capacity: 10 mA for 5 Vdc Maximum switching capacity:
• On resistive load (cos ϕ = 1): 5 A for 250 Vac or 30 Vdc
• On inductive load (cos ϕ = 0.4 and L/R = 7 ms): 2 A for 250 Vac or 30 Vdc
Max. response time: 10 ms
1 relay logic output, 1 N/O contact Minimum switching capacity: 3 mA for 24 Vdc Maximum switching capacity:
• On resistive load (cos ϕ = 1): 3 A for 250 Vac or 30 Vdc
• On inductive load (cos ϕ = 0.4 and L/R = 7 ms): 2 A for 250 Vac or 30 Vdc
Max. response time: 7 ms ± 0.5 ms
3 programmable logic inputs, 24 Vdc, compatible with level 1 PLC, IEC 65A-68 standard Impedance: 4.7 kΩ Maximum voltage: 30 Vdc Max. sampling time: 2 ms ±0.5 ms Multiple assignment makes it possible to configure several functions on one input
Positive logic (Source): State 0 if y 5 Vdc or logic input not wired, state 1 if u 11 Vdc
Negative logic (Sink): State 0 if u 16 Vdc or logic input not wired, state 1 if y 10 Vdc
1 switch-configurable (SW101) voltage or current analog output:
• Voltage analog output 0–10 Vdc, minimum load impedance 7.62 kΩ
• Current analog output X–Y mA by programming X and Y from 0 to 20 mA, maximum load impedance: 970 Ω
Max. sampling time: 2 ms ±0.5 ms Resolution: 10 bits Accuracy: ±1 % for a temperature variation of 60 °C Linearity: ±0.2%
Short-circuit and overload protection: One 10.5 Vdc ± 5% supply for the reference potentiometer (1 to 10 kΩ), maximum current: 10 mA
Switch-configurable voltage or current analog input:
• Voltage analog input 0–10 Vdc, impedance 30 kΩ maximum voltage: 24 Vdc
nalog current input X–Y mA by programming X and Y from 0
A
• to 20 mA, with impedance 250 Ω
Max. sampling time: 3.5 ms ±0.5 ms Resolution: 10 bits Accuracy: ±0.6% for a temperature variation of 60 °C Linearity: ±0.15% of the maximum value This analog input is also configurable as a logic input. Consult the Altivar 212 Programming Manual for more information.
Voltage analog input, configurable as an analog input or as a PTC probe input. Voltage analog input:
• 0–10 Vdc, impedance 30 kΩ max. voltage 24 Vdc
• Max. sampling time: 22 ms ±0.5 ms
• Resolution: 10 bits
• Accuracy: ±0.6% for a temperature variation of 60 °C
• Linearity: ±0.15% of the maximum value
PTC probe input:
• 6 probes max. mounted in series
• Nominal value < 1.5 kΩ
• Trip resistance 3 kΩ, reset value 1.8 kΩ
• Short-circuit detection threshold < 50 Ω
Used to connect graphic display terminal or connect the drive to a Modbus fieldbus. Note: For using Modbus on the RJ45, modify parameter F807. See Modbus manual.
Default function setting
Fault relay
Speed attained
F: Run forward (2-wire control) R: Preset speed 1 command (15 Hz) RES: Clear trip
Output frequency
Primary speed reference, 0–10 V
Secondary speed reference, 1–10 V
S1A53832 01/2011 49
Installation
VW3A01501
Using the RJ45 socket
For example, ATV212W075N4 to U75N4

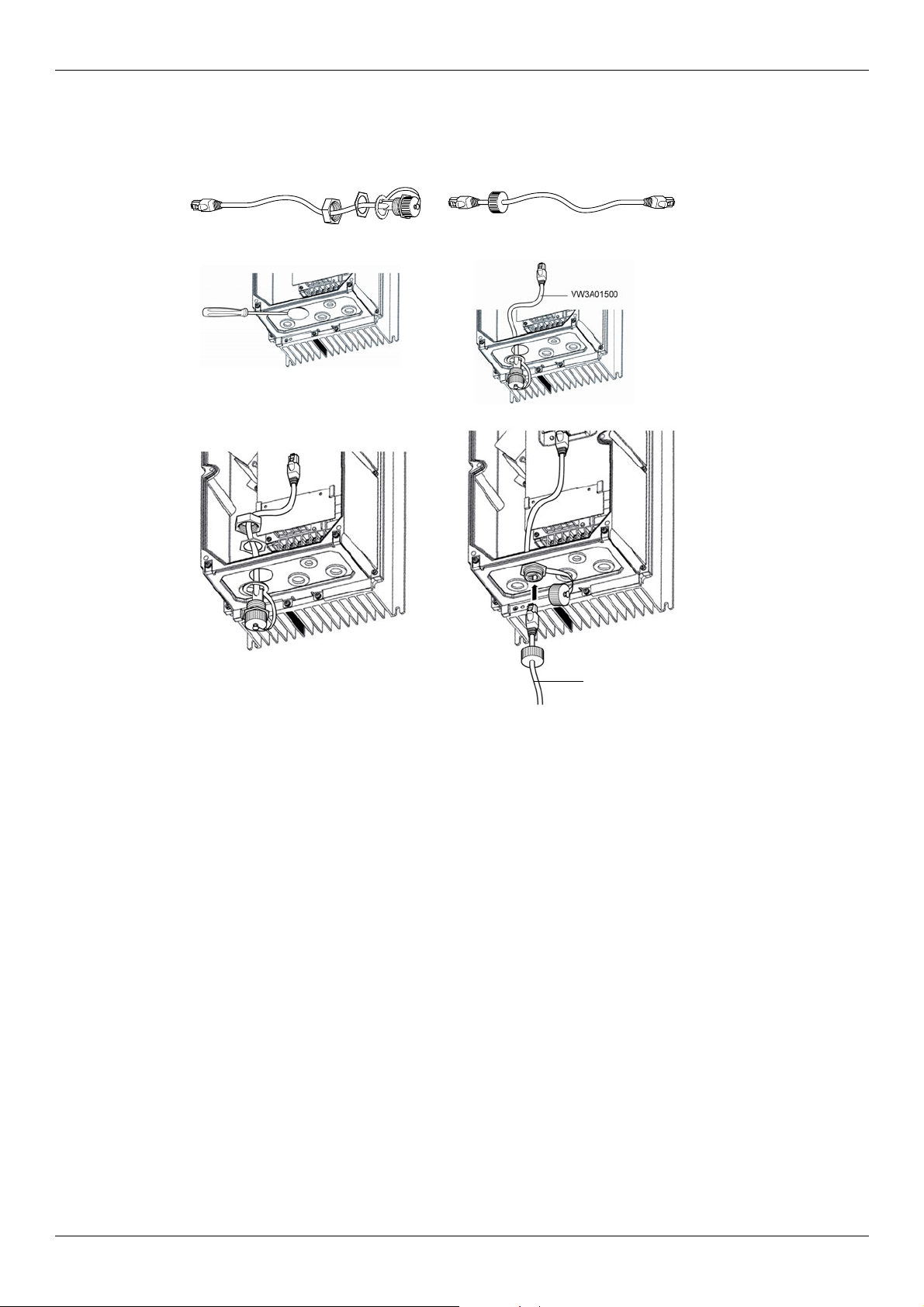

Using the dust and damp proof (UL Type 12/IP55) RJ45 cable VW3A01500 and cable VW3A01501.
1) 2)
3) 4)
VW3A01500 VW3A01501
S1A53832 01/2011 57
Installation
Recommended branch circuit protection devices
S1A53832 01/2011 59
Installation
60 S1A53832 01/2011
Migration ATV21 - ATV212
Migration ATV21 --> ATV212
What's in this Chapter?
This chapter contains the following topics:
Topic Page
Generalities 62
Differentiating points 62

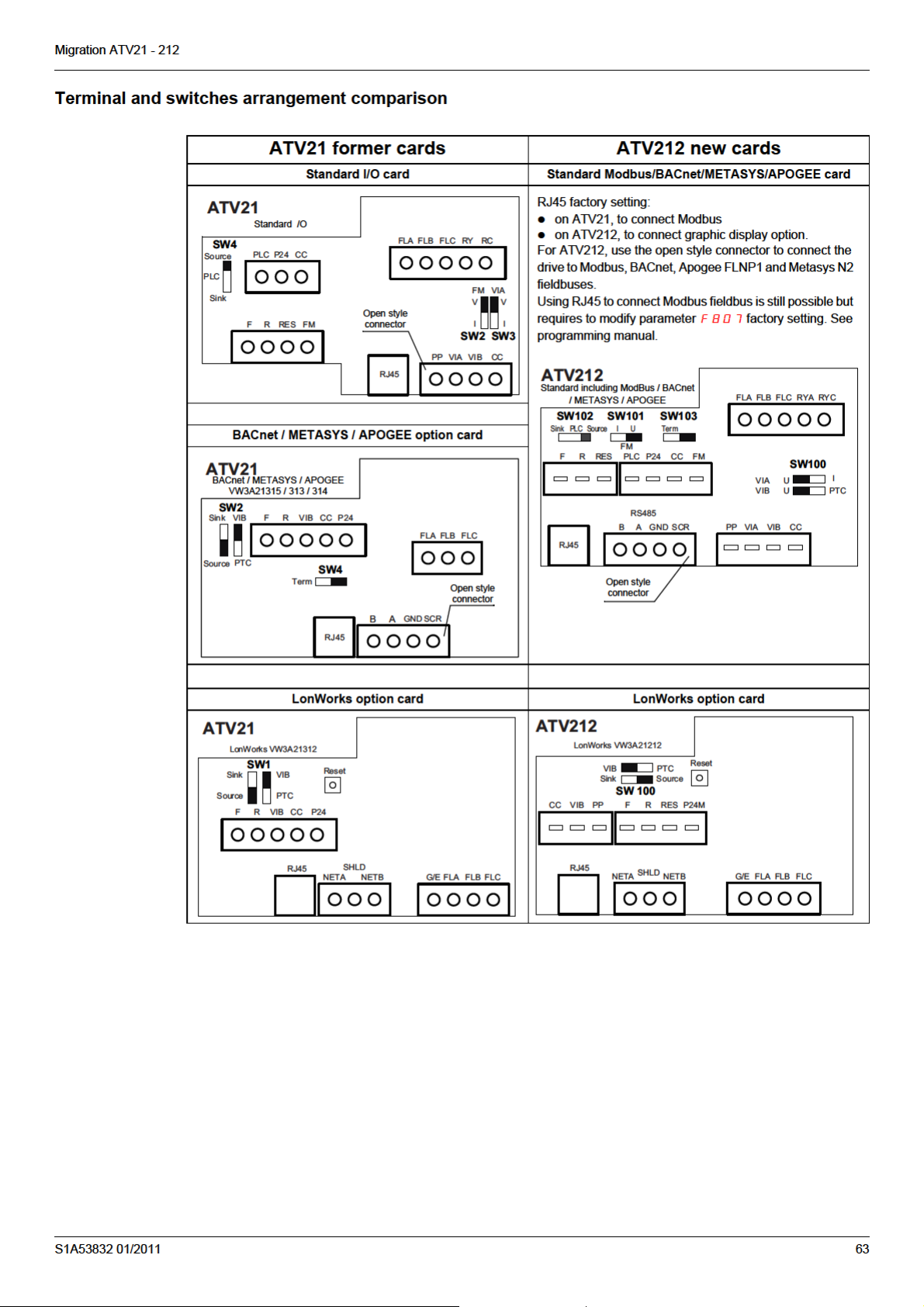

Terminal and switches arrangement comparison 63
6
S1A53832 01/2011 61
Generalities
The ATV212 is compatible with the ATV21 (latest version), nevertheless some differences exist between both drives.
Differentiating points
Power part
The power connections are identical to that of ATV21
Control part overview
The control terminals are arranged and marked differently.
Furthermore ATV21 used to offer 5 different cards:
z a standard I/O card, z 4 dedicated cards for BACnet, METASYS, APOGEE and LonWorks fieldbuses.
ATV212 offers:
z as standard a communication card intended to Modbus, BACnet, METASYS and APOGEE fieldbuses, z a LonWorks option card.
Switches
ATV21 Standard I/O
Selection of logic type SW4 Selection of logic type SW102
FM voltage/ current selection SW2 FM voltage/ current selection SW101
Migration ATV21 - 212
ATV212 Modbus BACnet, METASYS, APOGEE
ATV21 BACnet, METASYS, APOGEE
Selection of logic type SW2 Selection of logic type SW102
VIB function VIB function SW100
Selection of communication terminal resistor SW4 Selection of communication terminal resistor SW103
ATV21 LonWorks ATV212 LonWorks
Selection of logic type SW1 Selection of logic type SW100
VIB function VIB function
ATV212 Modbus BACnet, METASYS, APOGEE
62 S1A53832 01/2011
Migration ATV21 - 212
64 S1A53832 01/2011
ATV212_Installation_manual_S1A53832_01
01/2011
Loading...
