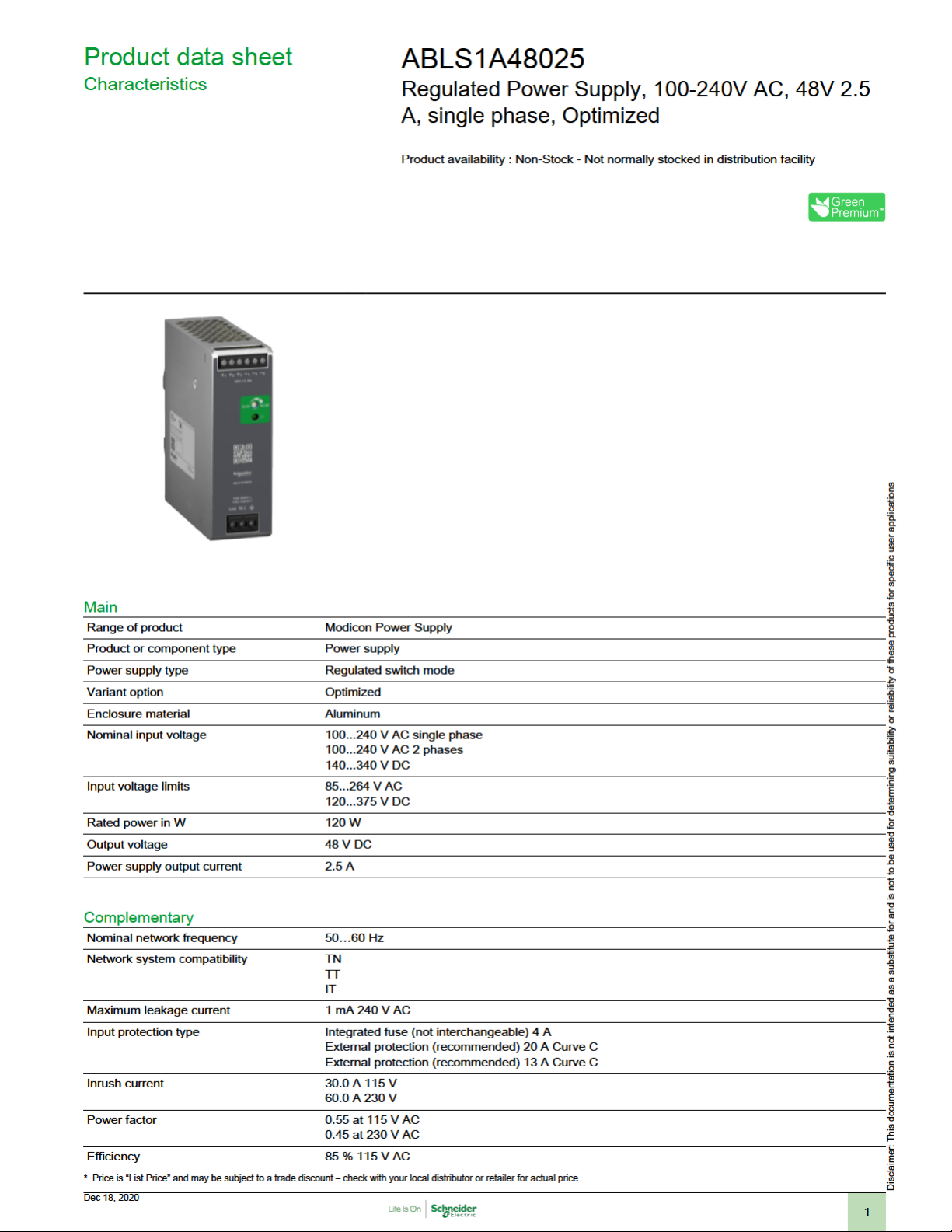

88% 230 V AC
Output voltage adjustment 44...56 V
Power dissipation in W 23W
Current consumption < 2.5 A 115 V AC
Turn-on time < 1 s
Holding time > 20 ms 115 V AC
Startup with capacitive loads 4000µF
Residual ripple < 150 mV
Expected capacitor life time 10year(s)
Meantime between failure [MTBF] 700000h at 25°C, full load conforming to SR 332
Output protection type Against overload and short-circuits automatic reset
Connections - terminals Screw connection 0.5...4 mm², AWG 20...AWG 12) without wire end ferrule output
Line and load regulation < 0.5 %line
Status LED Output voltage 1 LED Green)
Depth 4.63in (117.6mm)
Height 4.87in (123.6mm)
Width 1.57in (40mm)
Net Weight 1.21lb(US) (0.55kg)
Output coupling Parallel
Mounting support Top hat type TH35-15 rail IEC 60715
< 1.4 A 230 V AC
< 1.3 A 140 V DC
> 40 ms 230 V AC
Against over temperature manual reset
Against overvoltage manual reset
Screw connection 0.5...2.5 mm², AWG 20...AWG 14) with wire end ferrule output
Screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input
Screw connection 0.75...4 mm², AWG 18...AWG 12) with wire end ferrule input
< 1 %load
Top hat type TH35-7.5 rail IEC 60715
Double-profile DIN rail
Environment
Standards EN 62368-1
Product certifications CE
Environmental characteristic 3M4 IEC 60721-3-3
Operating altitude < 5000 m
Shock resistance 100 m/s² 11ms
IP degree of protection IP20
Ambient air temperature for operation -4…14°F (-20…-10°C) with current derating of 2 % per °C)
Ambient air temperature for storage -40…185°F (-40…85°C)
Relative humidity 0…95% without condensation
Overvoltage category II
EN/IEC 61204-3
EN 61000-6-1
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
UL 62368-1
CSA C22.2 No 62368-1
UL 508
CSA C22.2 No. 107.1
CUL Listed
CUL Recognized
RCM
CB Scheme
EAC
KC
104…158°F (40…70°C) with current derating of 1.8 % per °C)
122…158°F (50…70°C) with current derating of 2.5 % per °C)
2
Electrical shock protection class Class I
Pollution degree 2
Vibration resistance 3 mm 2…9Hz)IEC 60068-2-6
Electromagnetic immunity Immunity to electrostatic discharge 6 kV contact discharge) EN/IEC 61000-4-2
Electromagnetic emission Conducted emissions EN 61000-6-3
Dielectric strength 3000V AC input to output
10 m/s² 9…200Hz)IEC 60068-2-6
Immunity to electrostatic discharge 9 kV air discharge) EN/IEC 61000-4-2
Immunity to conducted RF disturbances 10 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3
Immunity to conducted RF disturbances 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3
Immunity to conducted RF disturbances 3 V/m 2.7...6 GHz) EN/IEC 61000-4-3
Immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4
Surge immunity test 3 kV between power supply and earth) EN/IEC 61000-4-5
Surge immunity test 1.5 kV between phases) EN/IEC 61000-4-5
Immunity to conducted RF disturbances 10 V 0.15...80 MHz) EN/IEC 61000-4-6
Immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8
Immunity to voltage dips EN/IEC 61000-4-11
Disturbing field emission EN 55016-2-3
Limits for harmonic current emissions EN 61000-3-2
Conducted disturbance emission EN 55016-1-2
Conducted disturbance emission EN 55016-2-1
Radiated emissions EN 61000-6-4
Ordering and shipping details
Category 22525 - ABL8 AND ABL7 POWER SUPPLIE
Discount Schedule CP12
GTIN 03606481500243
Nbr. of units in pkg. 1
Package weight(Lbs) 1lb(US) (0.45kg)
Returnability Yes
Offer Sustainability
Sustainable offer status Green Premium product
REACh Regulation REACh Declaration
EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free Yes
RoHS exemption information Yes
China RoHS Regulation China RoHS declaration
Environmental Disclosure Product Environmental Profile
Circularity Profile End of Life Information
WEEE The product must be disposed on European Union markets following specific waste collection and
EU RoHS Declaration
never end up in rubbish bins.
