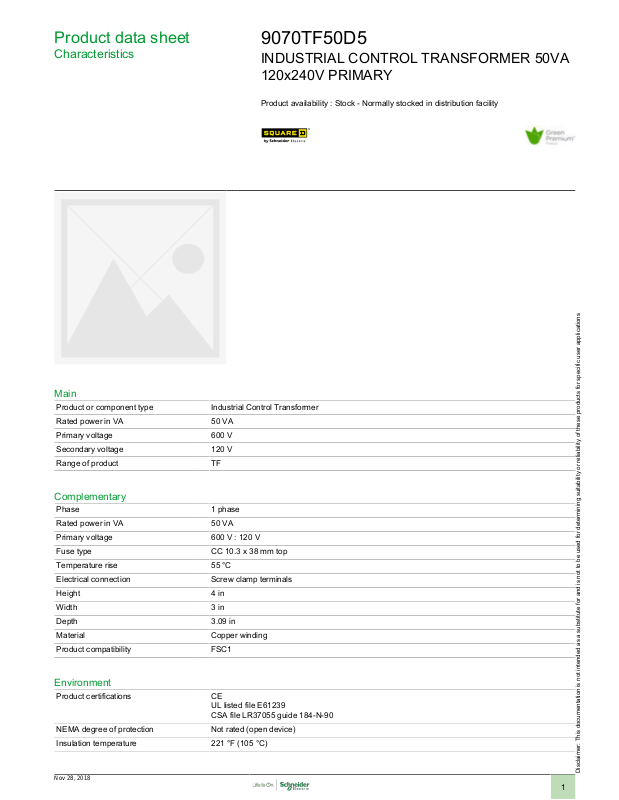

Product data sheet
Characteristics
9070TF50D5
INDUSTRIAL CONTROL TRANSFORMER 50VA
120x240V PRIMARY
Product availability : Stock - Normally stocked in distribution facility
Main
Product or component type Industrial Control Transformer
Rated power in VA 50 VA
Primary voltage 600 V
Secondary voltage 120 V
Range of product TF
Complementary
Phase 1 phase
Rated power in VA 50 VA
Primary voltage 600 V : 120 V
Fuse type CC 10.3 x 38 mm top
Temperature rise 55 °C
Electrical connection Screw clamp terminals
Height 4 in
Width 3 in
Depth 3.09 in
Material Copper winding
Product compatibility FSC1
Environment
Product certifications CE
NEMA degree of protection Not rated (open device)
Insulation temperature 221 °F (105 °C)
UL listed file E61239
CSA file LR37055 guide 184-N-90
Nov 28, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Page 2
Ordering and shipping details
Category 16202 - 9070 TF (NOT T) 50-200VA
Discount Schedule CP8
GTIN 00785901845676
Nbr. of units in pkg. 1
Package weight(Lbs) 3.1000000000000001
Returnability Y
Country of origin MX
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1227 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or
- - - - - - - More information For more information go to www.p65warnings.ca.gov
other reproductive harm.
Contractual warranty
Warranty period 18 months
