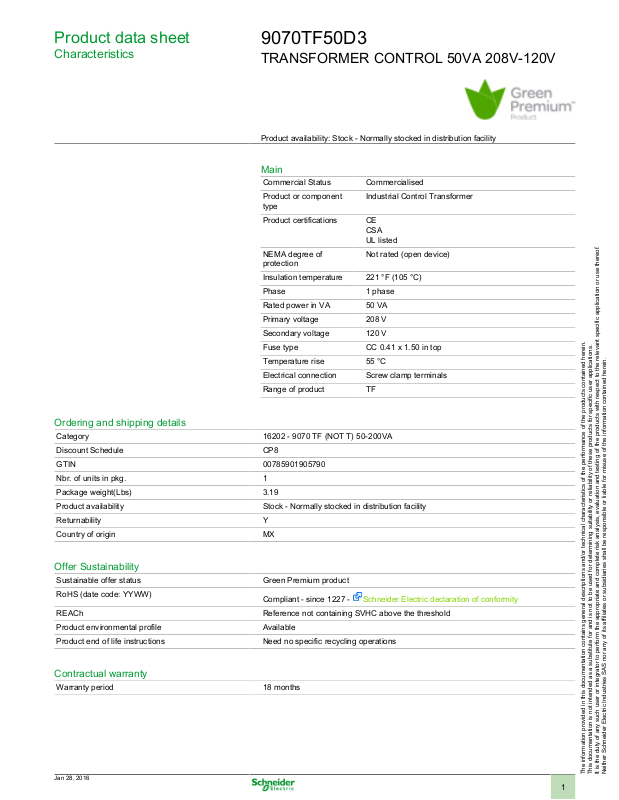

Product data sheet
Characteristics
9070TF50D3
TRANSFORMER CONTROL 50VA 208V-120V
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status Commercialised
Product or component
type
Product certifications CE
NEMA degree of
protection
Insulation temperature 221 °F (105 °C)
Phase 1 phase
Rated power in VA 50 VA
Primary voltage 208 V
Secondary voltage 120 V
Fuse type CC 0.41 x 1.50 in top
Temperature rise 55 °C
Electrical connection Screw clamp terminals
Range of product TF
Industrial Control Transformer
CSA
UL listed
Not rated (open device)
Ordering and shipping details
Category 16202 - 9070 TF (NOT T) 50-200VA
Discount Schedule CP8
GTIN 00785901905790
Nbr. of units in pkg. 1
Package weight(Lbs) 3.19
Product availability Stock - Normally stocked in distribution facility
Returnability Y
Country of origin MX
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
REACh Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
Compliant - since 1227 - Schneider Electric declaration of conformity
Contractual warranty
Warranty period 18 months
Jan 28, 2016
