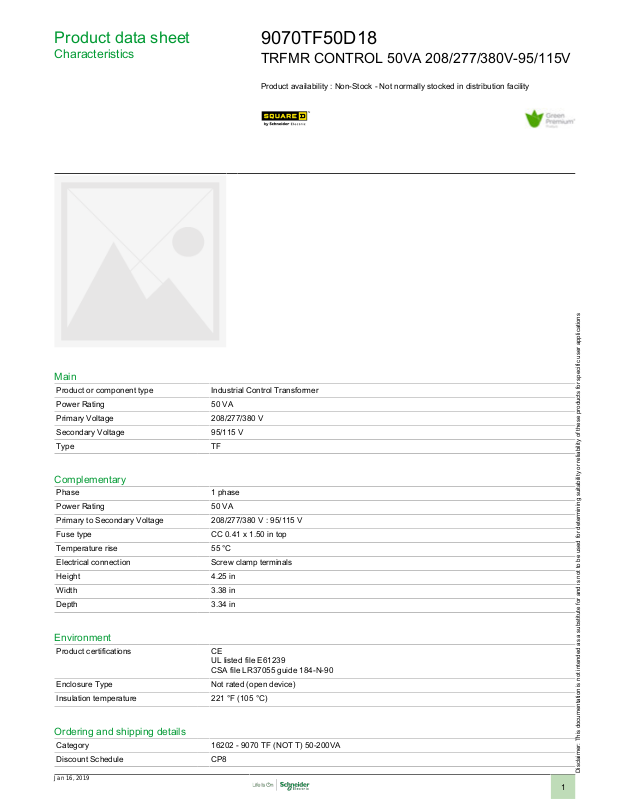

Product data sheet
Characteristics
9070TF50D18
TRFMR CONTROL 50VA 208/277/380V-95/115V
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Product or component type Industrial Control Transformer
Power Rating 50 VA
Primary Voltage 208/277/380 V
Secondary Voltage 95/115 V
Type TF
Complementary
Phase 1 phase
Power Rating 50 VA
Primary to Secondary Voltage 208/277/380 V : 95/115 V
Fuse type CC 0.41 x 1.50 in top
Temperature rise 55 °C
Electrical connection Screw clamp terminals
Height 4.25 in
Width 3.38 in
Depth 3.34 in
Environment
Product certifications CE
Enclosure Type Not rated (open device)
Insulation temperature 221 °F (105 °C)
UL listed file E61239
CSA file LR37055 guide 184-N-90
Ordering and shipping details
Category 16202 - 9070 TF (NOT T) 50-200VA
Discount Schedule CP8
Jan 16, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
GTIN 00785901886242
Nbr. of units in pkg. 1
Package weight(Lbs) 4.0999999999999996
Returnability N
Country of origin US
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW) Compliant - since 1227 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Need no specific recycling operations
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or
- - - - - - - More information For more information go to www.p65warnings.ca.gov
other reproductive harm.
Contractual warranty
Warranty period 18 months
