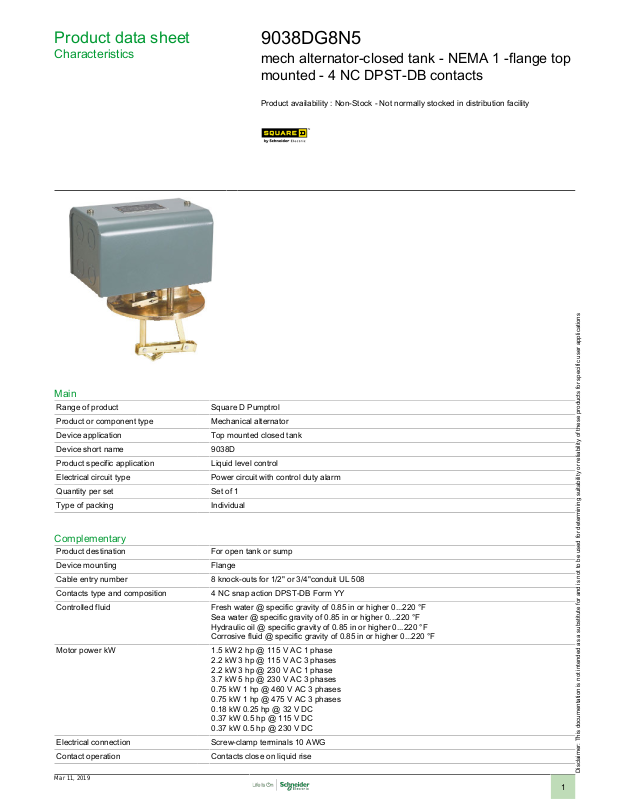

Product data sheet
Characteristics
9038DG8N5
mech alternator-closed tank - NEMA 1 -flange top
mounted - 4 NC DPST-DB contacts
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product Square D Pumptrol
Product or component type Mechanical alternator
Device application Top mounted closed tank
Device short name 9038D
Product specific application Liquid level control
Electrical circuit type Power circuit with control duty alarm
Quantity per set Set of 1
Type of packing Individual
Complementary
Product destination For open tank or sump
Device mounting Flange
Cable entry number 8 knock-outs for 1/2" or 3/4"conduit UL 508
Contacts type and composition 4 NC snap action DPST-DB Form YY
Controlled fluid Fresh water @ specific gravity of 0.85 in or higher 0...220 °F
Sea water @ specific gravity of 0.85 in or higher 0...220 °F
Hydraulic oil @ specific gravity of 0.85 in or higher 0...220 °F
Corrosive fluid @ specific gravity of 0.85 in or higher 0...220 °F
Motor power kW 1.5 kW 2 hp @ 115 V AC 1 phase
2.2 kW 3 hp @ 115 V AC 3 phases
2.2 kW 3 hp @ 230 V AC 1 phase
3.7 kW 5 hp @ 230 V AC 3 phases
0.75 kW 1 hp @ 460 V AC 3 phases
0.75 kW 1 hp @ 475 V AC 3 phases
0.18 kW 0.25 hp @ 32 V DC
0.37 kW 0.5 hp @ 115 V DC
0.37 kW 0.5 hp @ 230 V DC
Electrical connection Screw-clamp terminals 10 AWG
Contact operation Contacts close on liquid rise
Mar 11, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Float movement Variable fixed
Float position Any
Float rod angle Horizontal
Short-circuit protection Cartridge fuse gG
Local signalling Without
Materials in contact with fluid 316 stainless steel
Enclosure material Painted cold-rolled steel
Operating position Vertical position only
Electrical durability 100 cycles @ 60 cyc/mn
Mechanical durability 300 cycles
Terminal block type 8 terminals
Operating rate 60 cyc/mn
[Ui] rated insulation voltage 575 V UL 508
Terminals description ISO n°1 Line-load-load-line
Depth 4.47 in
Width 6.84 in
Factory modification Addition of a third, high-water alarm circuit (SPST-NO-DB)
Kit composition Float switch
Length 2.63 in
Nitrile (Buna-N) or equivalent rubber
Yellow brass
304 stainless steel
Rod and float are to be choosen in accessories
Environment
Standards CE
Ambient air temperature for operation -22...220 °F
Ambient air temperature for storage -22...220 °F
NEMA degree of protection NEMA 1 UL 50
Product certifications UL listed file E12158
UL 508
CSA file LR25490
Ordering and shipping details
Category 21601 - 9037,9038 COMMERCIAL FLOAT SWITCHES
Discount Schedule CP7G
GTIN 00785901154440
Nbr. of units in pkg. 1
Package weight(Lbs) 7.6000000000000005
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - Substance 2 Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other
defects or other reproductive harm.
reproductive harm.
