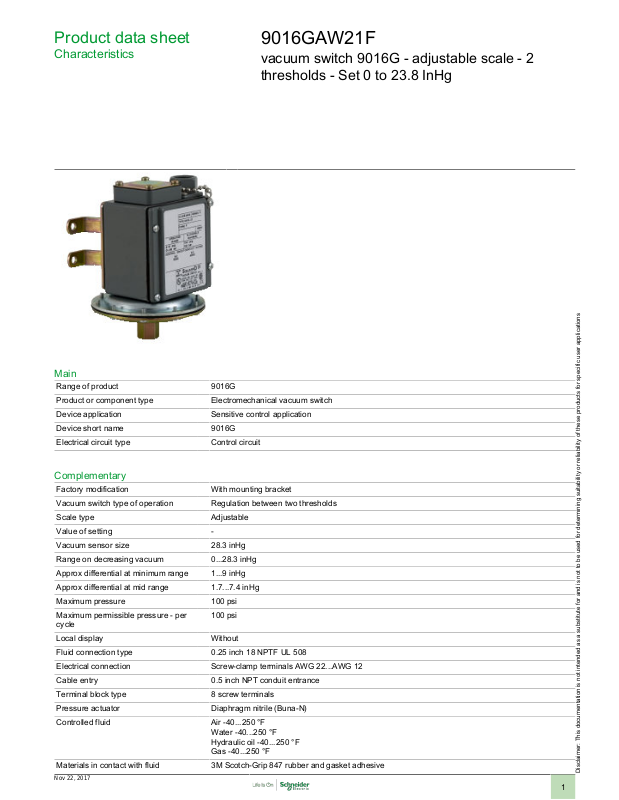

Product data sheet
Characteristics

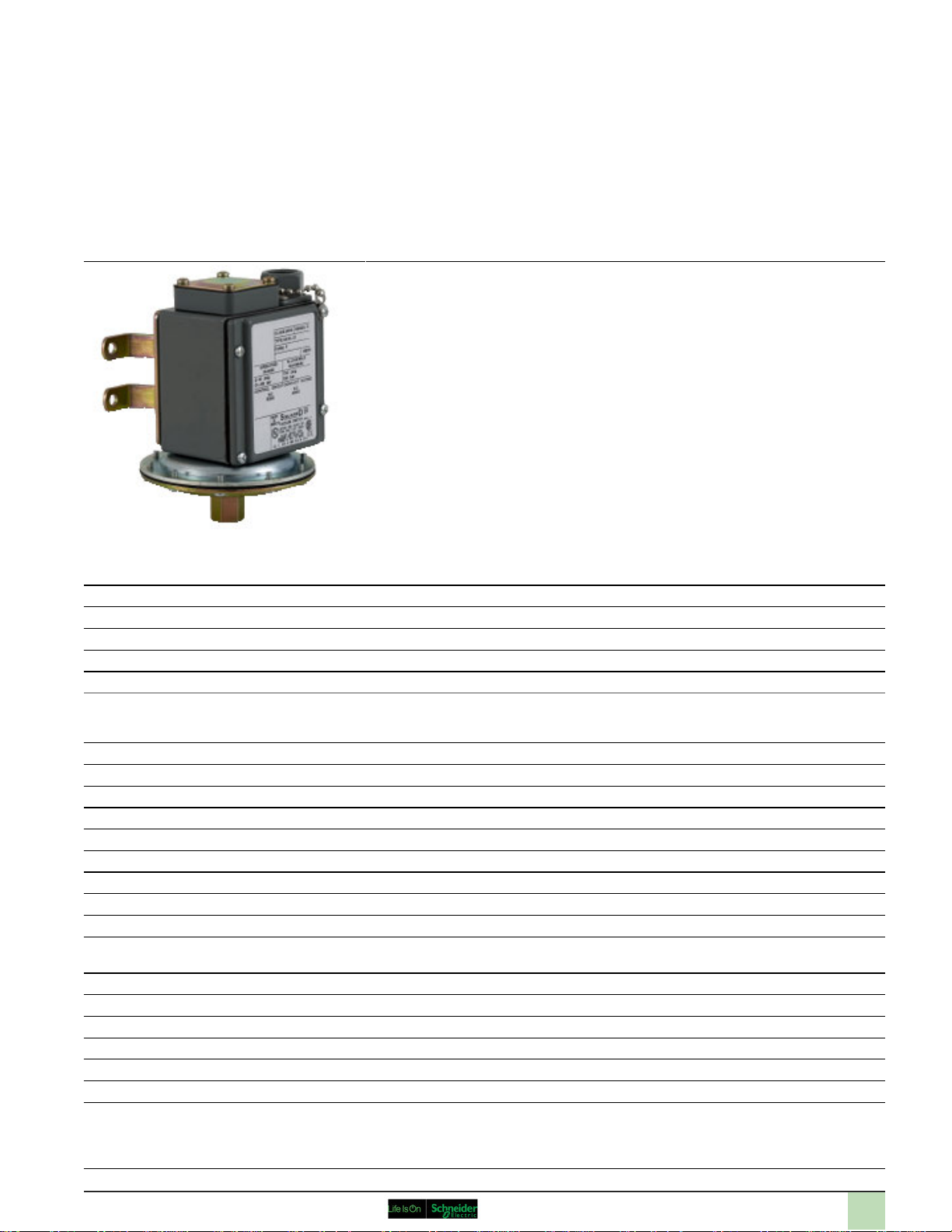

9016GAW21F
vacuum switch 9016G - adjustable scale - 2
thresholds - Set 0 to 23.8 InHg
Main
Range of product 9016G
Product or component type Electromechanical vacuum switch
Device application Sensitive control application
Device short name 9016G
Electrical circuit type Control circuit
Complementary
Factory modification With mounting bracket
Vacuum switch type of operation Regulation between two thresholds
Scale type Adjustable
Value of setting -
Vacuum sensor size 28.3 inHg
Range on decreasing vacuum 0...28.3 inHg
Approx differential at minimum range 1...9 inHg
Approx differential at mid range 1.7...7.4 inHg
Maximum pressure 100 psi
Maximum permissible pressure - per
cycle
Local display Without
Fluid connection type 0.25 inch 18 NPTF UL 508
Electrical connection Screw-clamp terminals AWG 22...AWG 12
Cable entry 0.5 inch NPT conduit entrance
Terminal block type 8 screw terminals
Pressure actuator Diaphragm nitrile (Buna-N)
Controlled fluid Air -40...250 °F
Materials in contact with fluid 3M Scotch-Grip 847 rubber and gasket adhesive
Nov 22, 2017
100 psi
Water -40...250 °F
Hydraulic oil -40...250 °F
Gas -40...250 °F
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Zinc plated steel
Nitrile (Buna-N)
Enclosure material Die cast aluminium alloy 380
Operating position Any position
Operating rate <= 120 cyc/mn -10...185 °F
Repeat accuracy 0.4 %
[In] rated current 3 A 240 V AC A600 NEMA rating designation
Local signalling Without
Contacts type and composition 2(NC-NO) DPDT Form ZZ snap action silver nickel contacts
Short-circuit protection 10 A cartridge overload and short-circuit protection gL
Mechanical durability 5000000 cycles
Setting Internal
Product weight 4.6 lb(US)
Height 6.45 in
Depth 4.9 in
Width 4.56 in
6 A 120 V AC A600 NEMA rating designation
0.22 A 125 V DC R300 NEMA rating designation
0.11 A 250 V DC R300 NEMA rating designation
Environment
Standards UL 508
Product certifications UL listed file E12158 CCN NKPZ and CCN NTHT
Protective treatment None
Ambient air temperature for operation 10...185 °F
Ambient air temperature for storage 10...185 °F
Vibration resistance 2 gn IEC 68-2-6 40...150 Hz
Shock resistance 50 gn IEC 58-2-27
NEMA degree of protection NEMA 4/4X/13 UL 698
CSA file LR25490
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
