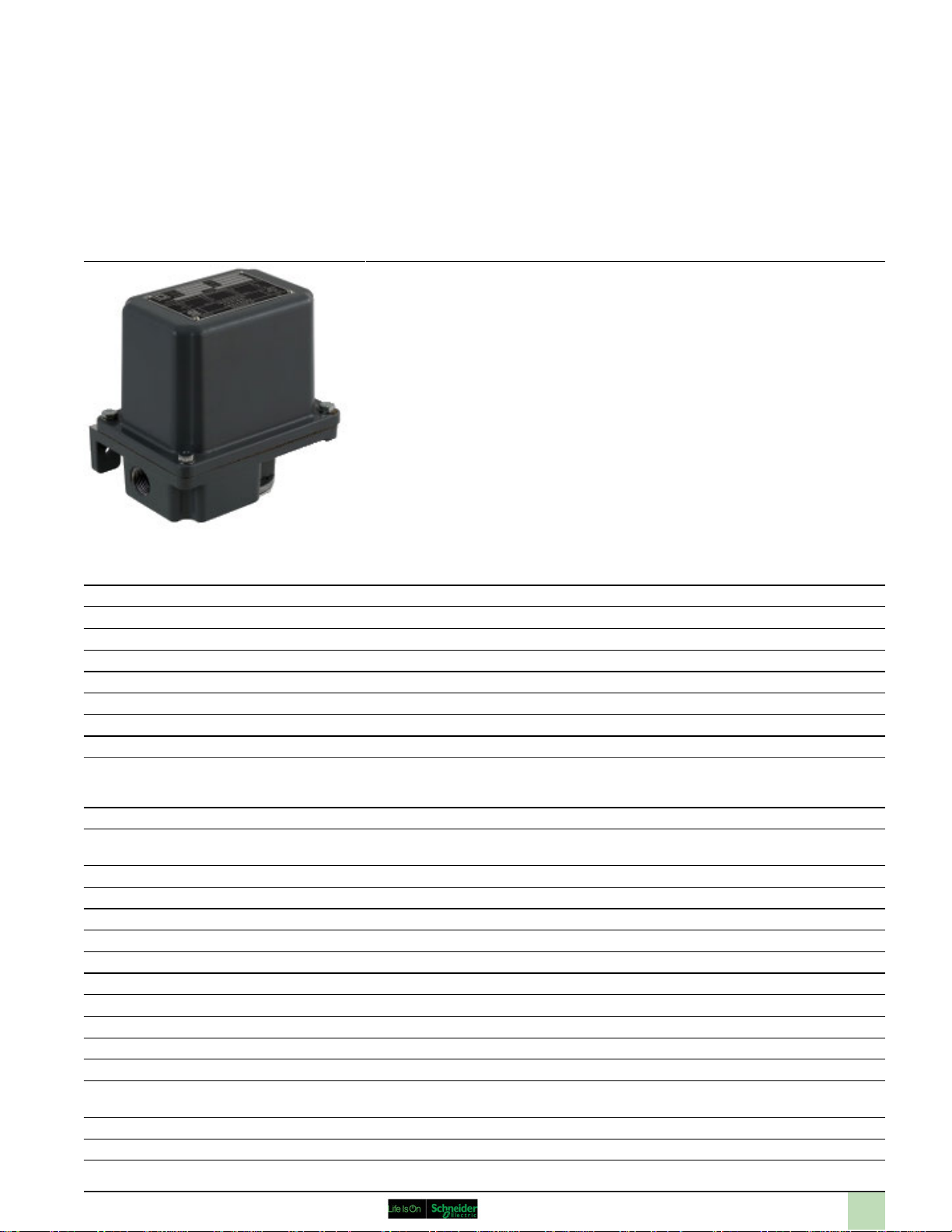

Product data sheet
Characteristics
9013GHW5J65
pump or compressor switch 9013GH - adjustable
diff. - 215-250 psi
Main
Range of product Square D Pumptrol
Pressure sensor name 9013GH
Pressure sensor size 250 psi (30...190 psi)
Value of setting 215...250 psi
Electrical circuit type Power circuit
Product specific application Control electrically driven water pumps and air compressors
Quantity per set 1
Type of packing Individual
Complementary
Pressure sensor type Electromechanical pressure switch
Controlled fluid Air (-22...257 °F)
Fresh water (-22...257 °F)
Adjustable range on rising pressure 80...250 psi
Approximate adjustable differential 40...60 psi
Destruction pressure 250 psi
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Adjustable differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Cable entry number 3 knock-outs for 1/2" conduit UL 508
Electrical connection Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type 0.25 inch NPT external conforming to UL 508
Short-circuit protection 20 A by cartridge fuse, type gG
Materials in contact with fluid Zinc plated steel or equivalent flange
Nov 21, 2017
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Nitrile (Buna-N) or equivalent rubber diaphragm
Material Cast aluminium enclosure
Operating position Any position
Motor power kW 1.5 kW (2 hp) at 115 V AC, 1 phase
Electrical durability 100000 cycles at 10 cyc/mn
Mechanical durability 300000 cycles
Terminal block type 4 terminals
Operating rate 10 cyc/mn
[Ui] rated insulation voltage 575 V conforming to UL 508
Product weight 2.25 lb(US)
Repeat accuracy +/- 3 %
Terminals description ISO n°1 L1-T1
Width 7.13 in
Height 8.46 in
Depth 5.38 in
Factory modification -
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
0.75 kW (1 hp) at 115 V DC
0.75 kW (1 hp) at 230 V DC
3.75 kW (5 hp) at 230 V AC, 3 phases
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 460 V AC, 3 phases
3.7 kW (5 hp) at 575 V AC, 1 phase
3.7 kW (5 hp) at 575 V AC, 3 phases
L2-T2
Environment
Standards CE
Ambient air temperature for operation -33...257 °C
Ambient air temperature for storage -33...257 °C
Protective treatment None
NEMA degree of protection NEMA 4 conforming to UL 50
IP degree of protection IP20 conforming to IEC 60529
Product certifications CSA file LR25490
UL 508
NSF ANSI 372
UL listed file E12158
Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Product environmental profile Available
Product environmental
Product end of life instructions Available
End of life manual
Contractual warranty
Warranty period 18 months
