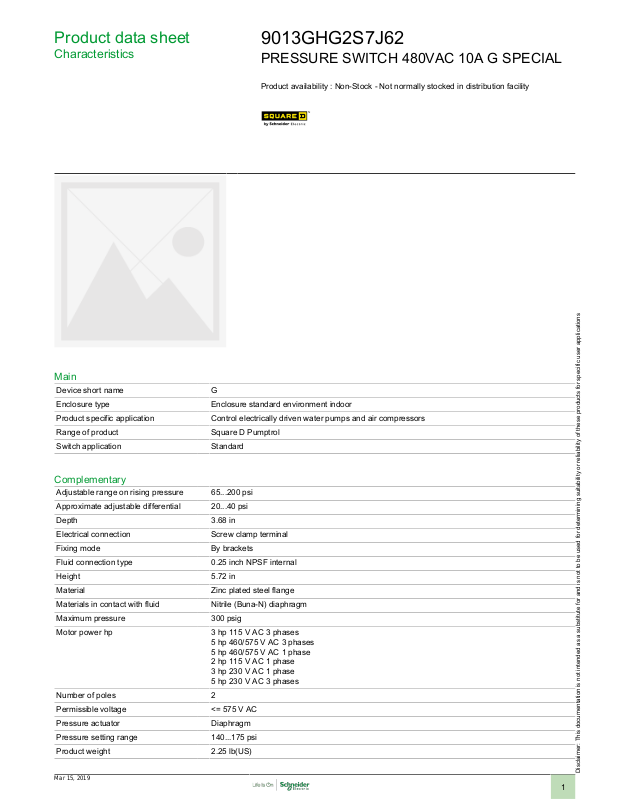

Product data sheet
Characteristics
9013GHG2S7J62
PRESSURE SWITCH 480VAC 10A G SPECIAL
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Device short name G
Enclosure type Enclosure standard environment indoor
Product specific application Control electrically driven water pumps and air compressors
Range of product Square D Pumptrol
Switch application Standard
Complementary
Adjustable range on rising pressure 65...200 psi
Approximate adjustable differential 20...40 psi
Depth 3.68 in
Electrical connection Screw clamp terminal
Fixing mode By brackets
Fluid connection type 0.25 inch NPSF internal
Height 5.72 in
Material Zinc plated steel flange
Materials in contact with fluid Nitrile (Buna-N) diaphragm
Maximum pressure 300 psig
Motor power hp 3 hp 115 V AC 3 phases
Number of poles 2
Permissible voltage <= 575 V AC
Pressure actuator Diaphragm
Pressure setting range 140...175 psi
Product weight 2.25 lb(US)
5 hp 460/575 V AC 3 phases
5 hp 460/575 V AC 1 phase
2 hp 115 V AC 1 phase
3 hp 230 V AC 1 phase
5 hp 230 V AC 3 phases
Mar 15, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Range on decreasing pressure 40...170 psi
Switch function DPST
Width 3.44 in
Environment
NEMA degree of protection NEMA 1
Product certifications UL listed file E12158 CCN NKPZ
CSA file LR25490
Ordering and shipping details
Category 21536 - 9013 G COMMERCIAL PRESSURE SWITCH
Discount Schedule CP7G
GTIN 00785901066248
Nbr. of units in pkg. 1
Package weight(Lbs) 2
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference contains SVHC above the threshold - Go to CaP for more details
Go to CaP for more details
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and
- - - - - - - Substance 2 Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
- - - - - - - More information For more information go to www.p65warnings.ca.gov
reproductive harm.
Contractual warranty
Warranty period 18 months
