Product data sheet
Characteristics

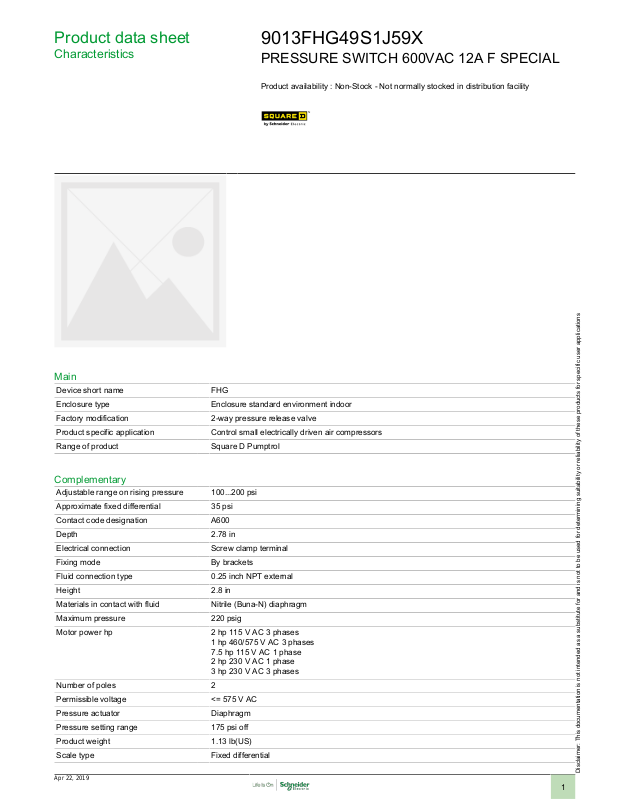

9013FHG49S1J59X
PRESSURE SWITCH 600VAC 12A F SPECIAL
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Device short name FHG
Enclosure type Enclosure standard environment indoor
Factory modification 2-way pressure release valve
Product specific application Control small electrically driven air compressors
Range of product Square D Pumptrol
Complementary
Adjustable range on rising pressure 100...200 psi
Approximate fixed differential 35 psi
Contact code designation A600
Depth 2.78 in
Electrical connection Screw clamp terminal
Fixing mode By brackets
Fluid connection type 0.25 inch NPT external
Height 2.8 in
Materials in contact with fluid Nitrile (Buna-N) diaphragm
Maximum pressure 220 psig
Motor power hp 2 hp 115 V AC 3 phases
1 hp 460/575 V AC 3 phases
7.5 hp 115 V AC 1 phase
2 hp 230 V AC 1 phase
3 hp 230 V AC 3 phases
Number of poles 2
Permissible voltage <= 575 V AC
Pressure actuator Diaphragm
Pressure setting range 175 psi off
Product weight 1.13 lb(US)
Scale type Fixed differential
Apr 22, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Switch function DPST
Width 3.76 in
Environment
NEMA degree of protection NEMA 1
Product certifications UL listed file E12158 CCN NKPZ
CSA LR25490 class 3211 06
Ordering and shipping details
Category 21533 - 9013 FHG (INDIVIDUAL-DISCOUNT CP7I)
Discount Schedule CP7I
GTIN 00785901051213
Nbr. of units in pkg. 1
Package weight(Lbs) 1
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Lead and lead compounds, which is known to the State of California to cause cancer and birth
- - - - - - - More information For more information go to www.p65warnings.ca.gov
defects or other reproductive harm.
