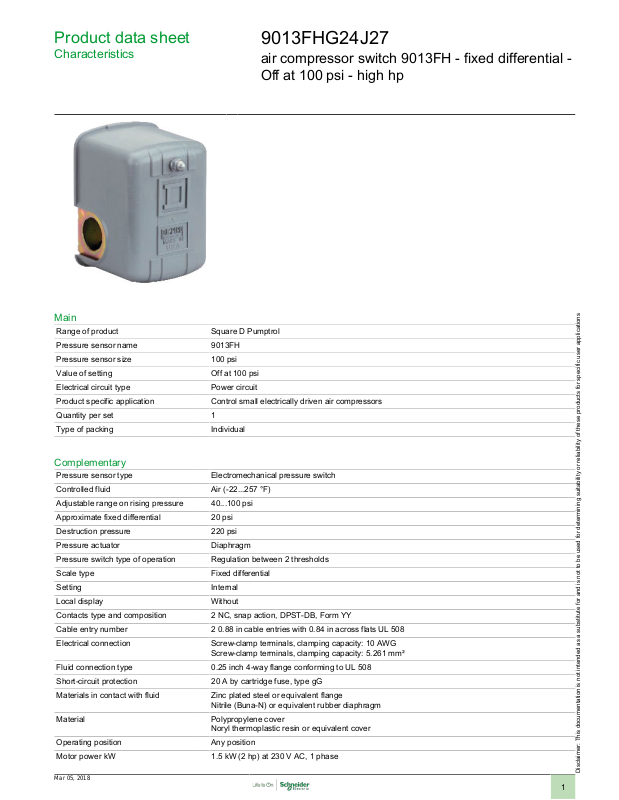

Product data sheet
Characteristics
9013FHG24J27
air compressor switch 9013FH - fixed differential Off at 100 psi - high hp
Main
Range of product Square D Pumptrol
Pressure sensor name 9013FH
Pressure sensor size 100 psi
Value of setting Off at 100 psi
Electrical circuit type Power circuit
Product specific application Control small electrically driven air compressors
Quantity per set 1
Type of packing Individual
Complementary
Pressure sensor type Electromechanical pressure switch
Controlled fluid Air (-22...257 °F)
Adjustable range on rising pressure 40...100 psi
Approximate fixed differential 20 psi
Destruction pressure 220 psi
Pressure actuator Diaphragm
Pressure switch type of operation Regulation between 2 thresholds
Scale type Fixed differential
Setting Internal
Local display Without
Contacts type and composition 2 NC, snap action, DPST-DB, Form YY
Cable entry number 2 0.88 in cable entries with 0.84 in across flats UL 508
Electrical connection Screw-clamp terminals, clamping capacity: 10 AWG
Screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type 0.25 inch 4-way flange conforming to UL 508
Short-circuit protection 20 A by cartridge fuse, type gG
Materials in contact with fluid Zinc plated steel or equivalent flange
Nitrile (Buna-N) or equivalent rubber diaphragm
Material Polypropylene cover
Noryl thermoplastic resin or equivalent cover
Operating position Any position
Motor power kW 1.5 kW (2 hp) at 230 V AC, 1 phase
Mar 05, 2018
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
1.1 kW (1.5 hp) at 115 V AC, 1 phase
1.5 kW (2 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 575 V AC, 3 phases
Electrical durability 100000 cycles at 10 cyc/mn
Mechanical durability 300000 cycles
Terminal block type 4 terminals
Operating rate 10 cyc/mn
[Ui] rated insulation voltage 575 V conforming to UL 508
Product weight 1 lb(US)
Repeat accuracy +/- 3 %
Terminals description ISO n°1 L1-T1
Width 2.78 in
Height 4.45 in
Depth 3.76 in
L2-T2
Environment
Standards CE
Ambient air temperature for operation -33...257 °F
Ambient air temperature for storage -33...257 °F
Protective treatment None
NEMA degree of protection NEMA 1 conforming to UL 50
IP degree of protection IP20 conforming to IEC 60529
Product certifications UL listed file E12158
UL 508
CSA file LR25490
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
Contractual warranty
Warranty period 18 months
