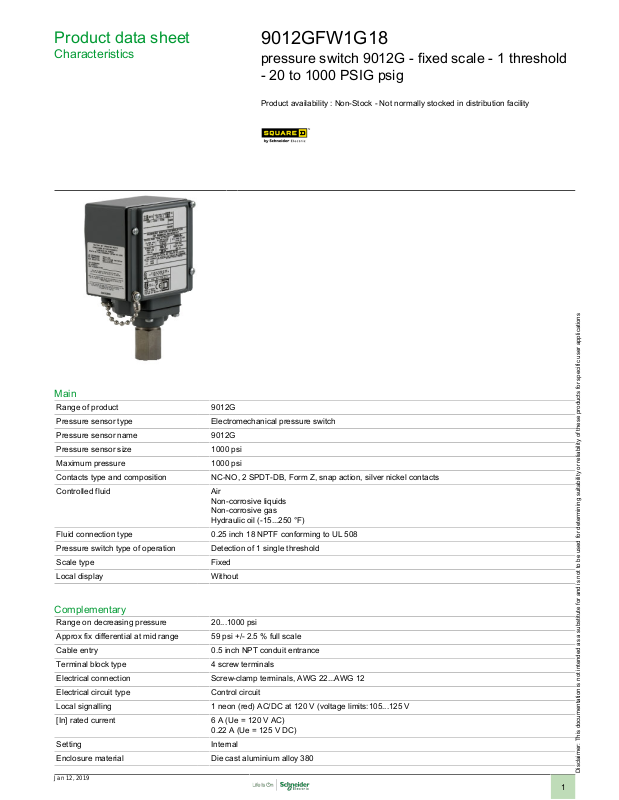

Product data sheet
Characteristics
9012GFW1G18
pressure switch 9012G - fixed scale - 1 threshold
- 20 to 1000 PSIG psig
Product availability : Non-Stock - Not normally stocked in distribution facility
Main
Range of product 9012G
Pressure sensor type Electromechanical pressure switch
Pressure sensor name 9012G
Pressure sensor size 1000 psi
Maximum pressure 1000 psi
Contacts type and composition NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
Controlled fluid Air
Non-corrosive liquids
Non-corrosive gas
Hydraulic oil (-15...250 °F)
Fluid connection type 0.25 inch 18 NPTF conforming to UL 508
Pressure switch type of operation Detection of 1 single threshold
Scale type Fixed
Local display Without
Complementary
Range on decreasing pressure 20...1000 psi
Approx fix differential at mid range 59 psi +/- 2.5 % full scale
Cable entry 0.5 inch NPT conduit entrance
Terminal block type 4 screw terminals
Electrical connection Screw-clamp terminals, AWG 22...AWG 12
Electrical circuit type Control circuit
Local signalling 1 neon (red) AC/DC at 120 V (voltage limits:105...125 V
[In] rated current 6 A (Ue = 120 V AC)
0.22 A (Ue = 125 V DC)
Setting Internal
Enclosure material Die cast aluminium alloy 380
Jan 12, 2019
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
1
Pressure actuator Piston
Height 6.24 in
Depth 4.56 in
Width 5.05 in
Operating position Any position
Materials in contact with fluid Teflon
Short-circuit protection 10 A by gL (cartridge) overload and short-circuit protection
Operating rate <= 120 cyc/mn
Mechanical durability 3000000 cycles
Repeat accuracy 4 %
Product weight 3 lb(US)
Viton fluorocarbon
440 stainless steel
303 stainless steel
Environment
Vibration resistance 2 gn conforming to IEC 68-2-6 (f = 40...150 Hz)
Shock resistance 50 gn conforming to IEC 58-2-27
Standards CE
Product certifications CE
NEMA degree of protection NEMA 4/4X/13 conforming to UL 50
Ambient air temperature for operation -10...185 °F
UL 508
CSA C22.2 No 14
CSA LR25490 class 3211 03
UL listed file E12158 CCN NKPZ
Ordering and shipping details
Category 21522 - 9012 G INDUSTRIAL PRESSURE SWITCHES
Discount Schedule CP7G
GTIN 00785901024927
Nbr. of units in pkg. 1
Package weight(Lbs) 3
Returnability N
Country of origin MX
Offer Sustainability
RoHS (date code: YYWW) Will not be compliant
Will not be compliant
REACh Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile Available
Product end of life instructions Available
California proposition 65 WARNING: This product can expose you to chemicals including:
- - - - - - - Substance 1 Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and
- - - - - - - Substance 2 Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
- - - - - - - More information For more information go to www.p65warnings.ca.gov
reproductive harm.
Contractual warranty
Warranty period 18 months
